TOOL-FLO Grooving Insert: FLG3P GP50C, Solid Carbide Qty 5 563M120PLN4C

Tool-Flo
1 Lot of 5 Inserts

MSRP: $80.00

• Insert Style FLG
• Insert Size 3
• Insert Material Solid Carbide
• Manufacturer Grade GP50C
• Cutting Width (Decimal Inch) 0.0472
• Cutting Width (mm) 1.20
• Maximum Depth of Cut (Decimal Inch) 0.0748
• Maximum Depth of Cut (mm) 1.90
• Insert Holding Method Clamp
• Insert Hand Left Hand
• Maximum Depth Of Cut Range (Decimal Inch) 0.0000 to 0.0750
• Cutting Height (Decimal Inch) 0.3440
• Corner Radius (Decimal Inch) 0.0050 - 0.0100
• Maximum Depth Of Cut Range (mm) 0.00 to 2.00
• Multi-use Tool No
• Series Flo-Lock
• Coating Process PVD
• Iso Code FLG-3M120L-CB
• Maximum Corner Radius (Decimal Inch) 0.0100
• Minimum Corner Radius (Decimal Inch) 0.0050
• Manufacturers Catalog Number FLG-3M120L-CB
• Insert Thickness (Decimal Inch) 0.1950
• Chip Breaker P
• Full Radius No
• Gage Diameter (Decimal Inch) 0.3750
• Coating/Finish Titanium Nitride
• Single Or Double End Double

These items are new and in the original sealed package. SOLD AS IS.

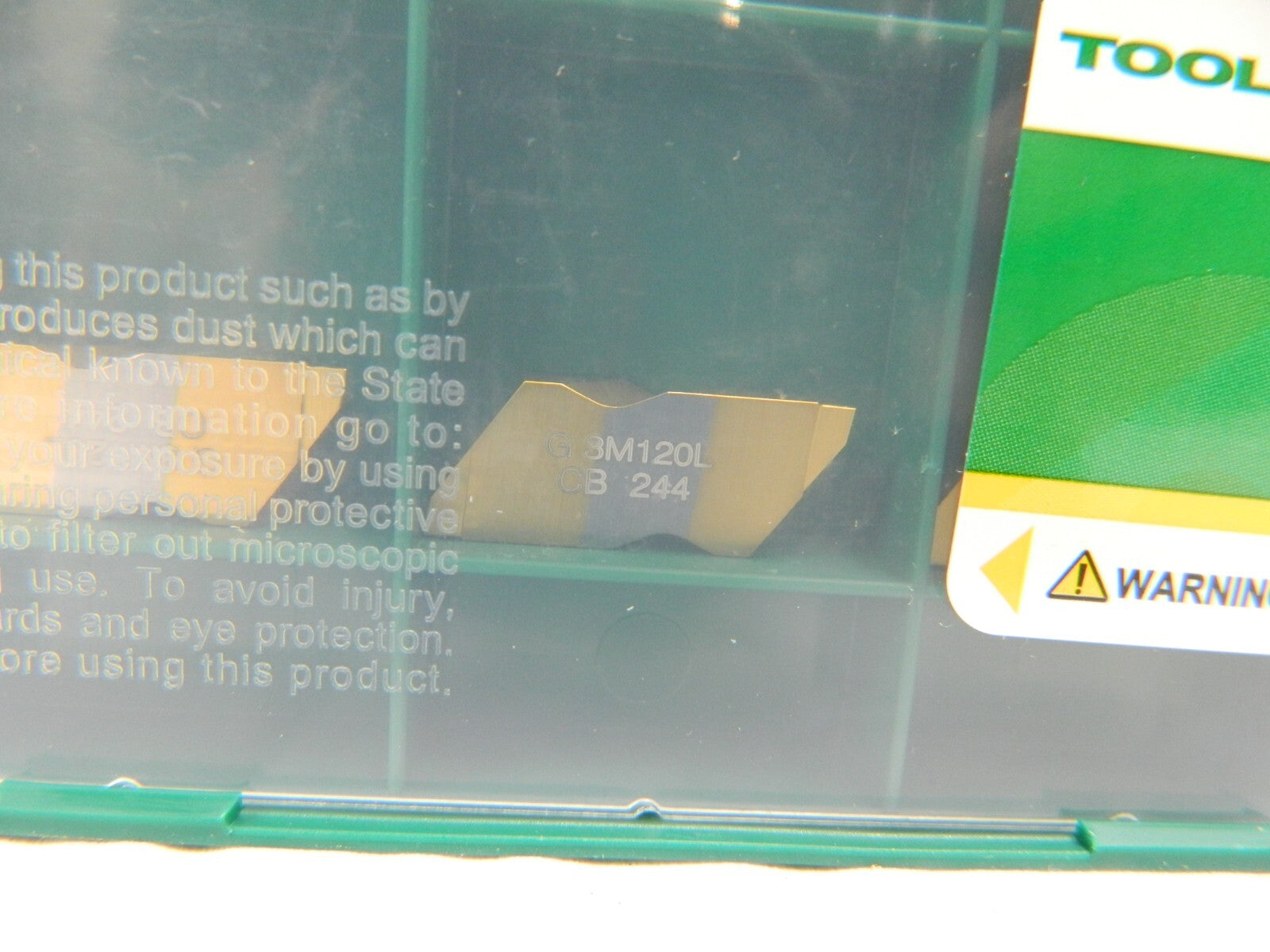

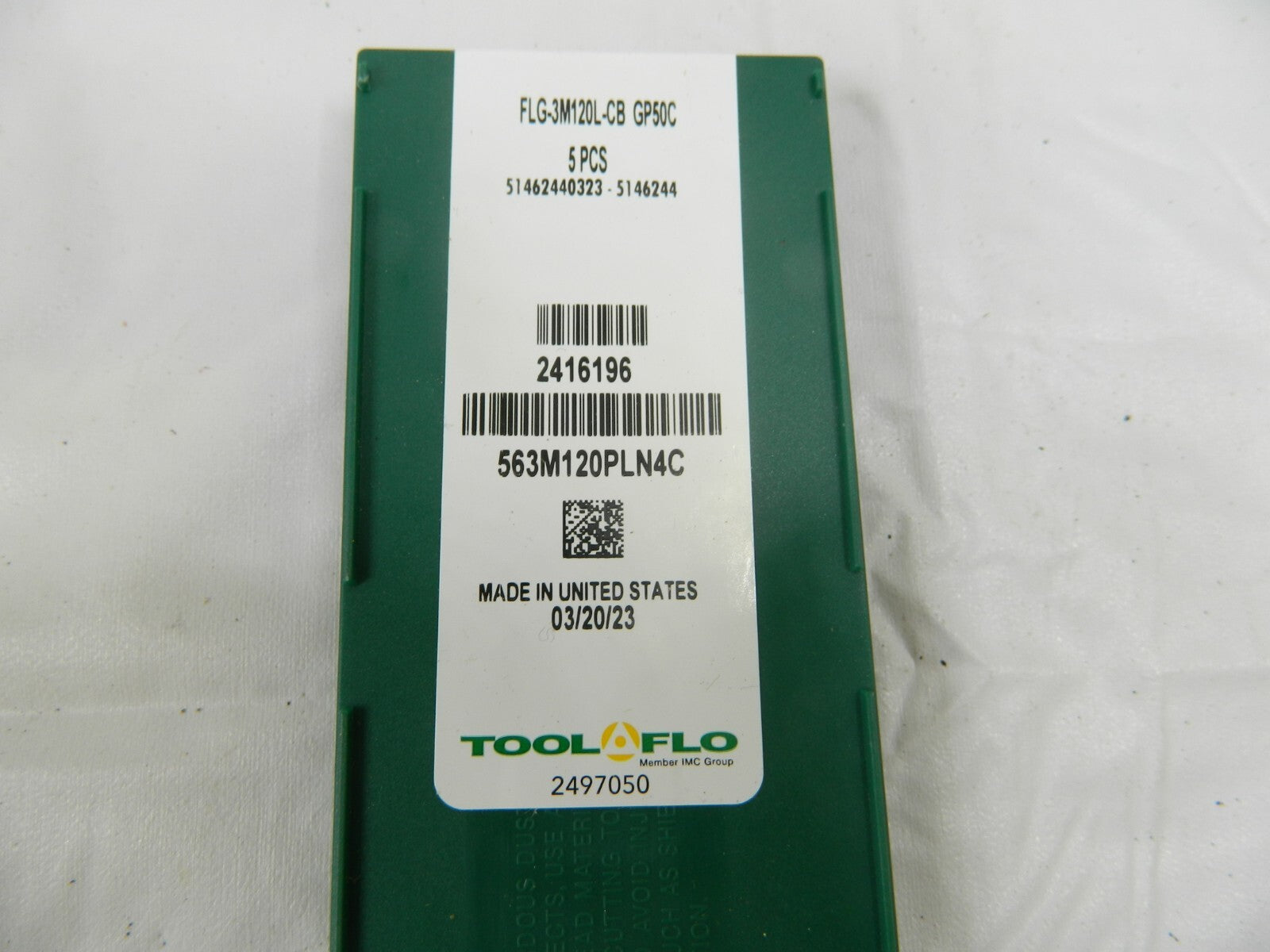

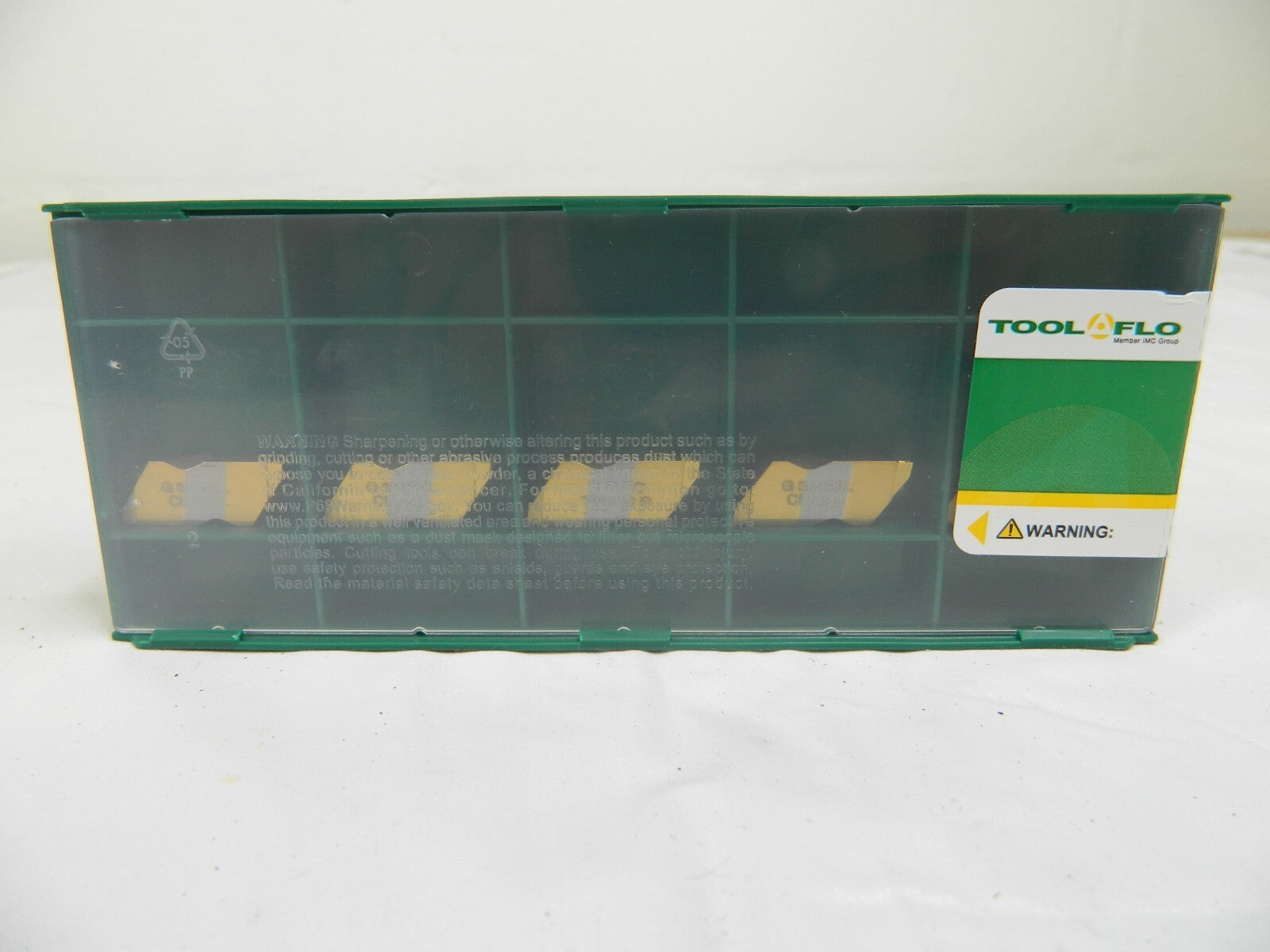

Please review photos, comes as shown.
