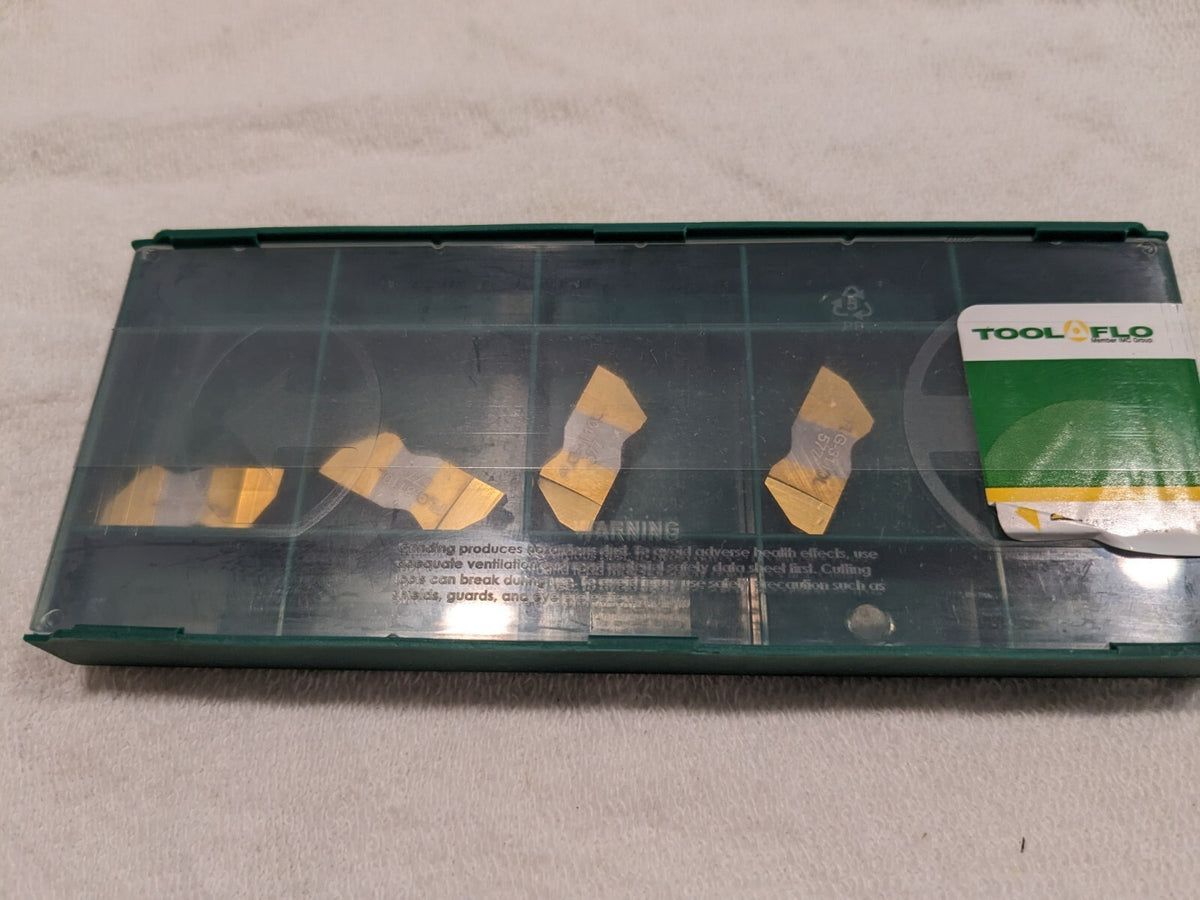

TOOL-FLO Grooving Insert 5pc: FLG3110 GP50, Solid Carbide 563810LN4C

TOOL-FLO Grooving Insert 5pc: FLG3110 GP50, Solid Carbide 563810LN4C

MSRP: $100

•

• Insert Style FLG
• Insert Size Code 3110
• Cutting Width (Decimal Inch) 0.11
• Cutting Width (mm) 2.79
• Insert Hand Left Hand
• Maximum Depth of Cut (Decimal Inch) 0.1799
• Maximum Depth of Cut (mm) 4.57
• Insert Material Carbide
• Manufacturer Grade GP50
• Full Radius No
• Corner Radius (Decimal Inch) 0.0050 - 0.0100
• Rake Positive
• Insert Size 3110
• Material Grade C5; C6
• Maximum Depth Of Cut Range (Decimal Inch) 0.1500 to 0.2000
• Cutting Height (Decimal Inch) 0.3440
• Maximum Depth Of Cut Range (mm) 4.00 to 5.00
• Lead Angle 3
• Multi-use Tool No
• Series Flo-Lock
• Coating Process PVD
• Rake Angle 55
• Secondary Workpiece Material Stainless Steel
• Iso Code FLG-3110L
• UNSPSC Code 23242105
• Gage Diameter (Decimal Inch) 0.3750
• Gage Diameter (Inch) 3/8
• Overall Width (Decimal Inch - 4 Decimals) 0.195
• Coating/Finish TiN

(Description).

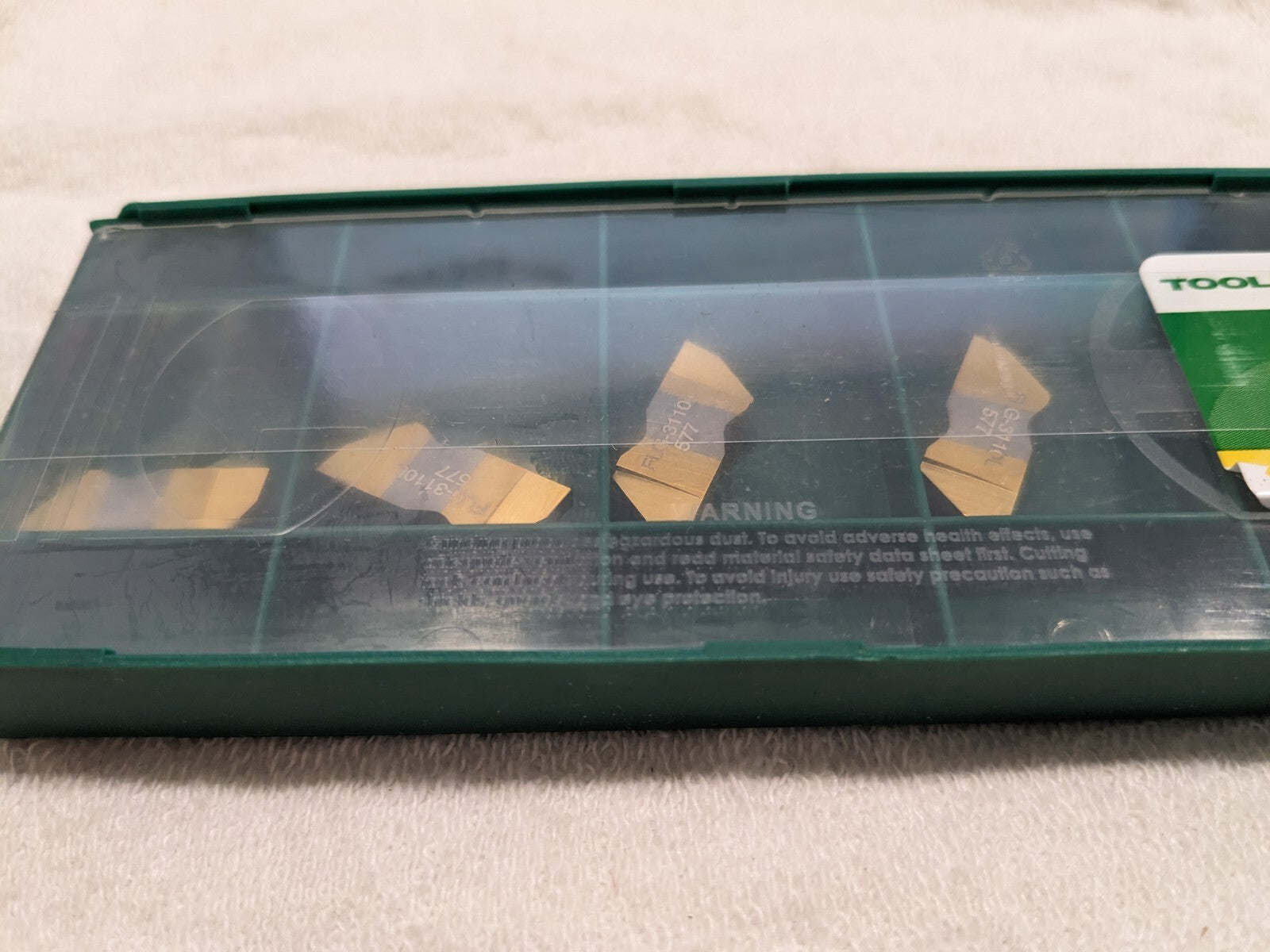

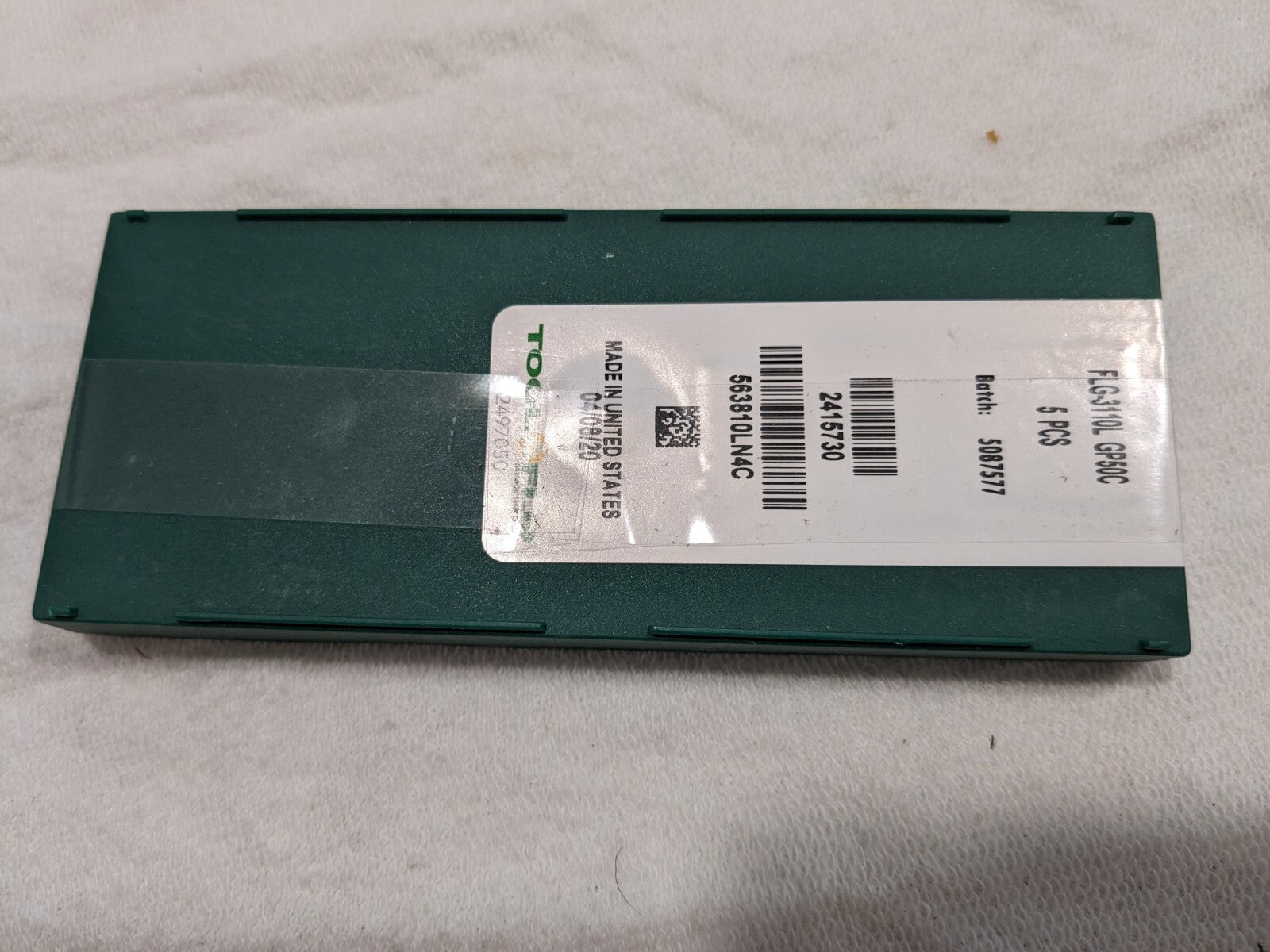

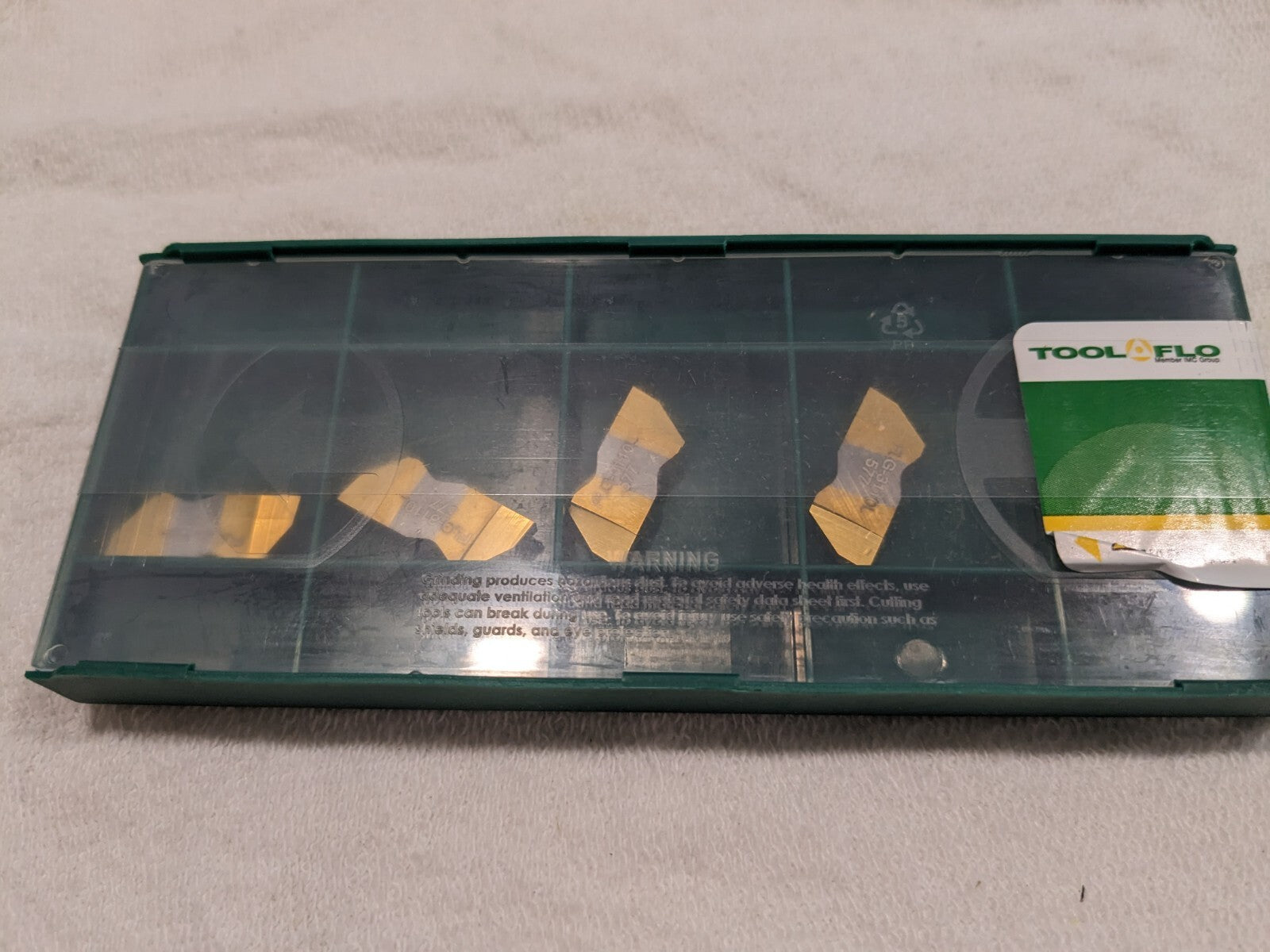

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
