Tool-Flo Carbide Grooving Inserts QTY5 FLG-4125R GP50 564825RN4C

Tool-Flo
Carbide Grooving Inserts

MSRP: $360

• Insert Style FLG
• Insert Size Code 4125
• Cutting Width (Decimal Inch) 0.1250
• Cutting Width (mm) 3.18
• Insert Hand Right Hand
• Maximum Depth of Cut (Decimal Inch) 0.2500
• Maximum Depth of Cut (mm) 6.35
• Insert Material Carbide
• Manufacturer Grade GP50
• Full Radius No
• Corner Radius (Decimal Inch) 0.0050 - 0.0100
• Rake Positive
• Measurement Type Metric
• Insert Size 4125
• Material Grade C5; C6
• Cutting Width (Inch) 1/8
• Maximum Depth Of Cut Range (Decimal Inch) 0.2000 to 0.3000
• Cutting Height (Decimal Inch) 0.4530
• Maximum Depth Of Cut Range (mm) 5.00 to 10.00
• Lead Angle 3
• Multi-use Tool No
• Series Flo-Lock
• Coating Process PVD
• Rake Angle 55
• Secondary Workpiece Material Steel
• Iso Code FLG-4125R
• UNSPSC Code 23242105
• Gage Diameter (Decimal Inch) 0.3750
• Gage Diameter (Inch) 3/8
• Overall Width (Decimal Inch - 4 Decimals) 0.255
• Coating/Finish TiN

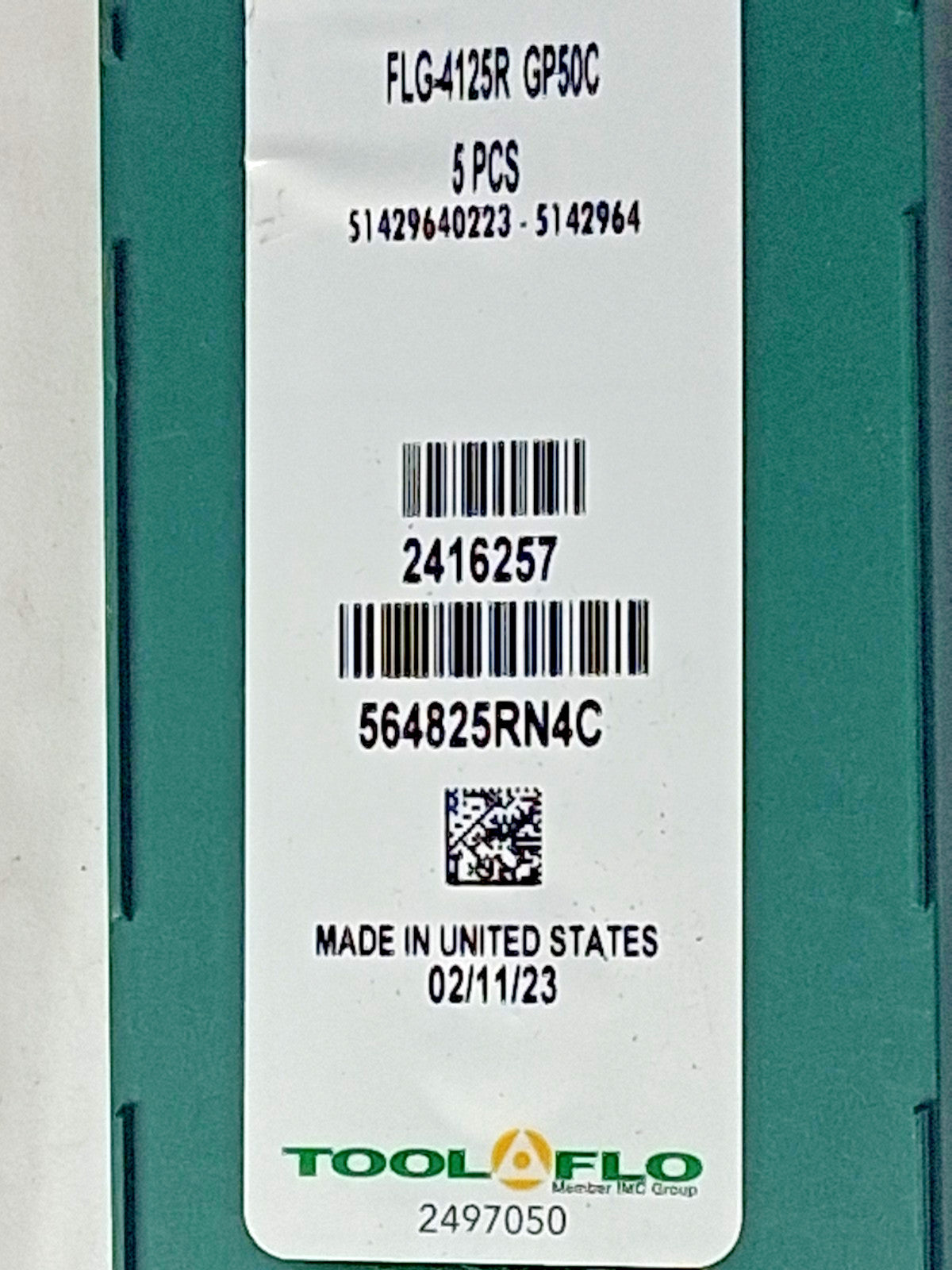

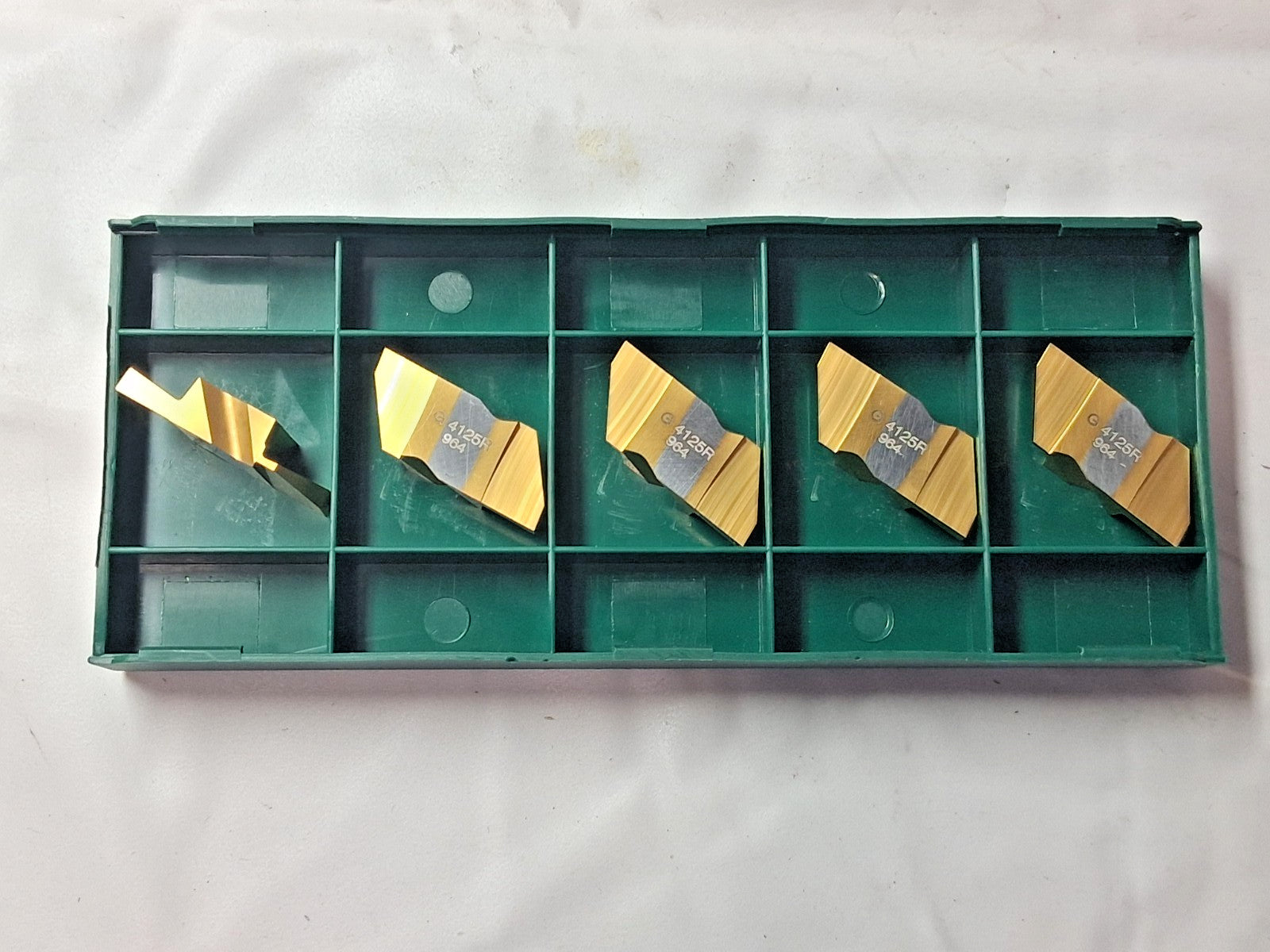

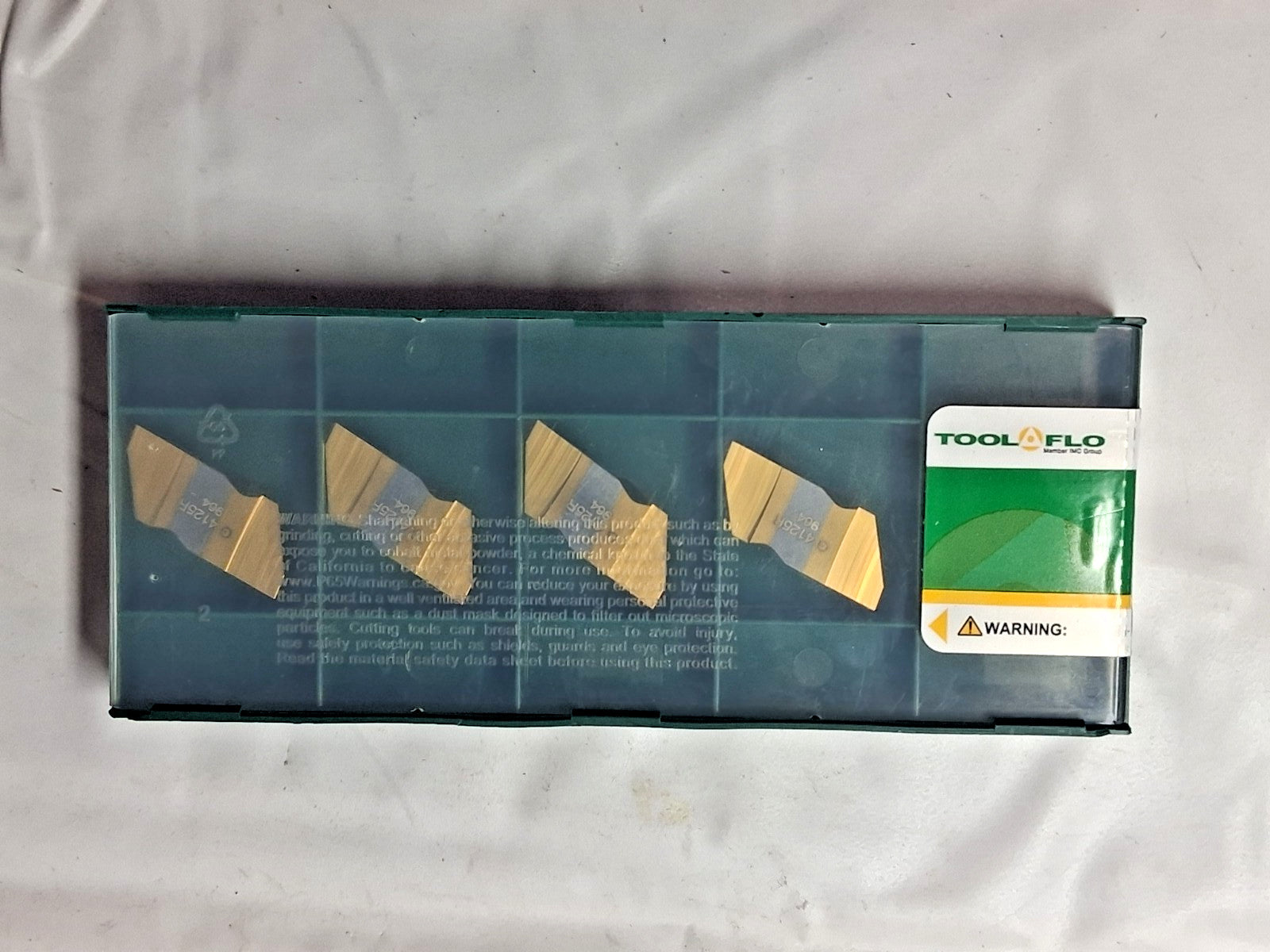

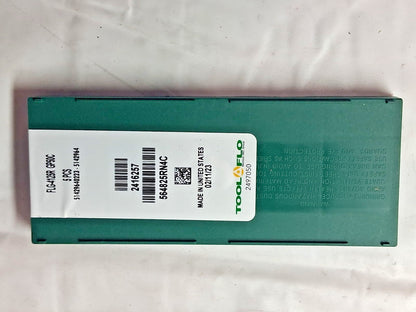

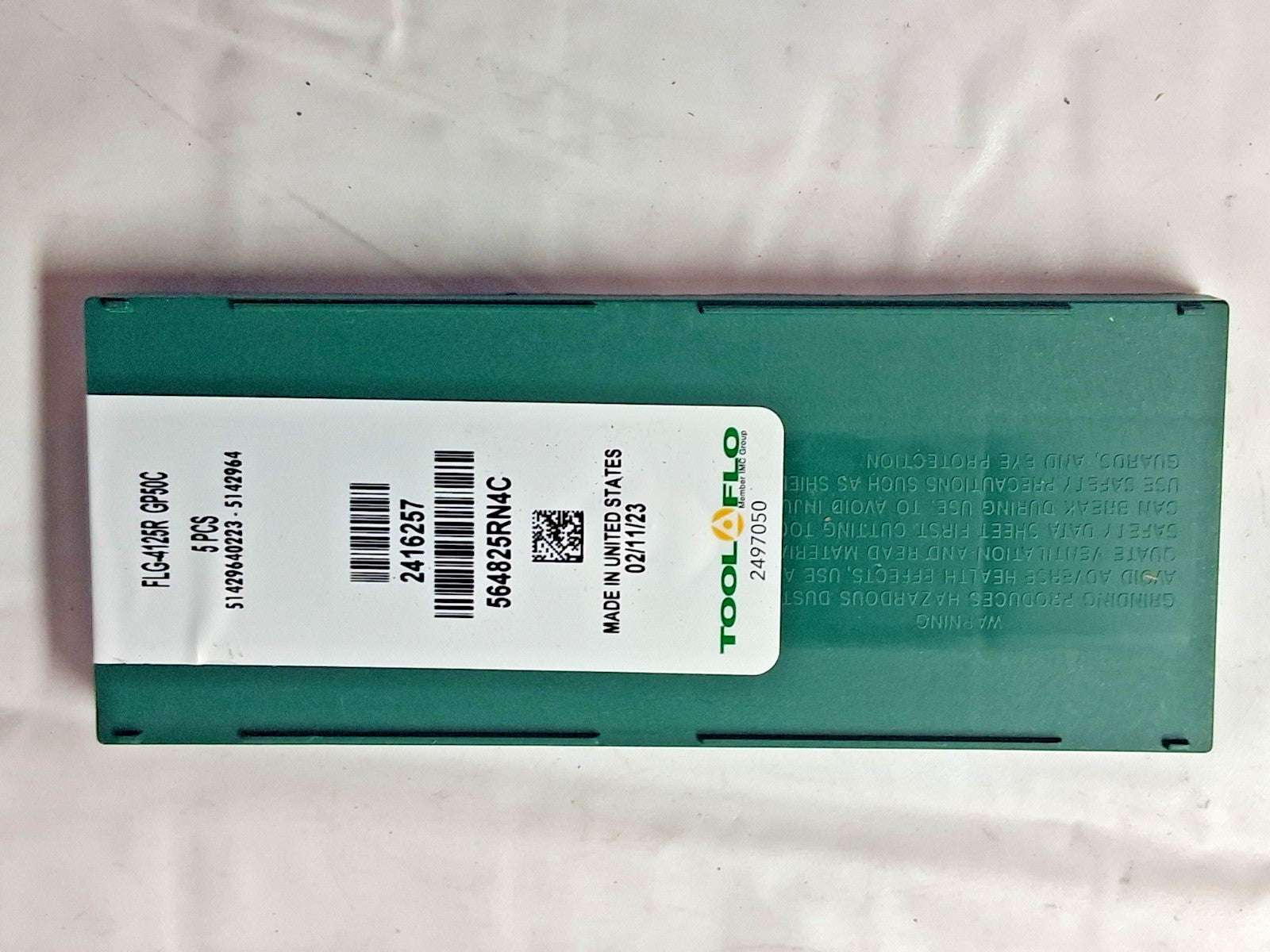

Please review photos, comes as shown.
