Tool-Flo Carbide Grooving Insert FLG2125 AT3 1/8" Cut Width Qty 10 562825RAT3

Tool-Flo
1 Lot of 10 Carbide Grooving Inserts

• Insert Style: FLG
• Insert Size: 2125
• Material: Carbide
• Cutting Width (mm) : 3.18
• Cutting Width (Inch) : 1/8
• Cutting Width (Decimal Inch) : 0.1250
• Maximum Depth of Cut (mm) : 2.79
• Maximum Depth of Cut (Decimal Inch) : 0.1098
• Material Grade: C3
• Manufacturer's Grade: AT3
• Coating: AlTiN
• Insert Hand: Right Hand
• Cutting Height (Decimal Inch) : 0.2190
• Lead Angle: 3
• Relief Angle: 55
• Insert Seat Size: 2
• Multi-Use Tool: No
• Minimum Corner Radius (Decimal Inch) : 0.0050
• Maximum Corner Radius (Decimal Inch) : 0.0100
• Corner Radius (Decimal Inch): 0.005-0.010
• Coating Process: PVD
• Series: Flo-Lock
• Overall Width (Decimal Inch): 0.1500

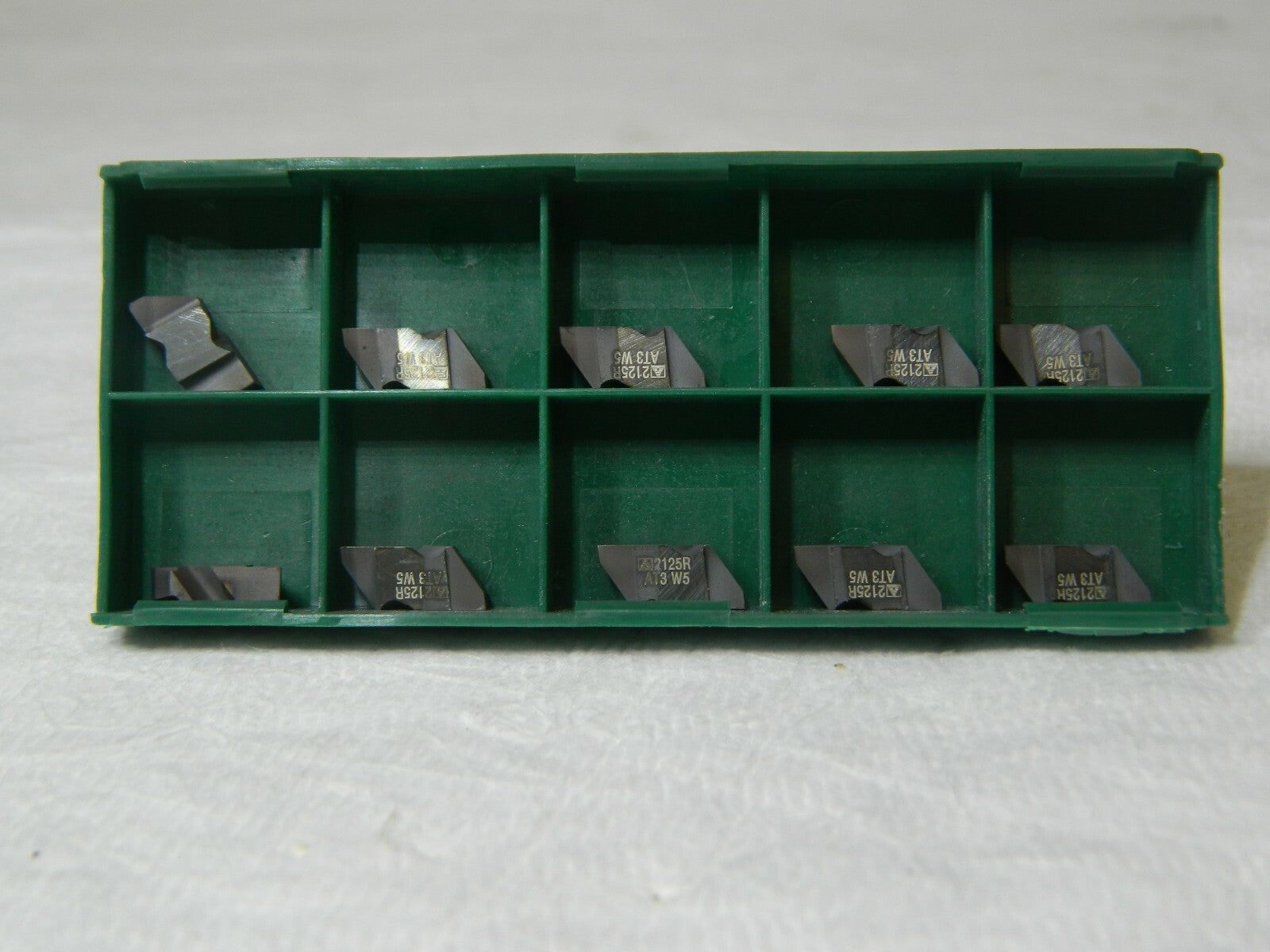

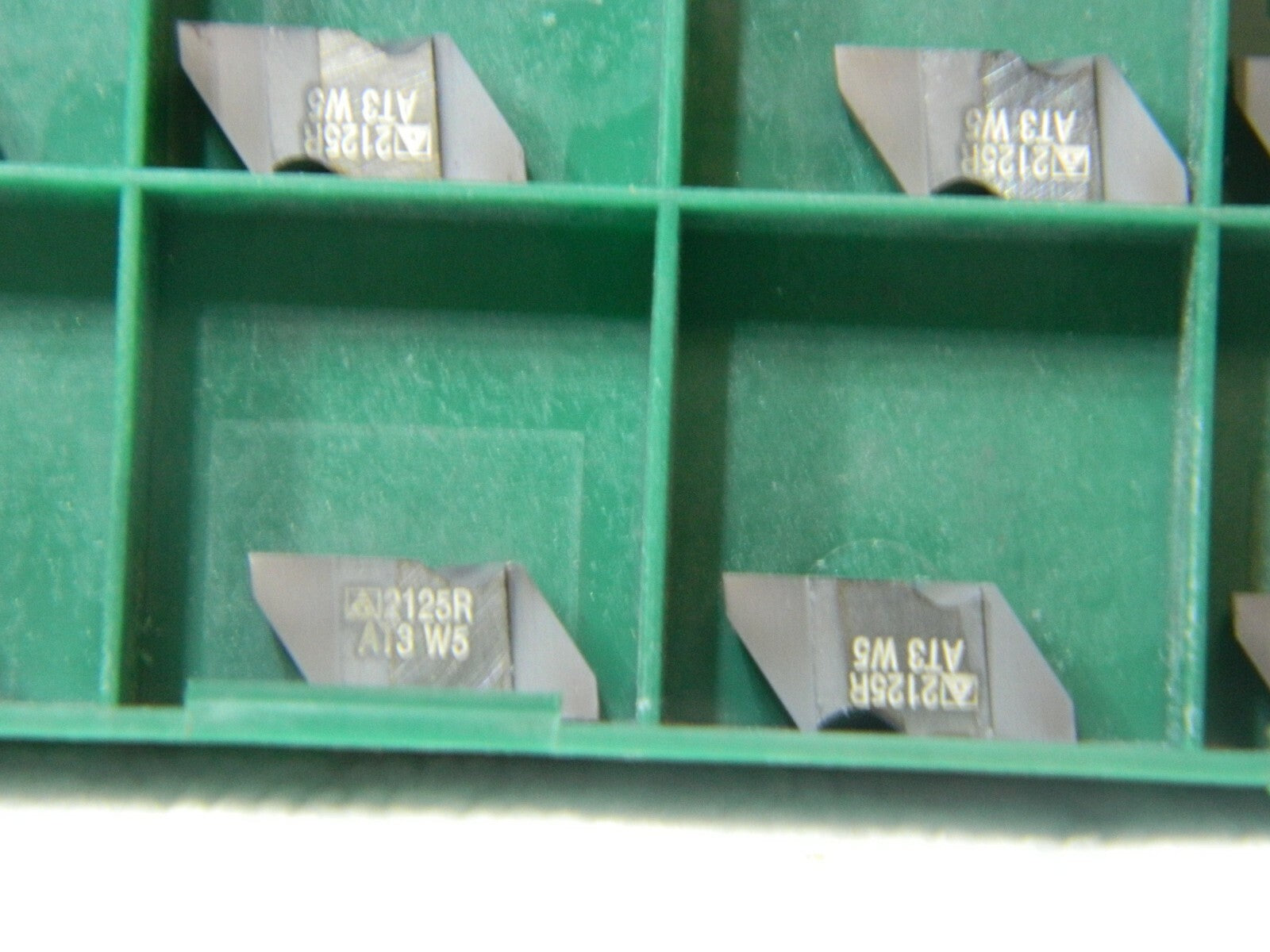

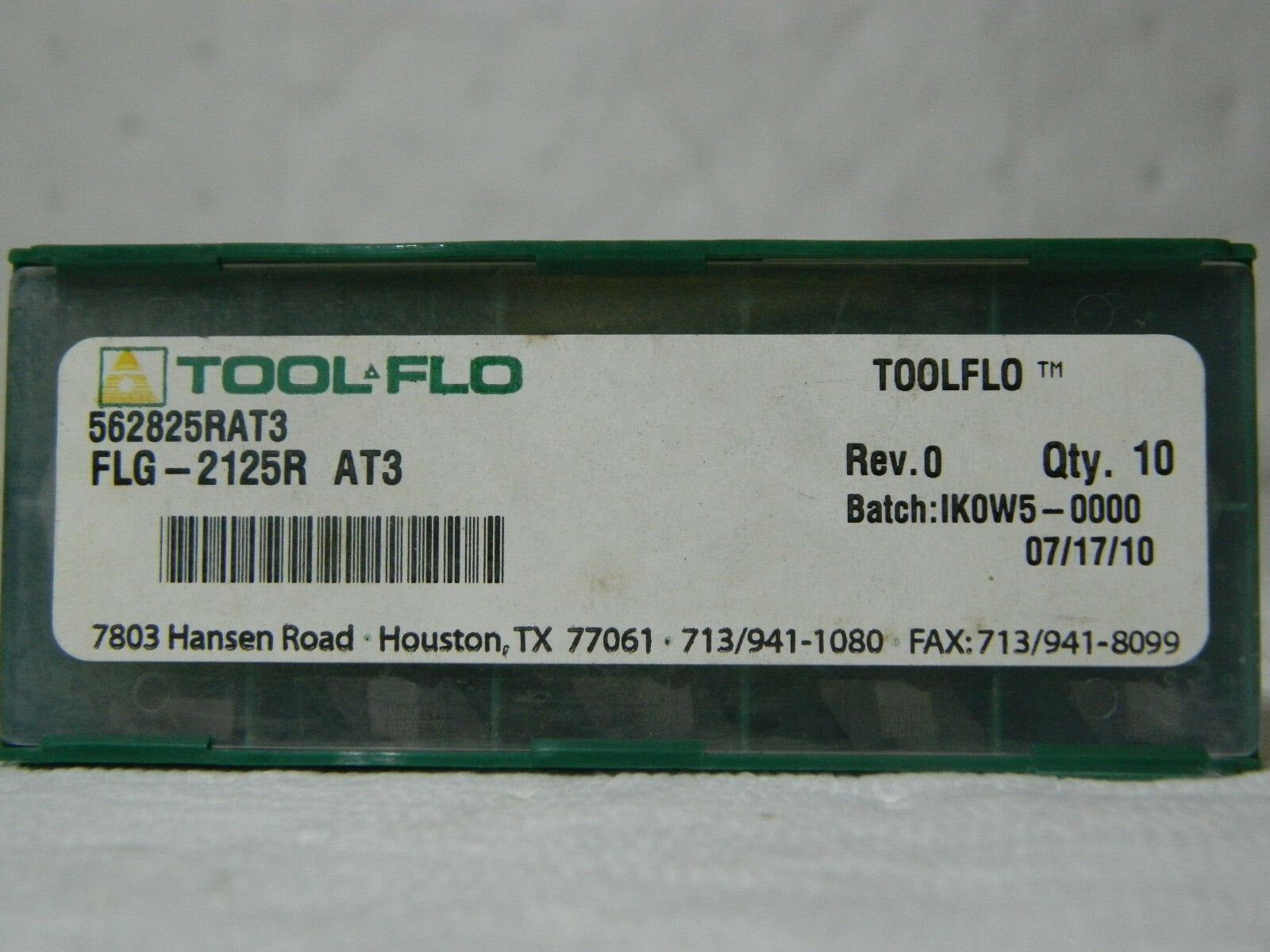

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
