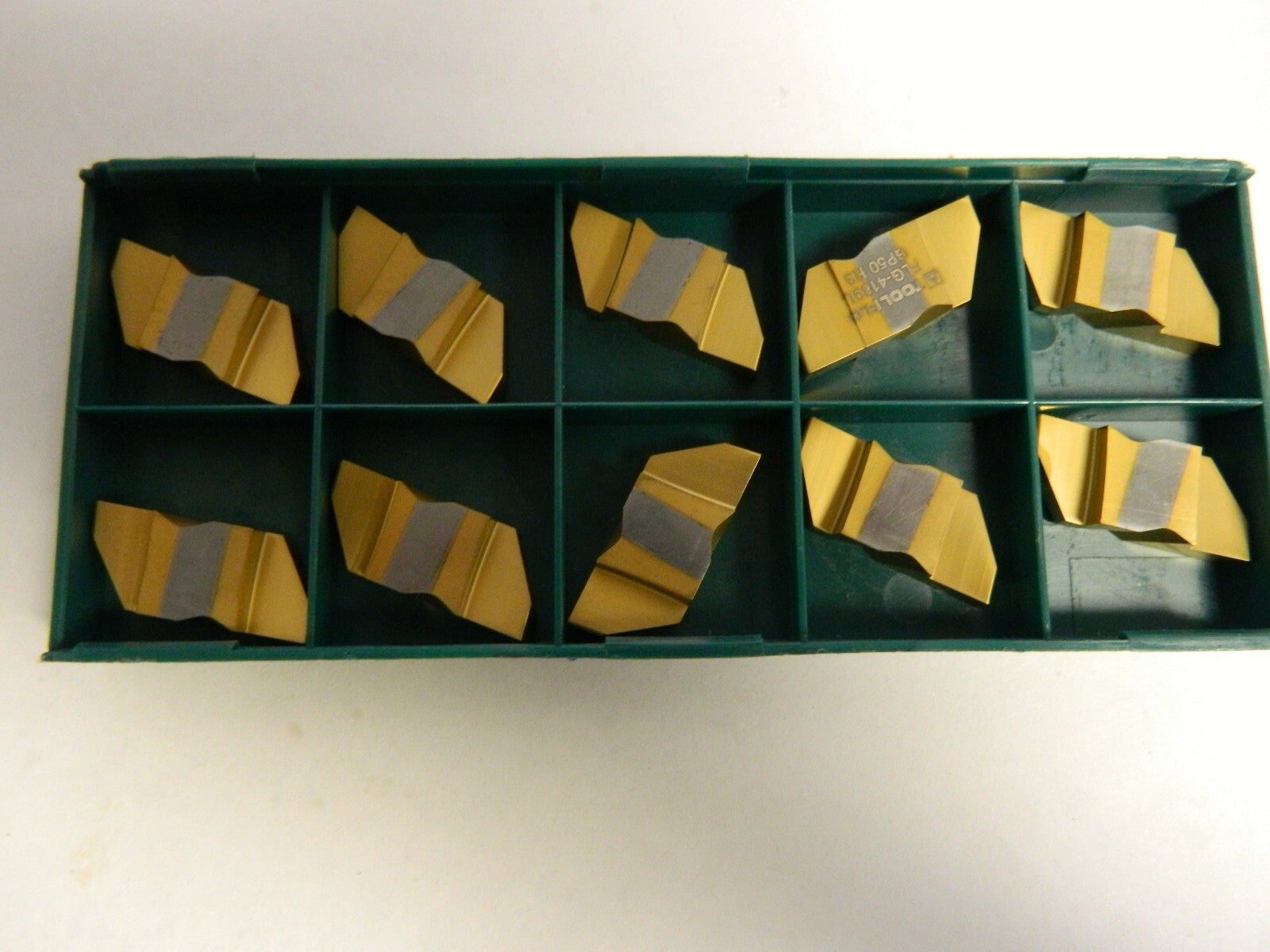

Tool-Flo 4189FLG Grade GP50 4.8mm CW Carbide Grooving Insert QTY 10 564889LN4C

Name: Tool-Flo 4189FLG Grade GP50 4.8mm CW Carbide Grooving Insert QTY 10 564889LN4C
Brand: Tool-Flo
SKU: Dec0820CM9038Chuck48
Price: 66.04 USD
Availability: InStock

$66.04 USD

~~$140.00 USD~~ $66.04 USD

Sale Sold out

Shipping calculated at checkout.

MSRP: $140.00

Model: 564889LN4C

Description:

Insert Style FLG

Insert Size 4189

Material Carbide

Cutting Width (mm) 4.80

Cutting Width (Decimal Inch) 0.1890

Maximum Depth of Cut (mm) 6.35

Maximum Depth of Cut (Decimal Inch) 0.2500

Material Grade C5/C6

Manufacturer's Grade GP50

Coating TiN

Insert Hand Left Hand

Cutting Height (Decimal Inch) 0.4530

Lead Angle 3

Relief Angle 55

Multi-Use Tool No

Minimum Corner Radius (Decimal Inch) 0.0200

Maximum Corner Radius (Decimal Inch) 0.0250

Corner Radius (Decimal Inch) 0.020-0.025

Coating Process PVD

Series Flo-Lock

Overall Width (Decimal Inch) 0.2550

This listing is for One Pack of 10 that is in the picture as well as described. Please ask any questions prior to buying!
