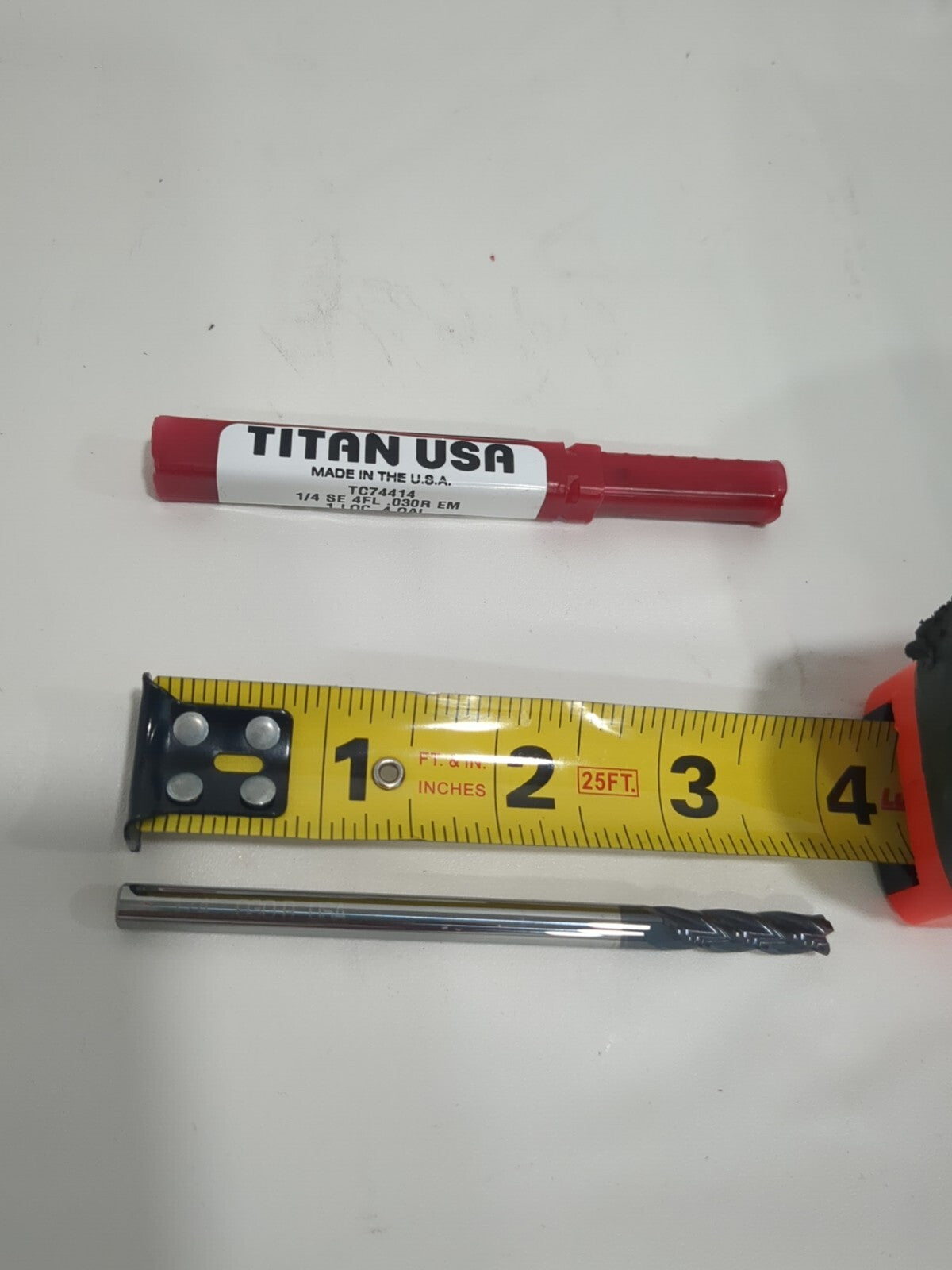

TITAN USA 2pk Corner Radius End Mill: 1/4" Dia 4FL solid carbide TC74414

TITAN USA 2pk Corner Radius End Mill: 1/4" Dia 4FL solid carbide TC74414

MSRP: $60

• Mill Diameter (Inch) 1/4
• Mill Diameter (Decimal Inch) 0.2500
• Number Of Flutes 4
• Length of Cut (Inch) 1
• Single Or Double End Single
• End Mill Material Solid Carbide
• Chipbreaker No
• Coating/Finish AlTiN
• Overall Length (Inch) 4
• Centercutting No
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0300
• Variable Index No
• Variable Helix No
• Cutting Direction Right Hand
• Coolant Through No
• Pitch Normal
• Overall Length (Decimal Inch) 4.0000
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 1.0000
• Length Type Long
• Flute Type Spiral
• Extended Reach No
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing & Finishing
• Shank Diameter (Decimal Inch) 0.2500
• Shank Diameter (Inch) 1/4
• Reach Length (Decimal Inch) 1.0000
• Reach Length (Inch) 1
• Corner Radius Tolerance -0.0010 to 0.0010 in
• Mill Diameter Tolerance -0.0020/0.0000 in
• Shank Diameter Tolerance h6
• Primary Workpiece Material Stainless Steel; Cast Iron; Superalloys & Titanium
• UNSPSC Code 27112803
• Primary Workpiece Material Code S; K; M
• Series TC
• Material Application High-Temperature Alloy; Ferrous Metal; Stainless Steel; Alloy Steel; Inconel; Titanium Alloy
• Coating Classification PVD
• For Use With. Toolholders
• Helix Style Medium

(Description).

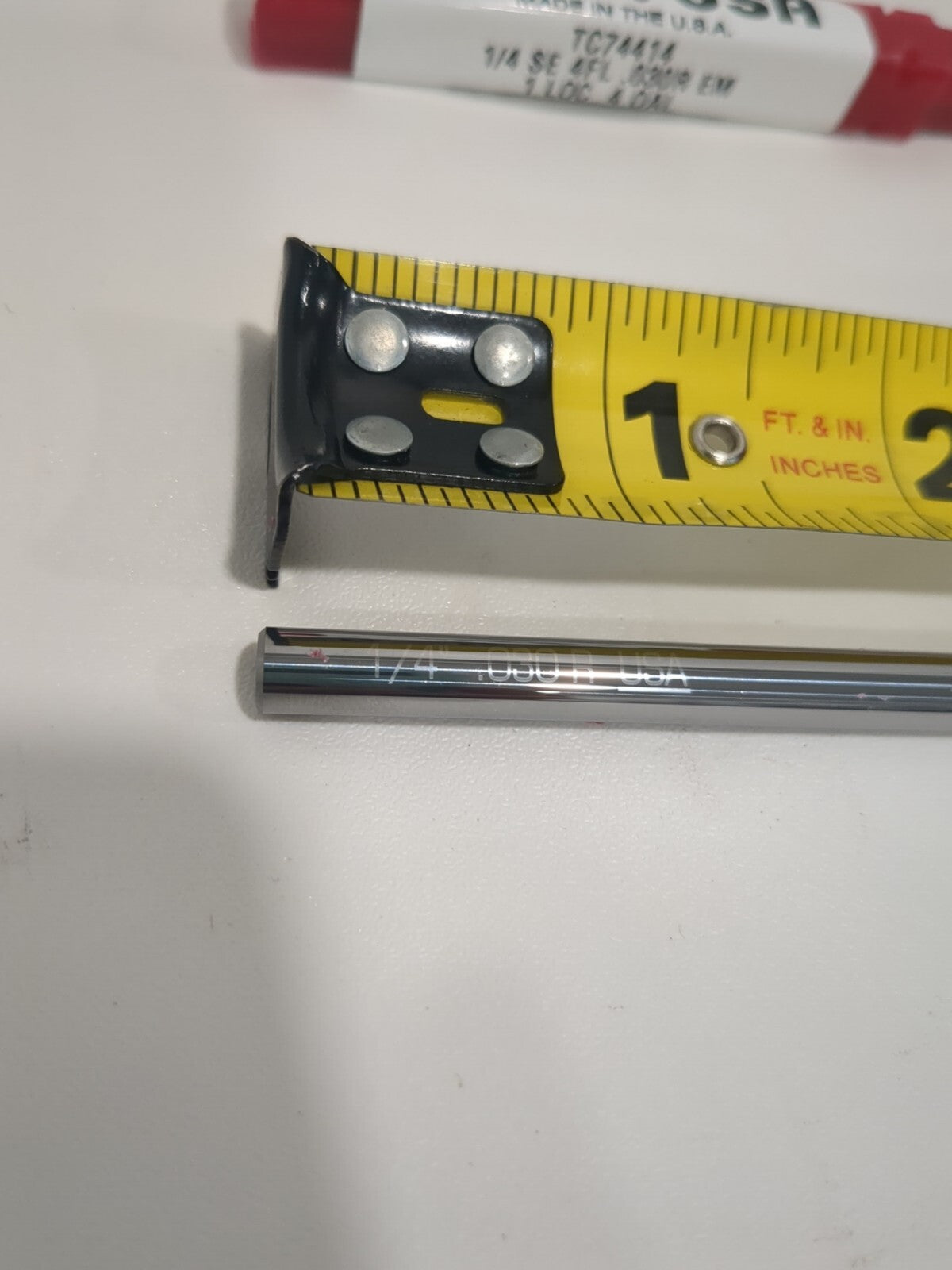

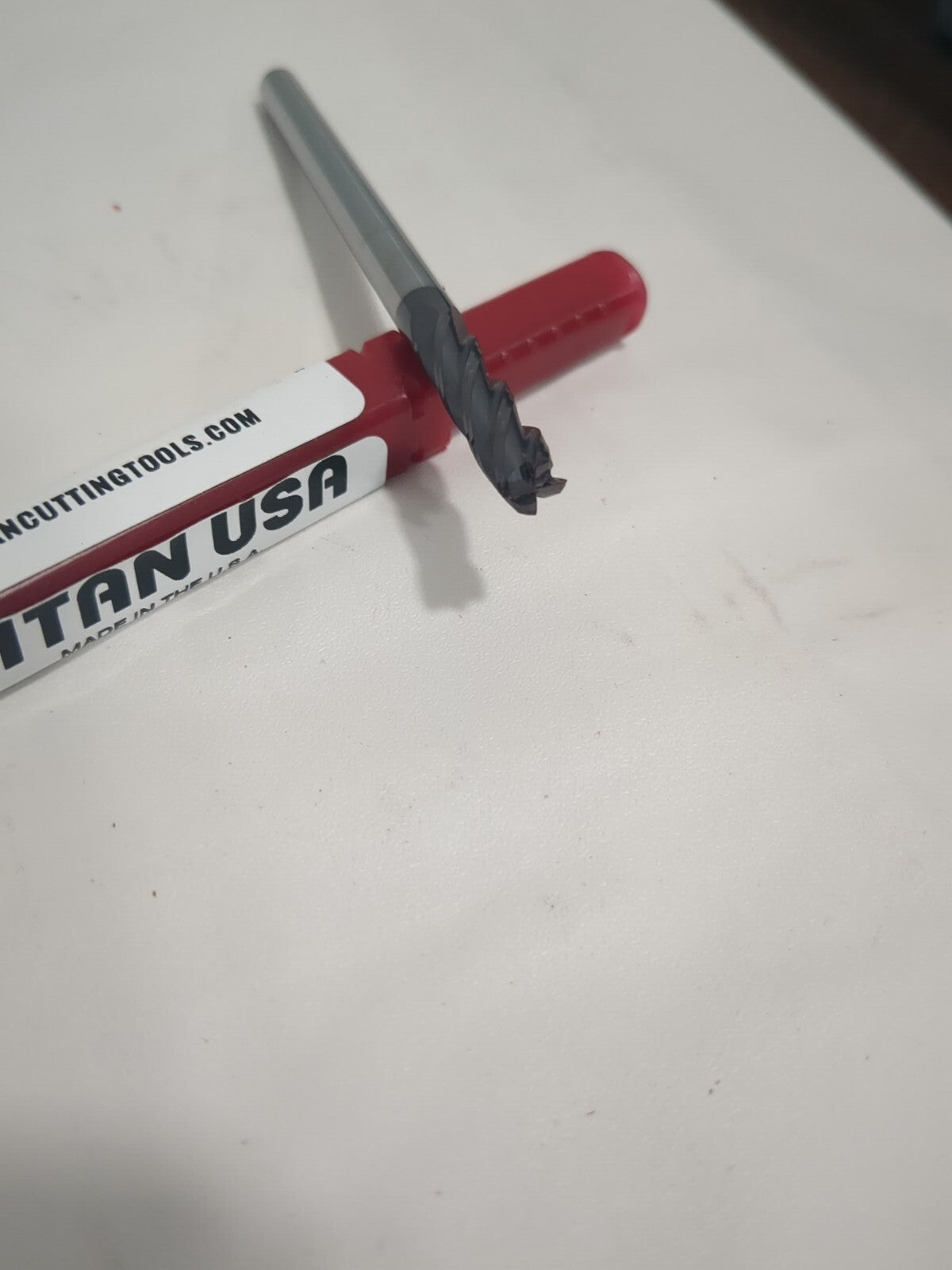

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
