TITAN USA 2pc Ball End Mill: 1/16" Dia, 1/4" LOC, 4 Fl, Solid Carbide TC91504

TITAN USA 2pc Ball End Mill: 1/16" Dia, 1/4" LOC, 4 Fl, Solid Carbide TC91504

MSRP: $30

• Mill Diameter (Inch) 1/16
• Mill Diameter (Decimal Inch) 0.0625
• Number Of Flutes 4
• End Mill Material Solid Carbide
• Length of Cut (Decimal Inch) 0.2500
• Length of Cut (Inch) 1/4
• Shank Diameter (Decimal Inch) 0.1250
• Shank Diameter (Inch) 1/8
• Overall Length (Decimal Inch) 1.5000
• Overall Length (Inch) 1-1/2
• Single Or Double End Single
• Coating/Finish Family TiCN
• Centercutting Yes
• Cutting Direction Right Hand
• Flute Direction Right Hand
• Extended Reach No
• Coolant Through No
• Helix Angle 30
• Primary Workpiece Material Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel
• Primary Workpiece Material Code P; S; K; M; N
• Coating/Finish TiCN
• Variable Helix No
• Variable Index No
• Chipbreaker No
• Flute Type Spiral
• Shank Type Straight-Cylindrical
• Material Grade Carbide
• Length Type Standard
• Coating Classification PVD
• Helix Style Medium
• Nose Radius (Decimal Inch) 0.0313
• Reach Length (Inch) 1/4
• Reach Length (Decimal Inch) 0.2500
• Mill Diameter Tolerance +0.0000/-0.0010 in
• Shank Diameter Tolerance h6
• Series Carbide - 4 Flute - Ball - 30° Helix, General Purpose End Mills
• System Of Measurement Fractional Inch
• Manufacturers Catalog Number TC91504
• Material Removal Type Roughing & Finishing
• UNSPSC Code 27112803
• Country of Origin UNITED STATES
• Ordered as Part # TC91504

(Description).

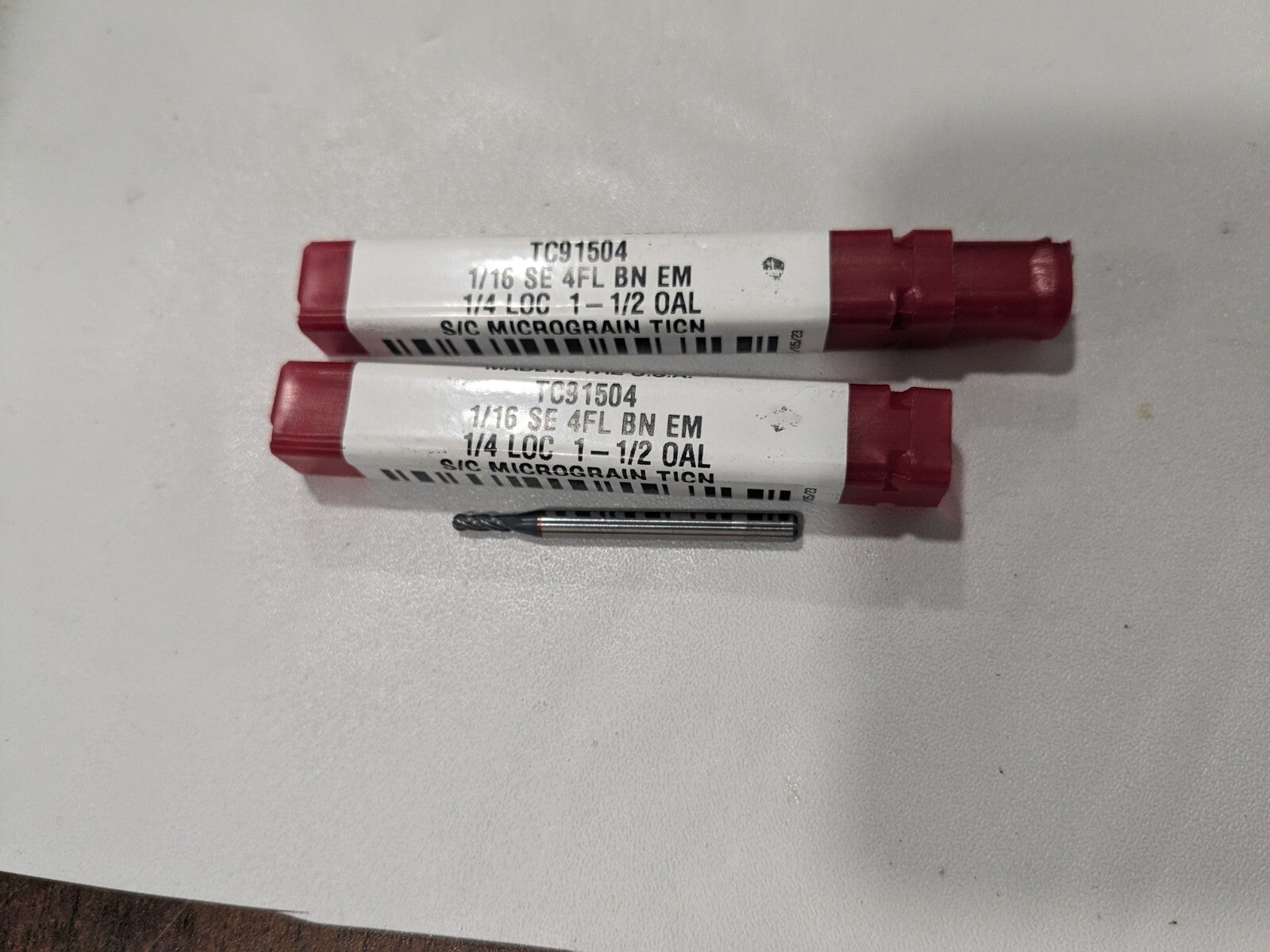

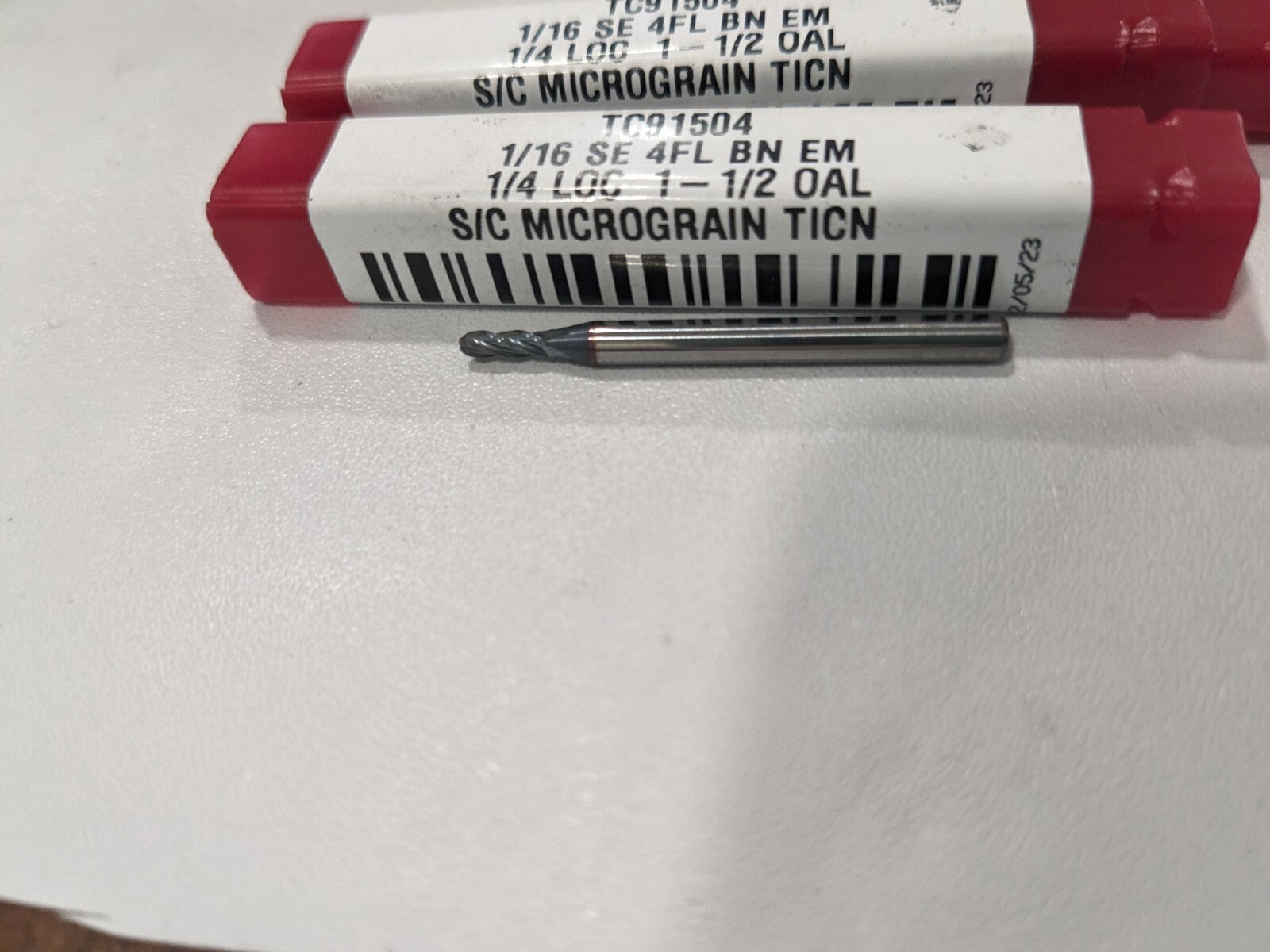

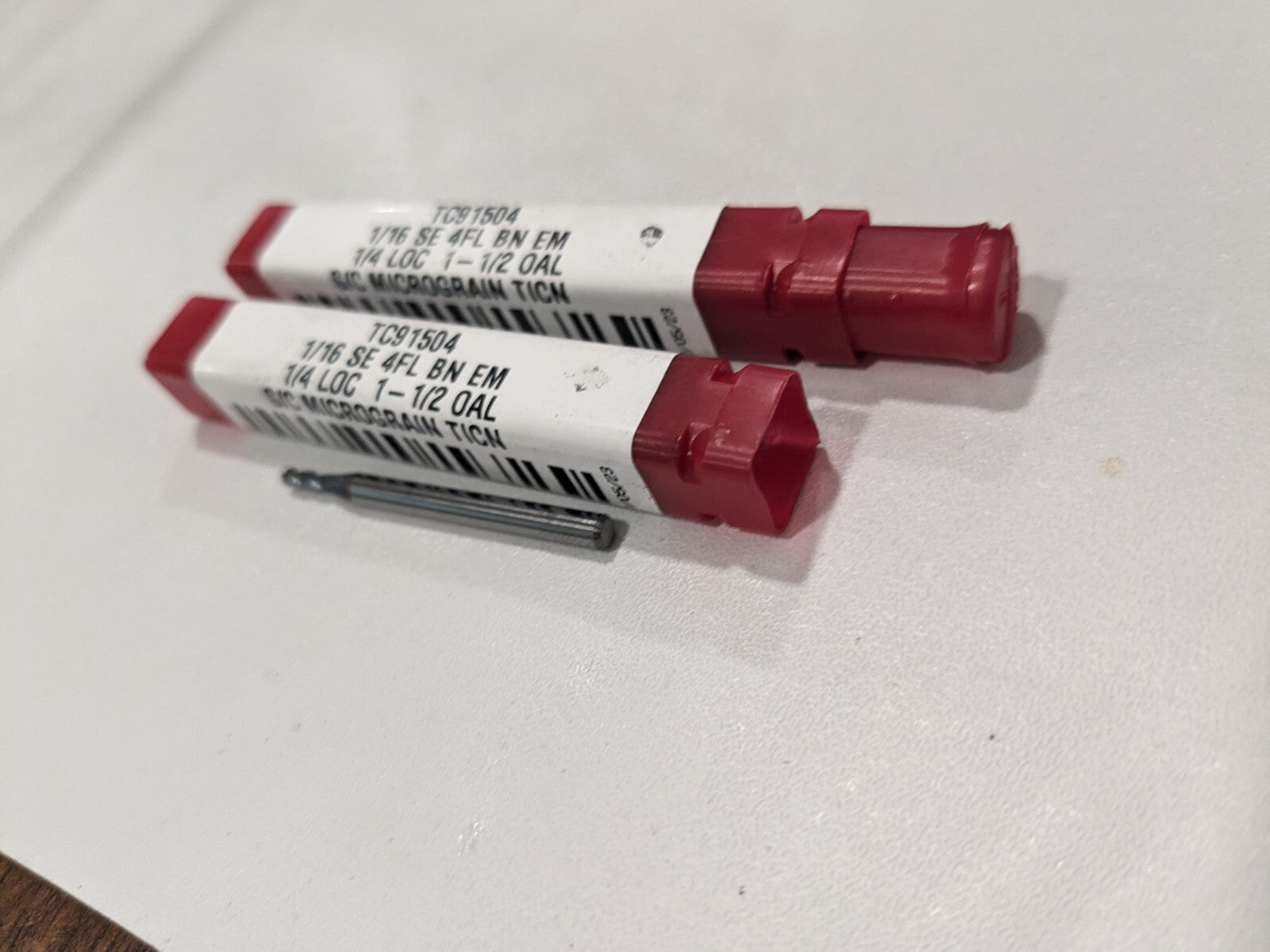

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
