Thomas Products 2100 9/16"-18" 1.5 GPM 20ba Fixed Flow Switch Polysulfone 12709
Thomas Products 2100 9/16"-18" 1.5 GPM 20ba Fixed Flow Switch Polysulfone 12709
Regular price
$28.30 USD
Regular price
$60.00 USD
Sale price
$28.30 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Thomas Products
MSRP: $60.00
Model: 12709
Description:
Housing MaterialPolysulfone
Mounting Sizes9/16"-18" UNF-2B
Flow Setting1.5 GPM
Piston MaterialPolysulfone
Spring316 SST
"O" RingViton "A"
Reed Switches (Non UL Recognized Units)20 VA SPDT
Wire18 AWG Polymeric 24" Long
Operating Temperature-20o to 225oF
Operating Pressure250 psig
Set point Accuracy15% Max
Set point Difference20% Max
Repeatability1% Max Deviation
Specialty OptionsModel 2100 Ryton R4 with SST low flow orifice assembly, 1 cc/min water set point and cable
Model 2100 Modified for straight-thru flow and two 1/4" NPT adapters.
AdvantagesStronger one-piece housing silicone potted, shock & vibration resistant, reverse taper bore, self-cleaning.
Accessories Fittings1/8" NPT Adapter - P/N 12720
1/4" NPT Adapter - P/N 12721
1/2" Barbed Accepts 1/2" I.D. Flexible Hose - P/N 12722
Switch Type Question? SPDT

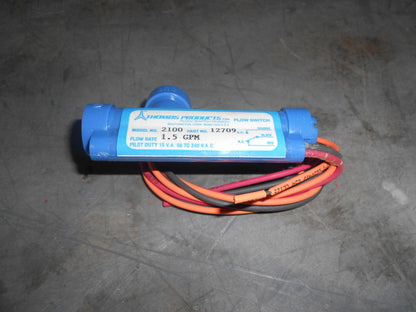

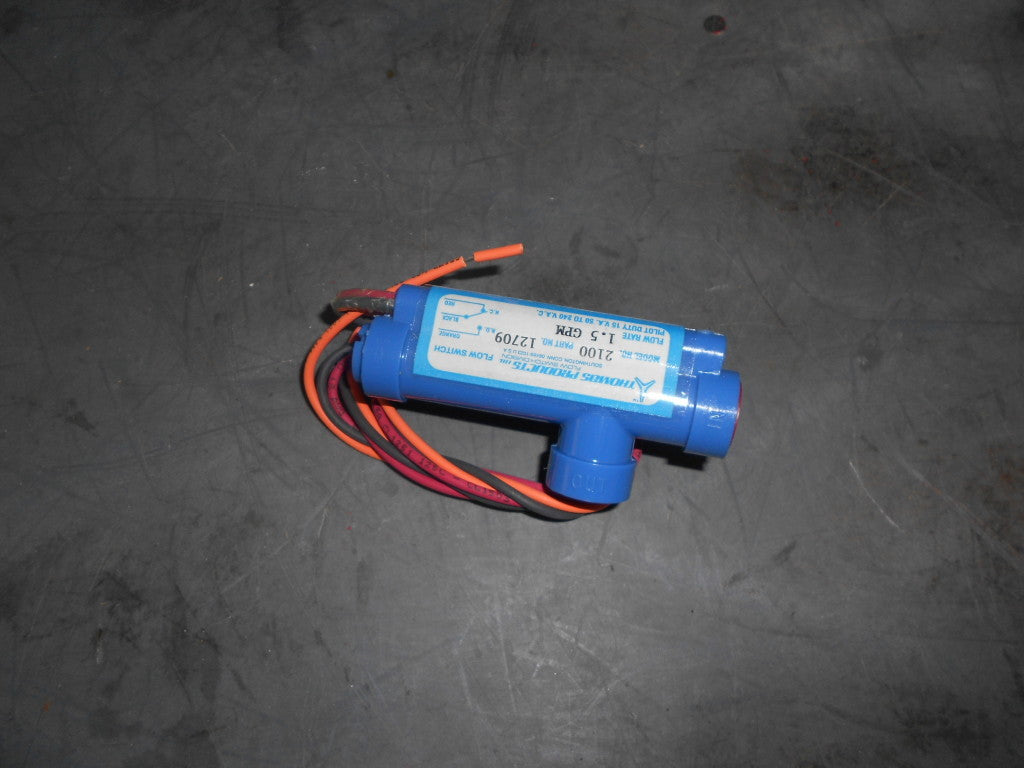

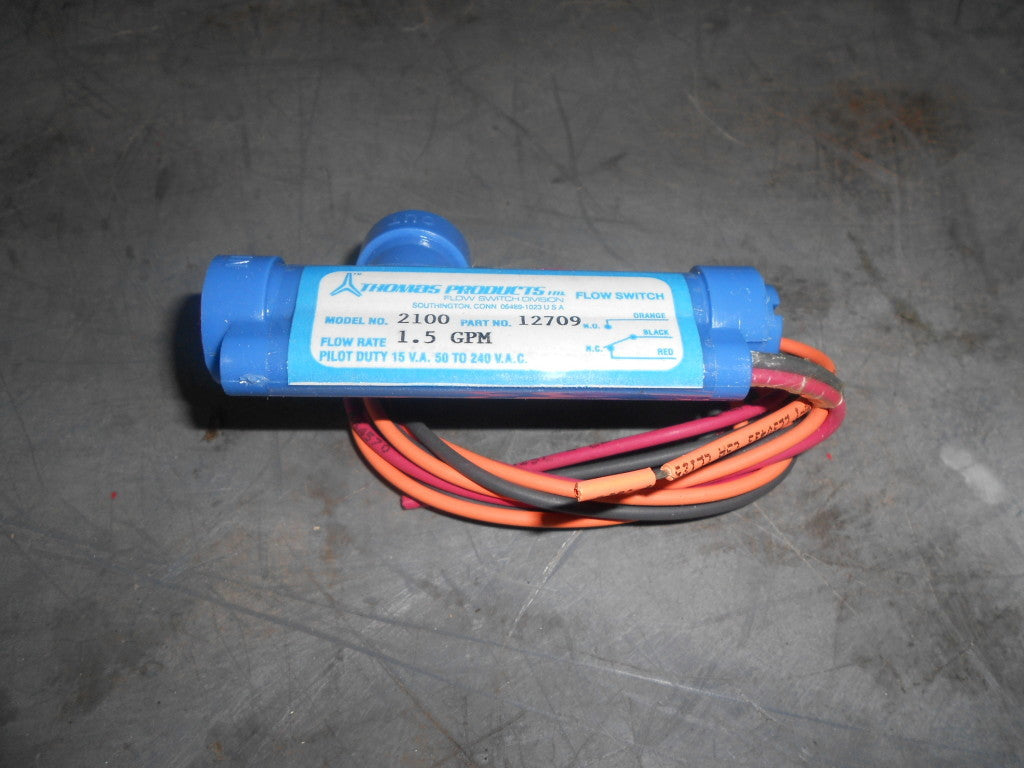

This listing is for One Fixed Flow Switch that is in the picture as well as described. Please ask any questions prior to buying!
