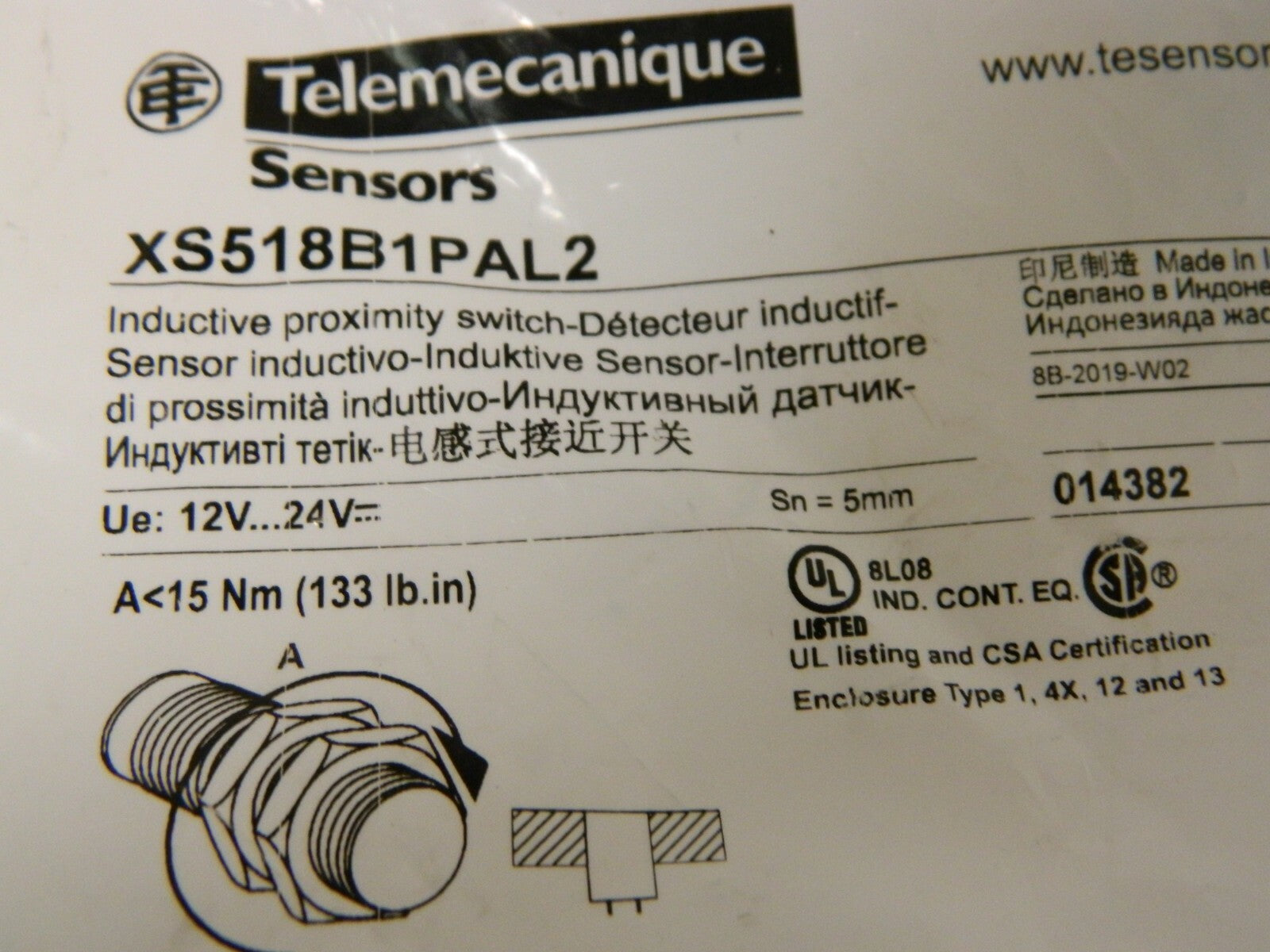

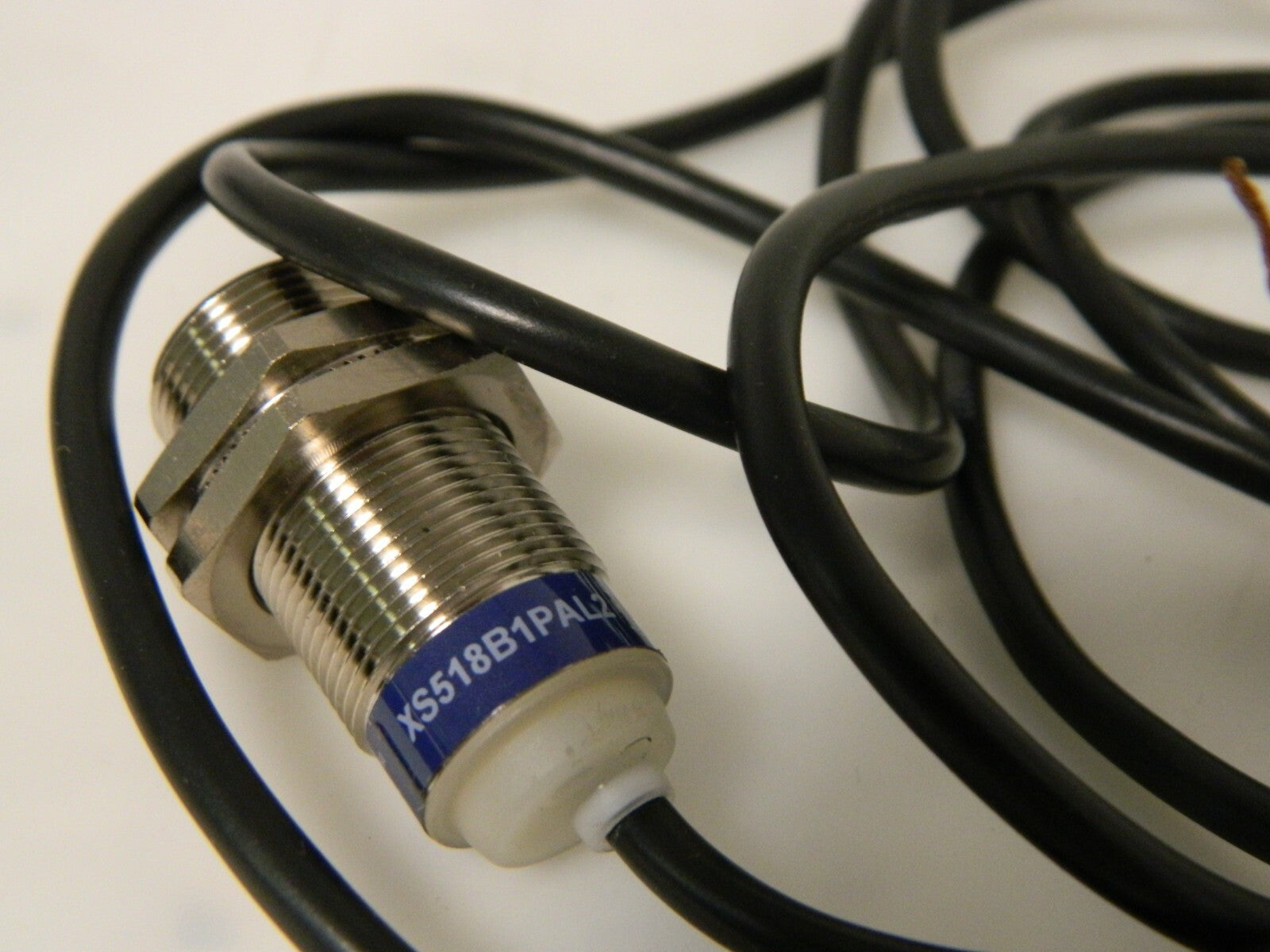

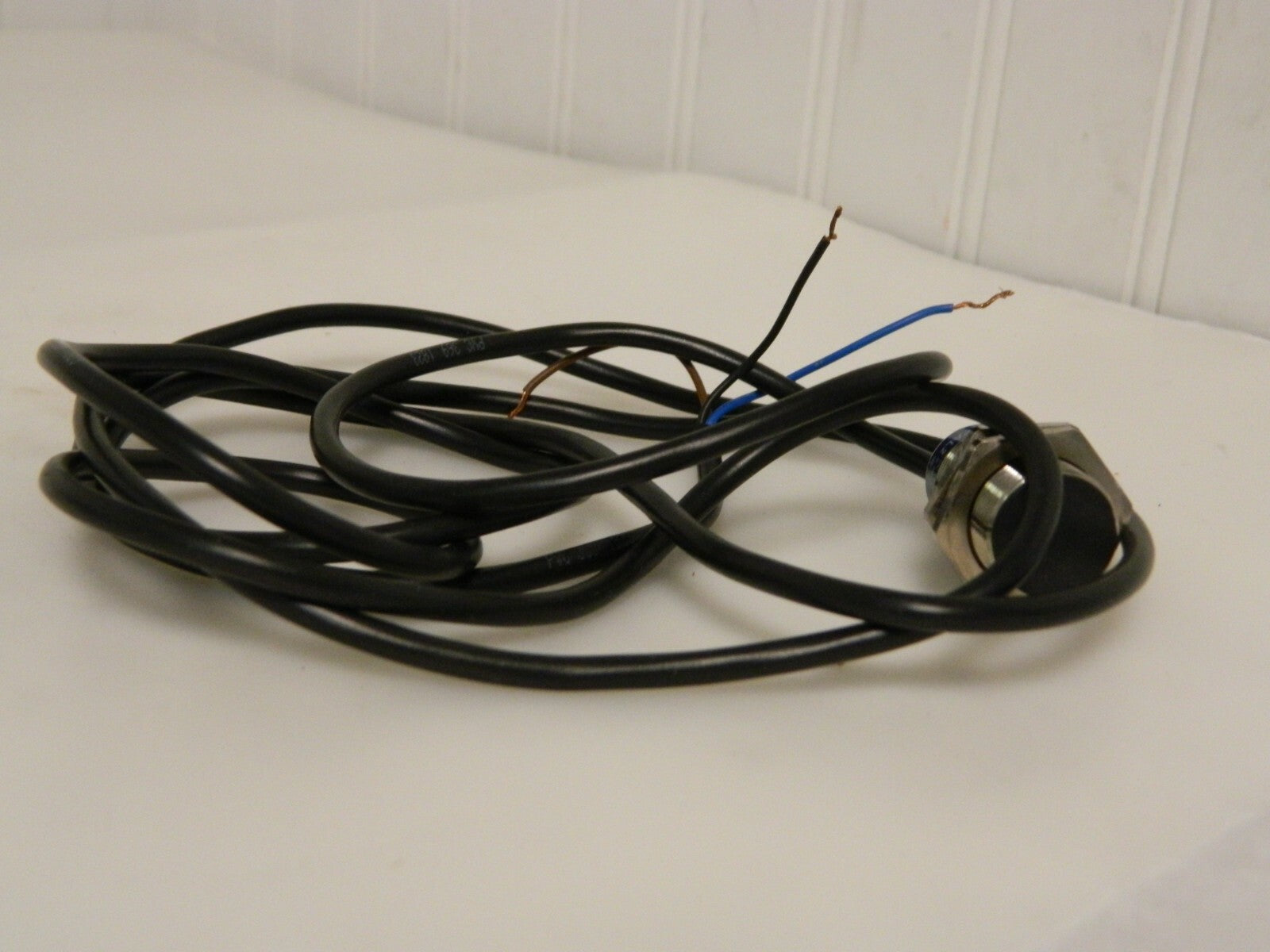

Telemecanique Inductive Proximity Sensor PNP 5mm Detection XS518B1PAL2
Telemecanique Inductive Proximity Sensor PNP 5mm Detection XS518B1PAL2
Regular price
$27.23 USD
Regular price
$60.00 USD
Sale price
$27.23 USD
Shipping calculated at checkout.
Telemecanique Sensors
MSRP: $60.00
Model: XS518B1PAL2
Description:
Sensor Type Inductive
Body Shape Cylinder Shielded
Sensor Operation Output Mode NO
Output Type PNP
Connector Type Cable
Number of Wires 3
Detection Distance (mm) 5.00
Detection Distance (Decimal Inch) 0.2000
Sensor Head Size M18
Maximum Voltage 12-24 VDC
Overall Width/Diameter (mm) 18
Overall Width/Diameter (Decimal Inch) 0.7100
Ingress Protection Rating IP68; IP69K
Maximum Load Capacity (mA) 200
Response Frequency (Hz) 2000
Thread Size M18x1
Housing Material Nickel Plated Brass
Resistance Features Shock Resistant; Vibration Resistant
Overall Length (mm) 39
Overall Length (Decimal Inch) 1.5400
Maximum Operating Temperature (F) 158
Minimum Operating Temperature (F) -13
Standards Met CE Listed; CSA Certified; DIN 40050; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; RoHS Compliant; UL Listed
This listing is for One Inductive Proximity Sensor that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
