SwiftCarb Superbee Carbide Milling Inserts EM15220 ET520 Grade Qty. 10 #07790884

SwiftCarb Superbee Carbide Milling Inserts EM15220 ET520 Grade Qty. 10 #07790884

MSRP: $270

• Insert Style EM
• Insert Size 15
• Insert Material Solid Carbide
• Insert Shape Parallelogram
• Manufacturer Grade ET520
• Number Of Cutting Edges 2
• Thickness (Decimal Inch - 4 Decimals) 0.1250
• Thickness (mm) 3.18
• Coating/Finish AlTiN
• Insert Size Code 15220
• Material Grade C5
• Width (Inch) 3/8
• Length (Inch) 5/8
• Thickness (Inch) 1/8
• Inscribed Circle (Inch) 3/8
• Inscribed Circle (Decimal Inch) 0.3750
• Inscribed Circle (mm) 9.53
• Thickness Range (Decimal Inch) 0.1250 to 0.1500
• Length Range (Decimal Inch) 0.6000 to 0.6500
• Insert Hand Right Hand
• Series EM
• Coating Process PVD
• Rake Positive
• Primary Workpiece Material Stainless Steel; Steel
• Primary Workpiece Material Code P; M
• Ansi Code EM15220ET520
• Convex Radius (Decimal Inch) 0.2200
• Cutting Edge Style Honed
• Manufacturers Catalog Number EM15220
• Cutter Series Compatibility BB; BC; BD; BE; BBD; CMS; CM; CB
• Chip Breaker None
• Material Application Stainless Steel; Steel
• UNSPSC Code 23291601
• Insert Holding Method Screw
• Coating Classification PVD
• Single or Double Sided Insert Double
• Length (mm) 15.88
• Width (Decimal Inch - 4 Decimals) 0.3750
• Width (mm - 2 Decimals) 9.53
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.6250
• System Of Measurement Metric

(Description).

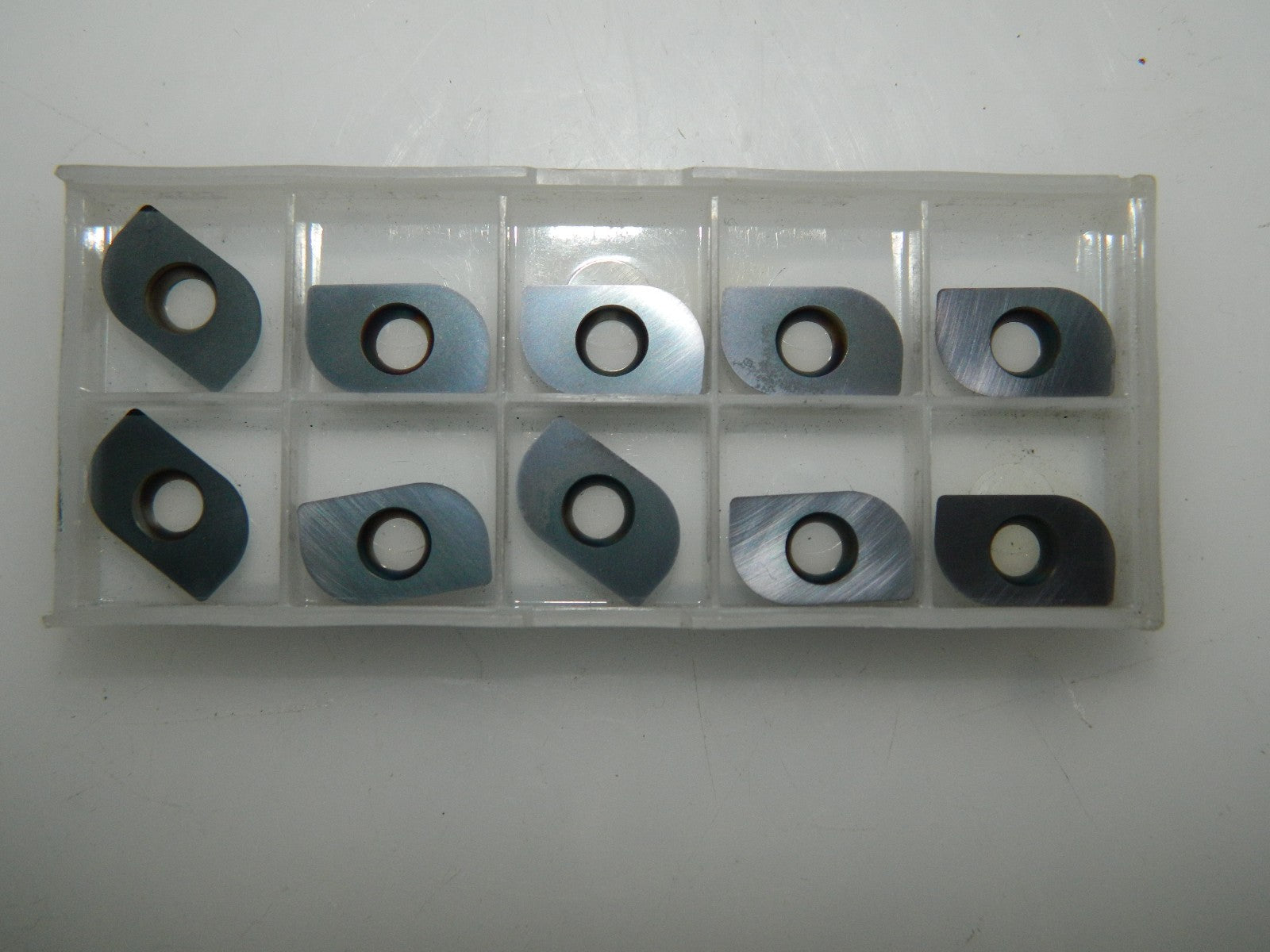

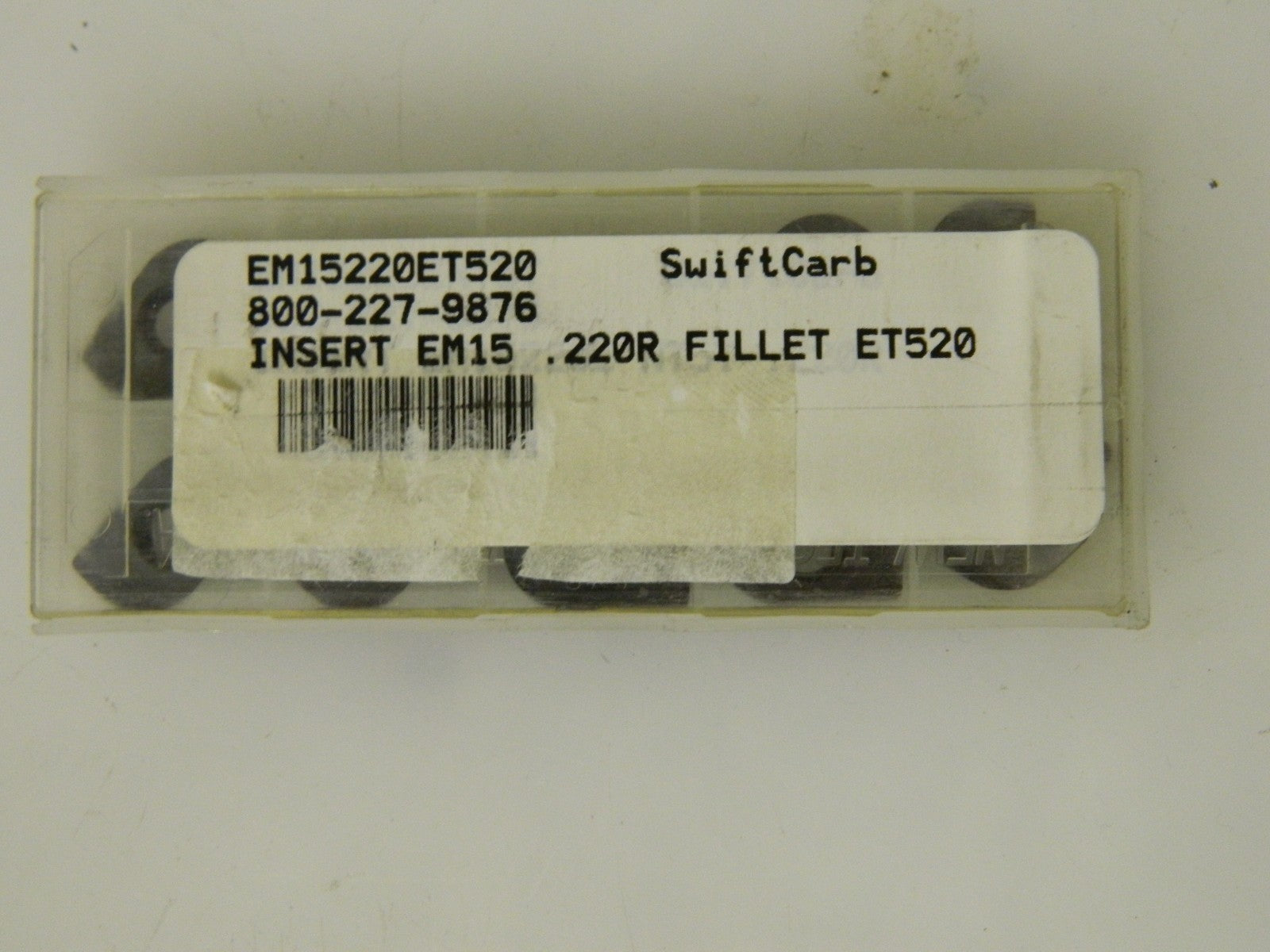

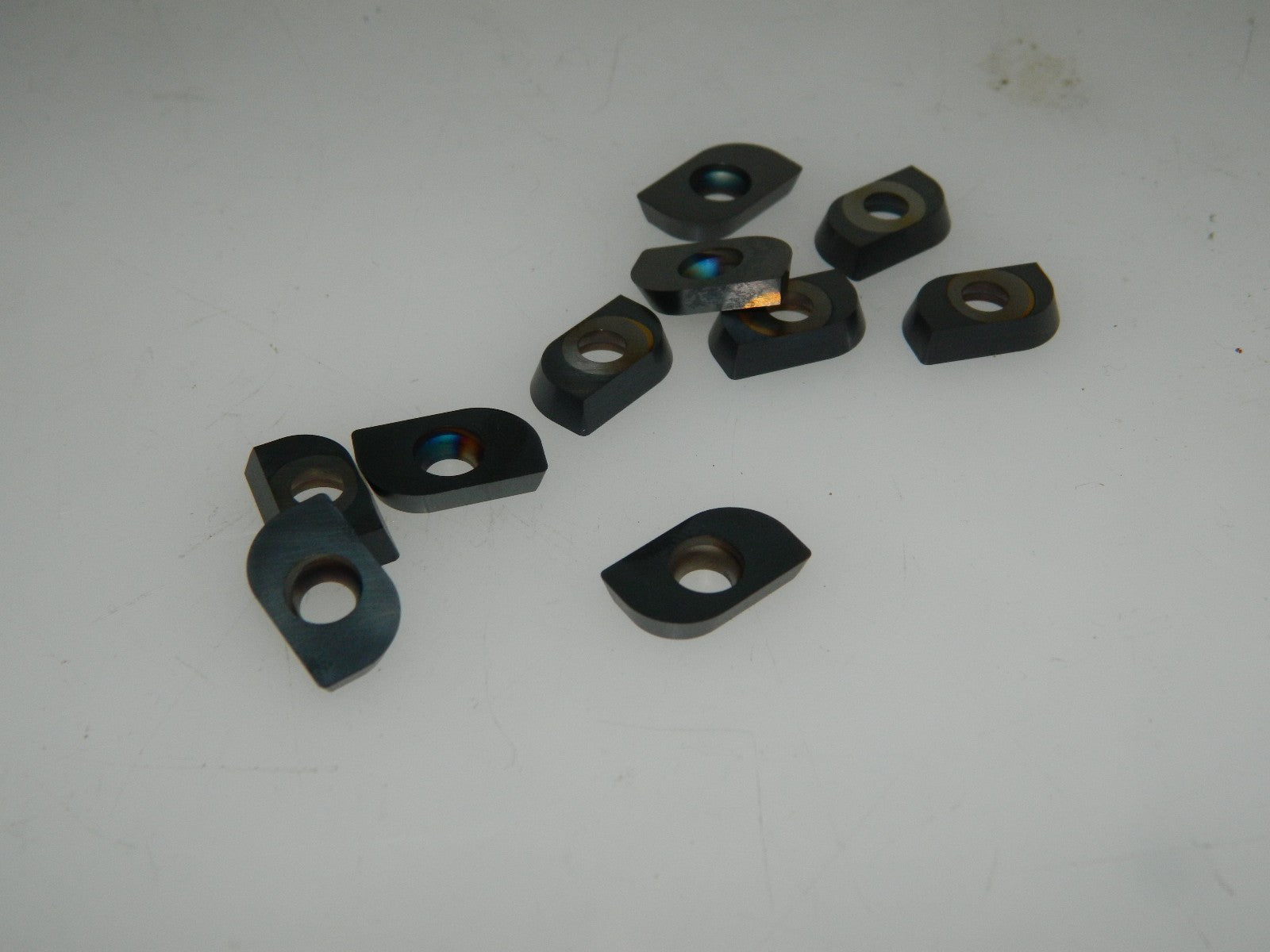

Please review photos, comes as shown.
