SUMITOMO WNMG433ESEW AC8015P Carbide Turning Insert qty10 19T4CDE

SUMITOMO

WNMG433ESEW AC8015P Carbide Turning Insert qty10 19T4CDE
MSRP: $125

• Insert Style WNMG
• Insert Shape Code W
• Insert Size Code 433
• Coating/Finish Absotech
• Manufacturer Grade AC8015P
• Corner Radius (Decimal Inch) 0.0472
• Insert Material Solid Carbide
• Hole Diameter (Decimal Inch) 0.2031
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (Decimal Inch) 0.5000
• Insert Holding Method Pin; Clamp
• Insert Thickness (Decimal Inch) 0.1874
• Clearance Code N
• Tolerance Code M
• Included Angle 80.0
• Relief Angle 0
• Series AC8000P
• Coating Process CVD
• Length Range (Decimal Inch) 0.3000 - 0.4000
• Rake Negative
• Insert Length (Decimal Inch) 0.3425
• Primary Workpiece Material Steel
• Iso Code WNMG080412N-SEW
• Manufacturers Catalog Number WNMG433ESEW-AC8015P
• Chip Breaker ESEW

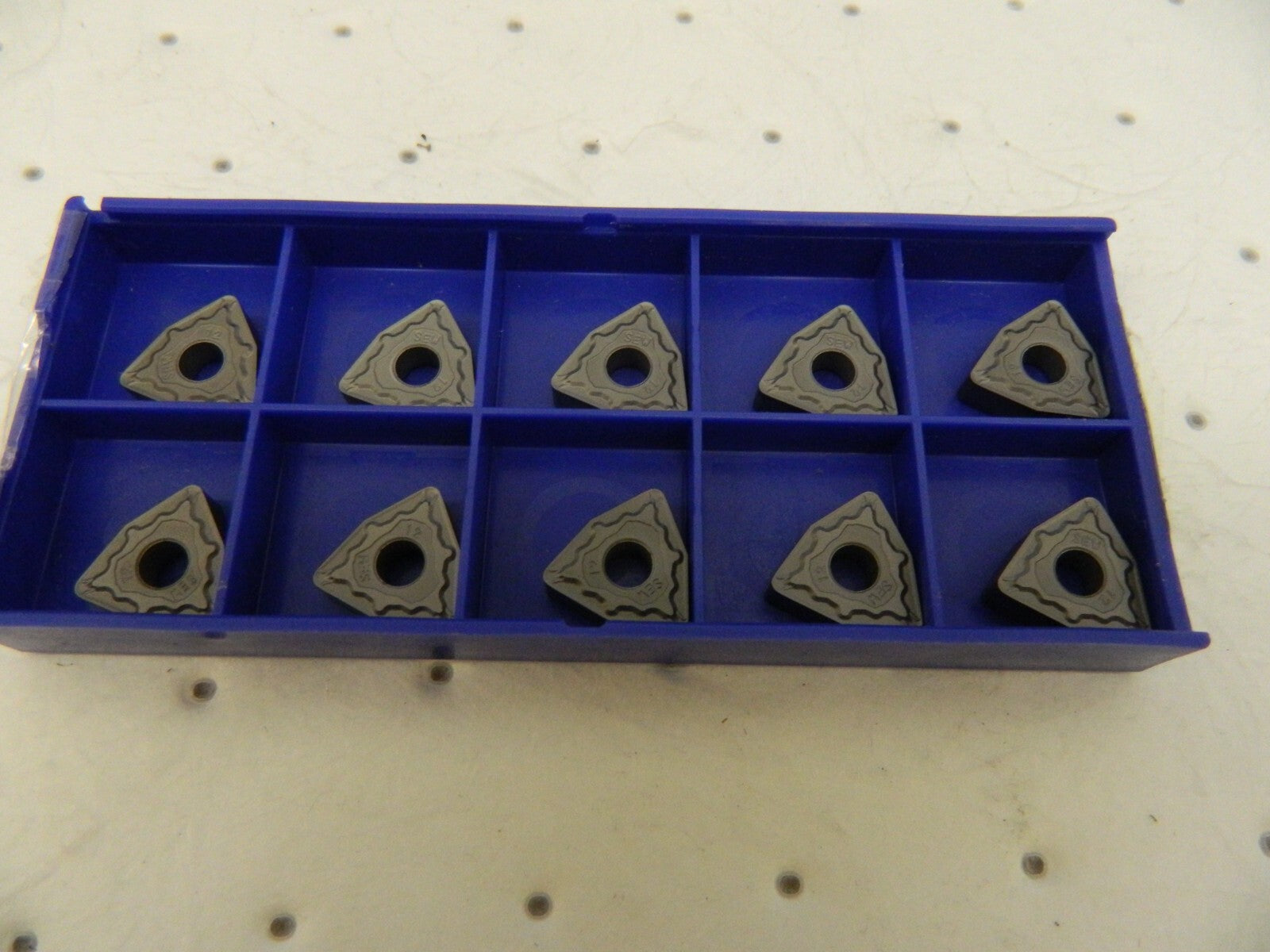

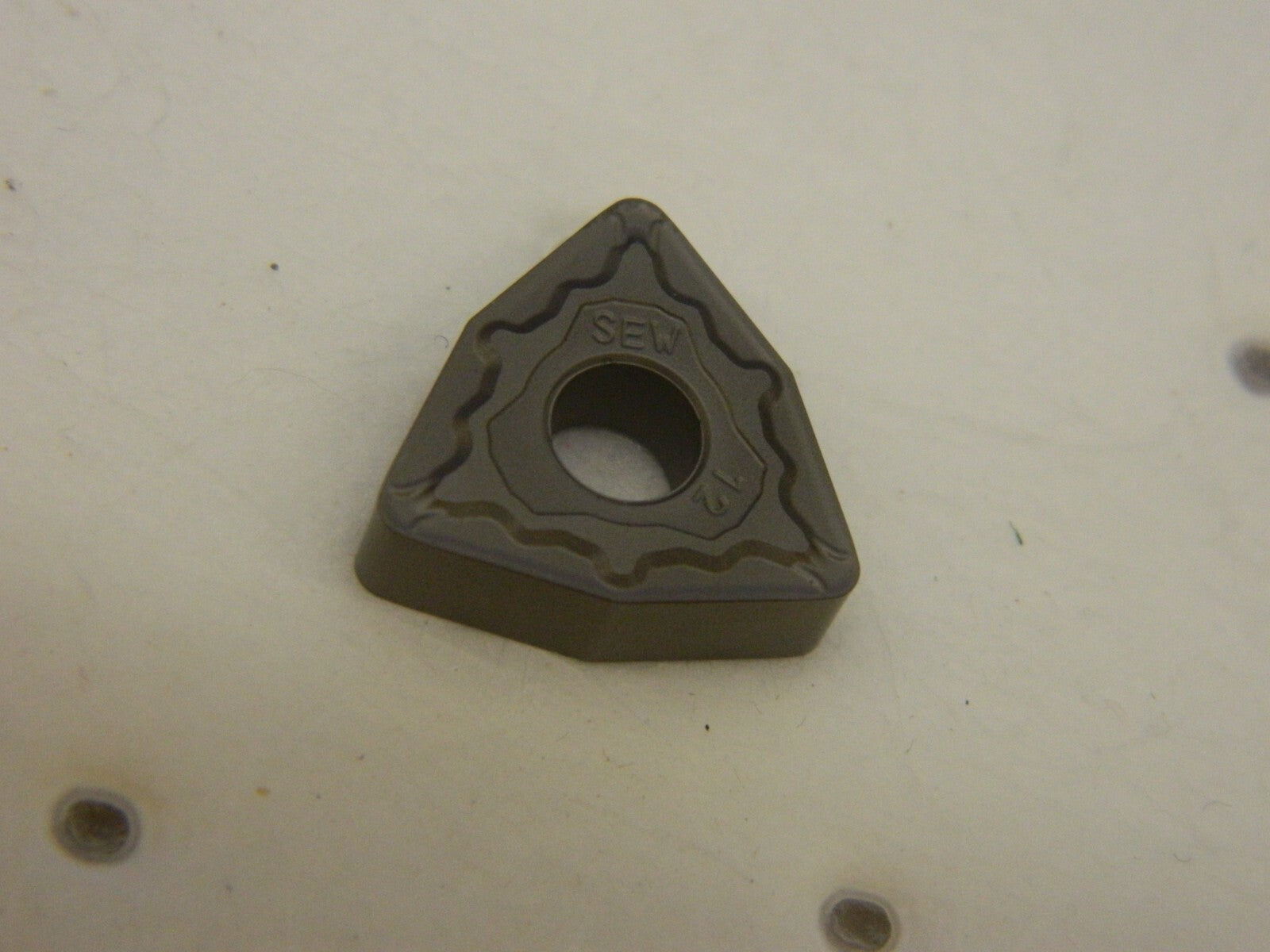

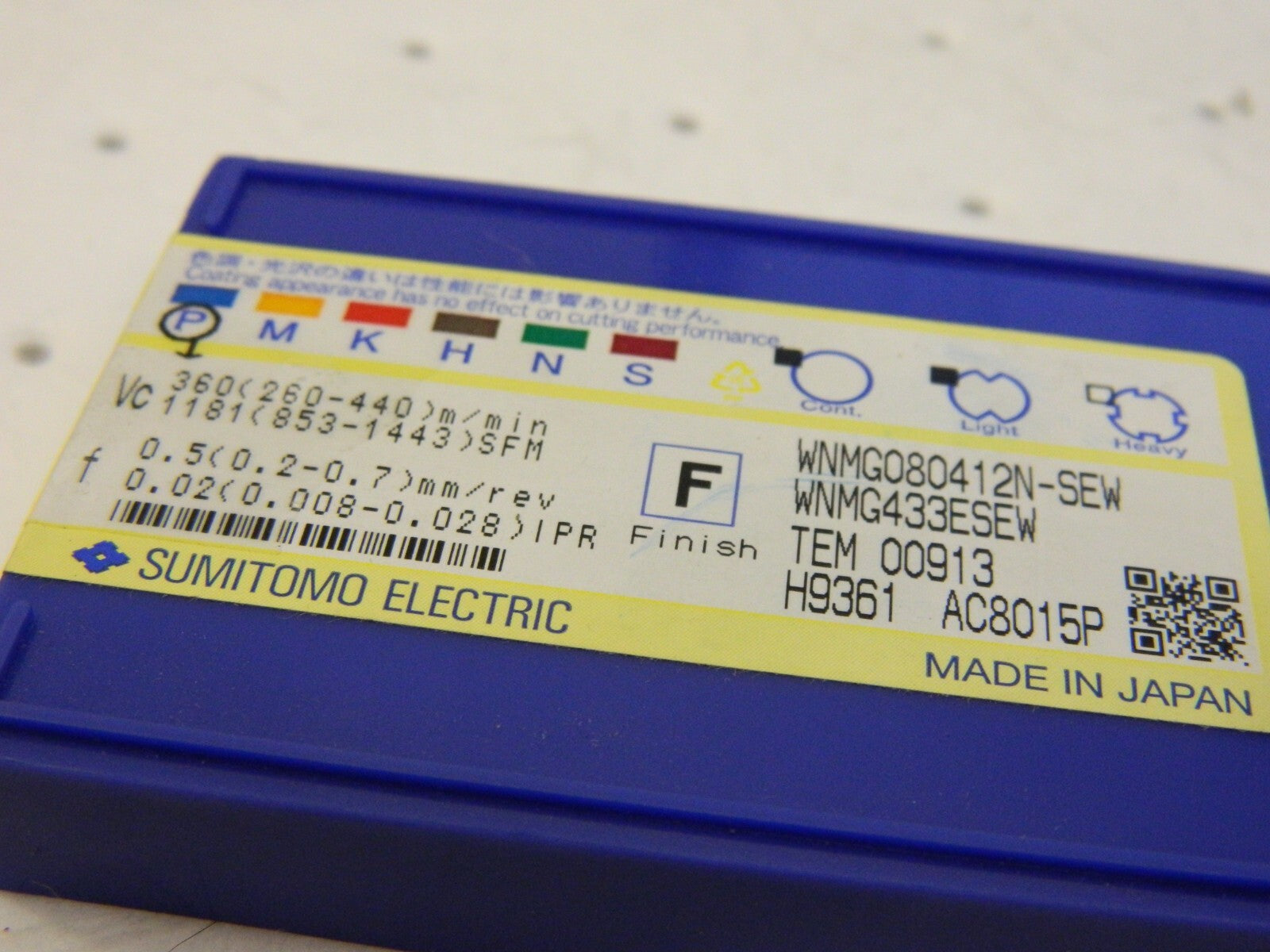

 Please review photos, comes as shown.
