SUMITOMO Turning Inserts qty 3: CNMG543EMX AC830P, Solid Carbide 19RBANG

SUMITOMO Turning Inserts qty 3: CNMG543EMX AC830P, Solid Carbide

MSRP: $60

• Insert Style CNMG
• Insert Size Code 543
• Insert Shape Diamond
• Included Angle 80
• Inscribed Circle (Decimal Inch) 0.6250
• Corner Radius (Decimal Inch) 0.0469
• Corner Radius (mm) 0.05
• Insert Material Carbide
• Manufacturer Grade AC830P
• Coating/Finish Al2O3
• Relief Angle 0
• Insert Thickness (Decimal Inch) 0.2500
• Insert Hand Neutral
• Insert Shape Code C
• Corner Radius (Inch) 3/64
• Hole Diameter (Decimal Inch) 0.2500
• Inscribed Circle (Inch) 5/8
• Insert Holding Method Pin; Clamp
• Insert Thickness (Inch) 1/4
• Clearance Code N
• Tolerance Code M
• Series CN
• Coating Process CVD
• Rake Negative
• Insert Length (Decimal Inch) 0.6339
• Secondary Workpiece Material Universal
• Secondary Workpiece Material Code P; M
• Iso Code CNMG160612N-MX
• Standards ISO 13399; ANSI
• UNSPSC Code 23242105
• Chip Breaker EMX
• Rake Angle 15

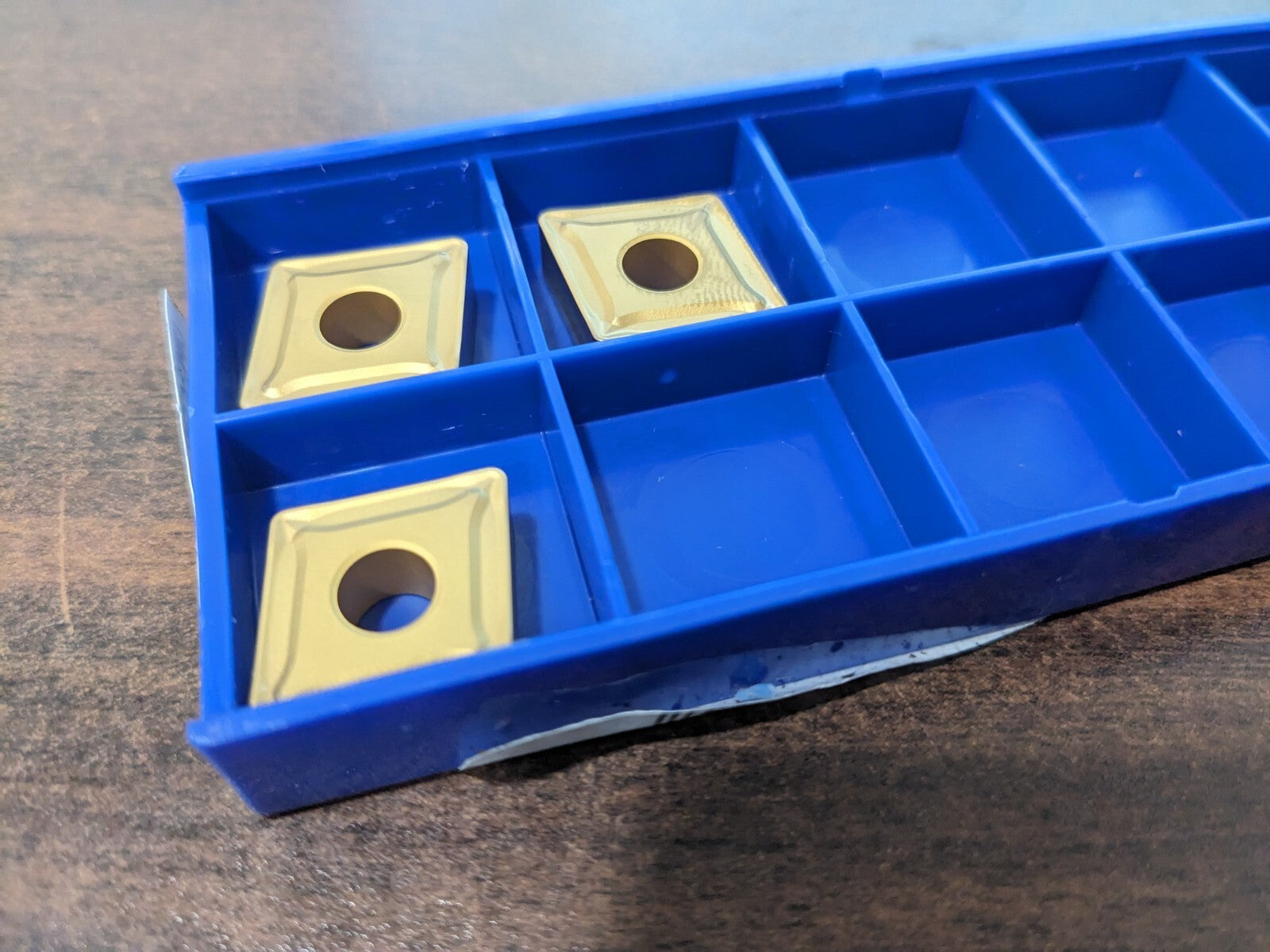

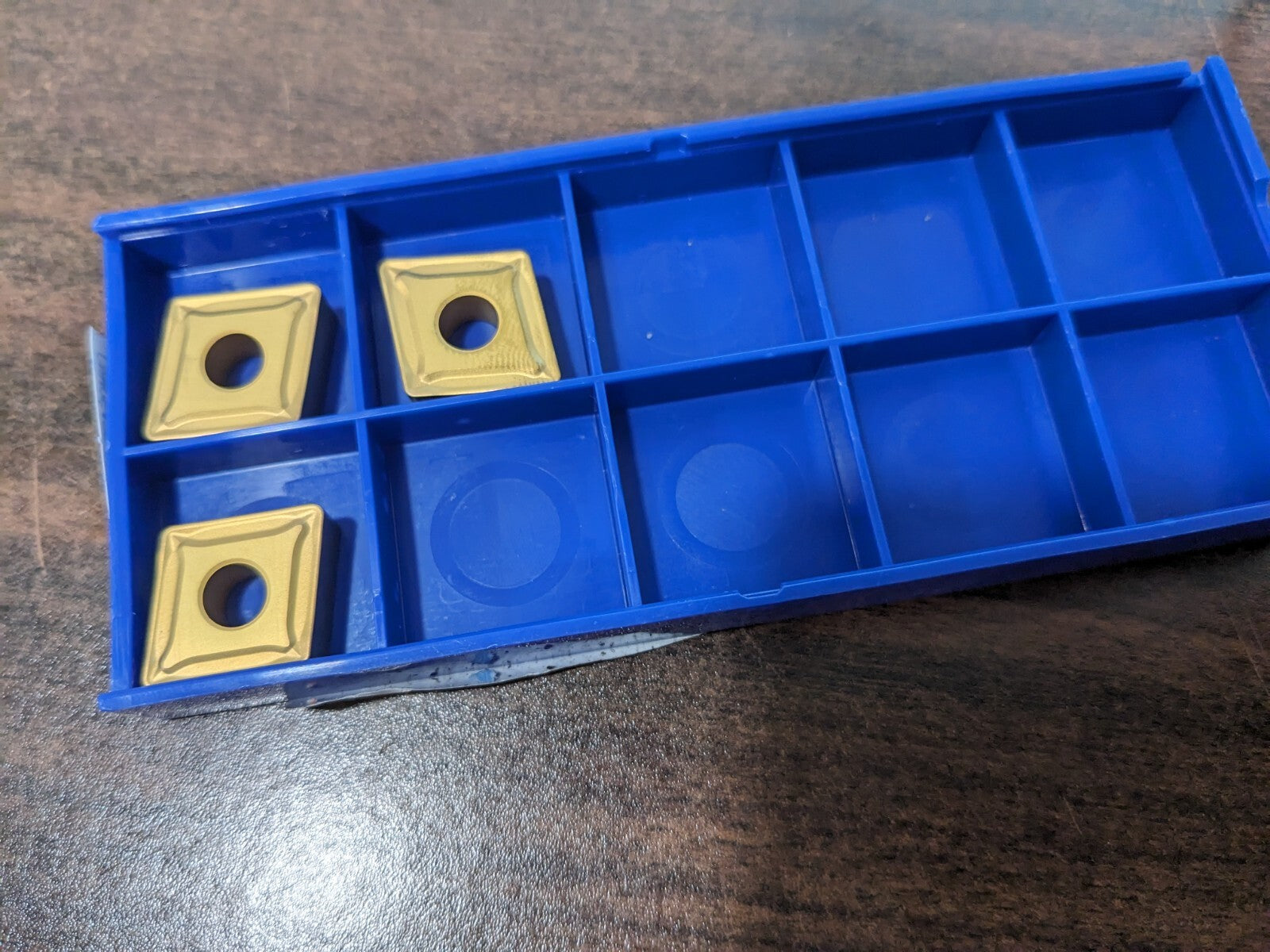

Please review photos, comes as shown.
