SUMITOMO Turning Inserts qty 10: DCGT32.50EFM AC530U, Solid Carbide 10HM038

SUMITOMO

 Turning Inserts qty 10: DCGT32.50EFM AC530U, Solid Carbide 10HM038

MSRP: $150

• Insert Style DCGT
• Insert Shape Code D
• Insert Size Code 32.5
• Insert Shape Diamond
• Coating/Finish AlCrN; TiAlN
• Manufacturer Grade AC530U
• Corner Radius (Decimal Inch) 0.0039
• Insert Material Solid Carbide
• Hole Diameter (Decimal Inch) 0.1732
• Inscribed Circle (Inch) 3/8
• Inscribed Circle (Decimal Inch) 0.3750
• Insert Holding Method Screw
• Insert Hand Neutral
• Insert Thickness (Inch) 5/32
• Insert Thickness (Decimal Inch) 0.1563
• Clearance Code C
• Tolerance Code G
• Included Angle 55.0
• Relief Angle 7
• Series DC
• Coating Process PVD
• Rake Positive
• Insert Length (Decimal Inch) 0.4567
• Secondary Workpiece Material Stainless Steel
• Secondary Workpiece Material Code M
• Ansi Code DCGT32.50EFM
• Iso Code DCGT11T301N-SC
• Standards ISO 13399; ANSI
• Proprietary Coating Designation Super ZX
• Chip Breaker EFM
• Rake Angle 6

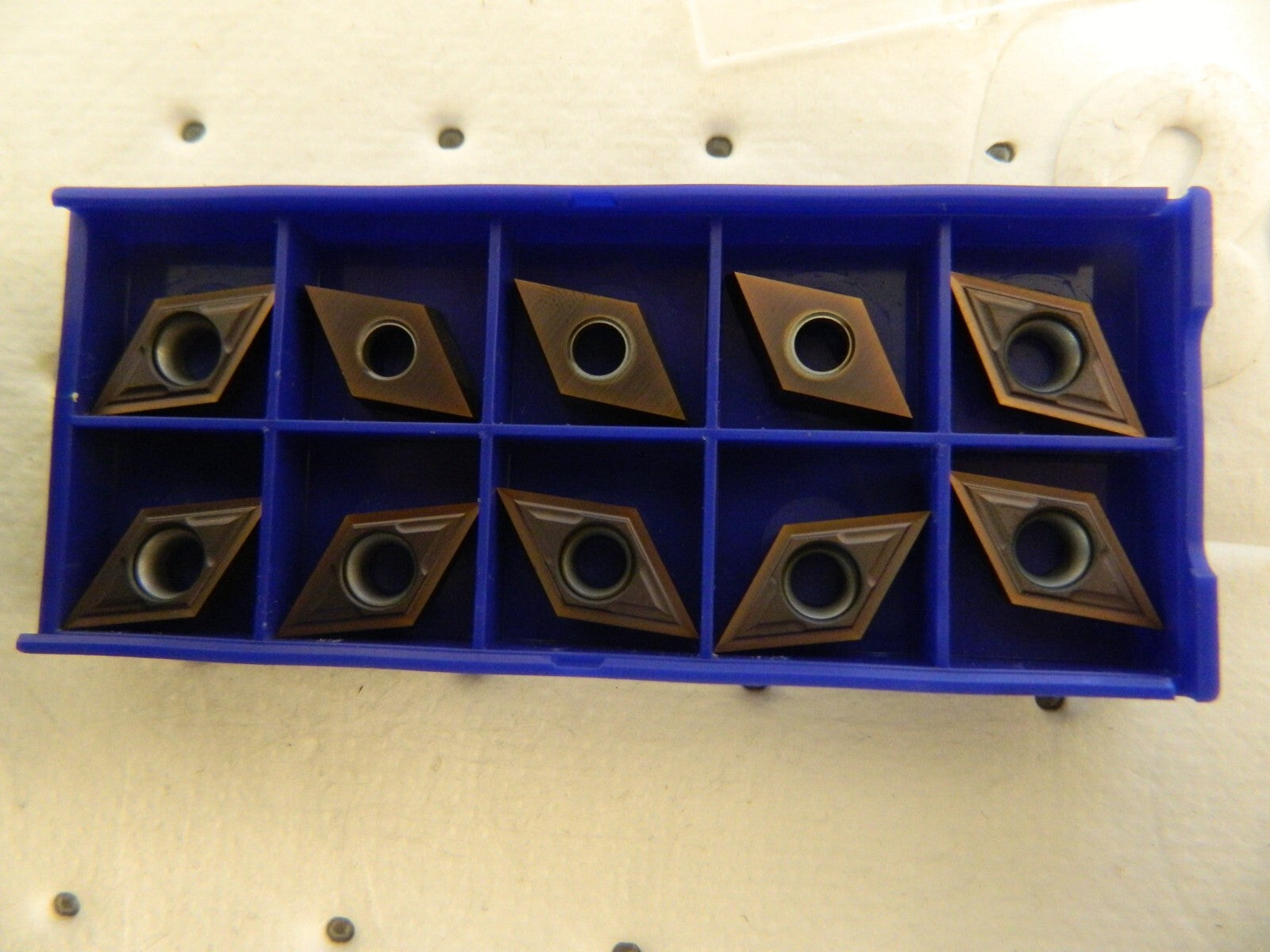

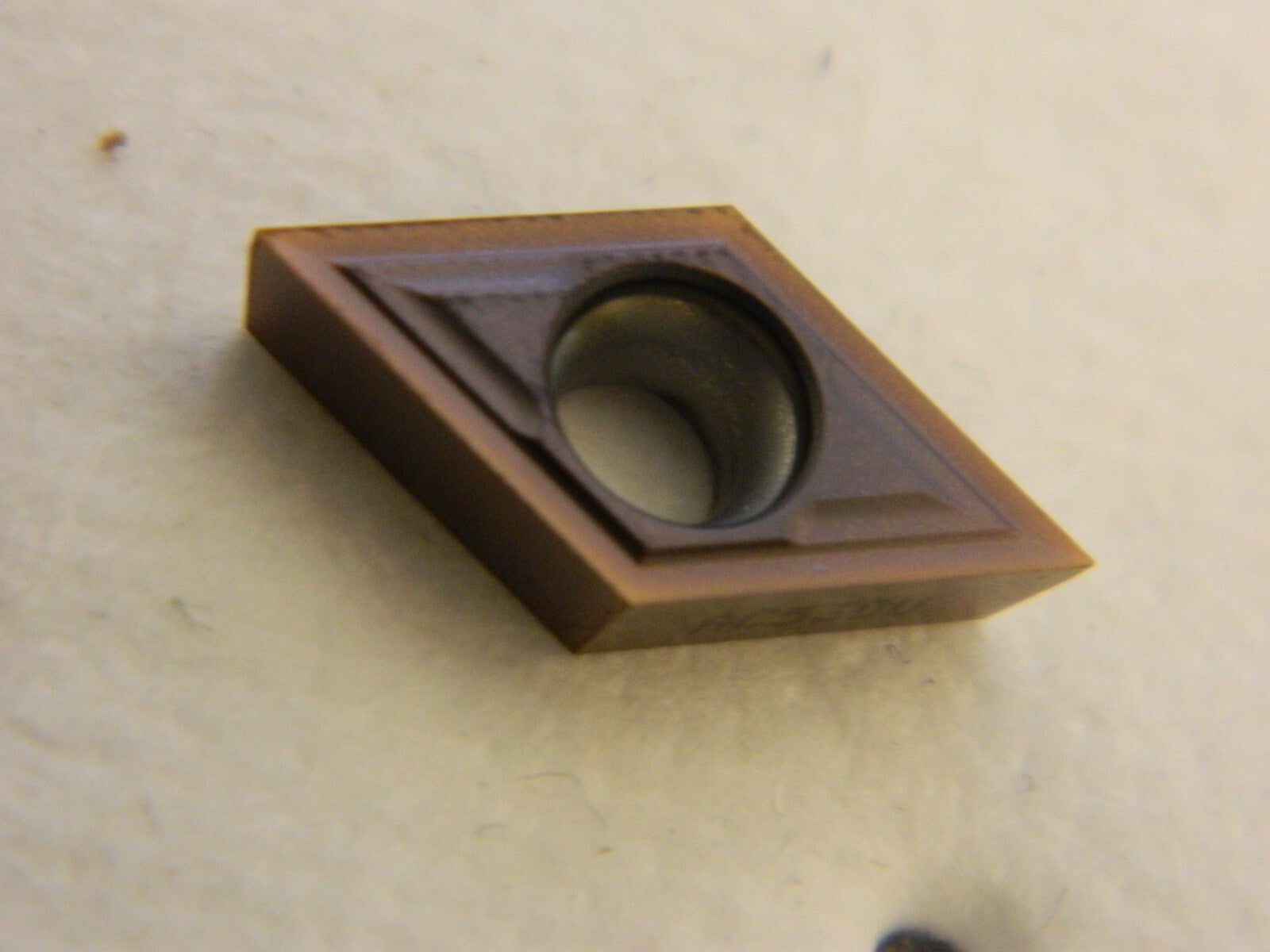

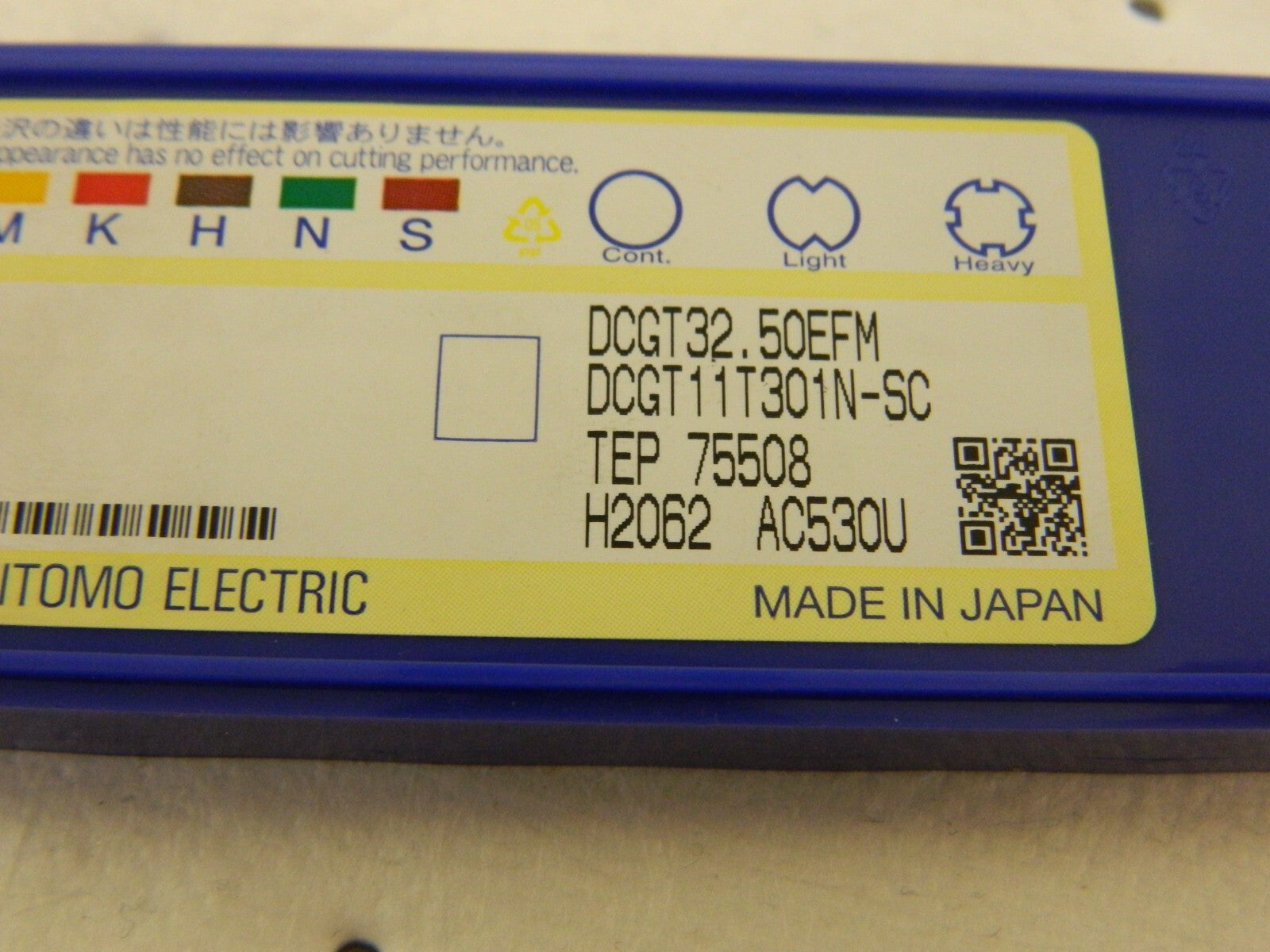

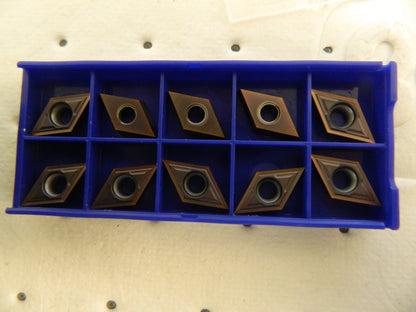

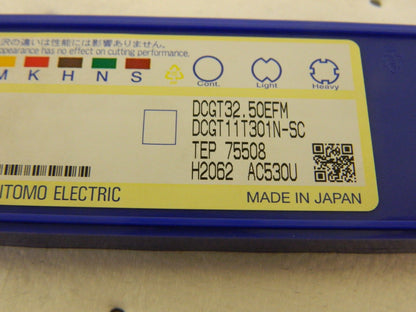

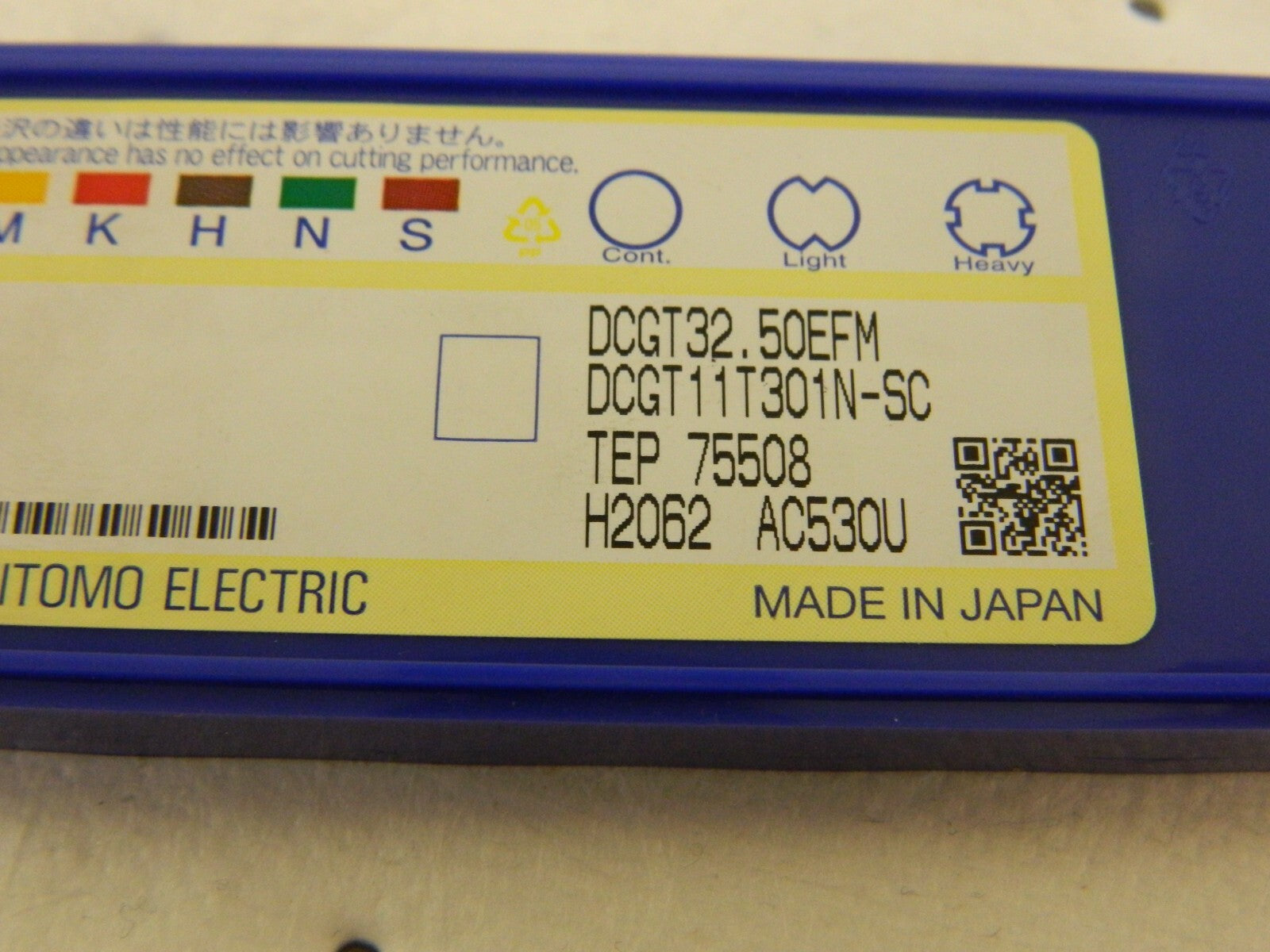

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
