SUMITOMO Turning Insert: VNGG332ESUJ H1, Carbide 1033W3V

SUMITOMO Turning Insert: VNGG332ESUJ H1, Carbide 1033W3V

MSRP: $200

• Insert Style VNGG
• Insert Size Code 332
• Insert Shape Diamond
• Included Angle 35
• Inscribed Circle (Decimal Inch) 0.3750
• Corner Radius (Decimal Inch) 0.0312
• Insert Material Carbide
• Manufacturer Grade H1
• Coating/Finish Bright/Uncoated
• Relief Angle 0
• Insert Thickness (Decimal Inch) 0.1875
• Insert Hand Neutral
• Insert Shape Code V
• Corner Radius (Inch) 1/32
• Hole Diameter (Decimal Inch) 0.1500
• Inscribed Circle (Inch) 3/8
• Insert Holding Method Pin; Clamp
• Insert Thickness (Inch) 3/16
• Clearance Code N
• Tolerance Code G
• Series VN
• Coating Process Uncoated
• Rake Negative
• Insert Length (Decimal Inch) 0.6535
• Primary Workpiece Material Non-Ferrous Metal
• Primary Workpiece Material Code N
• Iso Code VNGG160408N-SUJ
• Standards ISO 13399; ANSI
• UNSPSC Code 23242105
• Chip Breaker ESUJ

(Description).

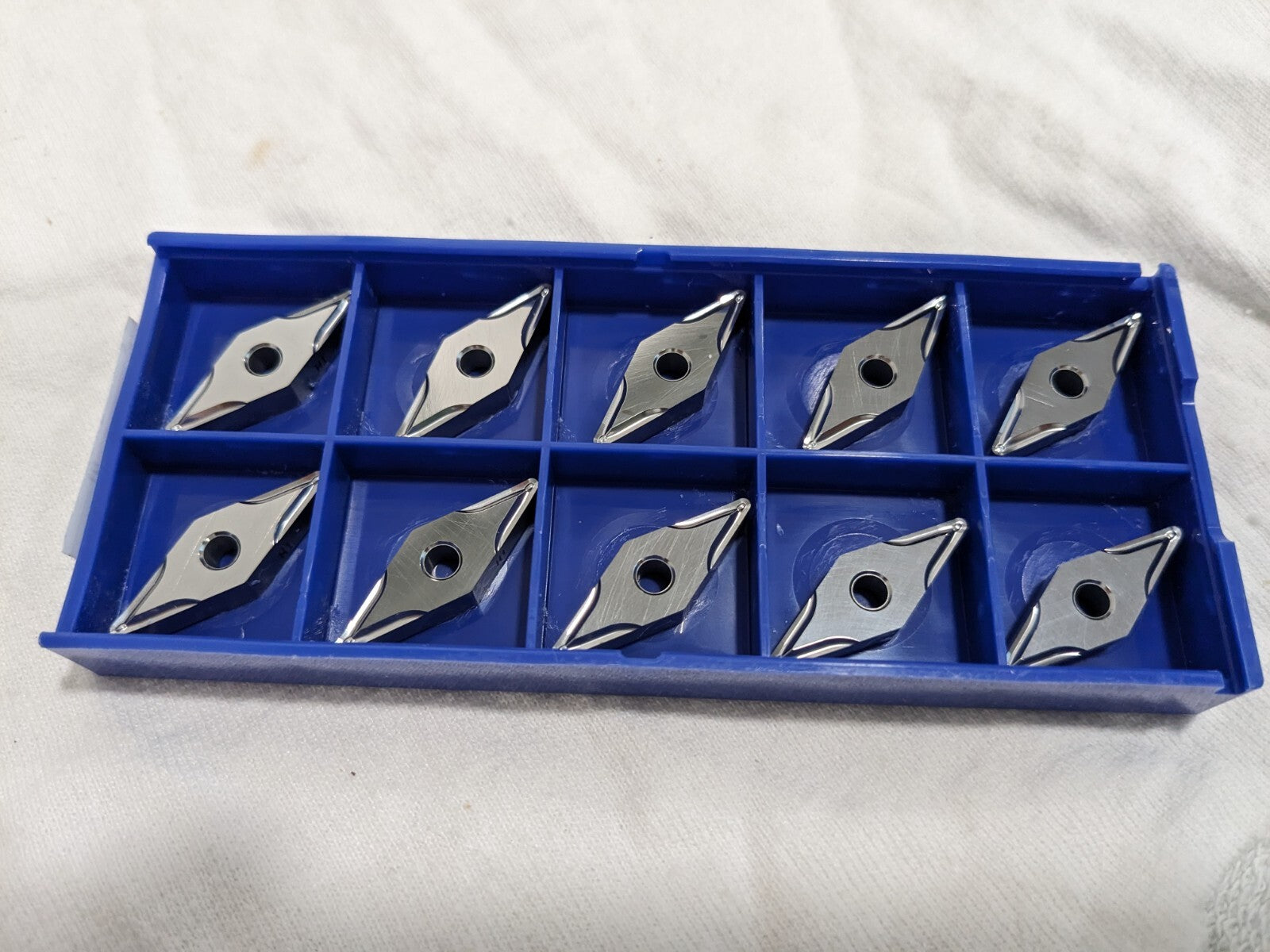

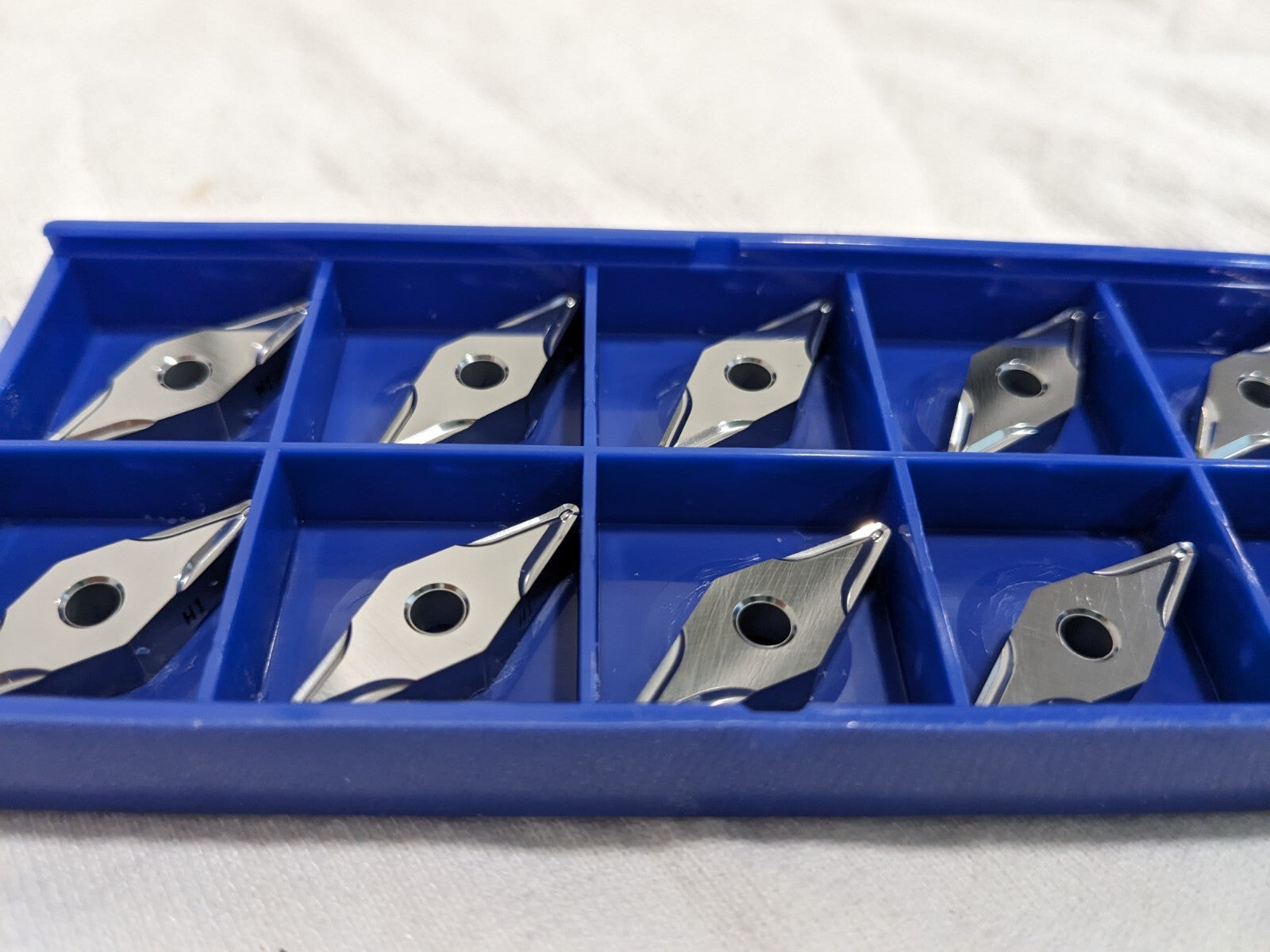

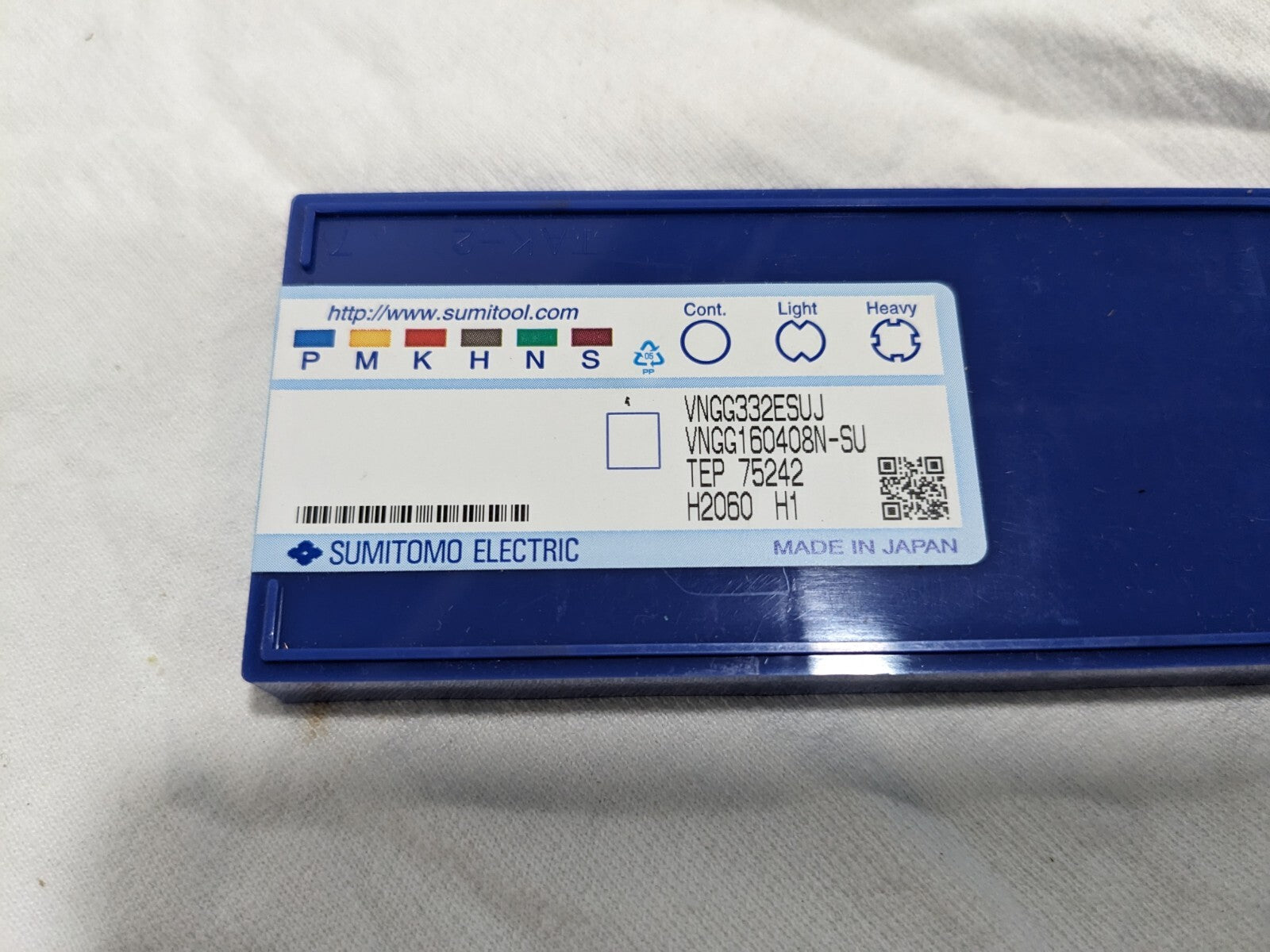

Please review photos, comes as shown.
