SUMITOMO Turning Insert qty 10 CNMG643EMX AC820P 19RJANJ

SUMITOMO

 Turning Insert qty 10 CNMG643EMX AC820P 19RJANJ
MSRP: $150

• Insert Style CNMG
• Insert Shape Code C
• Insert Size Code 643
• Insert Shape Diamond
• Coating/Finish Al2O3
• Manufacturer Grade AC820P
• Corner Radius (Inch) 3/64
• Corner Radius (Decimal Inch) 0.0469
• Insert Material Solid Carbide
• Hole Diameter (Decimal Inch) 0.3126
• Inscribed Circle (Inch) 3/4
• Inscribed Circle (mm) 19.05
• Inscribed Circle (Decimal Inch) 0.7500
• Insert Holding Method Pin; Clamp
• Insert Hand Neutral
• Insert Thickness (Inch) 1/4
• Insert Thickness (Decimal Inch) 0.2500
• Clearance Code N
• Tolerance Code M
• Included Angle 80.0
• Relief Angle 0
• Series CN
• Coating Process CVD
• Rake Negative
• Insert Length (Decimal Inch) 0.7598
• Secondary Workpiece Material Steel
• Secondary Workpiece Material Code P
• Ansi Code CNMG643EMX
• Iso Code CNMG190612N-MX
• Standards ISO 13399; ANSI
• Material Grade C6; C7; C8; C5A
• Chip Breaker EMX
• Rake Angle 15

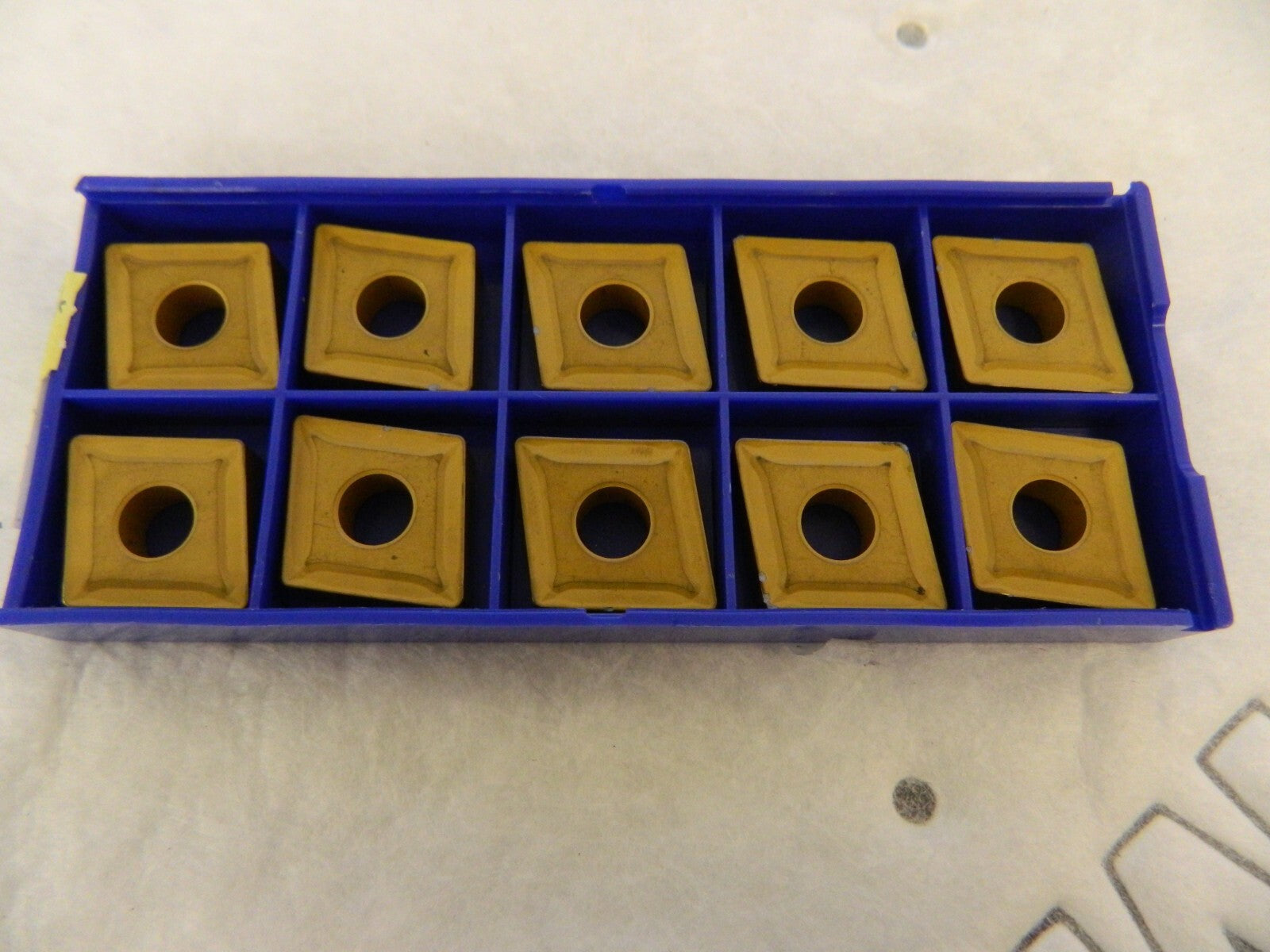

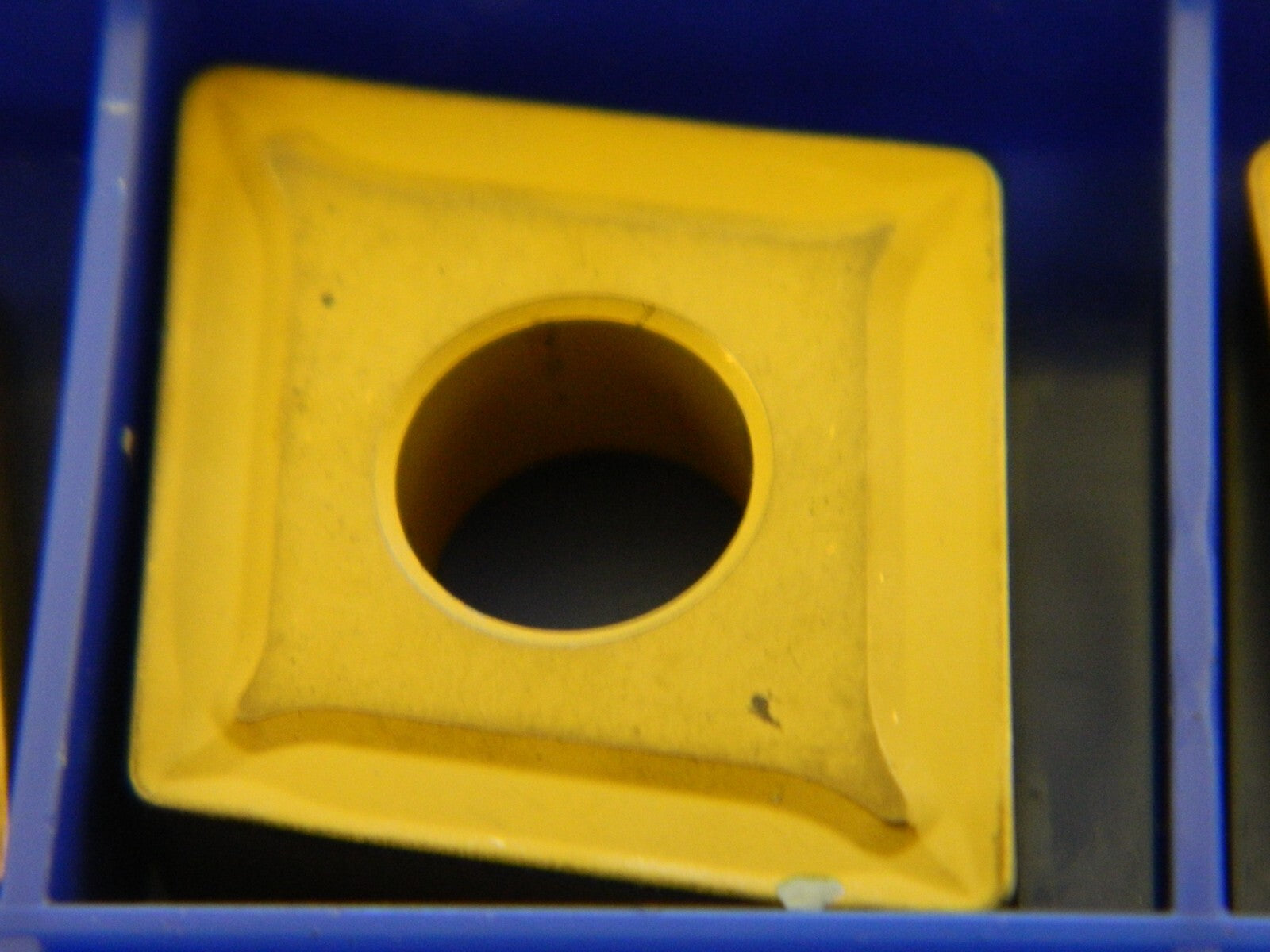

 Please review photos, comes as shown.
