SUMITOMO Turning Insert NUDNMA430.5 BN2000 Polycrystalline Cubic Boron Nitride

SUMITOMO

 Turning Insert NUDNMA430.5 BN2000 Polycrystalline Cubic Boron Nitride
MSRP: $30

• Insert Style NU-DNMA
• Insert Shape Code D
• Insert Size Code 430.5
• Insert Shape Diamond
• Coating/Finish Uncoated
• Manufacturer Grade BN2000
• Corner Radius (Decimal Inch) 0.0078
• Insert Material Polycrystalline Cubic Boron Nitride
• Hole Diameter (Decimal Inch) 0.2031
• Maximum Depth of Cut (Decimal Inch) 0.0150
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (Decimal Inch) 0.5000
• Insert Holding Method Pin; Clamp
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1875
• Clearance Code N
• Tolerance Code M
• Included Angle 55.0
• Relief Angle 0
• Series D
• Coating Process Uncoated
• Rake Negative
• Insert Length (Decimal Inch) 0.0984
• Number Of Cutting Edges 1
• Primary Workpiece Material Hard Material
• Primary Workpiece Material Code H
• Ansi Code NUDNMA430.5
• Iso Code NU-DNMA150402
• Standards ISO 13399; ANSI
• Chip Breaker A

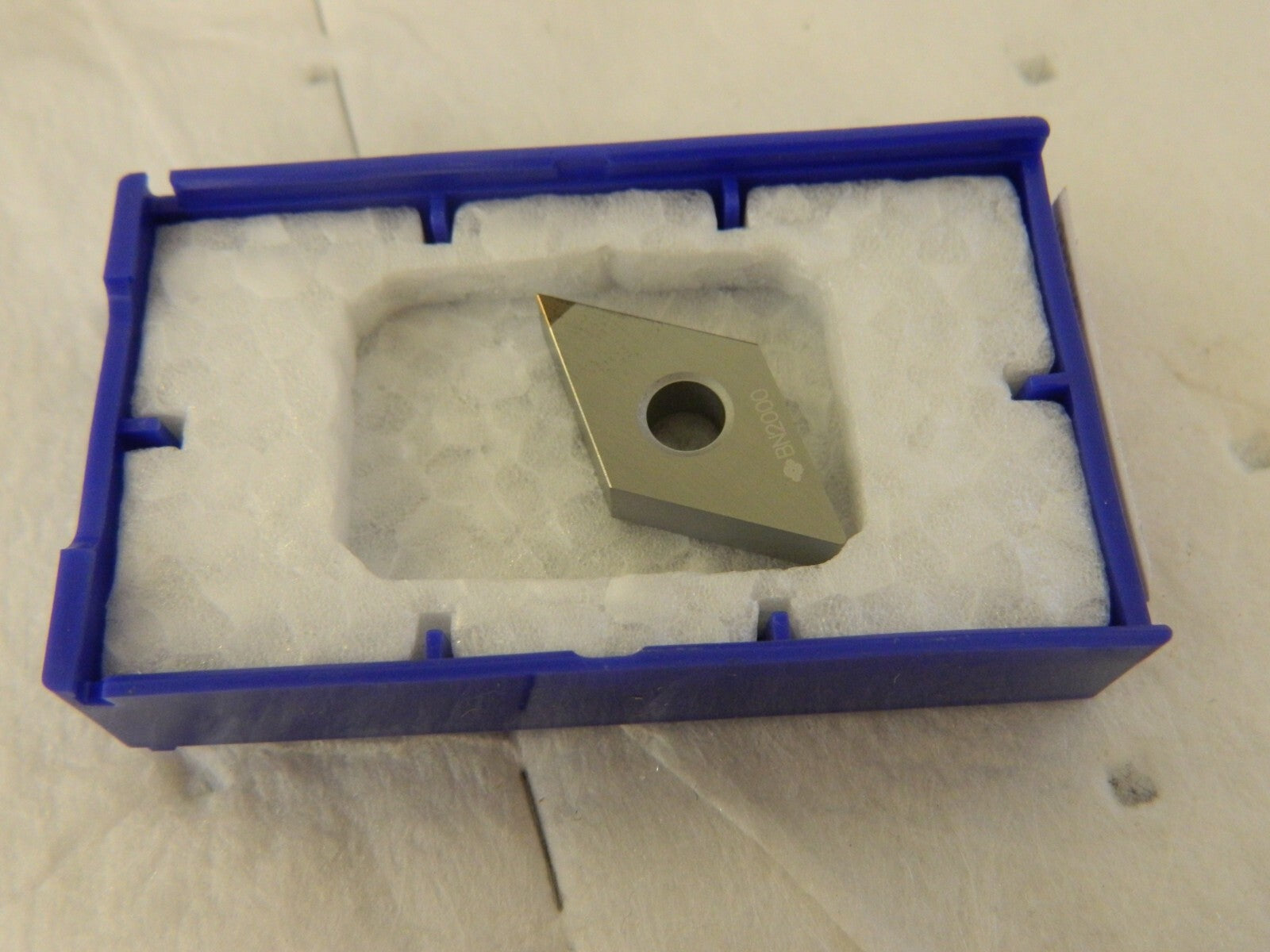

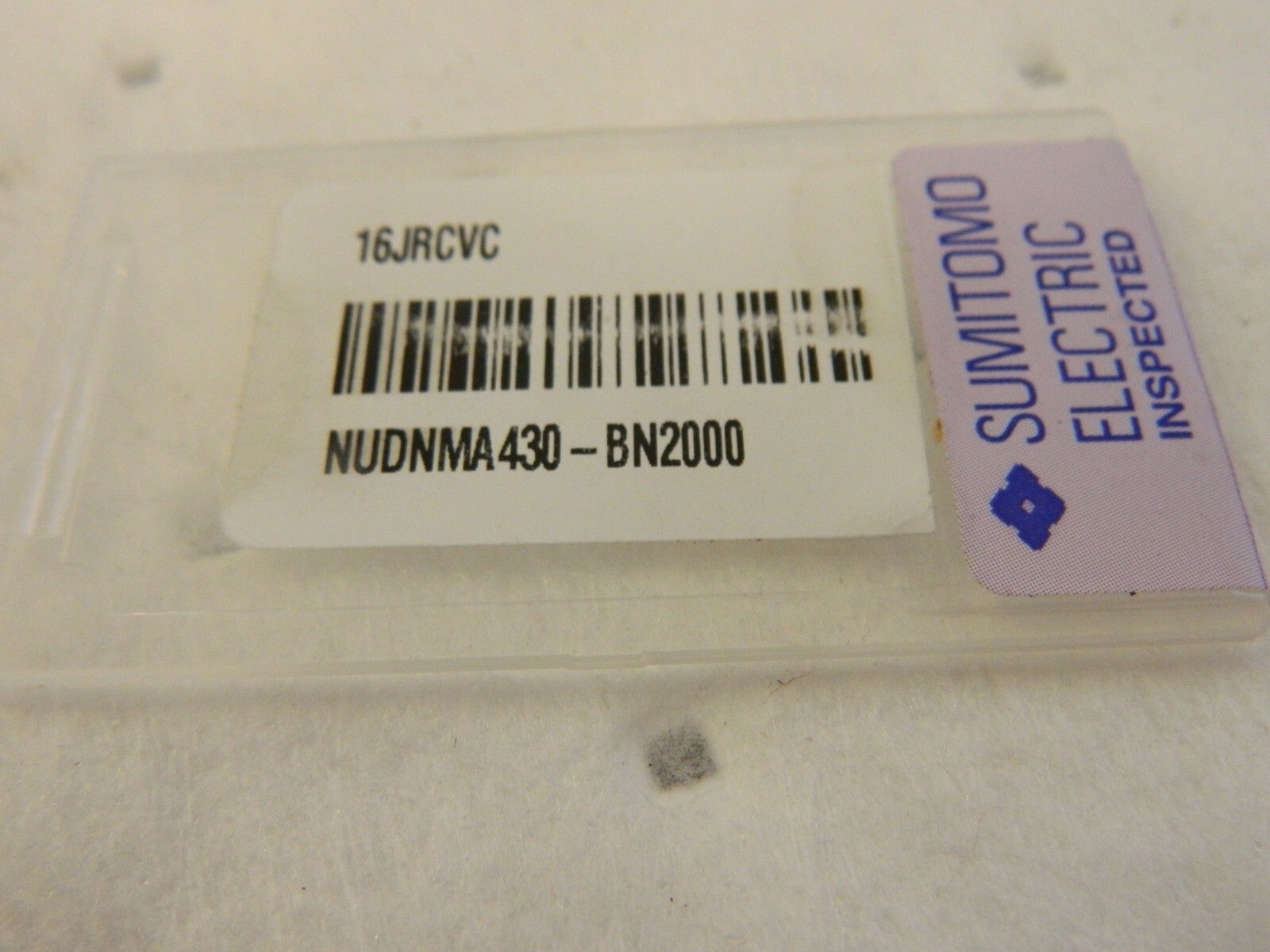

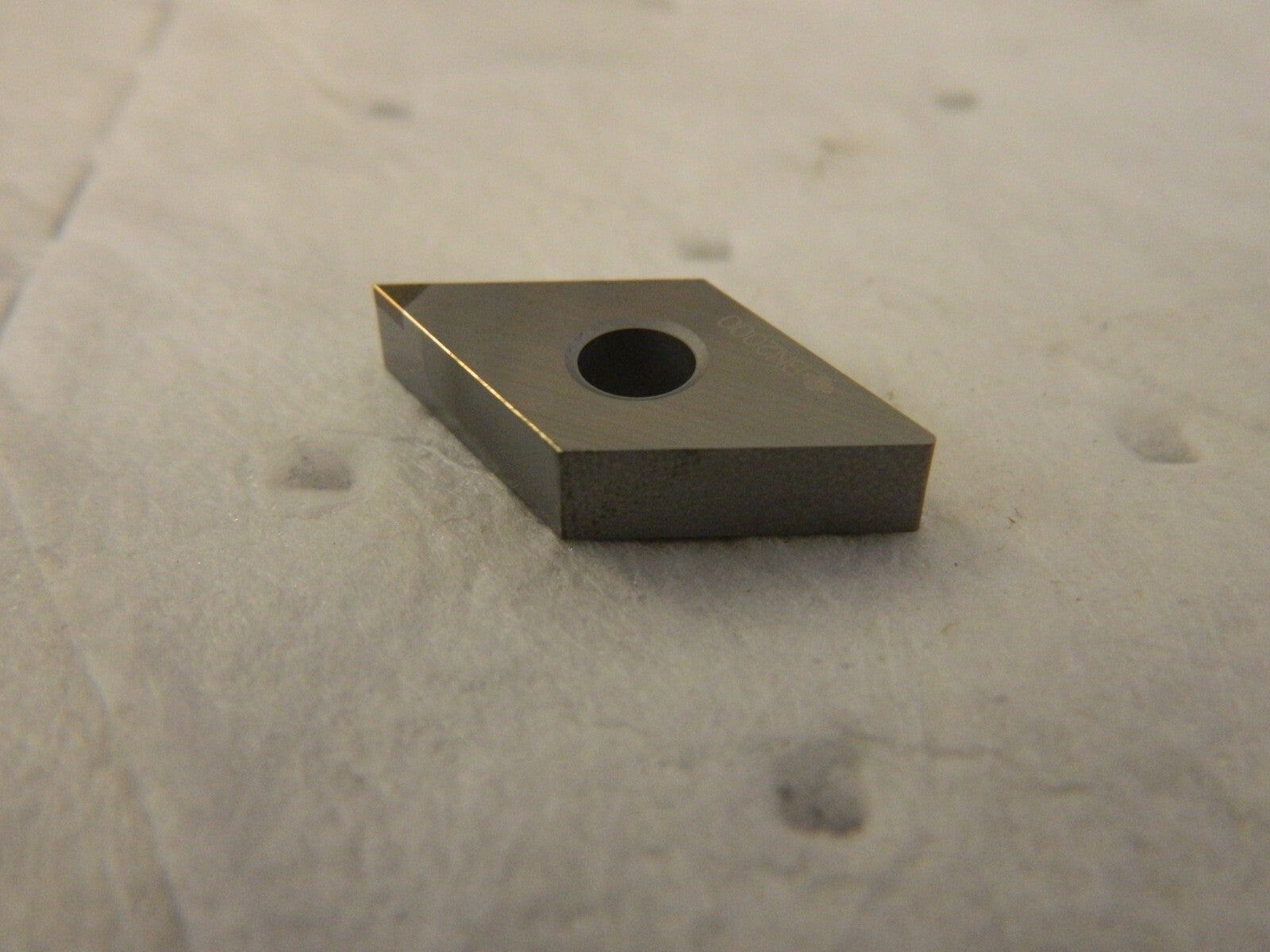

Please review photos, comes as shown.
