SUMITOMO Turning Insert: NFVNMX332DA2200, PCD 16CDBCM

MSRP: $70

• Relief Angle 0
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0313
• Included Angle 35
• Manufacturer Grade DA2200
• Coating/Finish Bright/Uncoated
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1875
• Series V
• Inscribed Circle (Inch) 3/8
• Inscribed Circle (Decimal Inch) 0.3750
• Insert Material PCD
• Insert Shape Diamond
• Insert Shape Code V
• Hole Diameter (Decimal Inch) 0.1500
• Insert Holding Method Pin; Clamp
• Clearance Code N
• Tolerance Code M
• Rake Positive
• Insert Length (Decimal Inch) 0.2205
• Primary Workpiece Material Non-Ferrous Metal
• Primary Workpiece Material Code N
• Iso Code NF-VNMX160408
• Standards ISO 13399; ANSI
• Material Grade C2
• Chip Breaker X
• UNSPSC Code 23242105
• Insert Style NF-VNMX
• Insert Size Code 332

(Description).

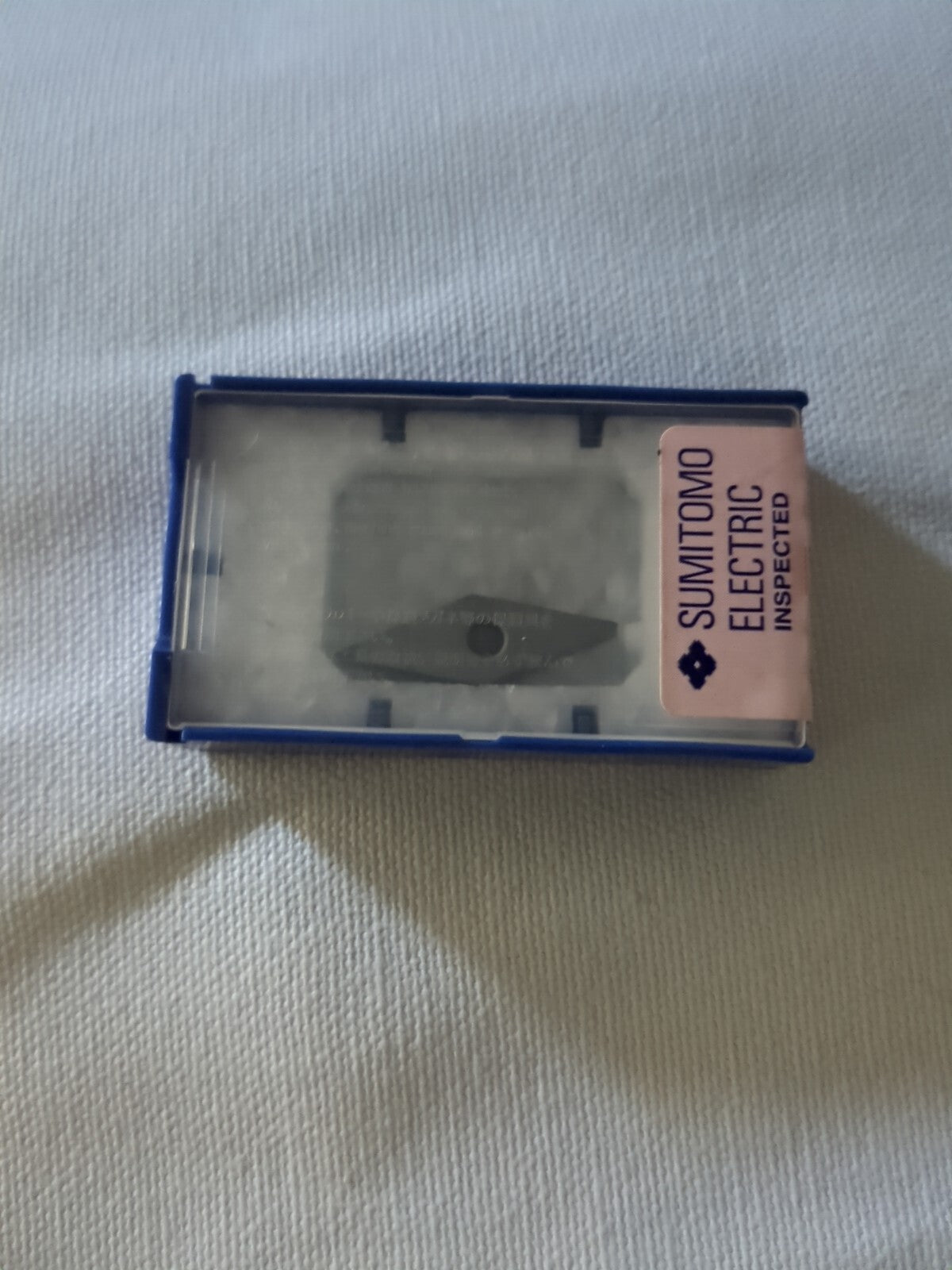

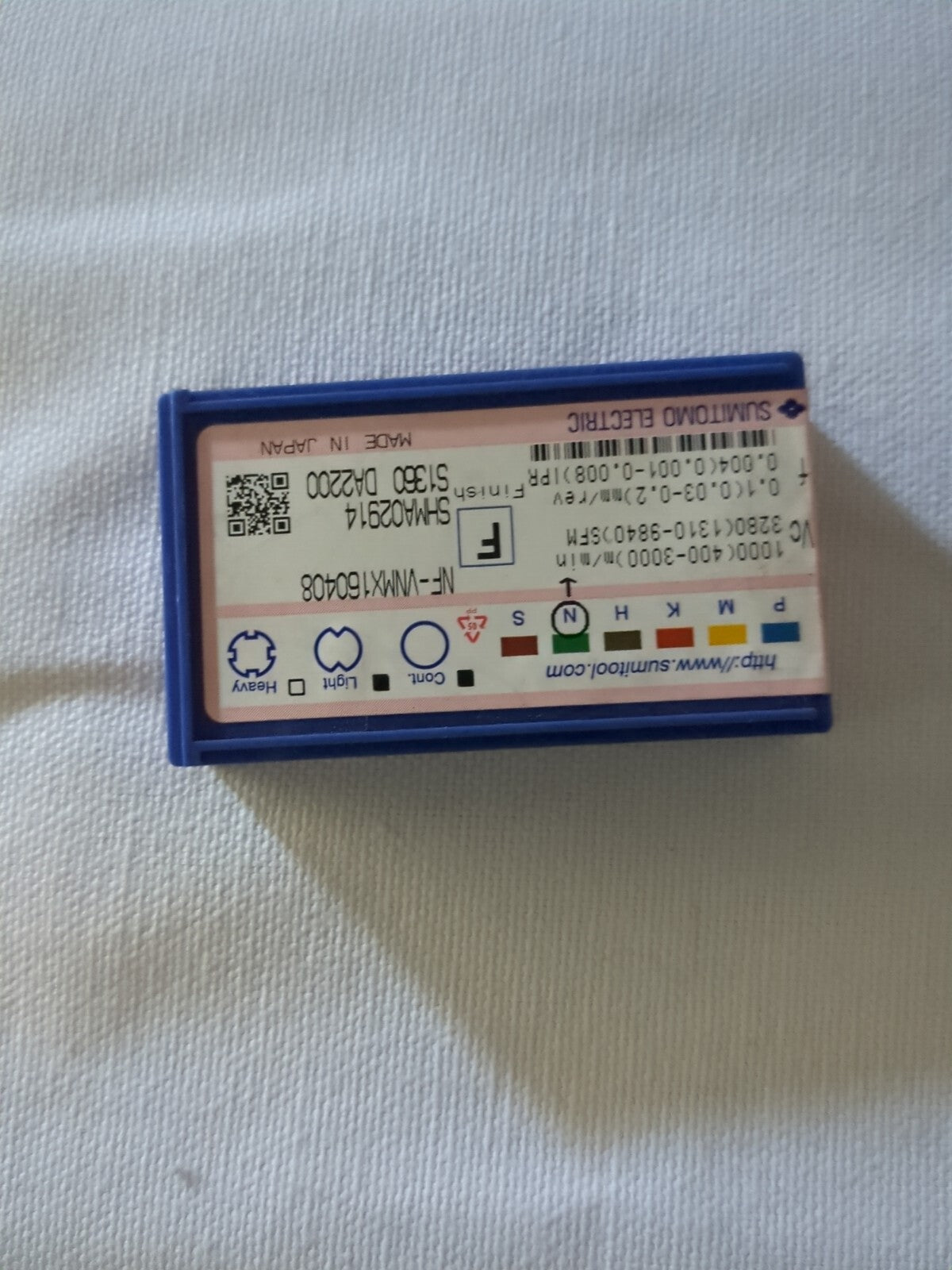

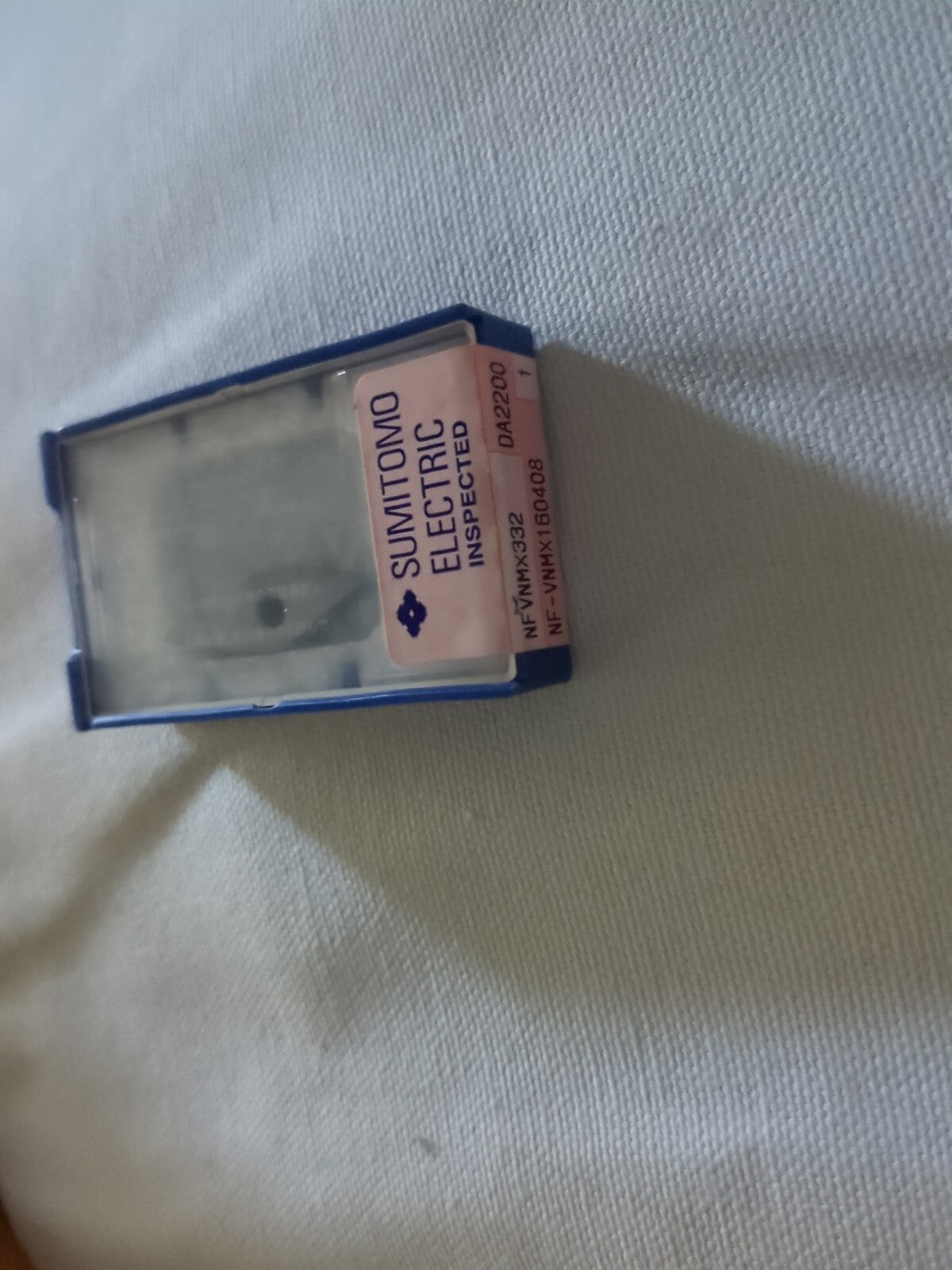

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
