SUMITOMO Turning Insert: DNMG433EGZ AC405K carbide 192QCAG

SUMITOMO

 Turning Insert: DNMG433EGZ AC405K carbide 192QCAG

MSRP: $120

• Insert Style DNMG
• Insert Size Code 433
• Insert Shape Diamond
• Included Angle 55
• Inscribed Circle (Decimal Inch) 0.5000
• Corner Radius (Decimal Inch) 0.0469
• Insert Material Carbide
• Manufacturer Grade AC405K
• Coating/Finish Coated
• Relief Angle 0
• Insert Thickness (Decimal Inch) 0.1875
• Insert Hand Neutral
• Insert Shape Code D
• Corner Radius (Inch) 3/64
• Hole Diameter (Decimal Inch) 0.2031
• Inscribed Circle (Inch) 1/2
• Insert Holding Method Pin; Clamp
• Insert Thickness (Inch) 3/16
• Clearance Code N
• Tolerance Code M
• Series DN
• Coating Process CVD
• Rake Neutral
• Insert Length (Decimal Inch) 0.6102
• Secondary Workpiece Material Cast Iron
• Secondary Workpiece Material Code K
• Iso Code DNMG150412N-GZ
• Standards ISO 13399; ANSI
• Proprietary Coating Designation FF
• UNSPSC Code 23242105
• Chip Breaker EGZ
• Rake Angle 0

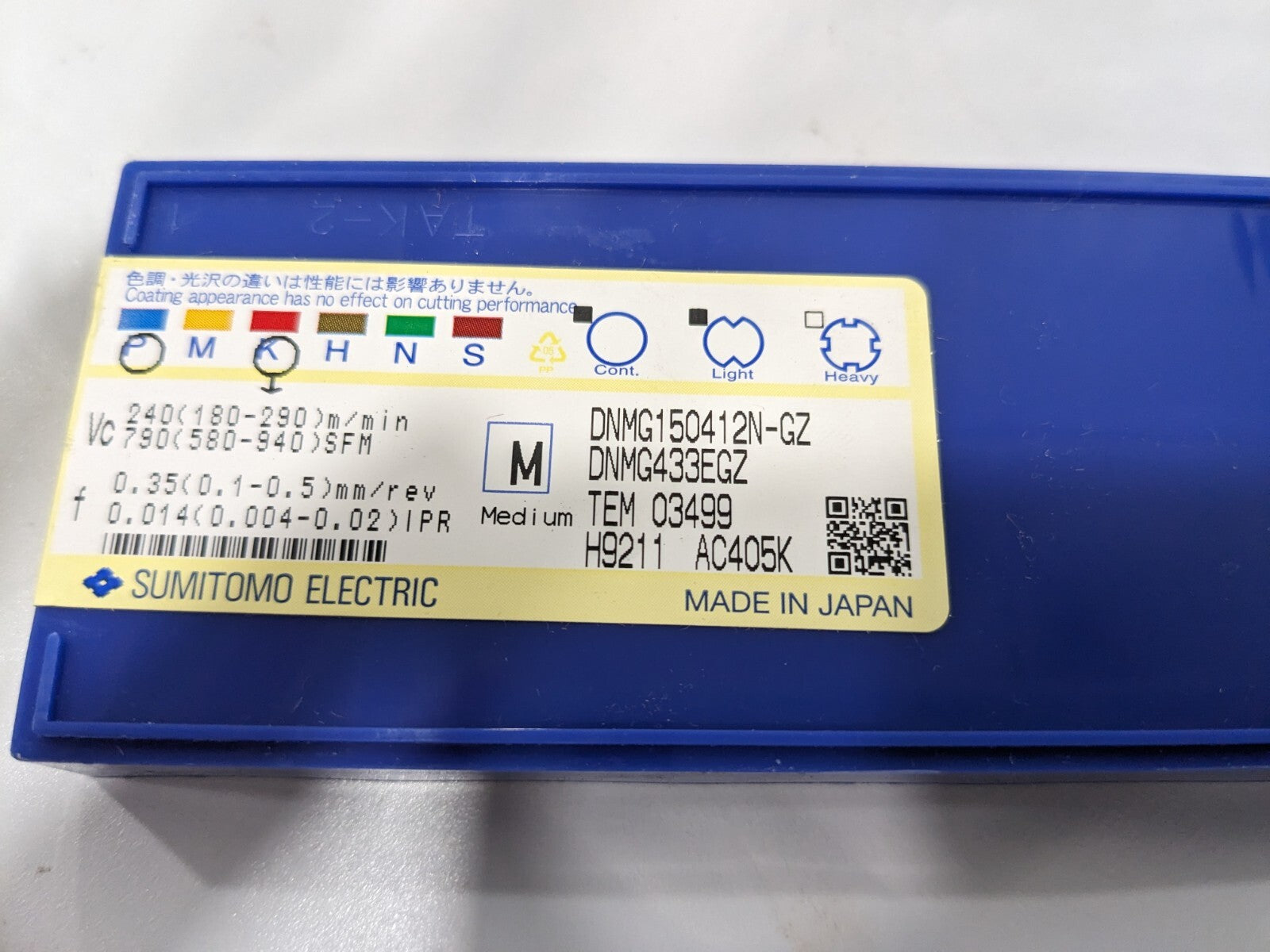

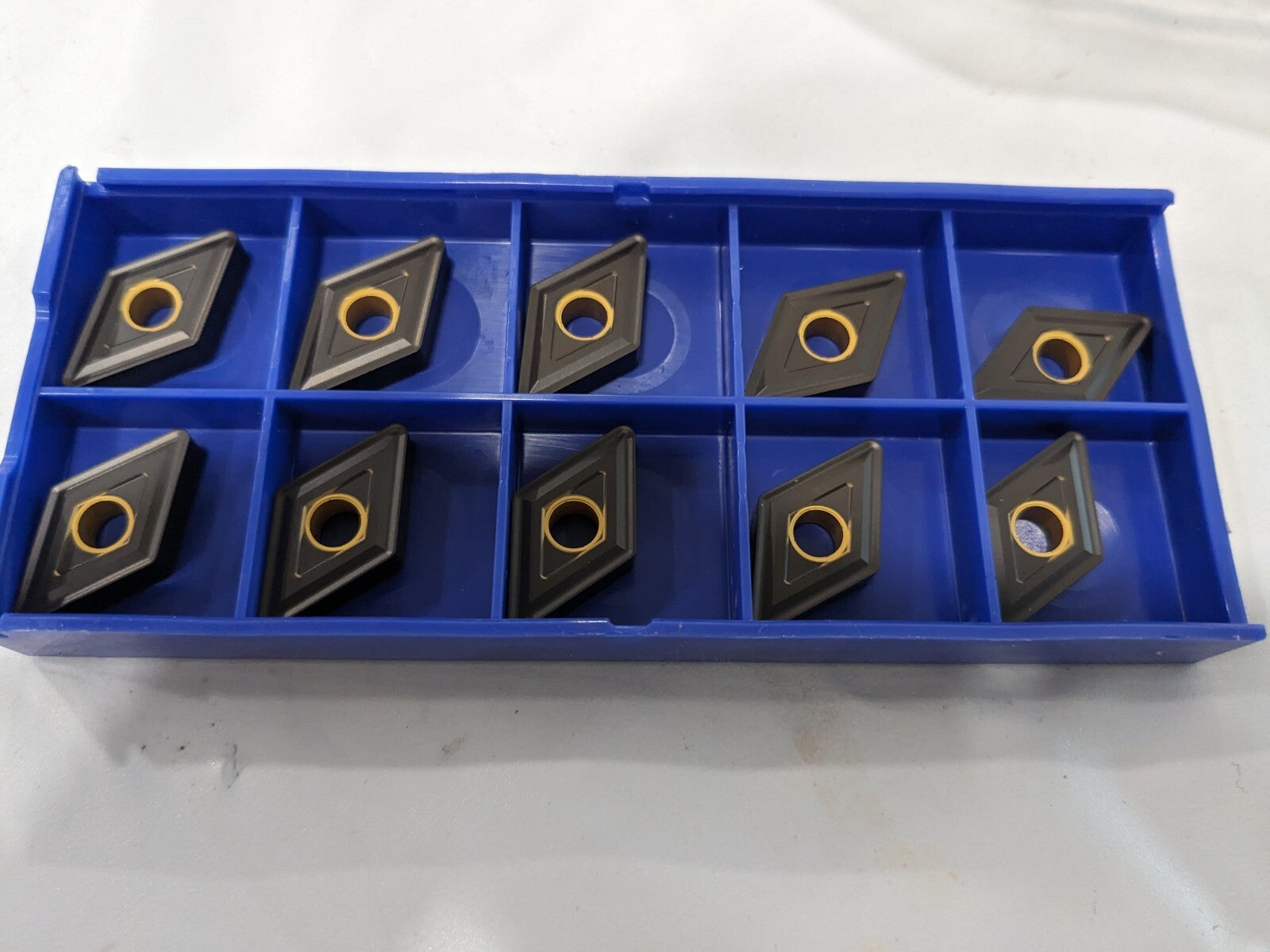

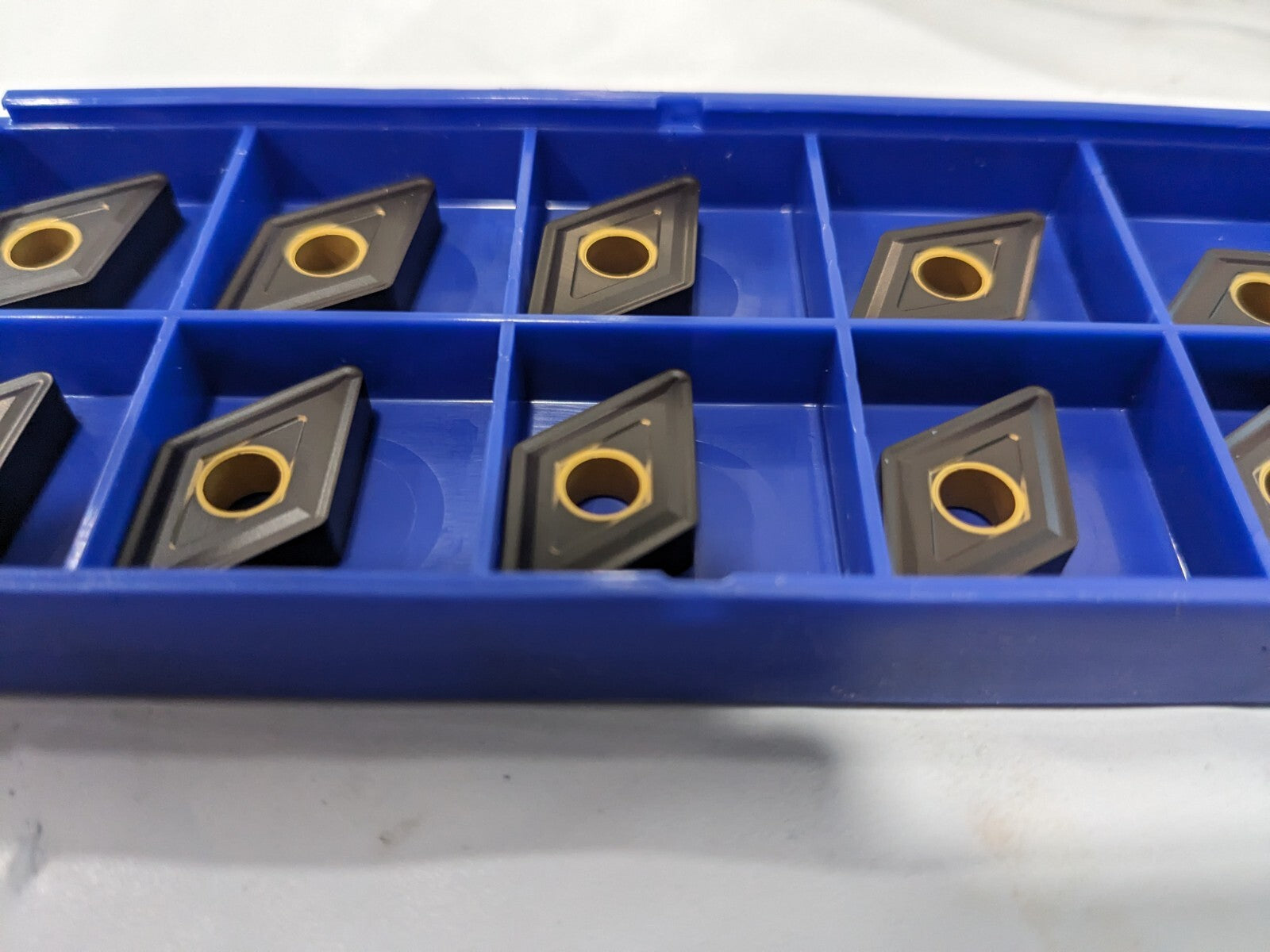

Please review photos, comes as shown.
