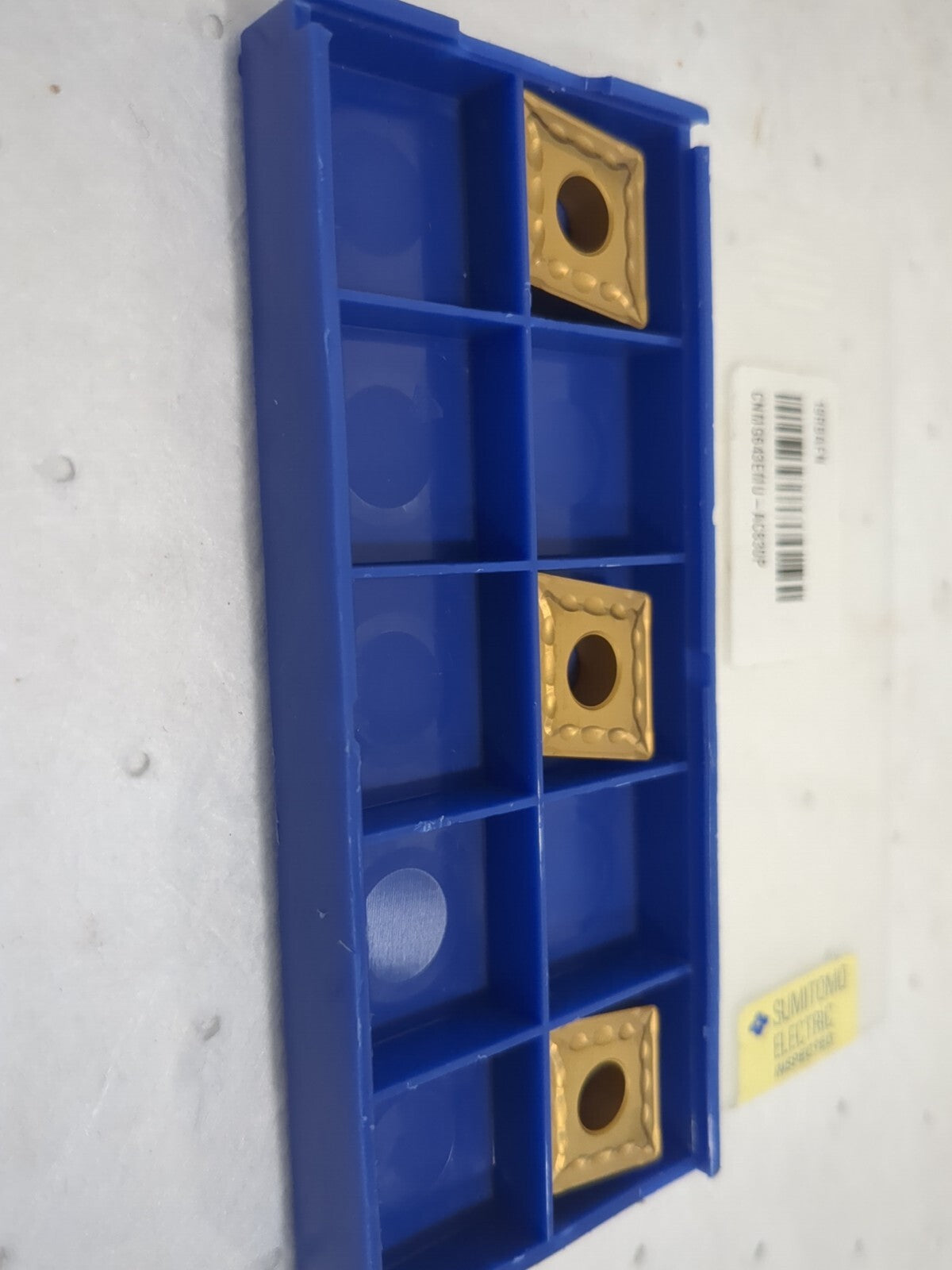

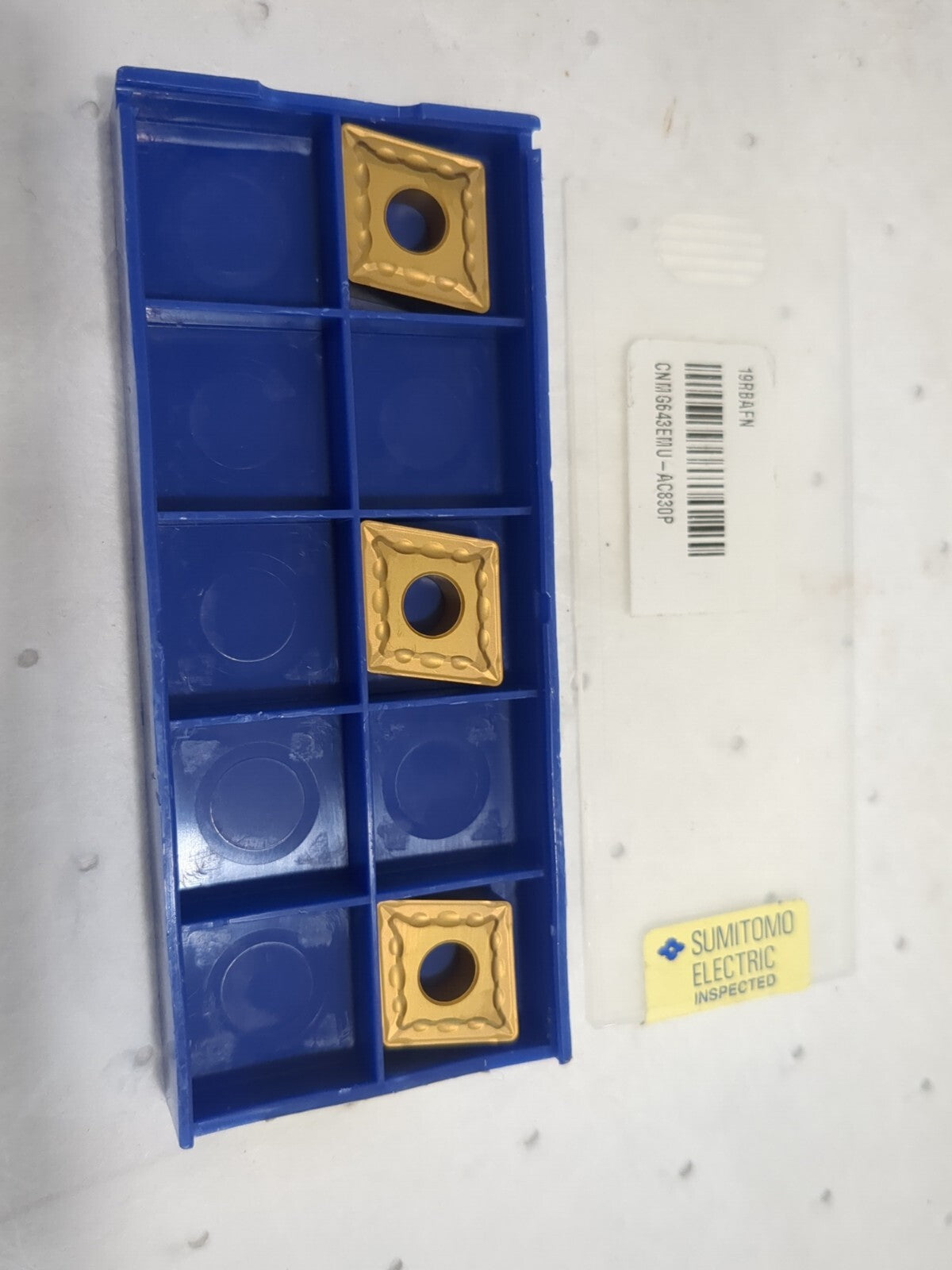

SUMITOMO Turning Insert 3pc : CNMG643EMU AC830P, Carbide 19RBAFN

SUMITOMO Turning Insert 3pc : CNMG643EMU AC830P, Carbide 19RBAFN

MSRP: $75

• ANSI Insert Code CNMG643
• ISO Insert Code CNMG190612
• Relief Angle 0
• Insert Style CNMG
• Corner Radius (Inch) 3/64
• Corner Radius (Decimal Inch) 0.0469
• Included Angle 80
• Manufacturer Grade AC830P
• Coating/Finish Coated
• Insert Hand Neutral
• Insert Thickness (Inch) 1/4
• Insert Thickness (Decimal Inch) 0.2500
• Series CN
• Inscribed Circle (Decimal Inch) 0.7500
• Inscribed Circle (Inch) 3/4
• Inscribed Circle (mm) 19.05
• Insert Material Carbide
• Insert Shape C - Diamond (Rhombic) 80-Deg
• Chip Breaker Operation Light Machining; Medium Machining
• Grade Characteristics Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
• Side Clearance Negative
• Insert Shape Code C
• Hole Diameter (Decimal Inch) 0.3130
• Insert Holding Method Pin; Clamp
• Clearance Code N
• Tolerance Code M
• Coating Process CVD
• Rake Negative
• Insert Length (Decimal Inch) 0.7598
• Primary Workpiece Material Code P; M
• Secondary Workpiece Material Universal
• Secondary Workpiece Material Code P; M
• Iso Code CNMG190612N-MU
• Standards ISO 13399; ANSI
• Material Grade C5; C6; C5A
• Chip Breaker EMU
• ANSI Size Code 643
• ISO Size Code 190612
• UNSPSC Code 23242105
• Insert Size Code 643

(Description).

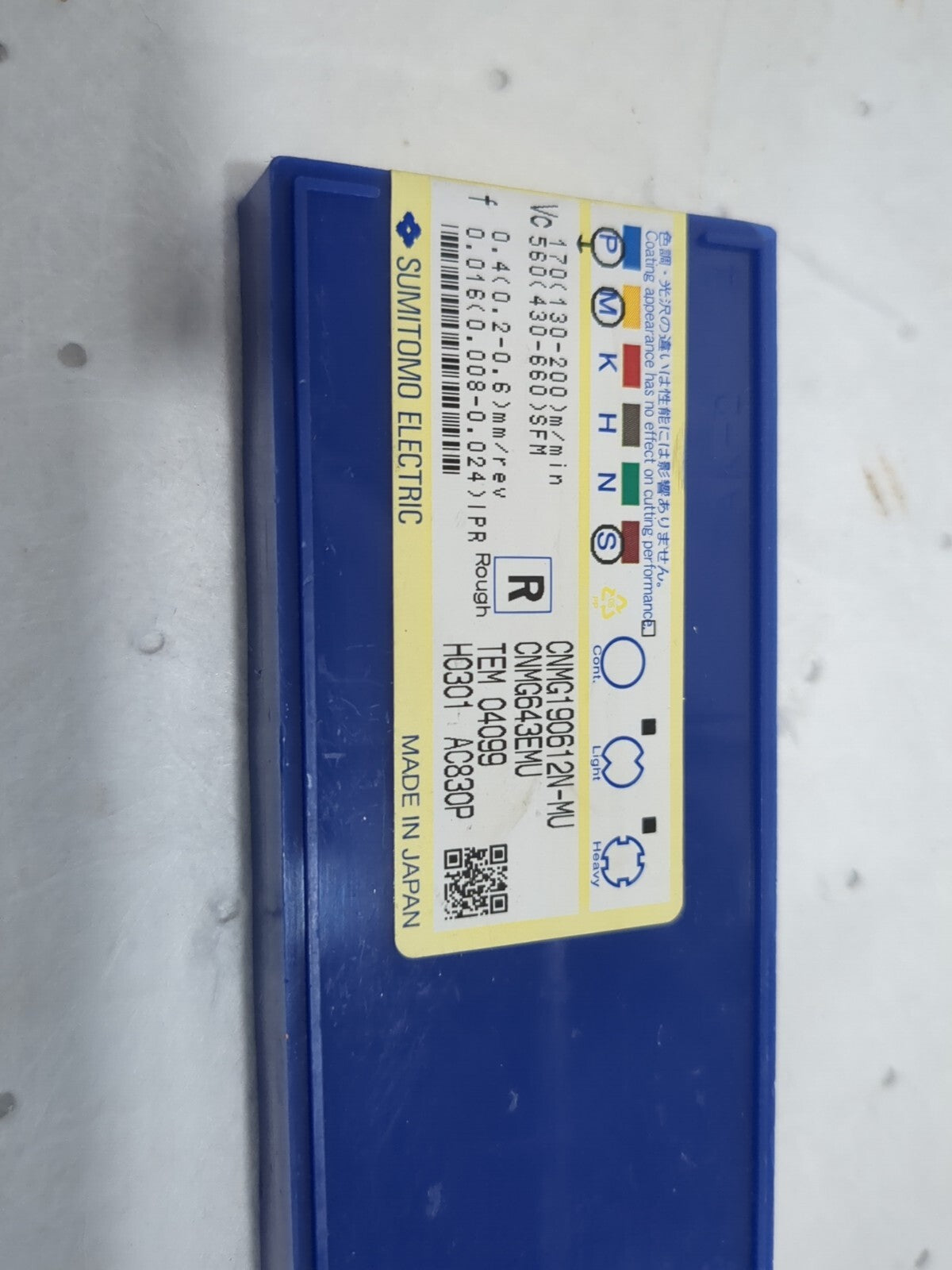

Please review photos, comes as shown.
