Sumitomo Turning Insert: 2NUCCGA32.51WG BN7500, PCBN 16RKWG4

Sumitomo
Turning Insert

MSRP: $80.00

• Insert Style: CCGA
• ANSI Size Code: 32.51
• ISO Size Code: 09T304
• Insert Shape: C - Diamond (Rhombic) 80-Deg
• Included Angle: 80.00
• Inscribed Circle (Decimal Inch): 0.3750
• Inscribed Circle (Inch): 3/8
• Corner Radius (Inch): 1/64
• Corner Radius (Decimal Inch): 0.0156
• Insert Material: PCBN
• Manufacturer Grade: BN7500
• Relief Angle: 7.000
• Insert Thickness (Inch): 5/32
• Insert Thickness (Decimal Inch): 0.1563
• Insert Hand: Neutral
• Series: CCG
• Grade Characteristics: Cast Iron (K) - High Wear-Resistance; Hardened Materials (H) - High Wear-Resistance
• Side Clearance: Positive
• Number Of Cutting Edges: 2
• Hole Diameter (Decimal Inch): 0.1732
• ANSI Insert Code: CCGA32.51
• ISO Insert Code: CCGA09T304
• Insert Holding Method: Screw
• Clearance Code: C
• Tolerance Code: G
• Coating Process: Uncoated
• Rake: Positive
• Insert Length (Decimal Inch): 0.0945
• Primary Workpiece Material: Hard Material; Superalloy; Cast Iron
• Primary Workpiece Material Code: H; K
• Iso Code: 2NU-CCGW09T304WG
• Standards: ISO 13399; ANSI
• Chip Breaker: WG
• UNSPSC Code: 23242105

This item is new and in good condition. SOLD AS IS.

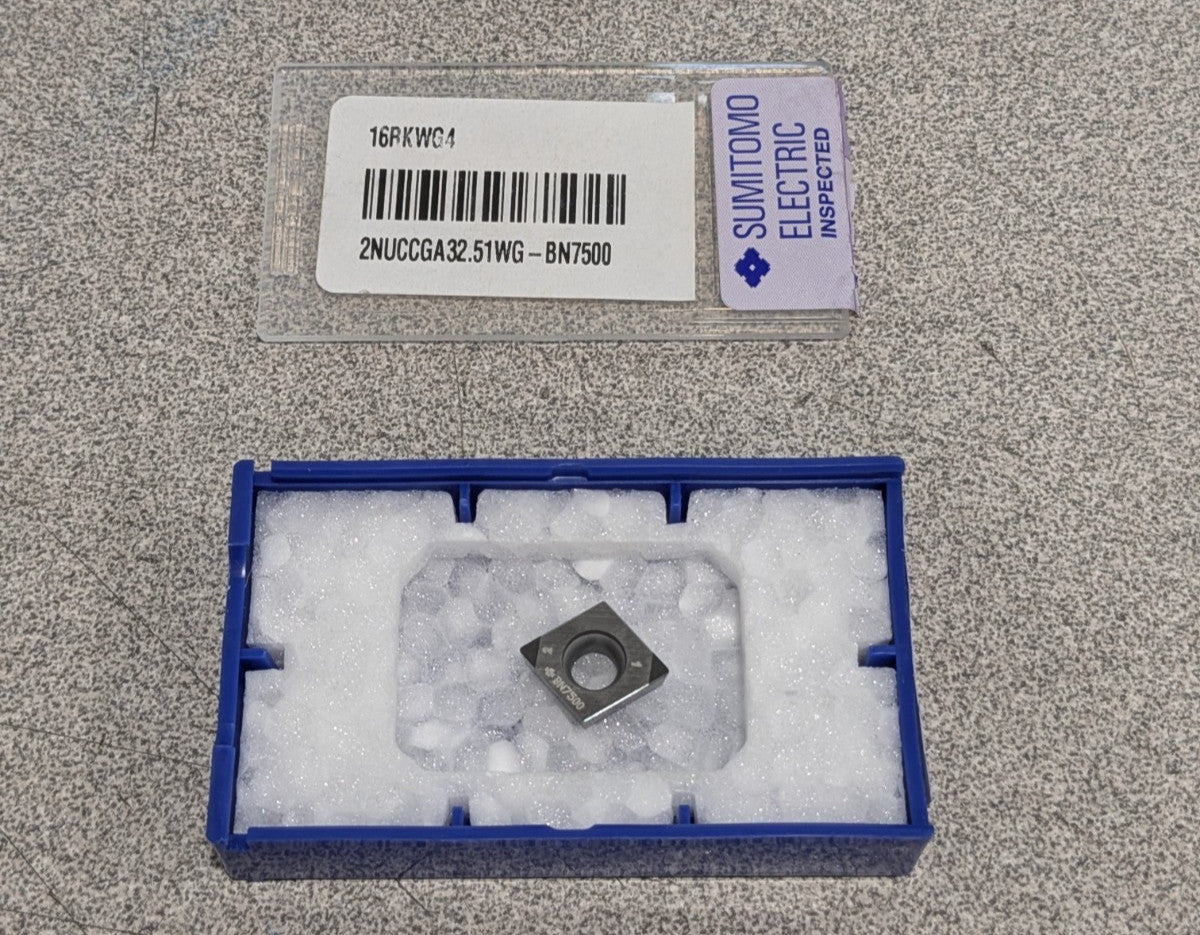

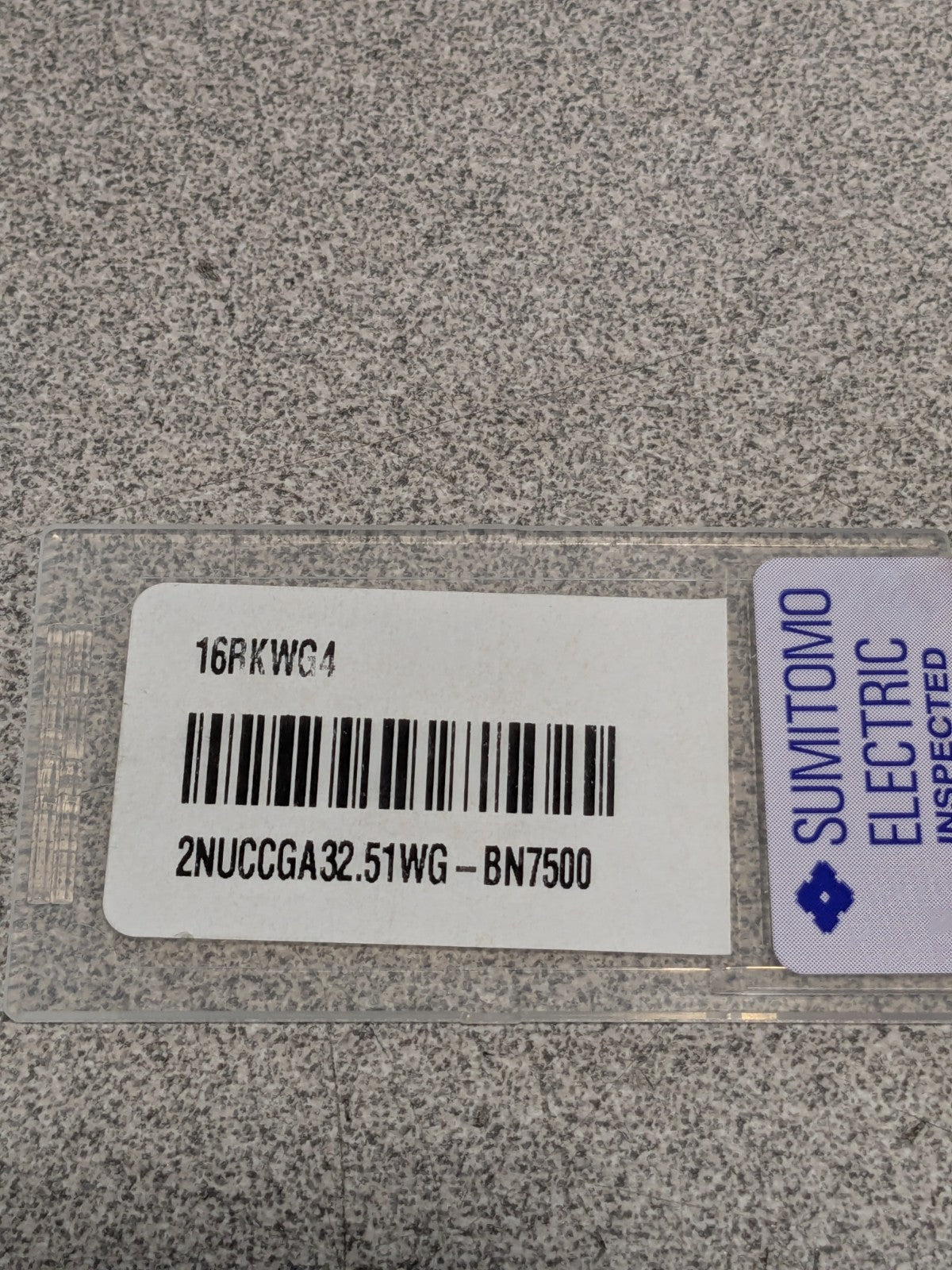

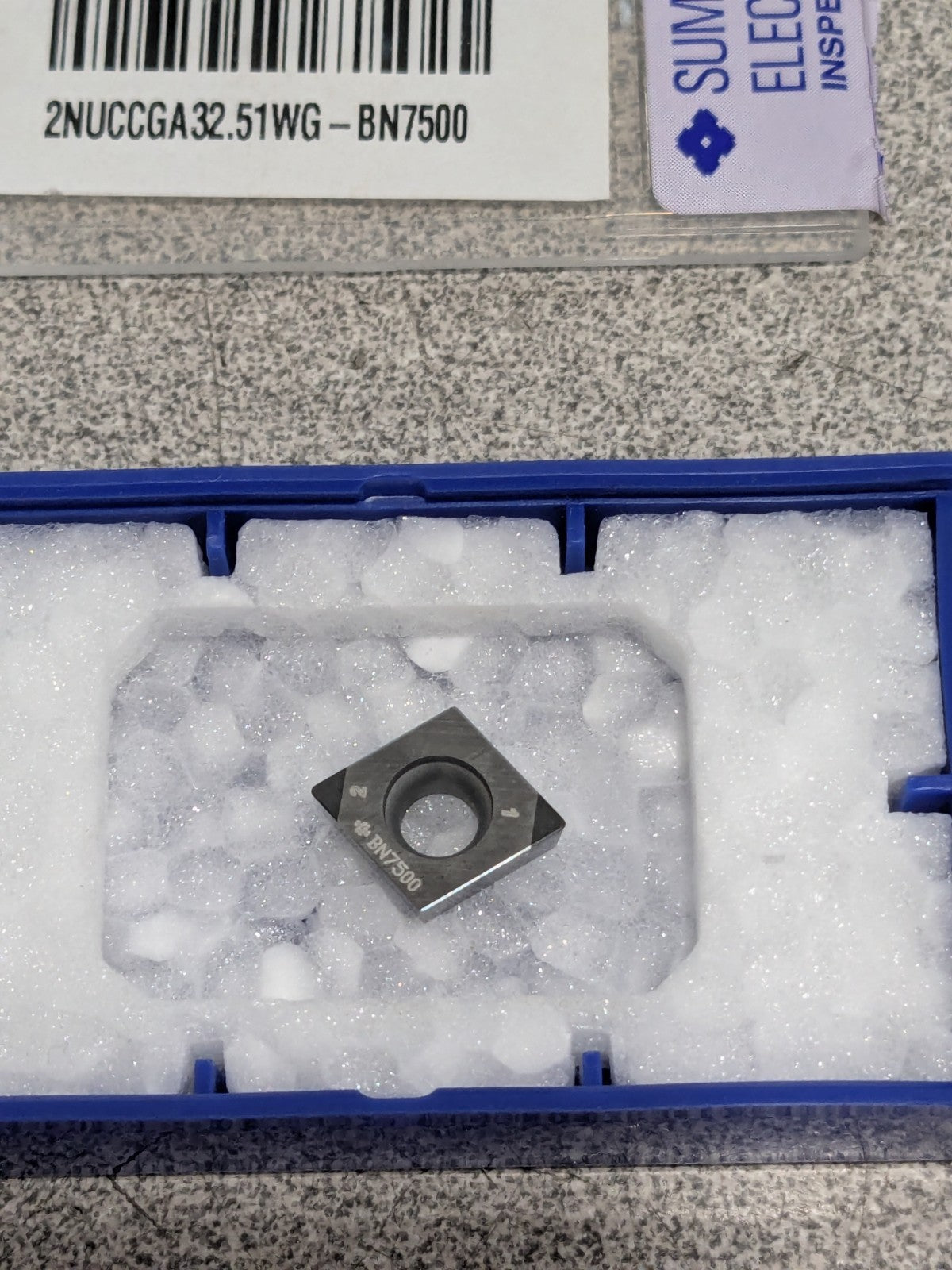

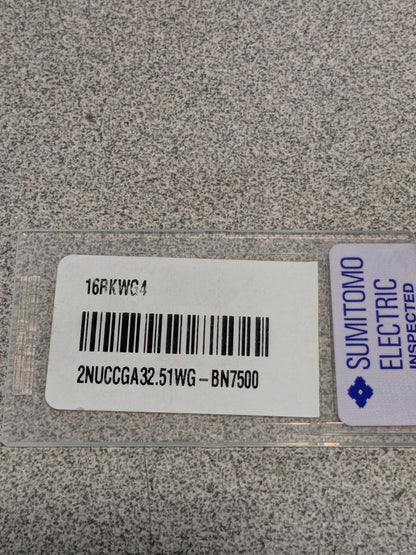

Please review photos, comes as shown.
