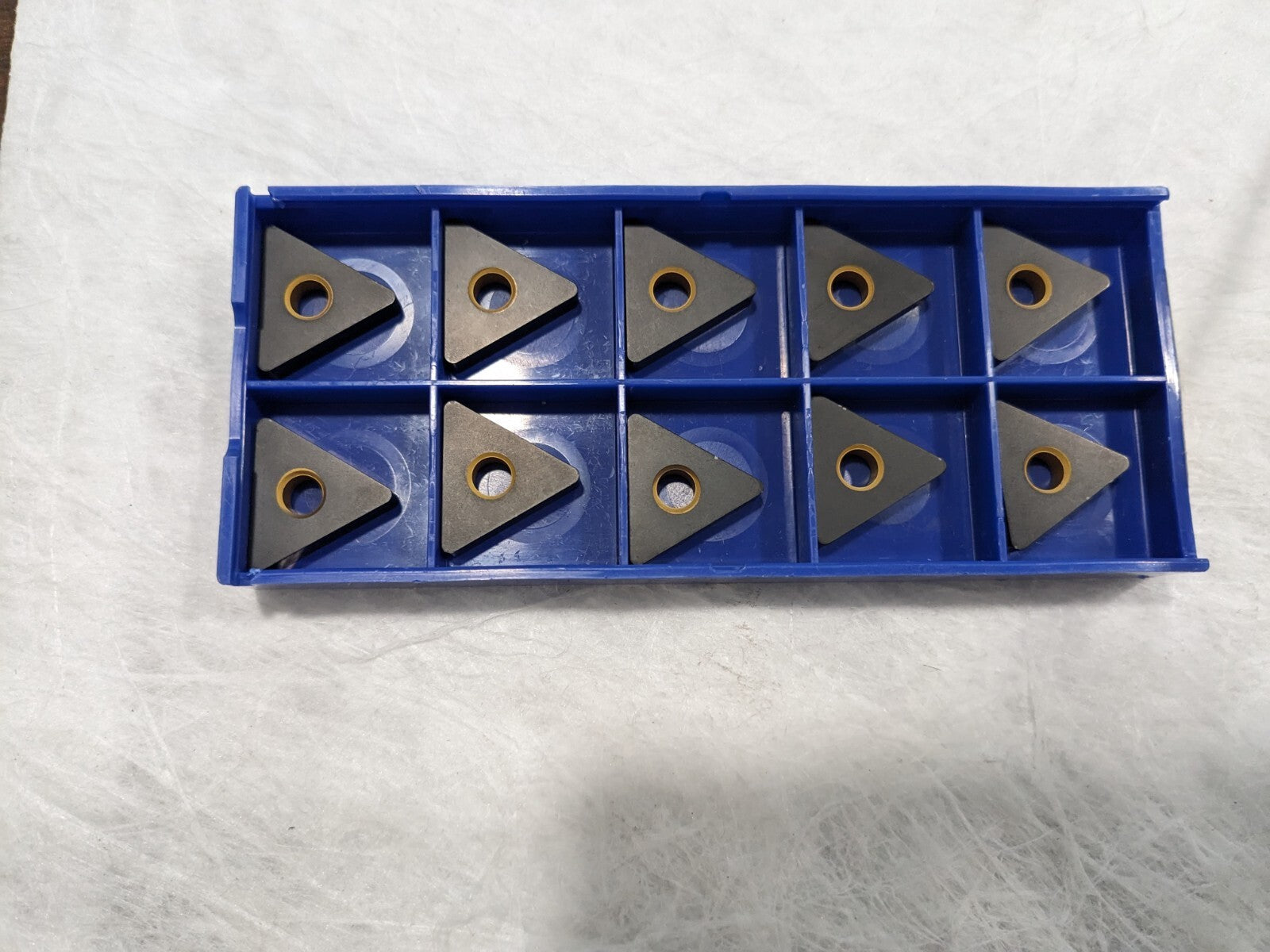

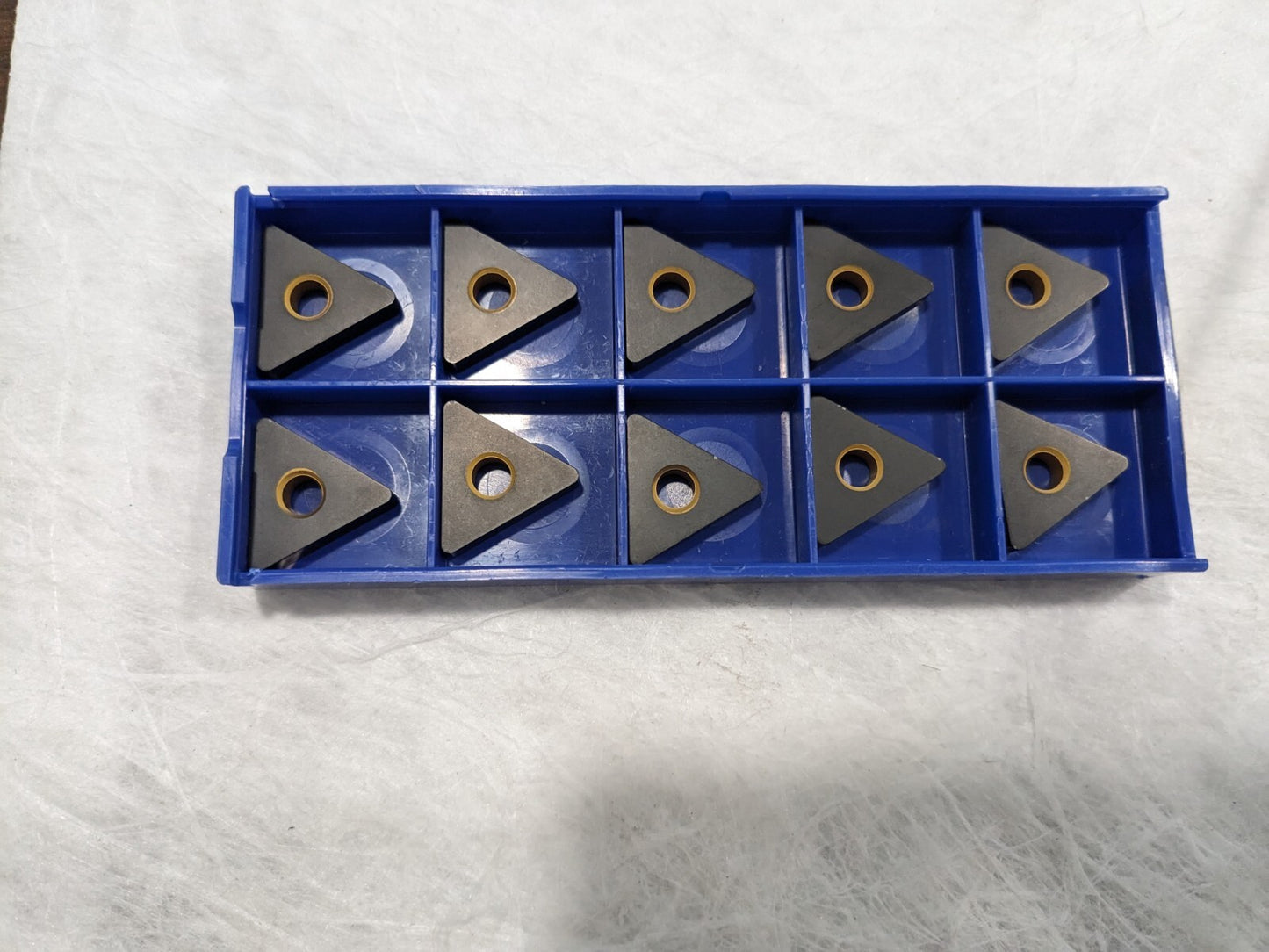

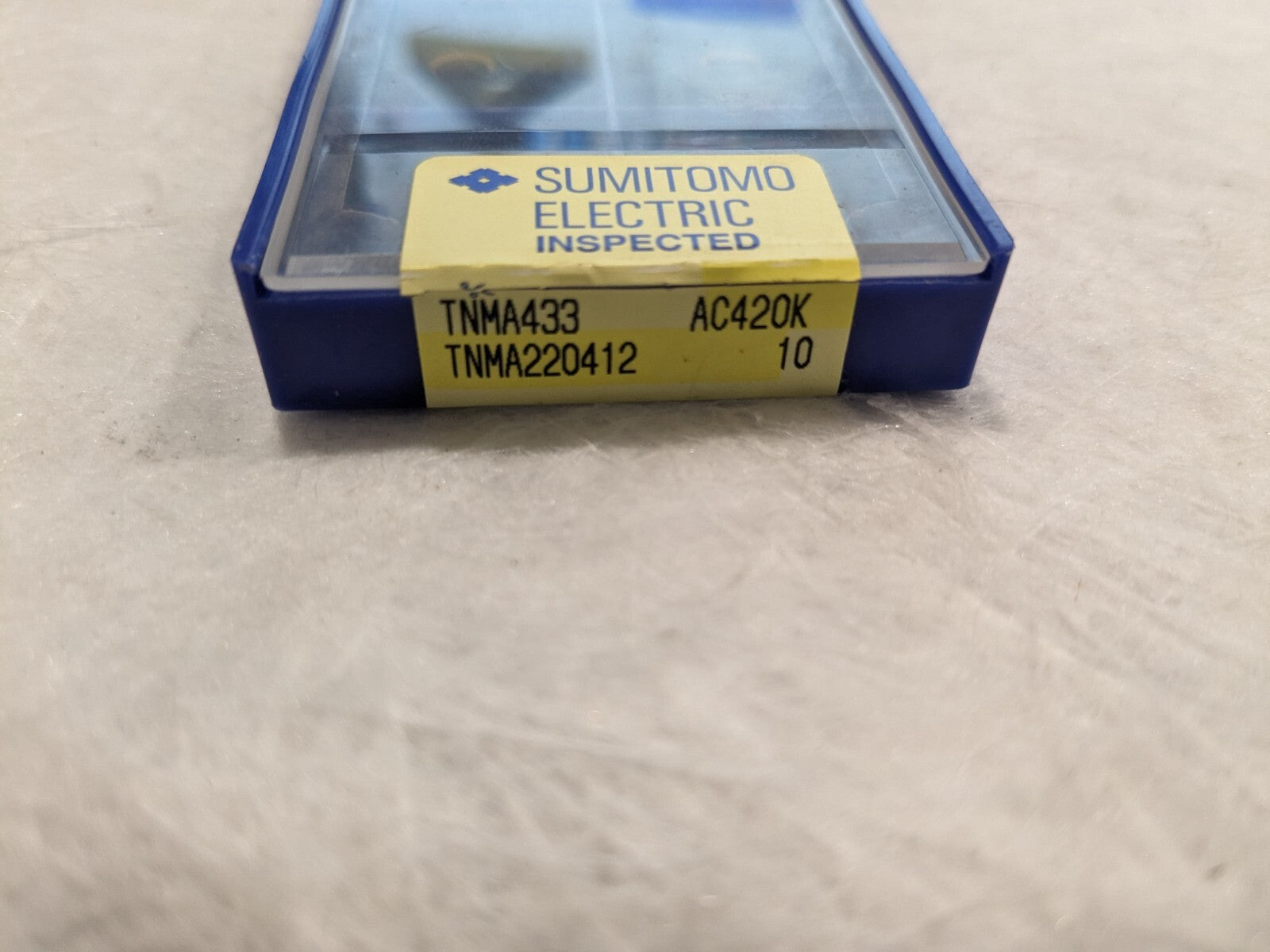

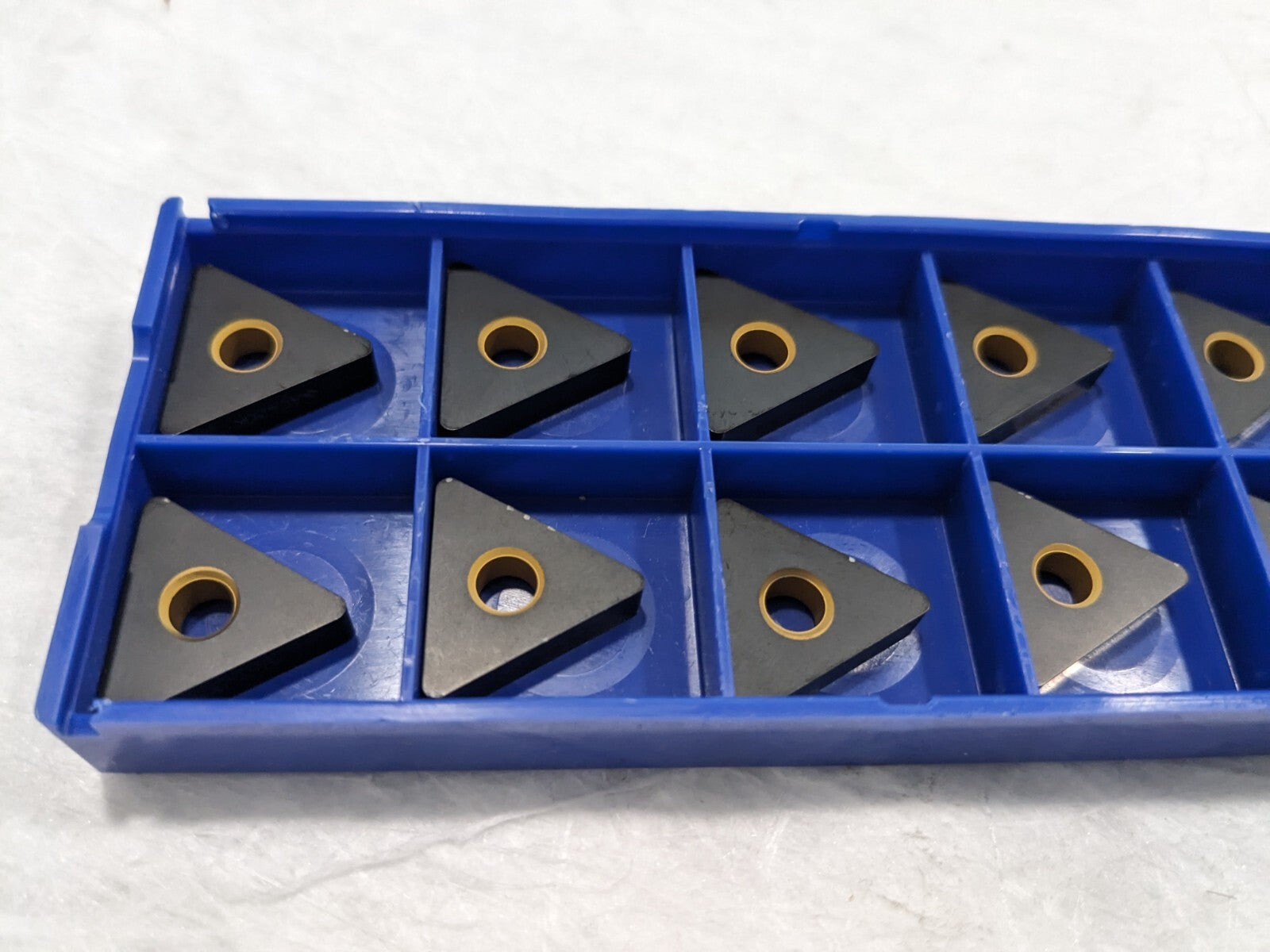

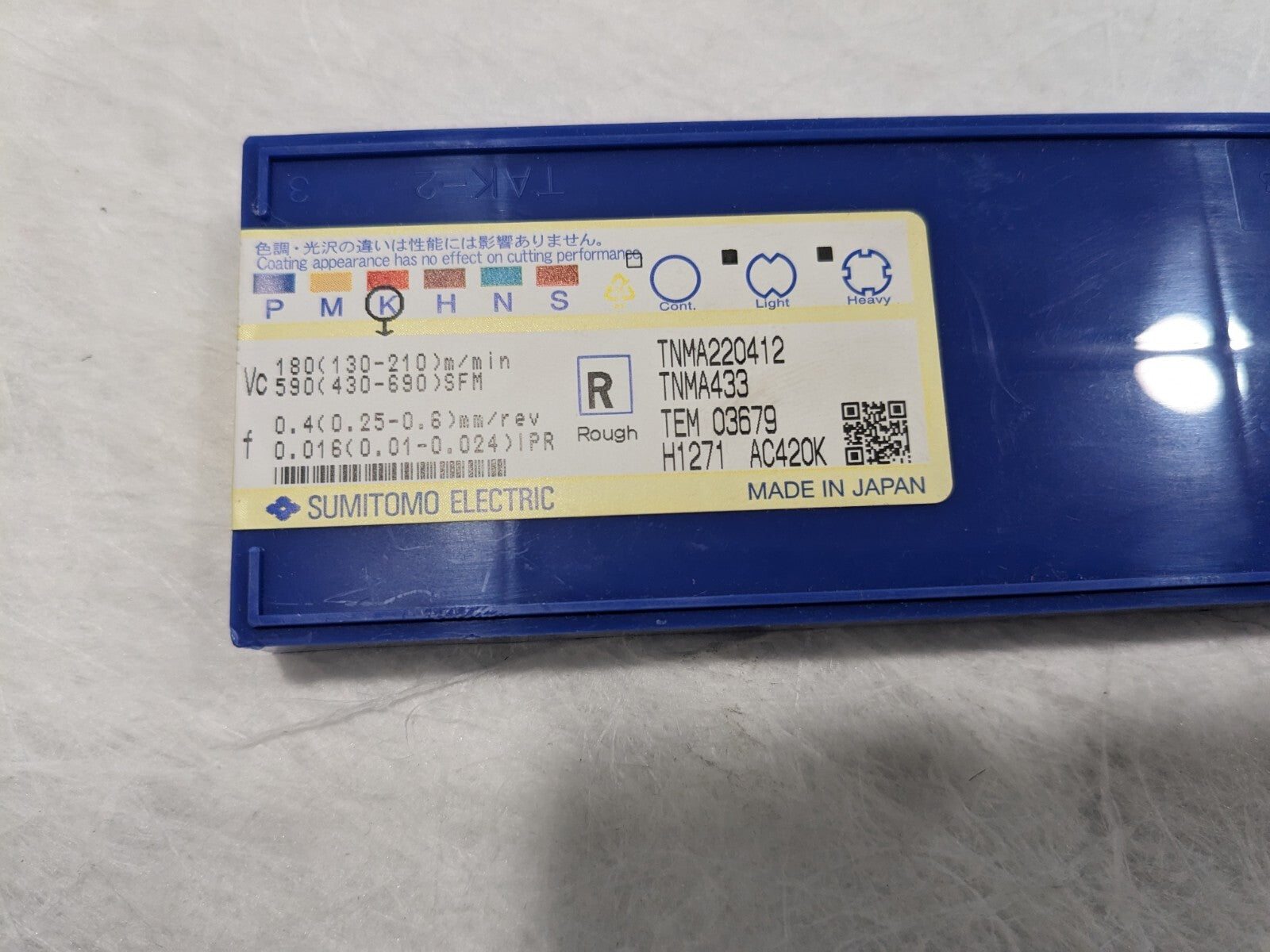

SUMITOMO Turning Insert 10pk: TNMA433 AC420K, Carbide 191R845

SUMITOMO Turning Insert 10pk: TNMA433 AC420K, Carbide 191R845
MSRP: $130

• Insert Style TNMA
• Insert Size Code 433
• Insert Shape Triangle
• Included Angle 60
• Inscribed Circle (Decimal Inch) 0.5000
• Corner Radius (Decimal Inch) 0.0469
• Insert Material Carbide
• Manufacturer Grade AC420K
• Coating/Finish Coated
• Relief Angle 0
• Insert Thickness (Decimal Inch) 0.1875
• Insert Shape Code T
• Corner Radius (Inch) 3/64
• Hole Diameter (Decimal Inch) 0.2031
• Inscribed Circle (Inch) 1/2
• Insert Holding Method Pin; Clamp
• Insert Thickness (Inch) 3/16
• Clearance Code N
• Tolerance Code M
• Series TN
• Coating Process CVD
• Rake Negative
• Insert Length (Decimal Inch) 0.8661
• Primary Workpiece Material Cast Iron
• Primary Workpiece Material Code K
• Iso Code TNMA220412
• Standards ISO 13399; ANSI
• Proprietary Coating Designation FF
• UNSPSC Code 23242105
• Chip Breaker A

(Description).

Please review photos, comes as shown.
