SUMITOMO Turning Insert 10ct: CNMG432EGU AC830P, Carbide 19RB335

SUMITOMO Turning Insert 10ct: CNMG432EGU AC830P, Carbide 19RB335
MSRP: $130

• ANSI Insert Code CNMG432
• ISO Insert Code CNMG120408
• Relief Angle 0
• Insert Style CNMG
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0313
• Included Angle 80
• Manufacturer Grade AC830P
• Coating/Finish Al2O3
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1875
• Series CN
• Inscribed Circle (Decimal Inch) 0.5000
• Inscribed Circle (Inch) 1/2
• Insert Material Carbide
• Insert Shape C - Diamond (Rhombic) 80-Deg
• Chip Breaker Operation Light Machining; Medium Machining
• Grade Characteristics Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
• Side Clearance Negative
• Insert Shape Code C
• Hole Diameter (Decimal Inch) 0.2031
• Insert Holding Method Pin; Clamp
• Clearance Code N
• Tolerance Code M
• Coating Process CVD
• Rake Positive
• Insert Length (Decimal Inch) 0.5079
• Primary Workpiece Material Code P; M
• Secondary Workpiece Material Universal
• Secondary Workpiece Material Code P; M
• Iso Code CNMG120408N-GU
• Standards ISO 13399; ANSI
• Chip Breaker EGU
• Rake Angle 7
• ANSI Size Code 432
• ISO Size Code 120408
• UNSPSC Code 23242105
• Insert Size Code 432

This Sumitomo turning insert is a high-quality product that is perfect for use in various applications. It is made from carbide material and has a 10ct weight, making it a reliable choice for those who need a durable and efficient insert. The insert type is turning, which means that it is designed to fit snugly in the turning pocket of a lathe. This product is manufactured in Japan and has the brand name Sumitomo, which is known for its high-quality tools and inserts. It is suitable for use in indexable inserts, toolholding, workholding & toolholding, CNC, metalworking & manufacturing, and business & industrial settings. The unit type is a unit, and the insert material is carbide.

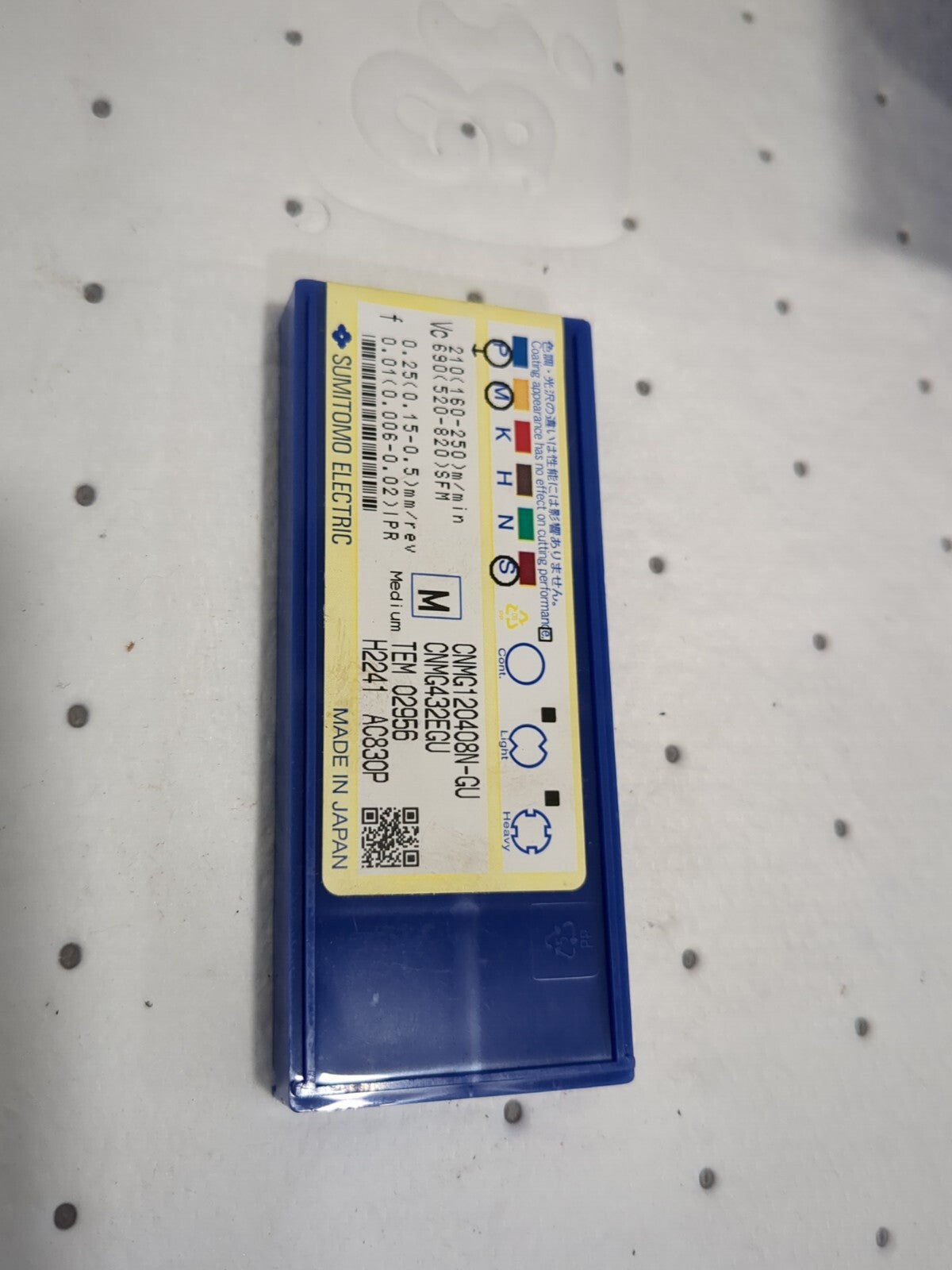

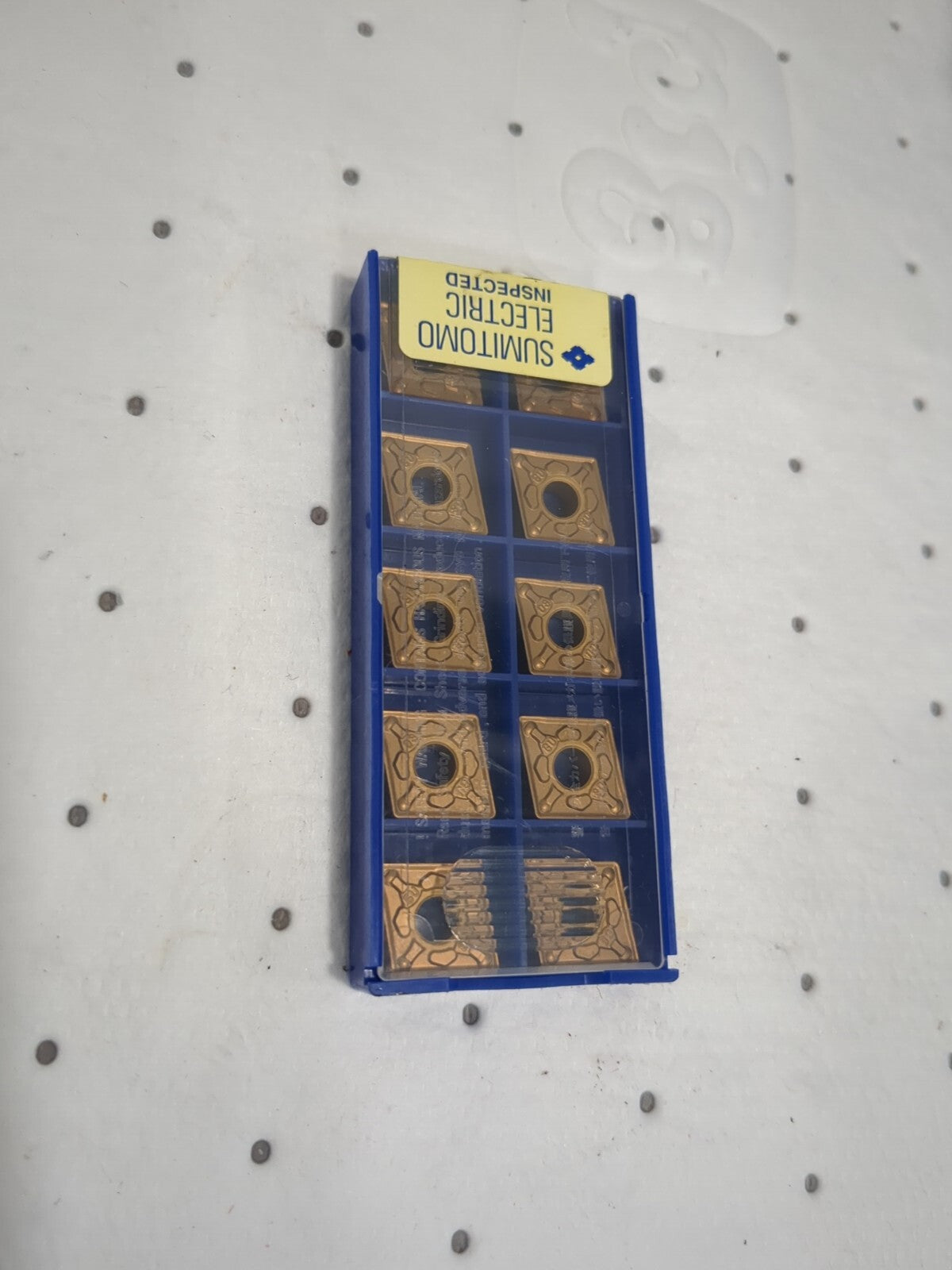

Please review photos, comes as shown.
