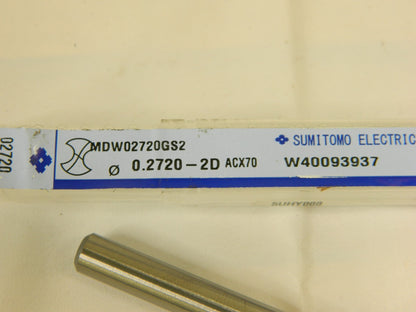

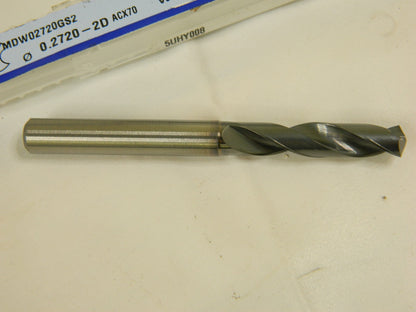

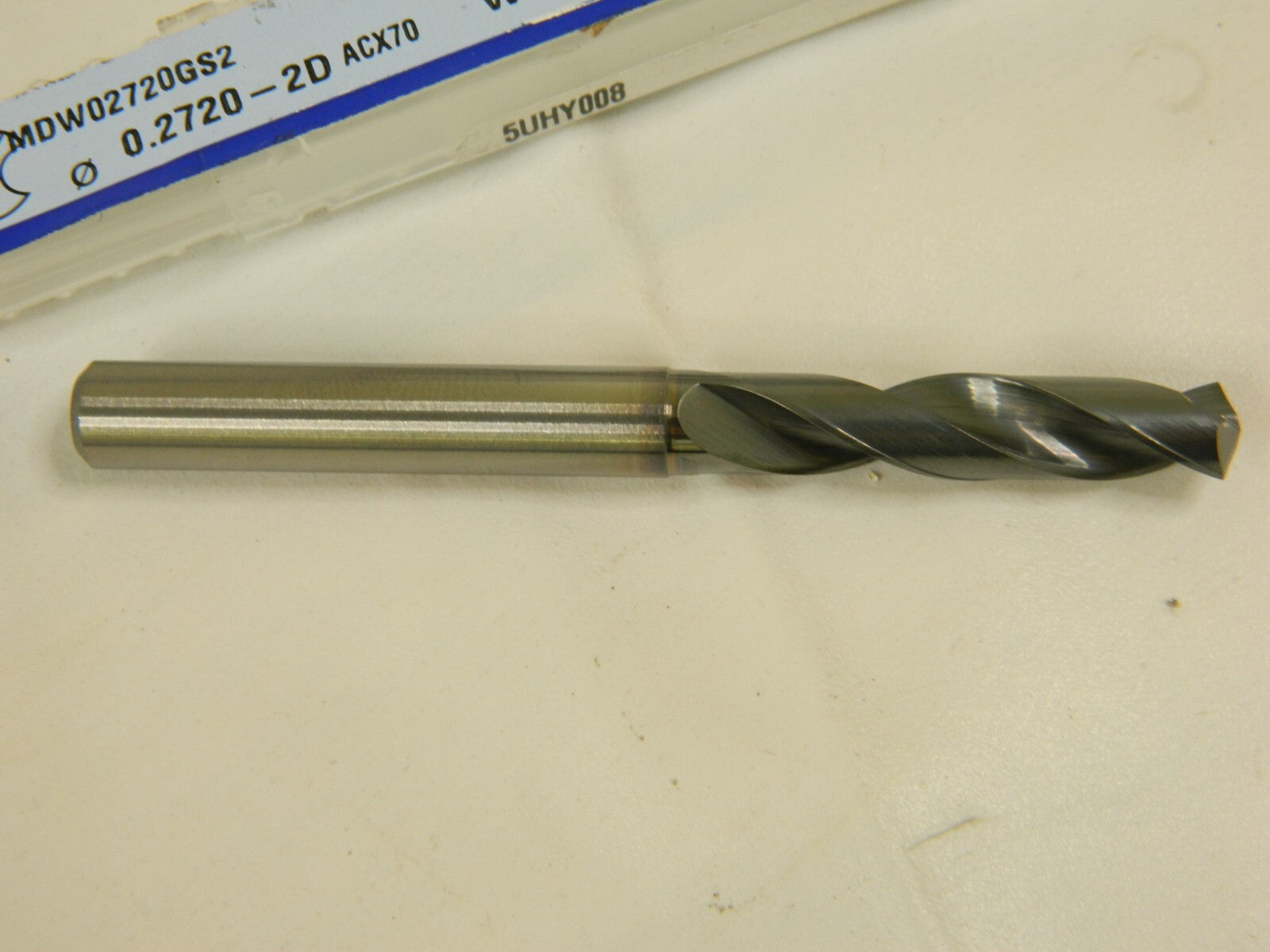

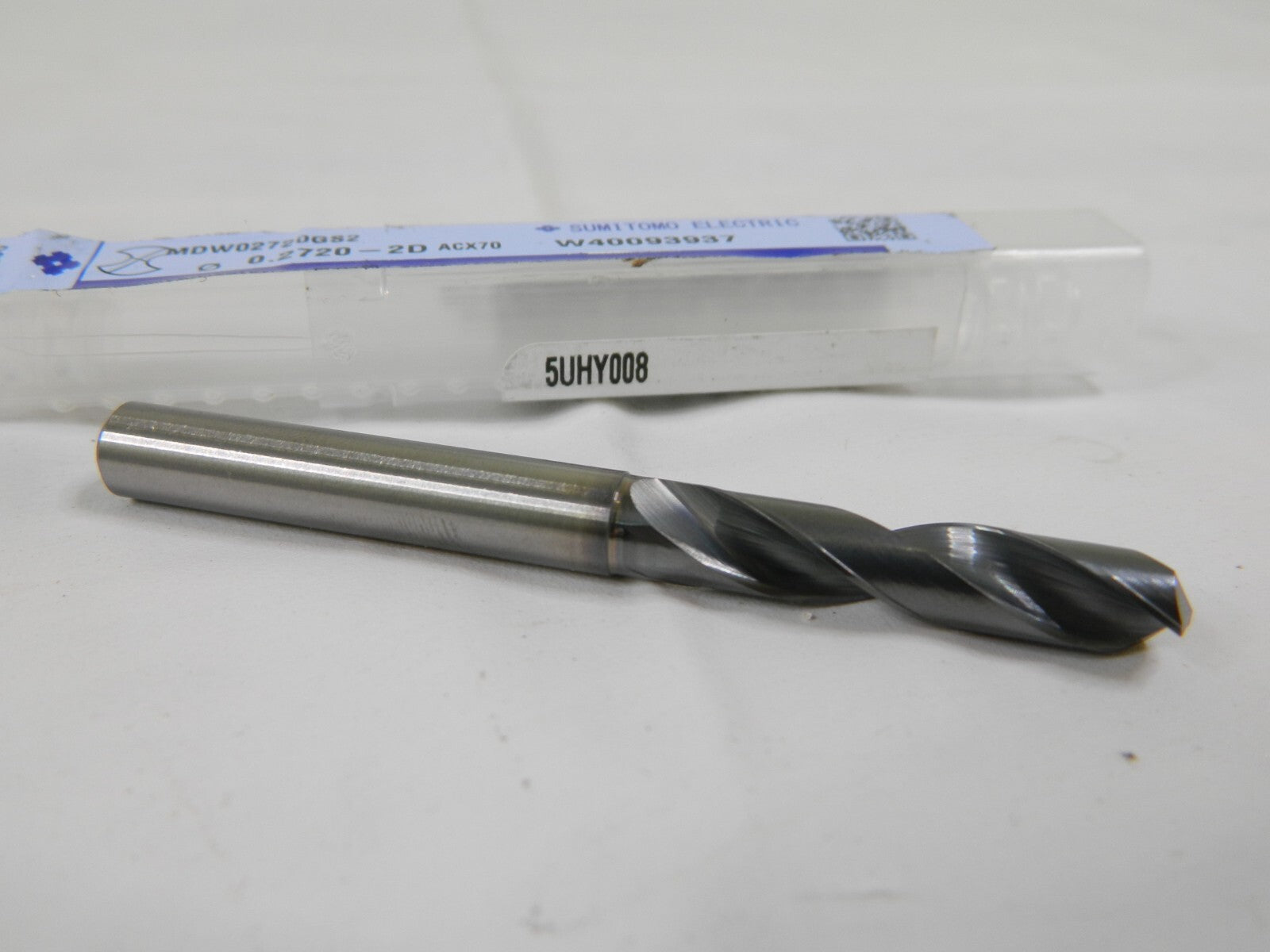

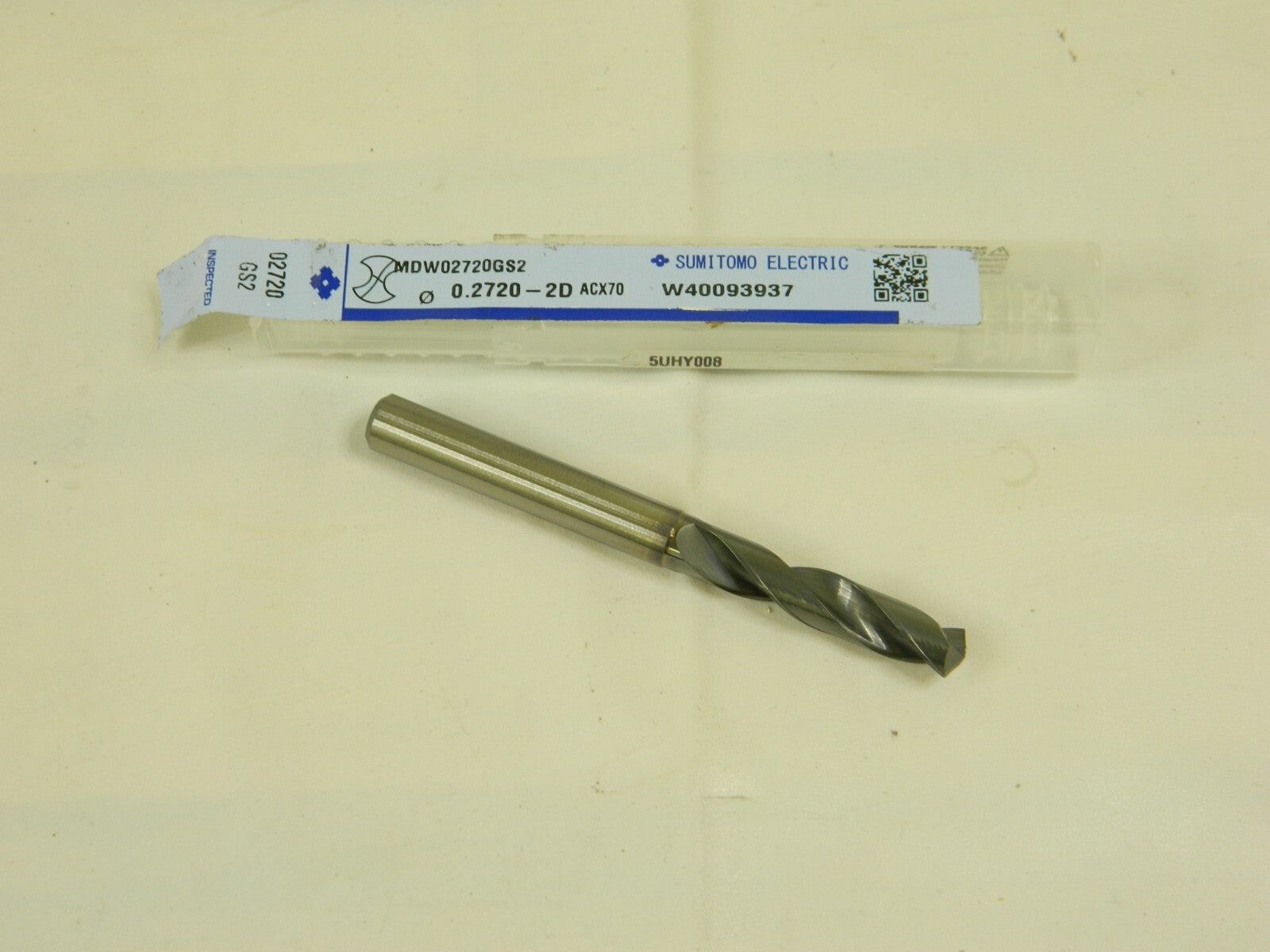

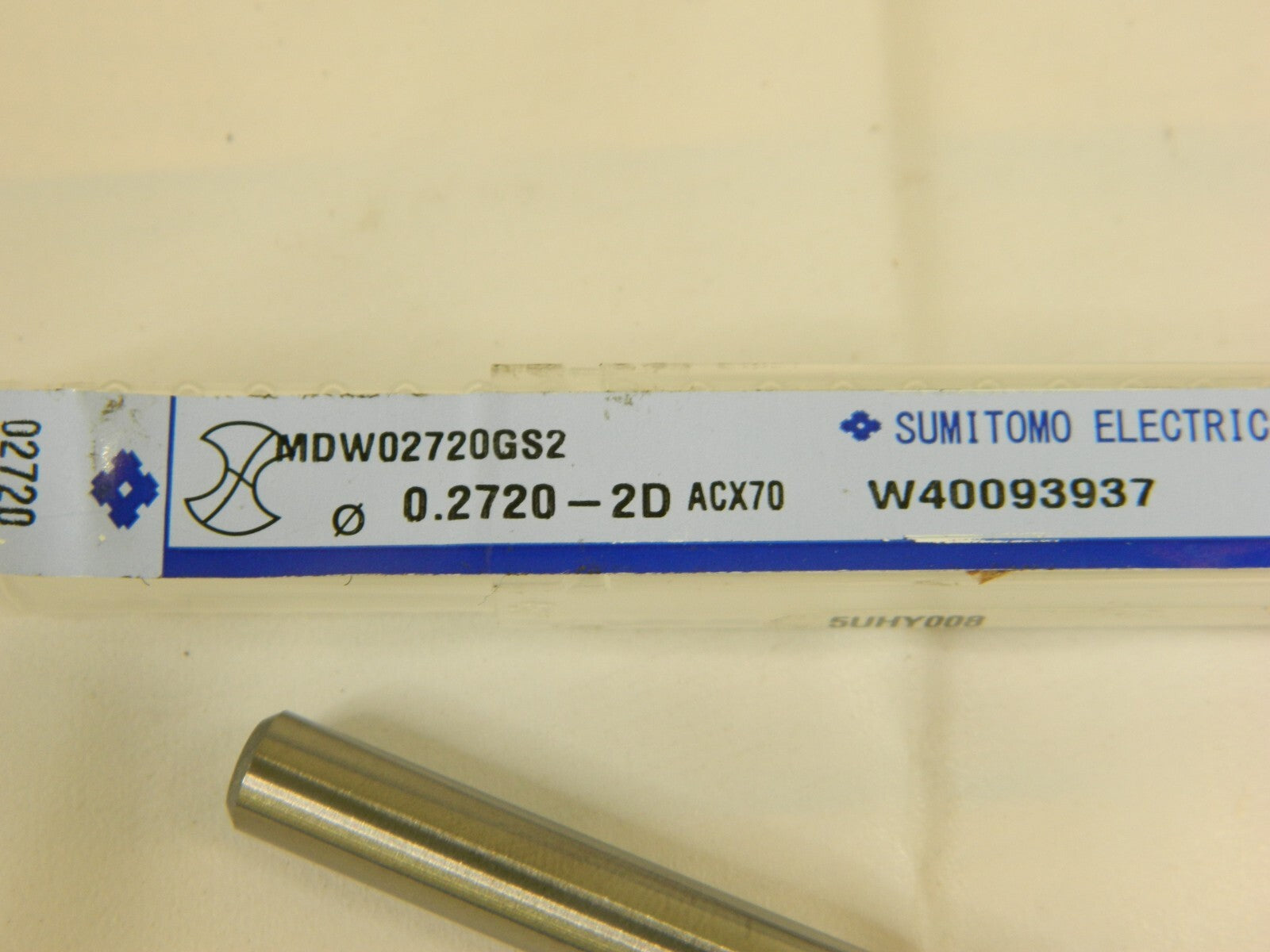

SUMITOMO SC Screw Machine Length Drill Bit: 0.1063″ Dia, 135 ° 5UHY008

Sumitomo
Solid Carbide Screw Machine Length Drill Bit

MSRP: $50.00

• Drill Bit Size (mm) 2.70
• Drill Bit Size (Decimal Inch) 0.1063
• Drill Point Angle 135
• Tool Material Solid Carbide
• Coating/Finish Coated
• Overall Length (Decimal Inch) 1.7717
• Overall Length (mm) 45.00
• Shank Type Straight-Cylindrical
• Shank Diameter (mm) 3.00
• Series MDW-GS
• Web Configuration Tapered
• Drill Length Type Screw Machine
• Number Of Flutes 2
• Maximum Drilling Depth (mm) 8.95
• Maximum Drilling Depth (Decimal Inch) 0.3524
• Shank Length (Decimal Inch) 1.1811
• Shank Length (mm) 30.00
• Drill Point Length (mm) 0.56
• Drill Point Length (Decimal Inch) 0.0220
• Flute By Diameter Ratio 2xD
• Drill Bit Diameter Tolerance h8
• Flute Length (mm) 13.00
• Flute Length (Decimal Inch) 0.5118
• Drill Bit Size Range (Decimal Inch) 0.1000 to 0.1500
• Drill Bit Size Range (mm) 0.00 to 3.50
• Coolant Through No

This item is new and in great condition. SOLD AS IS.

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
