Sumitomo PCBN Turning Insert CNMA433 BN7000 47221205

Sumitomo
PCBN Turning Insert

MSRP: $80

• Insert Style: CNMA
• ANSI Size Code: 433
• ISO Size Code: 120412
• Insert Shape: C - Diamond (Rhombic) 80-Deg
• Included Angle: 80.00
• Inscribed Circle (Decimal Inch): 0.5000
• Inscribed Circle (Inch): 1/2
• Corner Radius (Inch): 3/64
• Corner Radius (Decimal Inch): 0.0469
• Insert Material: PCBN
• Manufacturer Grade: BN7000
• Coating/Finish: Bright/Uncoated
• Relief Angle: 0.000
• Insert Thickness (Inch): 3/16
• Insert Thickness (Decimal Inch): 0.1875
• Insert Hand: Neutral
• Series: CN
• Grade Characteristics: Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance
• Side Clearance: Negative
• Hole Diameter (Decimal Inch): 0.2031
• ANSI Insert Code: CNMA433
• ISO Insert Code: CNMA120412
• Insert Holding Method: Pin; Clamp
• Clearance Code: N
• Tolerance Code: M
• Coating Process: Uncoated
• Rake: Negative
• Insert Length (Decimal Inch): 0.5079
• Primary Workpiece Material: Universal
• Primary Workpiece Material Code: S; K
• Iso Code: CNMA120412
• Standards: ISO 13399; ANSI
• Chip Breaker: A
• UNSPSC Code: 23242105

*NIB*

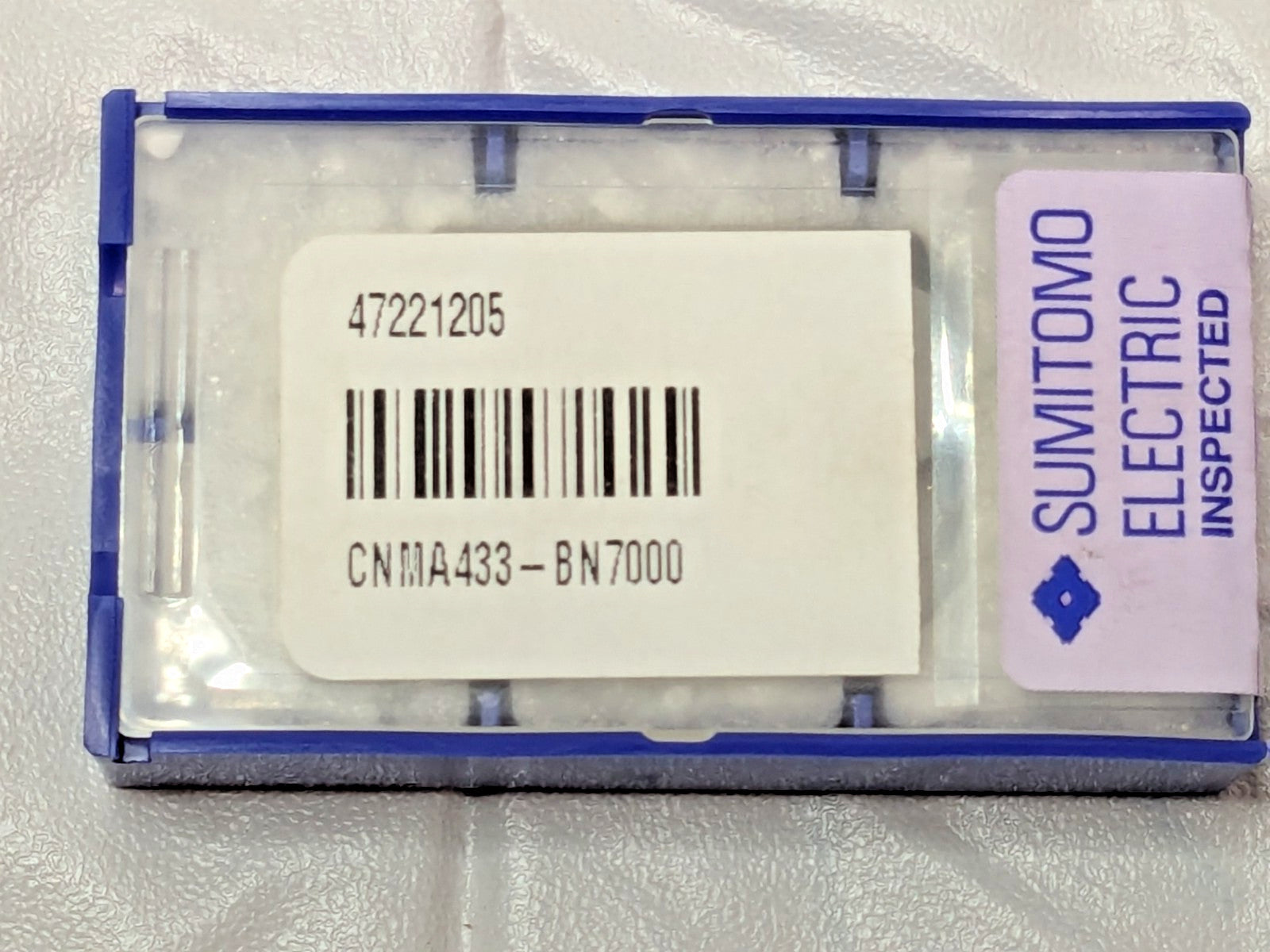

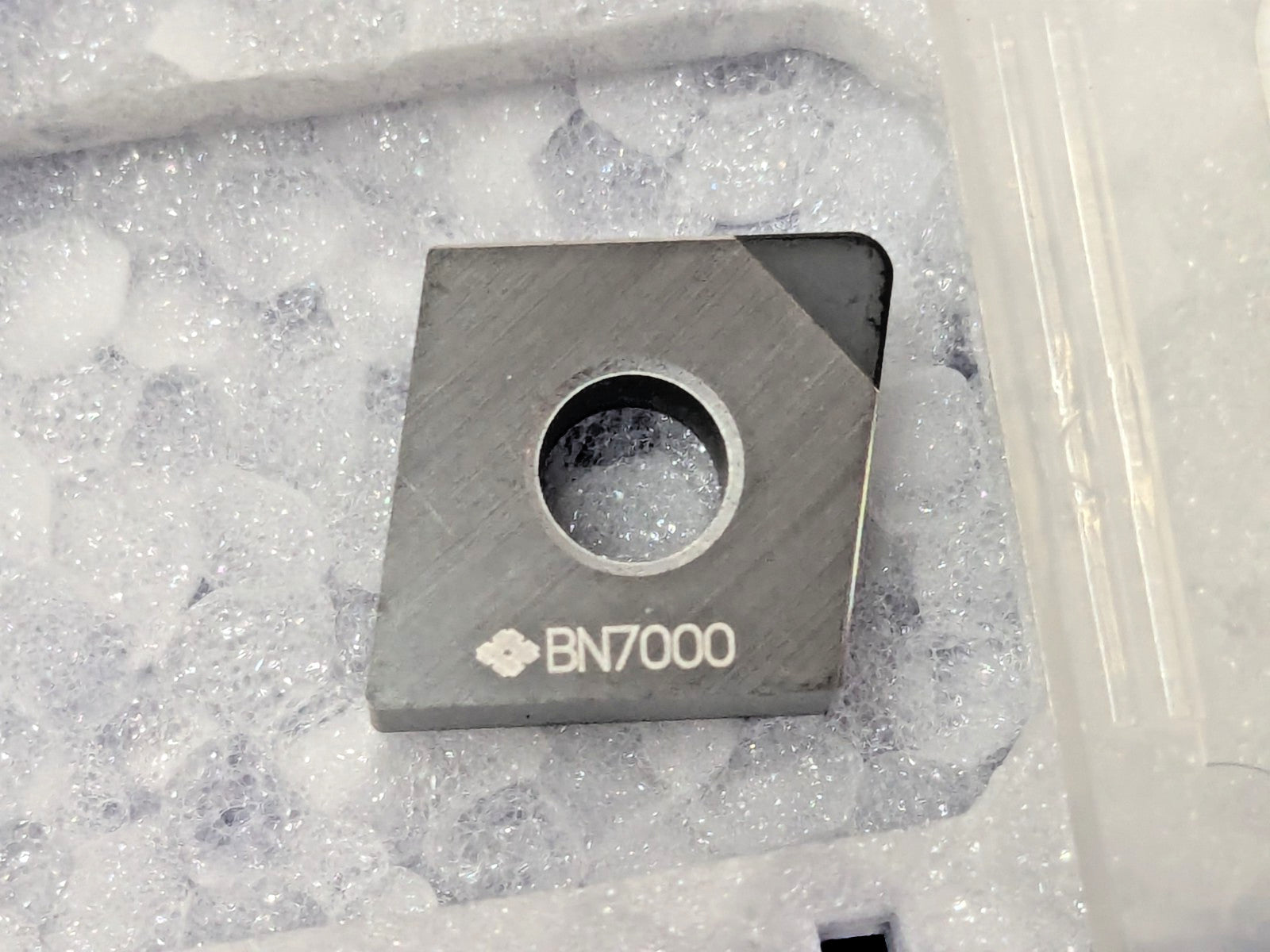

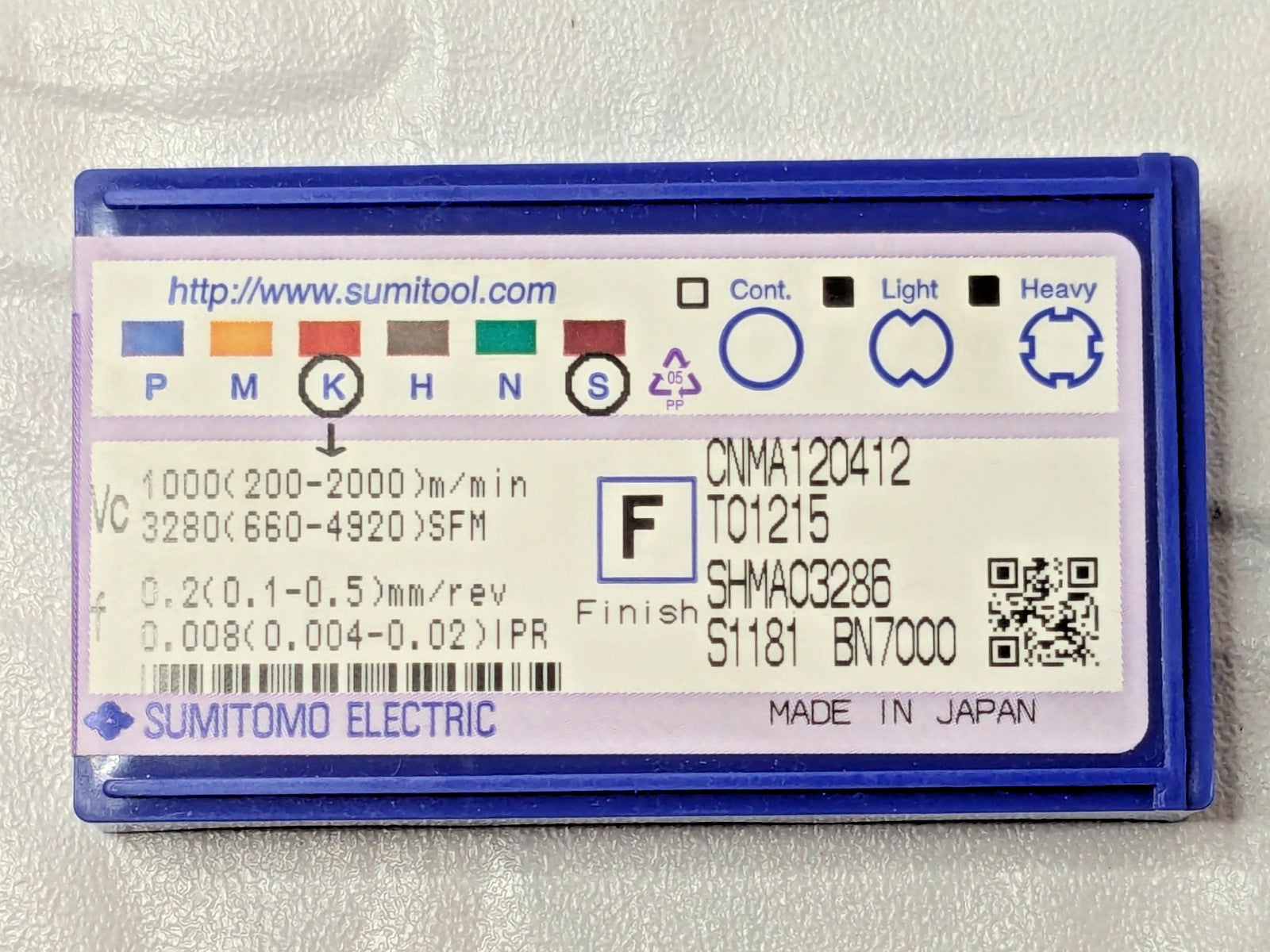

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
