Sumitomo Jobber Length Drill Bit: 7/32" (0.2188) Dia, 135 deg Carbide U103693

Sumitomo

Jobber Length Drill Bit: 7/32" (0.2188) Dia, 135 deg Carbide U103693

MSRP: $105

• Drill Bit Size (Inch) 7/32
• Drill Bit Size (Decimal Inch) 0.2188
• Drill Bit Material Solid Carbide
• Drill Point Angle (Degrees) 135
• Coating/Finish Multi-layer
• Flute Type Regular Spiral
• Primary Workpiece Material Stainless Steel; Steel; Hardened Materials
• Coolant Through Yes
• Flute Length (Decimal Inch) 1.8898
• Flute Length (mm) 48.00
• Number of Flutes 2
• Primary Workpiece Material Code P; S; K; M
• Shank Diameter (Decimal Inch) 0.2344
• Overall Length (mm) 100.00
• Overall Length (Decimal Inch) 3.9370
• Proprietary Coating/Finish TiAlCr;TiSi
• Series MDW-HGS
• Tool Application Metal Cutting
• Flute By Diameter Ratio 5xD
• Shank Length (Decimal Inch) 2.0472
• Drill Point Length (mm) 1.15
• Drill Point Length (Decimal Inch) 0.0453
• Drill Bit Diameter Tolerance h8
• Web Configuration Tapered
• Shank Type Straight
• Drill Bit Grade High Performance
• Drill Bit Size Range (Decimal Inch) 0.2000 - 0.2500
• Country of Origin VARIOUS
• Ordered as Part # U103693

(Description).

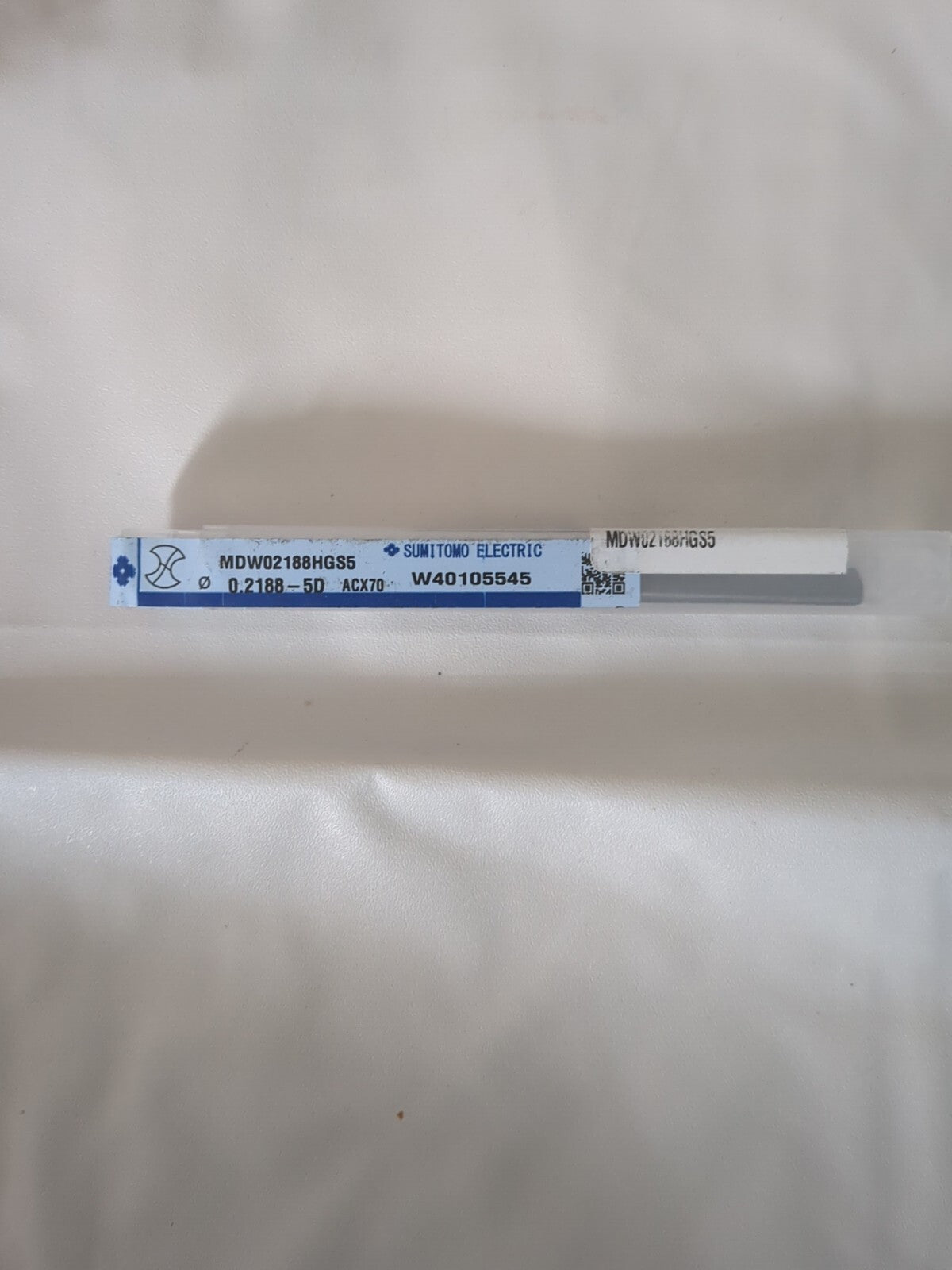

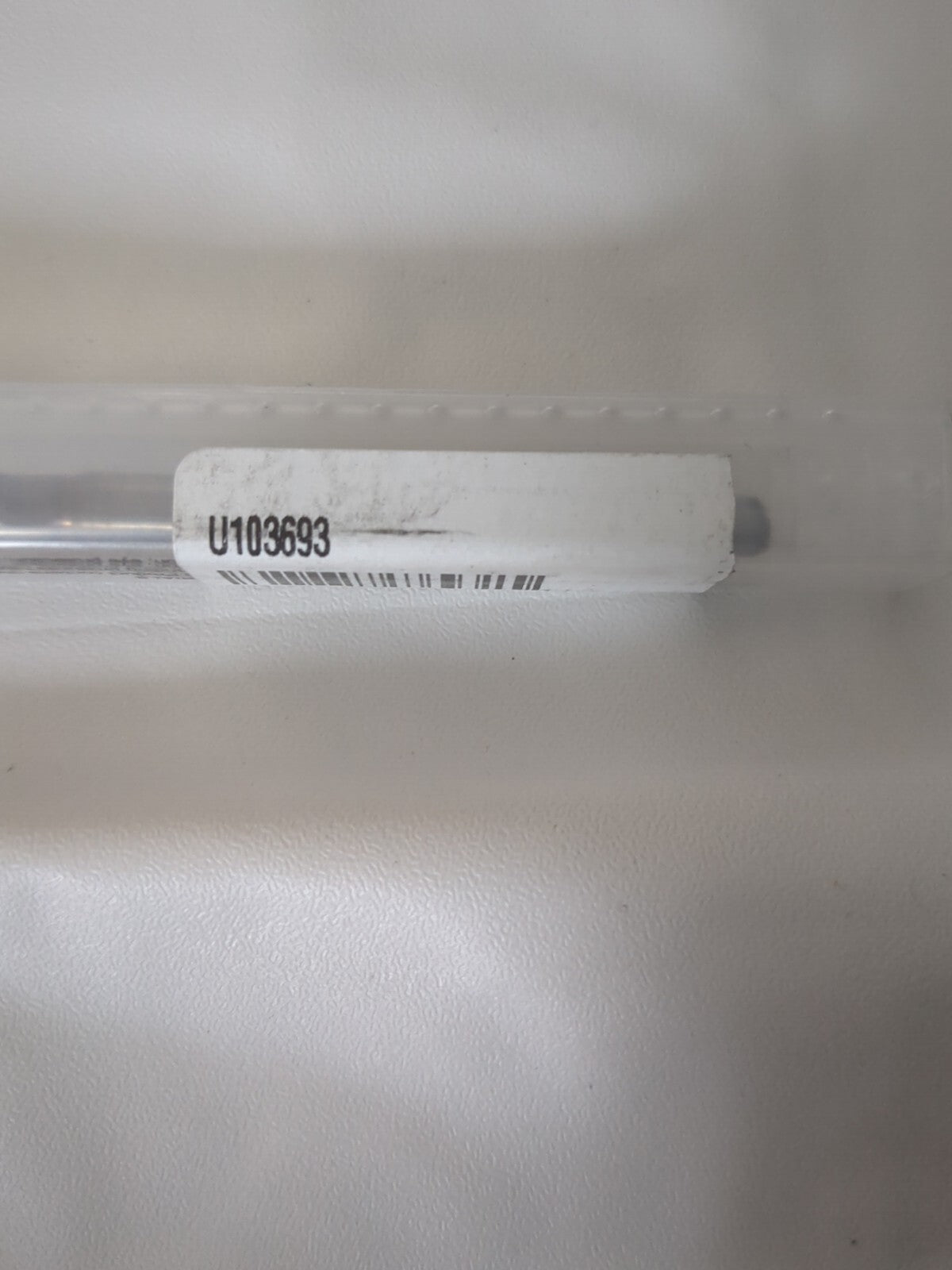

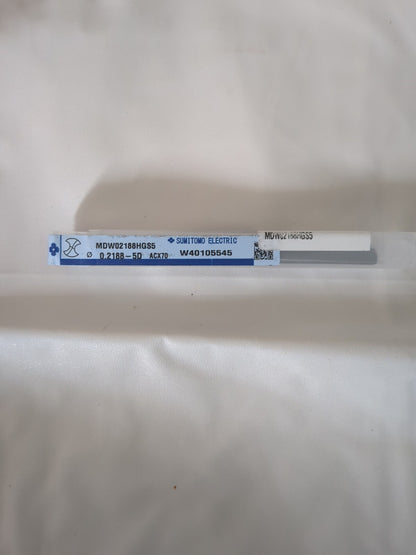

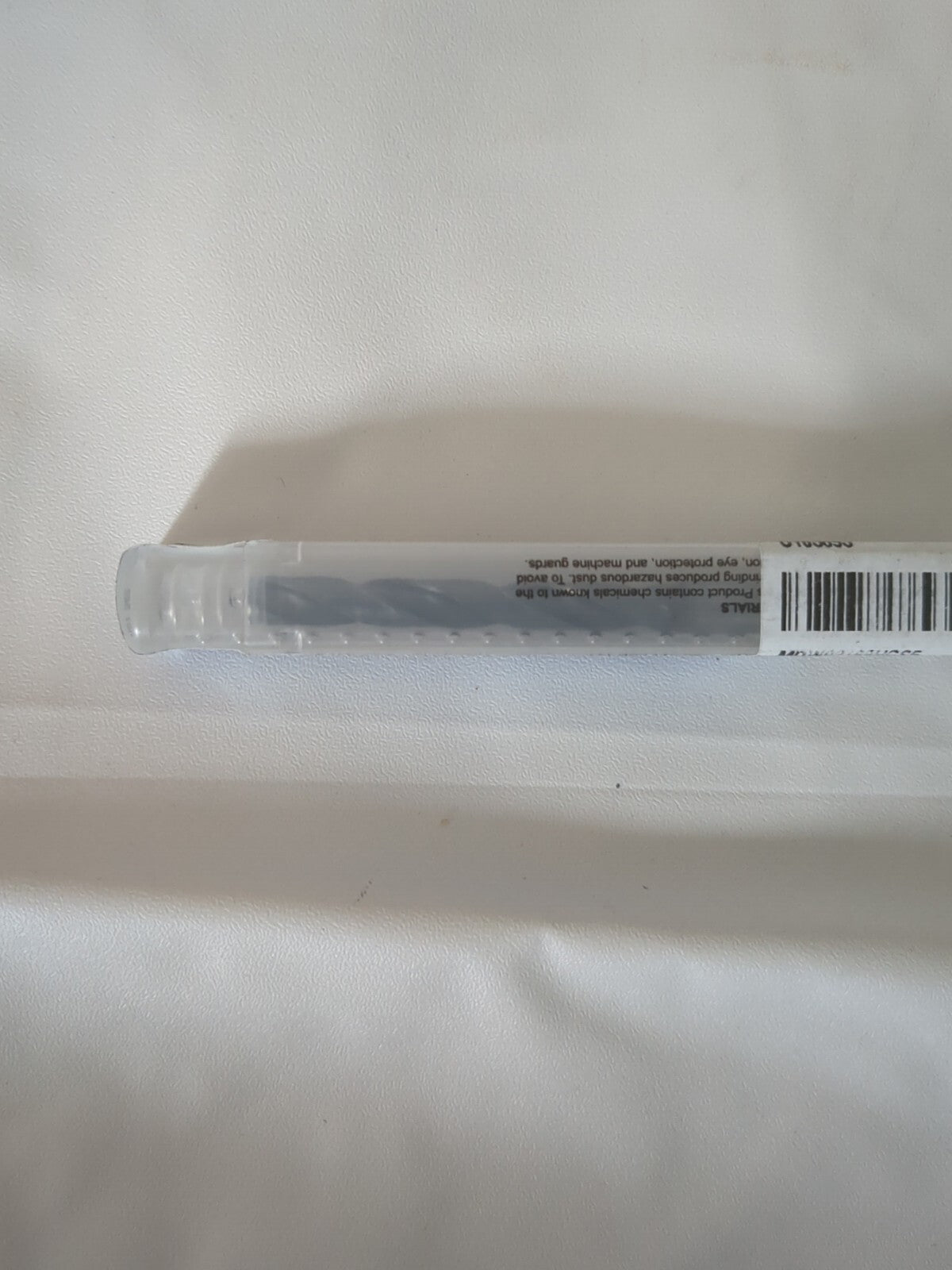

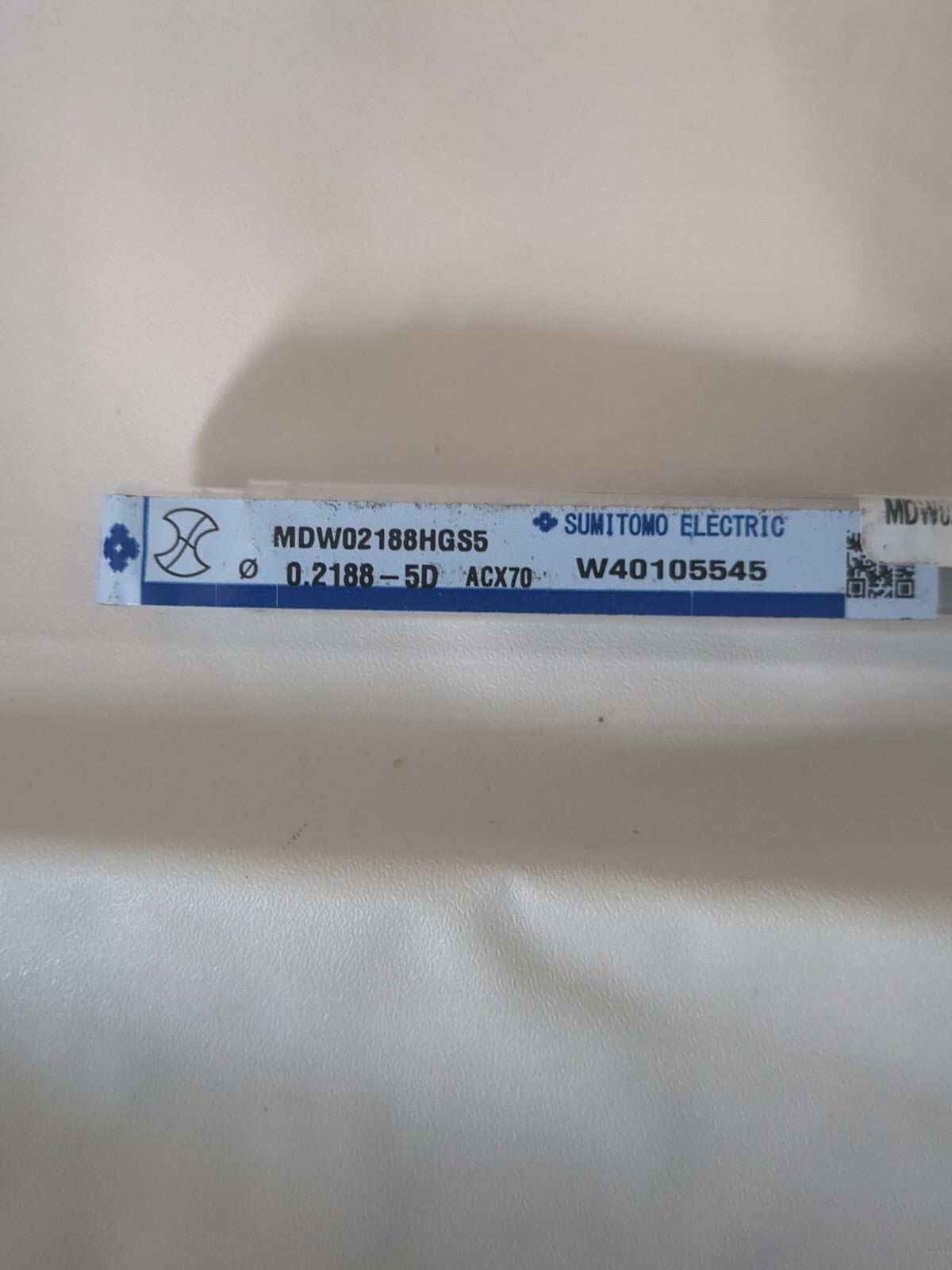

Please review photos, comes as shown.
