Sumitomo Indexable Insert Drill 3/4" Max Dia 3xD 1" SD WDX0750D3S100

Sumitomo
Indexable Insert Drill

MSRP: $675.00

• Compatible Drill Style: WDX
• Maximum Drill Diameter (Inch): 3/4
• Maximum Drill Diameter (Decimal Inch): 0.7500
• Maximum Drill Depth (Decimal Inch): 2.3680
• Shank Type: Straight-Cylindrical
• Shank Diameter (Inch): 1
• Shank Diameter (Decimal Inch): 1.0000
• Number of Drill Inserts: 2
• Cutting Direction: Right Hand
• Maximum Drill Depth Range (Decimal Inch): 2.0000 to 3.0000
• Tool Material: Steel
• Compatible Insert Style: WDXT
• Drill Depth by Diameter Ratio: 3xD
• Series: WDX
• Flute Length (Decimal Inch): 2.3680
• Body Length (Decimal Inch): 2.9590
• Shank Length (Decimal Inch): 2.5000
• Neck Diameter (Inch): 1.2990
• Coolant Hole Thread Size: "1/4-18 NPT"
• Tool Application: Drilling
• Tool Performance: General Purpose
• UNSPSC Code: 23291503
• Insert Compatibility: WDXT 063006
• Collar Diameter (Decimal Inch): 1.2990
• Coolant Through: Yes

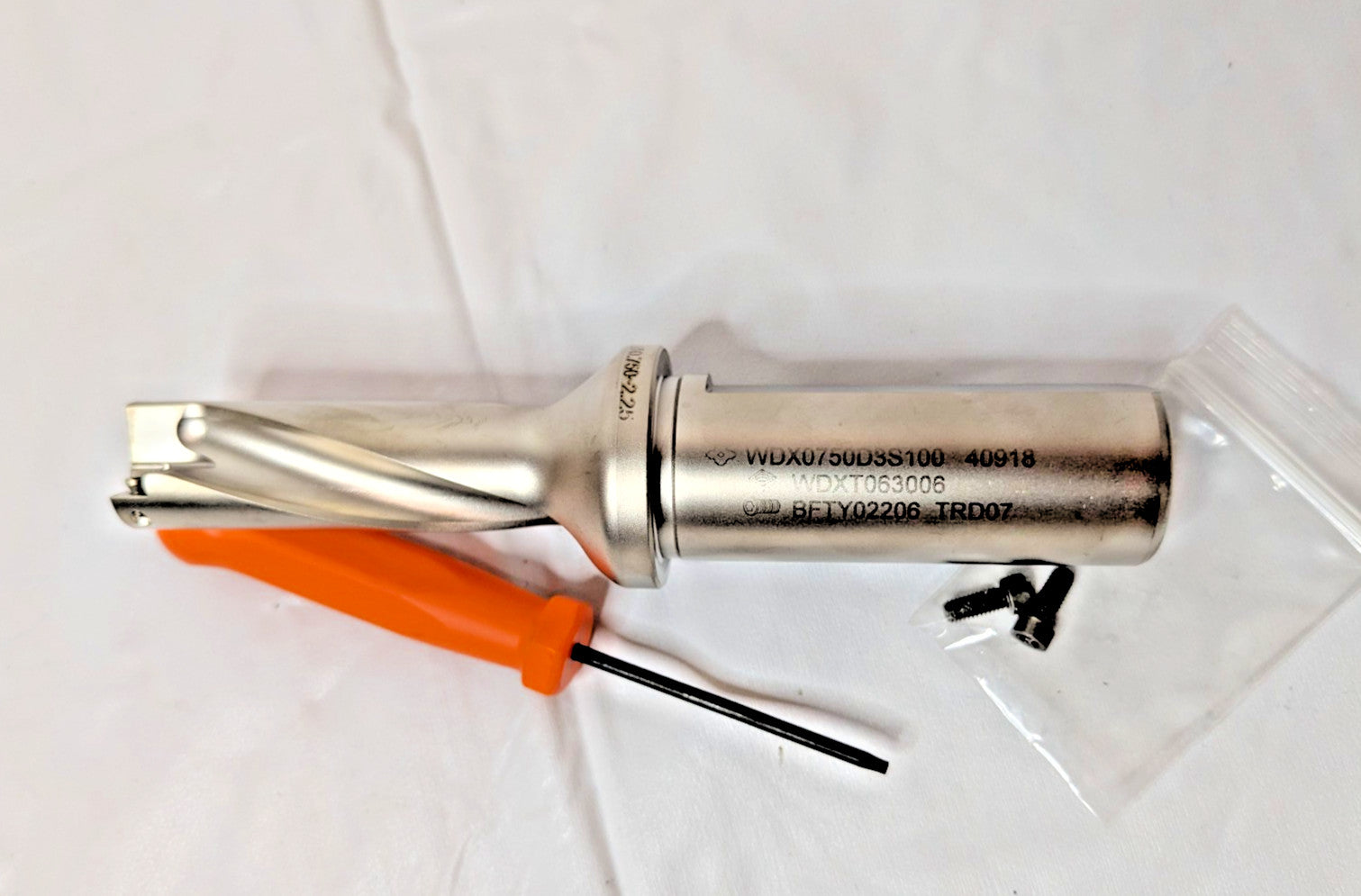

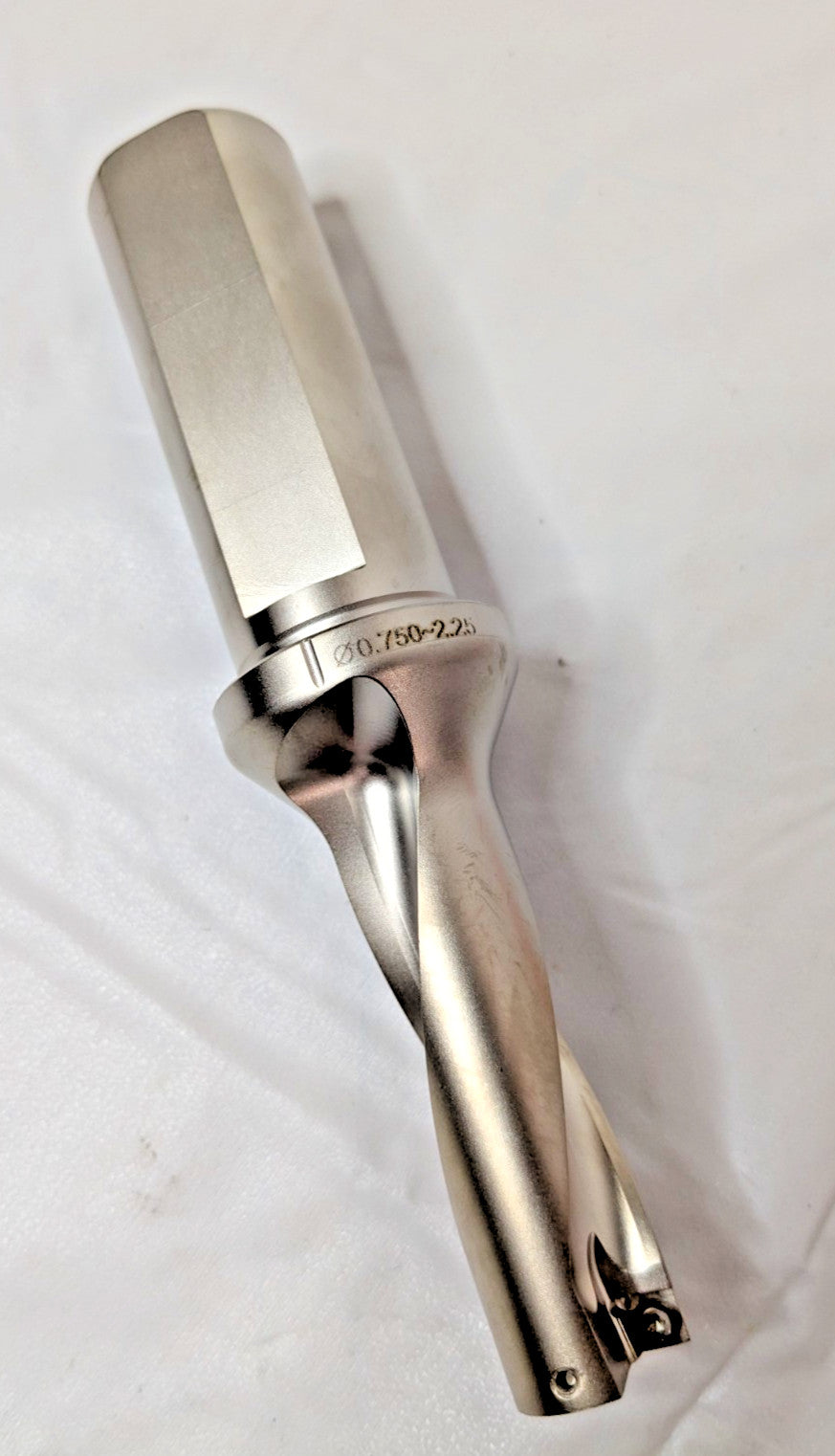

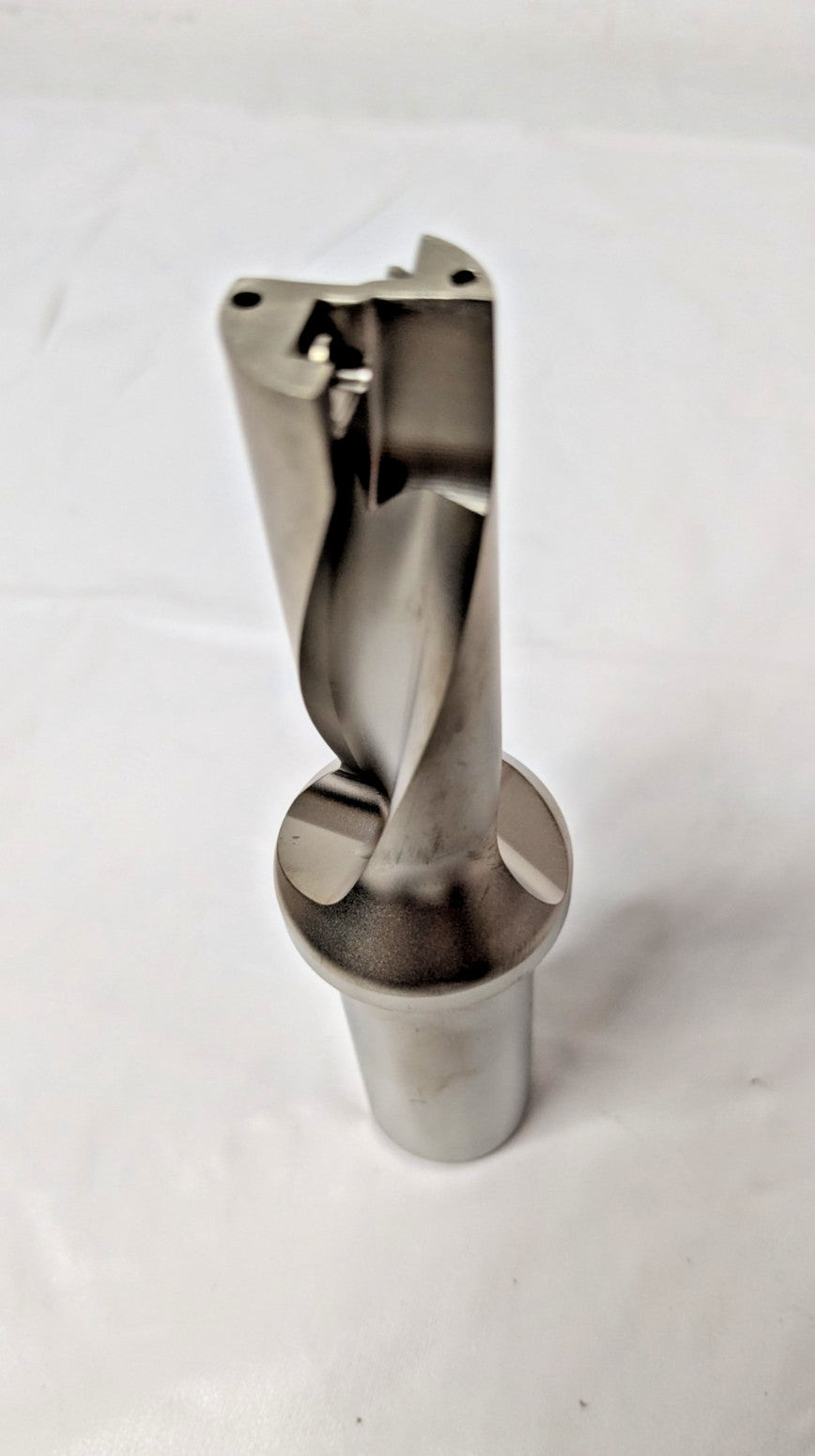

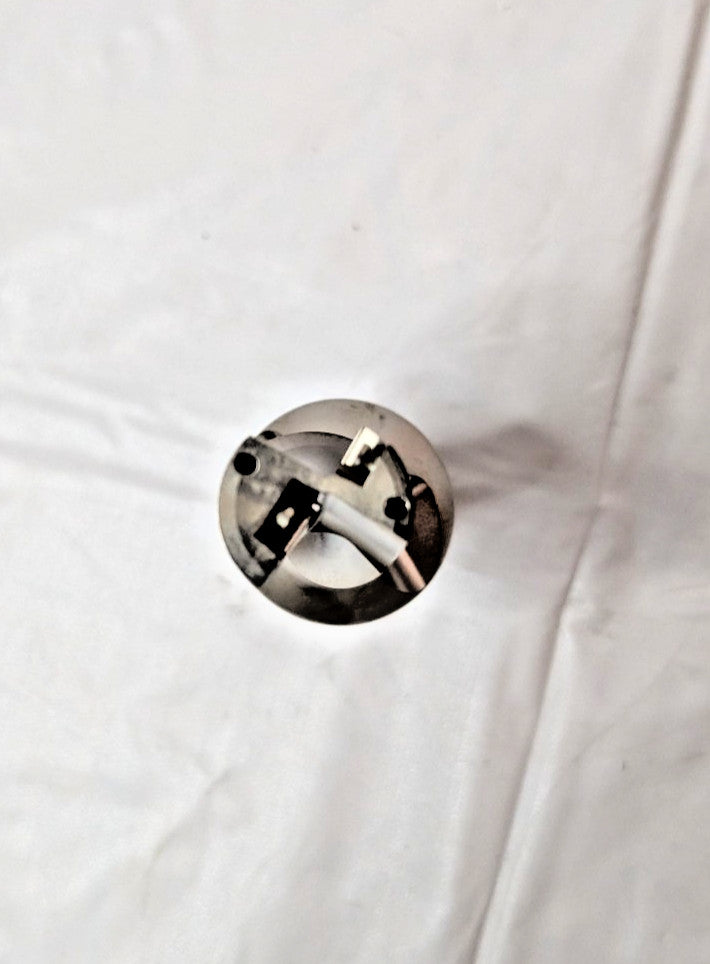

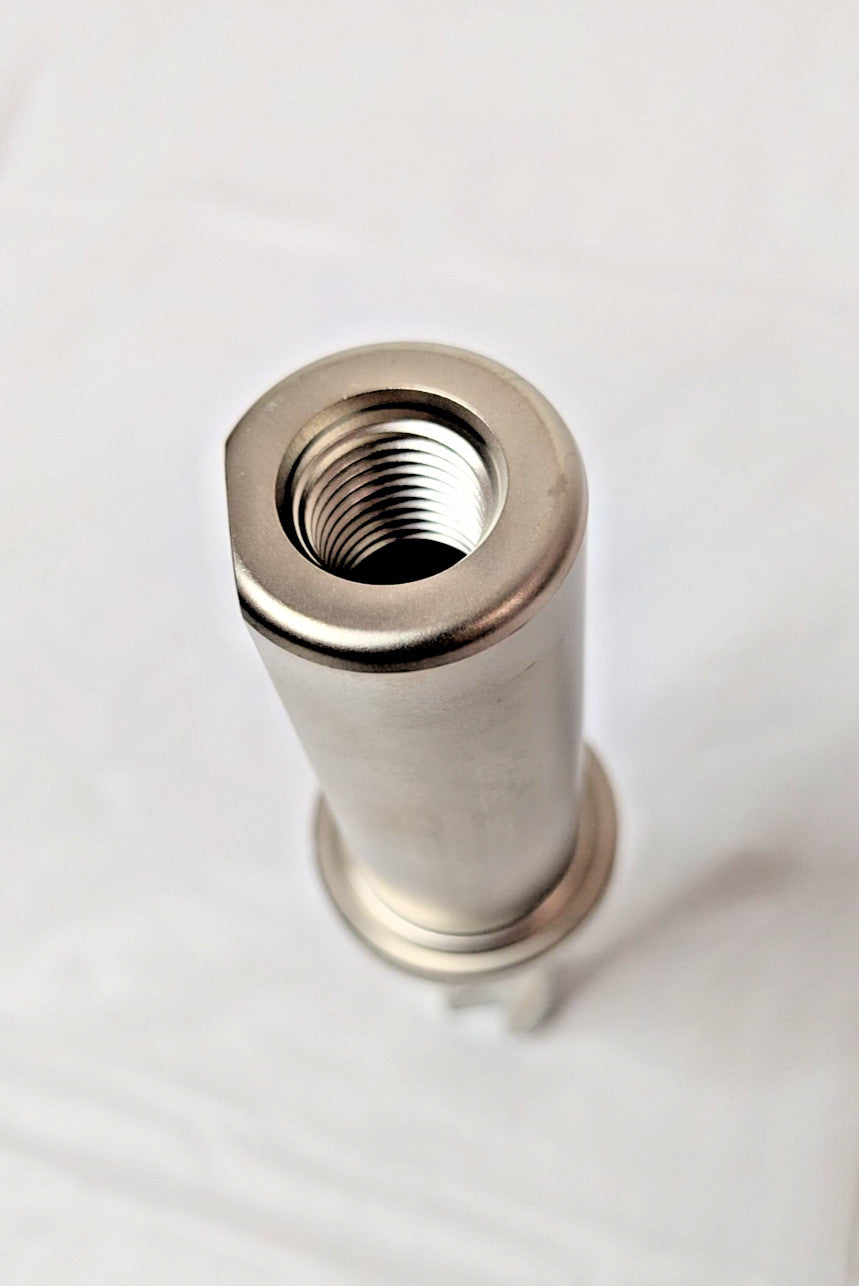

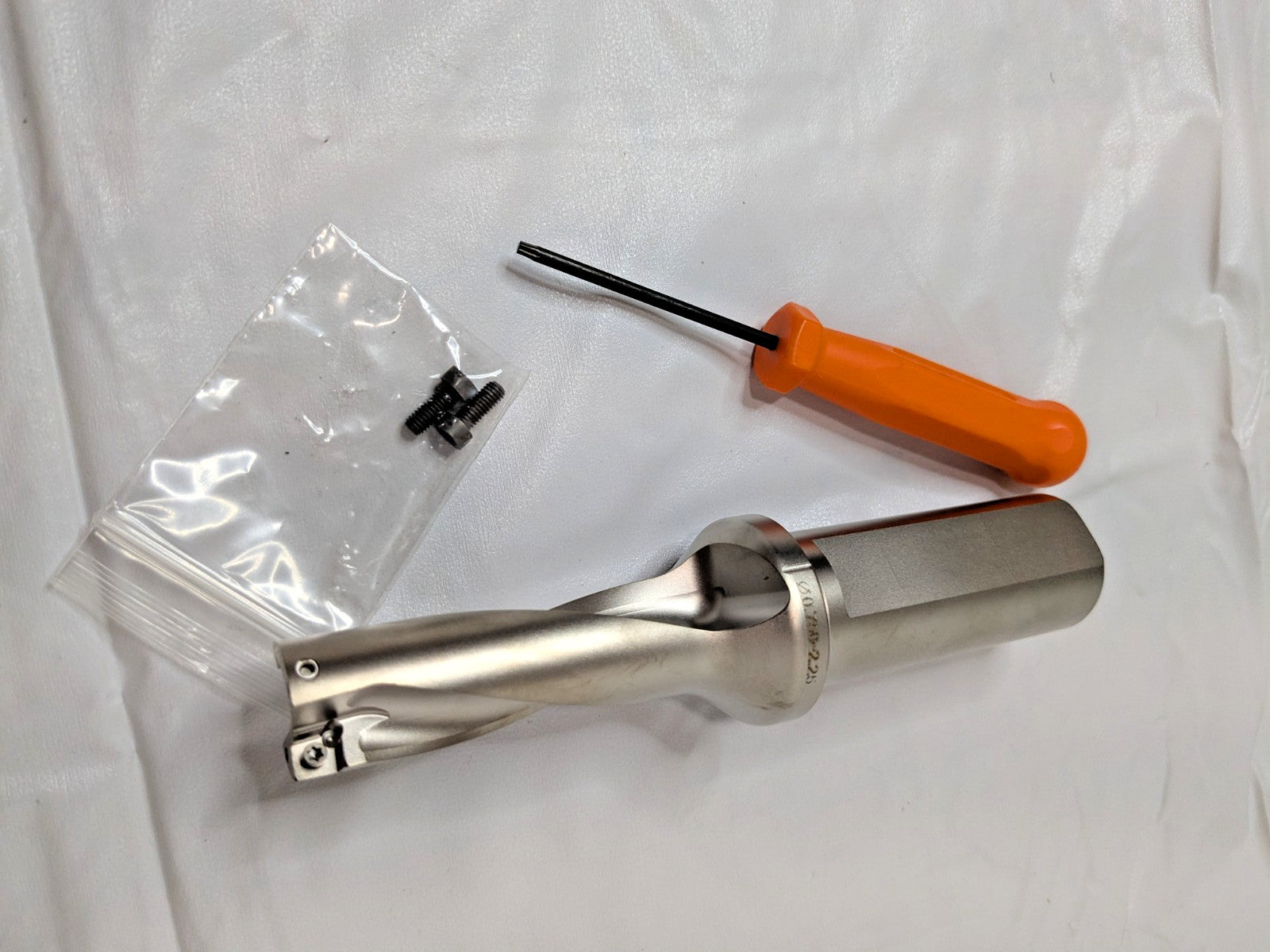

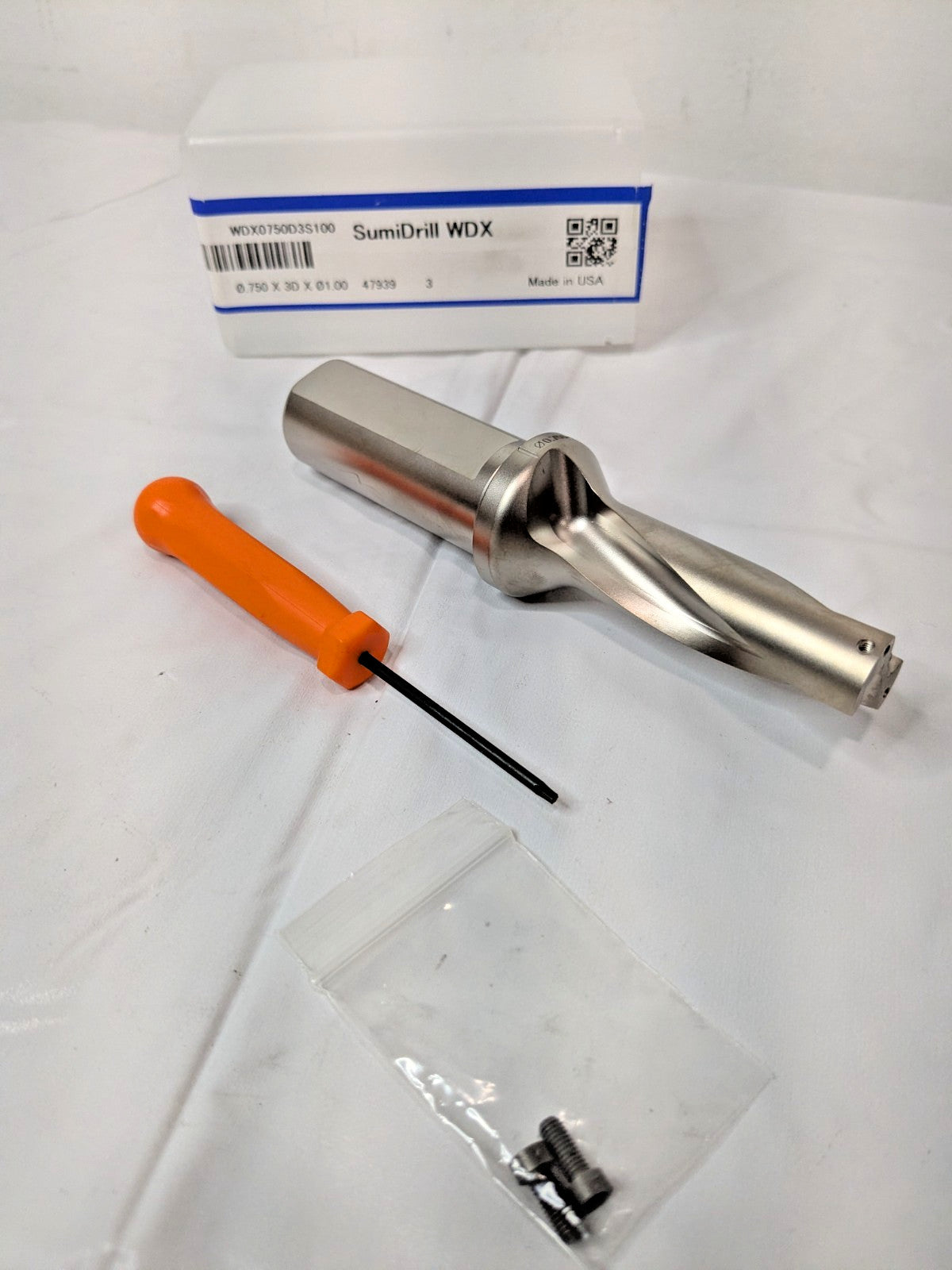

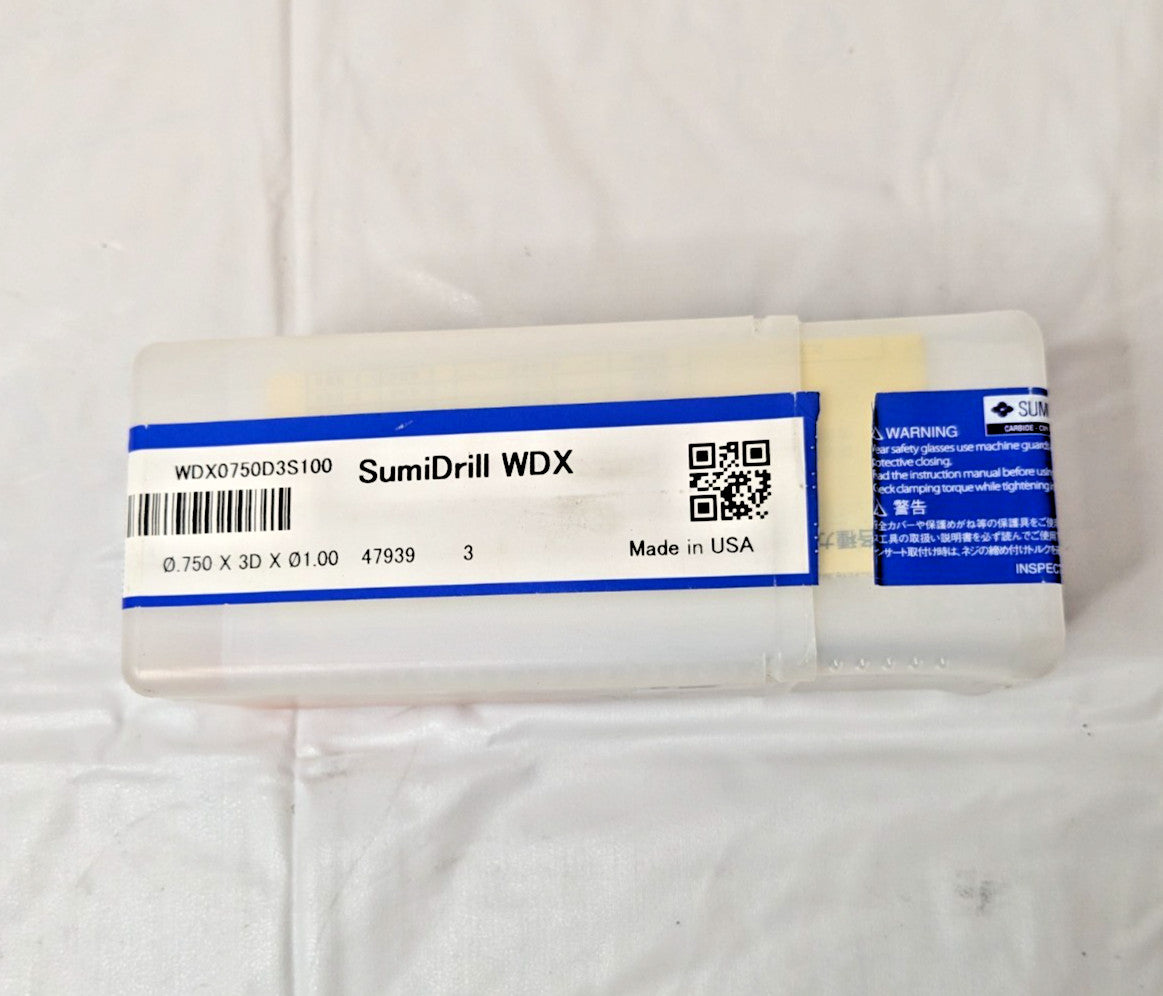

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
