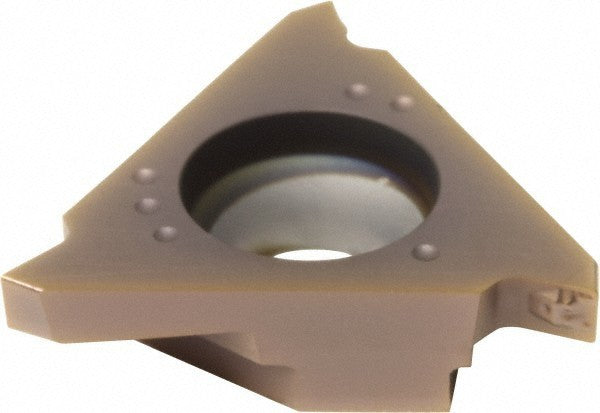

Sumitomo Grooving Inserts 18HMAGY 10 pack
Sumitomo Grooving Inserts 18HMAGY 10 pack
Regular price
$188.68 USD
Regular price
$400.00 USD
Sale price
$188.68 USD
Shipping calculated at checkout.
BRAND Sumtomo 10 pack
Item 18HMAGY
MSRP: $
- specs
| Insert Style: TGA | Insert Size Code: TGA4185BF |
| Cutting Width (Decimal Inch): 0.0728 | Cutting Width (mm): 1.85 |
| Insert Hand: Right Hand | Maximum Depth of Cut (Decimal Inch): 0.1535 |
| Maximum Depth of Cut (mm): 3.90 | Insert Material: Carbide |
| Manufacturer Grade: AC530U | Full Radius: No |
| Corner Radius (Decimal Inch): 0.0079 | Corner Radius (mm): 0.20 |
| Rake: Positive | Insert Holding Method: Screw; Clamp |
| Measurement Type: Metric | Insert Size: 4185 |
| Maximum Depth Of Cut Range (Decimal Inch): 0.1500 to 0.2000 | Maximum Depth Of Cut Range (mm): 3.00 to 4.00 |
| Multi-use Tool: No | Series: GWC |
| Coating Process: PVD | Rake Angle: 15 |
| Primary Workpiece Material: Stainless Steel; Steel | Primary Workpiece Material Code: P; M |
| Secondary Workpiece Material: Hard Material; Non-Ferrous Metal; Cast Iron; Titanium; Superalloys | Secondary Workpiece Material Code: S; H; K; N |
| Ansi Code: TGAR4185BF | Iso Code: ISO 13399 |
| Standards: ISO 13399; ANSI | UNSPSC Code: 23242105 |
| Inscribed Circle (Decimal Inch): 0.5000 | Chip Breaker: BF |
| Inscribed Circle (mm): 12.70 | Overall Width (mm): 4.76 |
| Overall Width (Decimal Inch - 4 Decimals): 0.1874 | Coating/Finish: AlCrN; TiAlN |
| Country of Origin: Japan |
(Description).

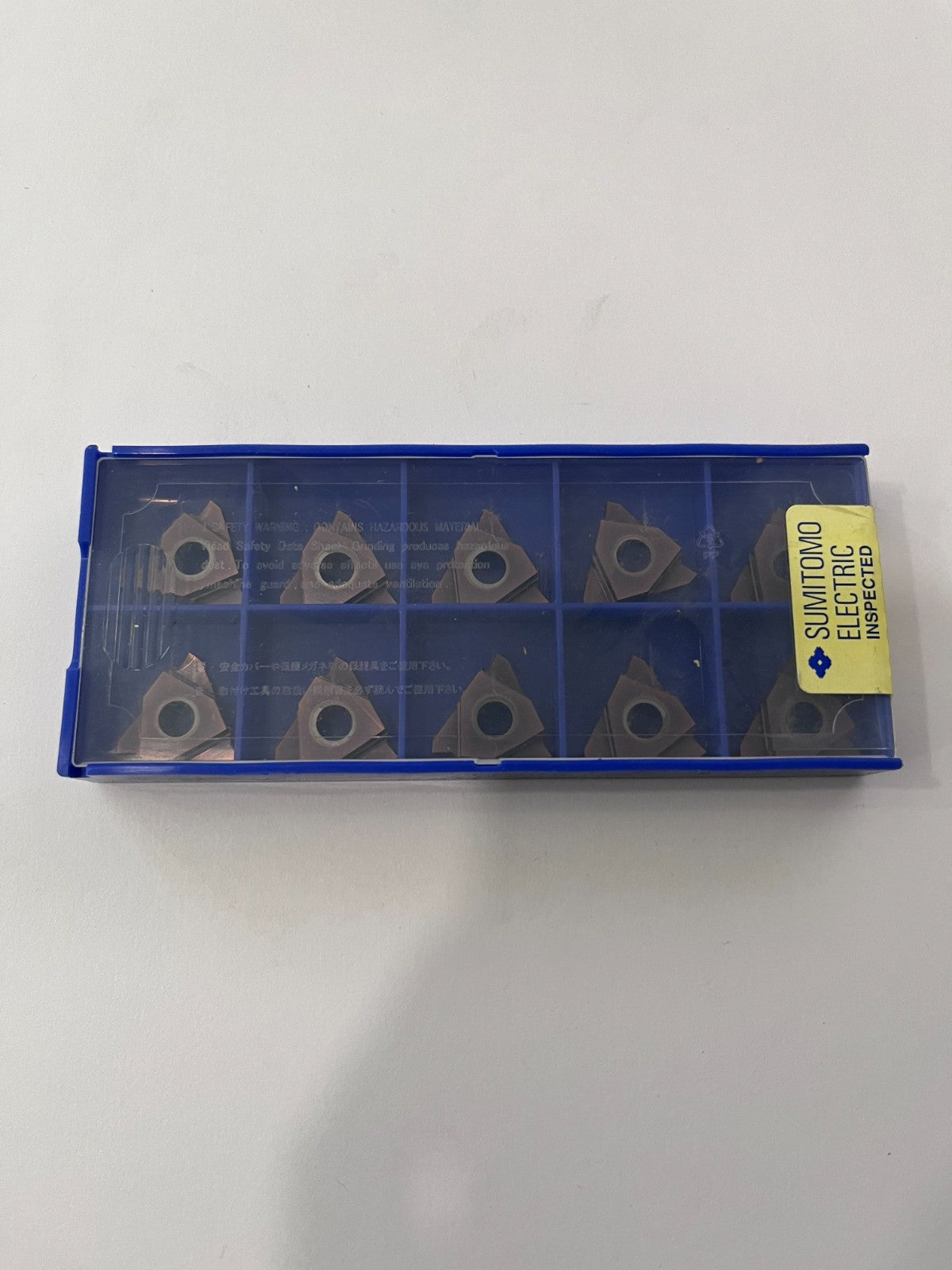

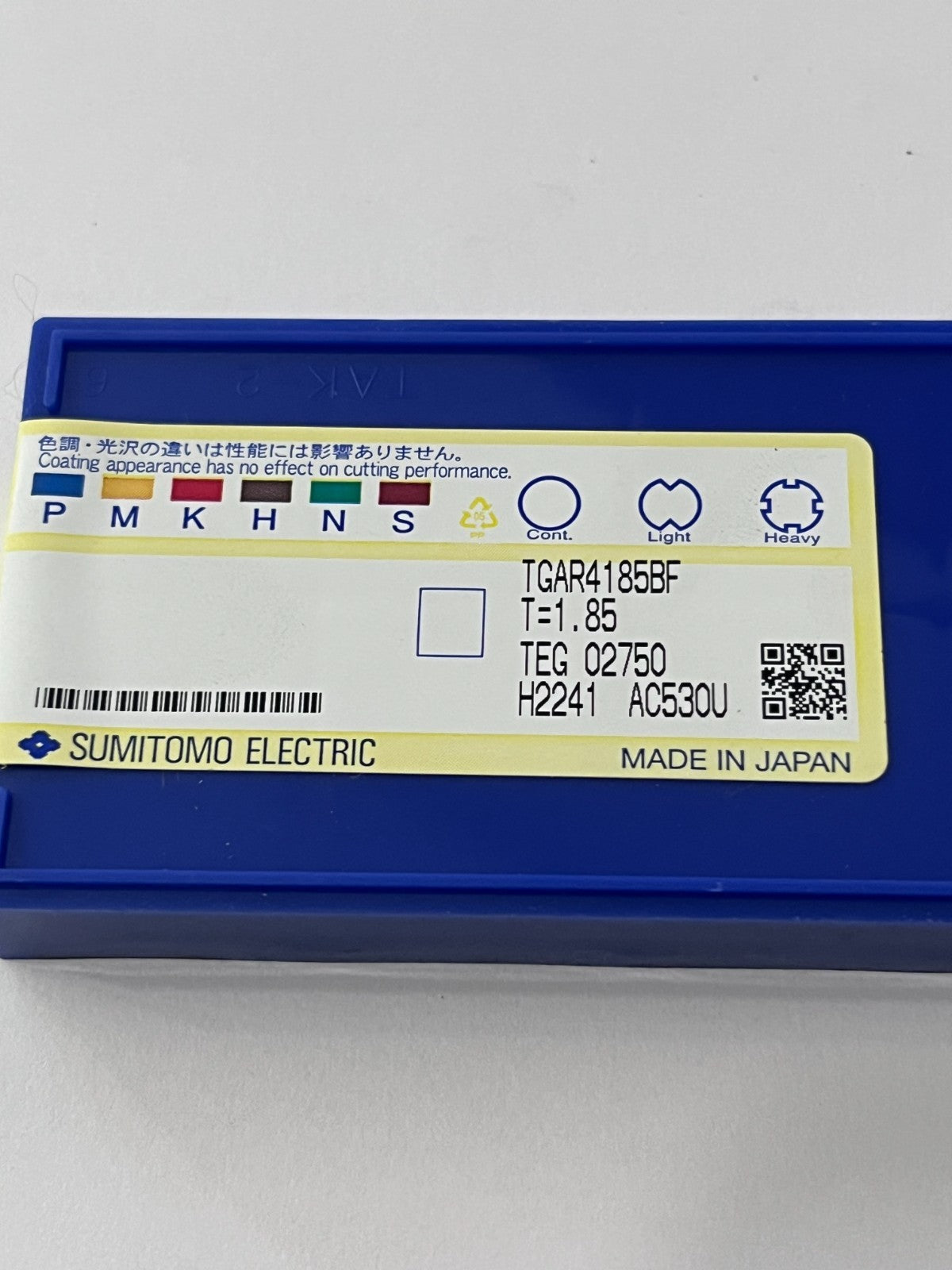

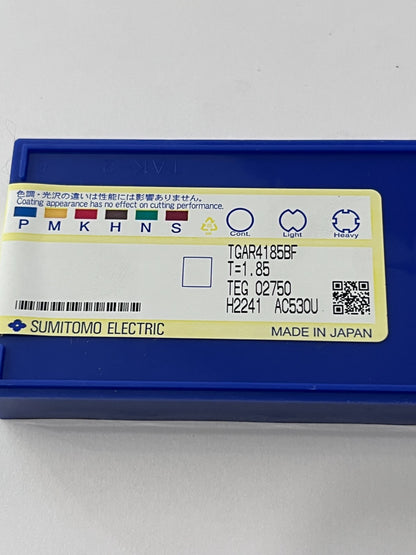

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
