Sumitomo Electric Carbide Insert NCCCGA21.51 Grade BNC200 77843399

MSRP: $50.00

Description:

Insert Style: CCGA

Insert Size: 21.51

Inscribed Circle (Decimal Inch): 0.2500

Inscribed Circle (Inch): 1/4

Thickness (Inch): 3/32

Thickness (Decimal Inch): 0.0938

Manufacturer's Grade: BNC200

Corner Radius (Decimal Inch): 0.0156

Coating: TiN

Hole Diameter (Decimal Inch): 0.1100

Relief Angle (Degree): 7

Included Angle (Degree): 80

Maximum Depth of Cut (Decimal Inch): 0.0150

Shape: Diamond

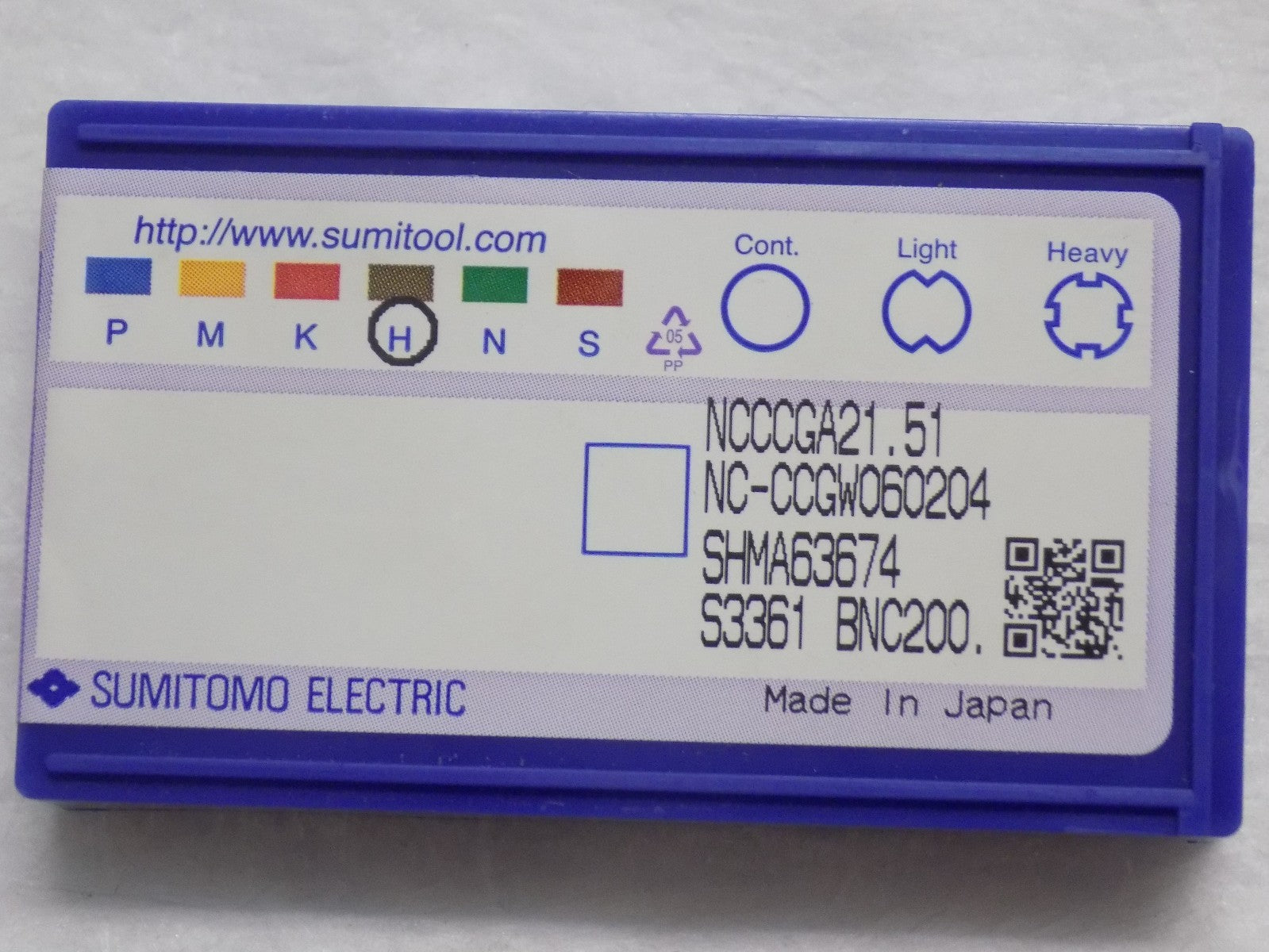

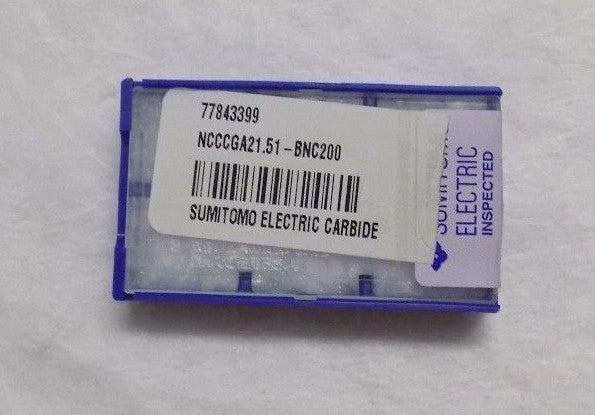

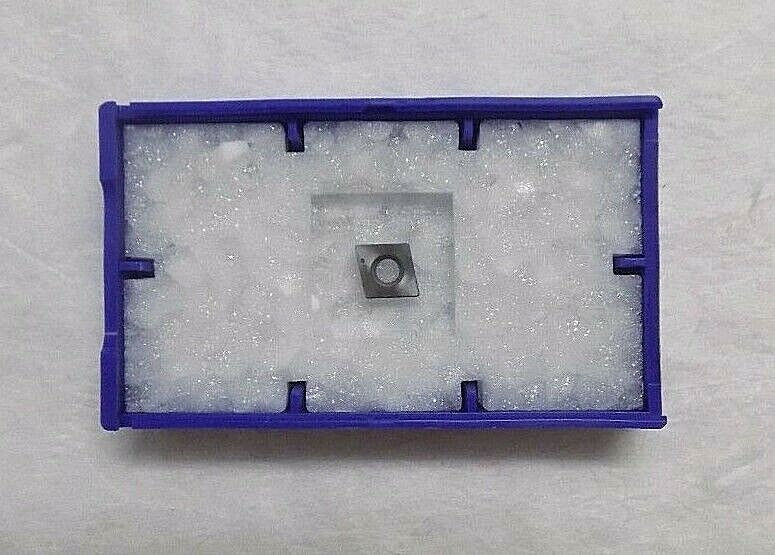

This listing is for One that is in the picture as well as described. Please ask any questions prior to buying!
