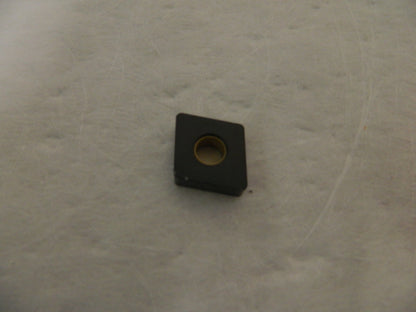

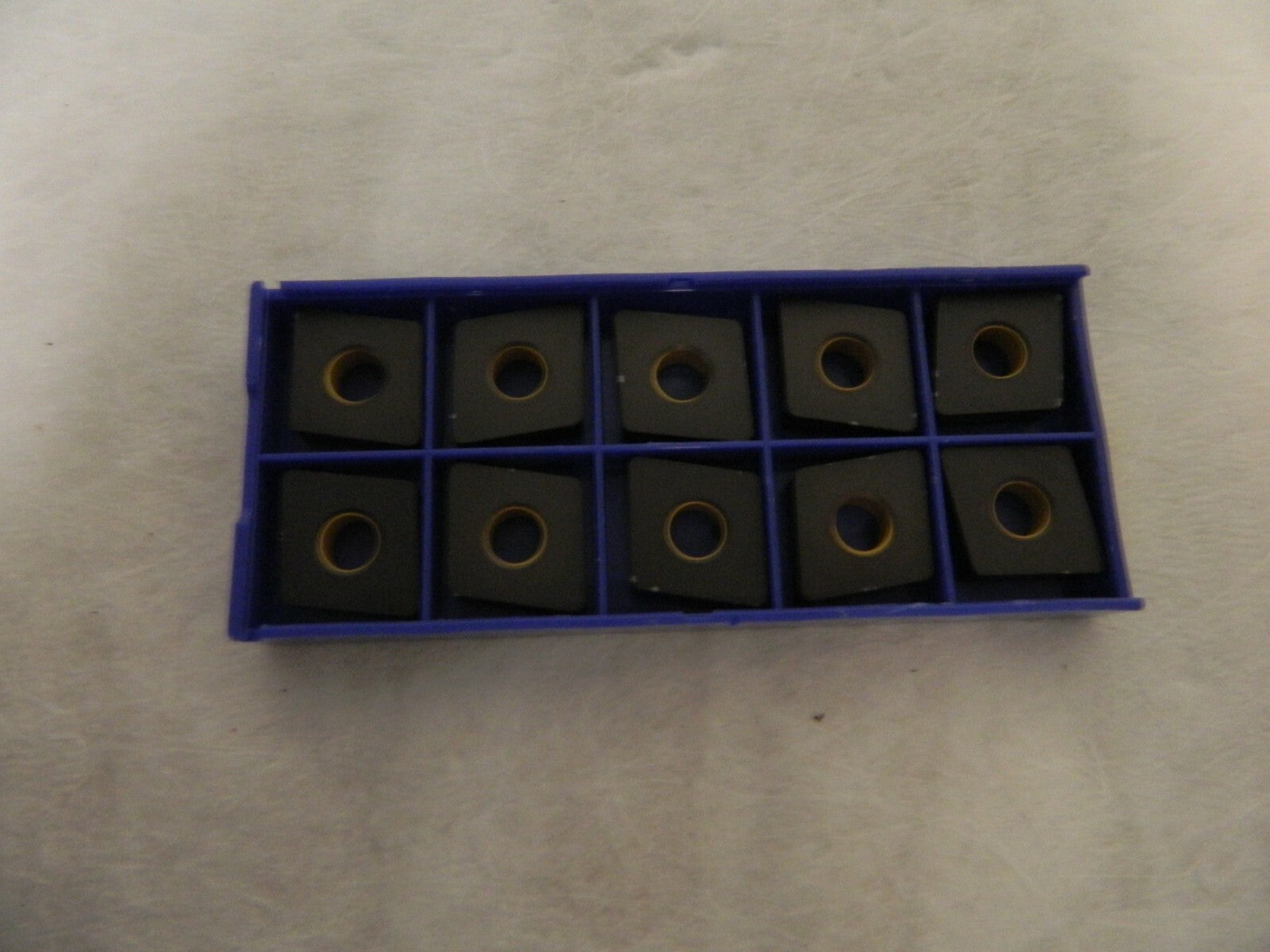

Sumitomo CNMA644 AC4015K Carbide Turning Insert Box of 10 19T2285

Sumitomo
19T2285

MSRP: $150

Insert Style CNMA

• Insert Size 644
• Insert Size Code 644
• Material Carbide
• Insert Shape Diamond
• Inscribed Circle (Inch) 3/4
• Insert Material Carbide
• Thickness (Inch) 1/4
• Coated Coated
• Corner Radius (Inch) 1/16
• Manufacturer's Grade AC4015K; AC4015K
• Manufacturer Grade AC4015K
• Insert Thickness 0.25 in
• Corner Radius 1/16 in
• Coating Process CVD
• Insert Length 0.7598 in
• Primary Workpiece Material Code K
• Ansi Code CNMA644
• Iso Code CNMA190616
• Coating Al2O3/TiCN; Coated; Al2O3/TiCN
• Standards ANSI; ISO 13399
• Material Grade K15
• Insert Length (Decimal Inch) 0.7598 in
• Hole Diameter (mm) 7.94
• ISO Number CNMA190616
• Rake Negative
• Rake Angle 0
• Relief Angle 0; 0.0?
• Proprietary Coating Designation Super FF
• Coating Process CVD; CVD
• Manufacturers Catalog Number CNMA644-AC4015K
• Primary Workpiece Material Cast Iron
• Included Angle 80
• Cutting Direction Neutral
• Insert Hand Neutral
• Corner Radius (Decimal Inch) 1/16
• Coating Process CVD; Coated; CVD

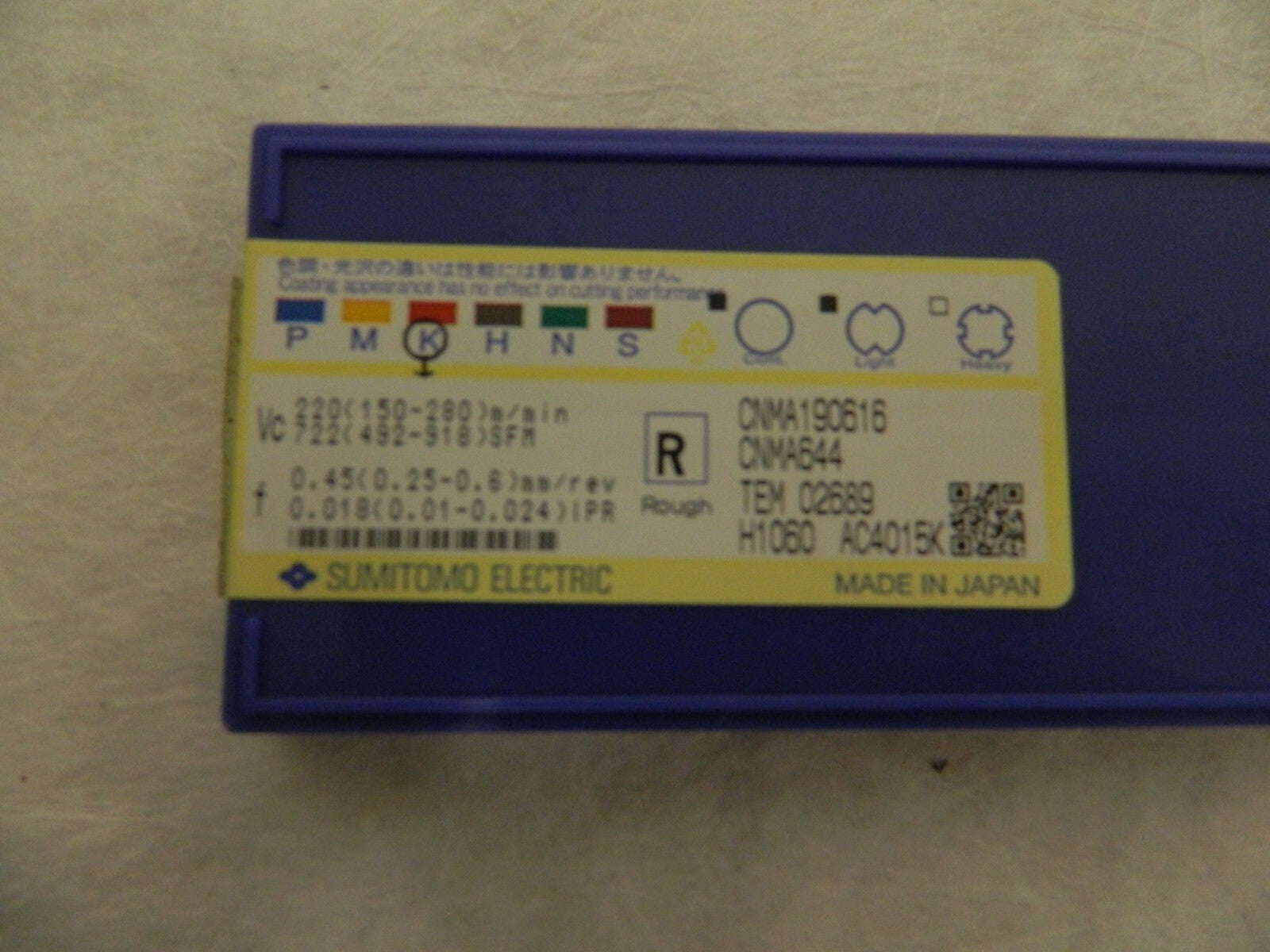

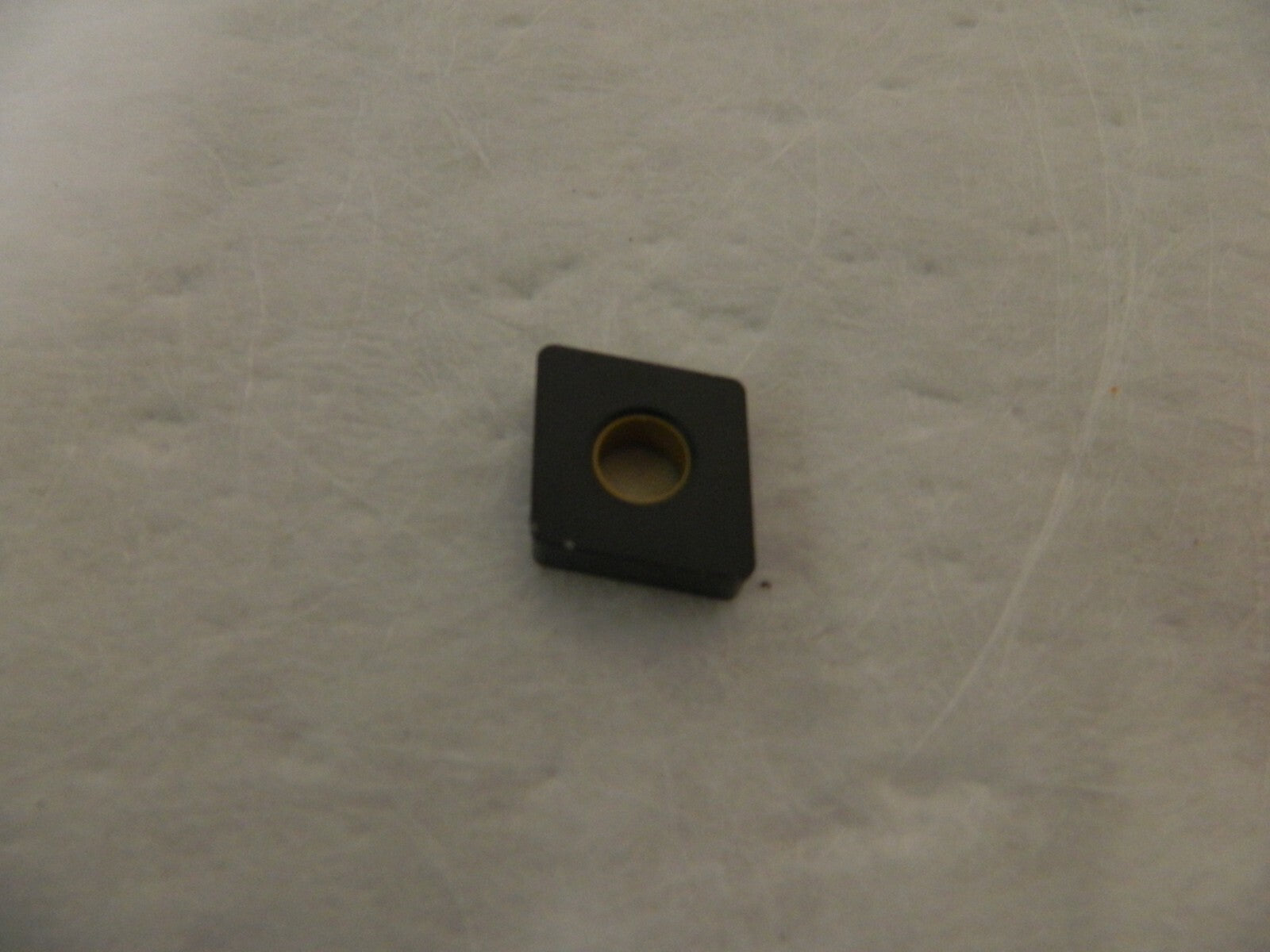

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!

Industry Recycles

155 Center Ct, Venice, FL 34285
