Sumitomo Carbide Turning Inserts QTY10 DCMT32.52ESU AC520U 53982260

Sumitomo
Carbide Turning Inserts1 pack of 10
MSRP: $170

• Insert Style DCMT
• ANSI Size Code 32.52
• ISO Size Code 11T308
• Insert Shape D - Diamond (Rhombic) 55-Deg
• Included Angle 55
• Inscribed Circle (Decimal Inch) 0.3750
• Inscribed Circle (Inch) 3/8
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0313
• Insert Material Carbide
• Manufacturer Grade AC520U
• Coating/Finish AlCrN; TiAlN
• Relief Angle 7
• Insert Thickness (Inch) 5/32
• Insert Thickness (Decimal Inch) 0.1563
• Insert Hand Neutral
• Series DC
• Chip Breaker Operation Light Machining; Finishing
• Grade Characteristics Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
• Side Clearance Positive
• Insert Shape Code D
• Hole Diameter (Decimal Inch) 0.1732
• ANSI Insert Code DCMT32.52
• ISO Insert Code DCMT11T308
• Insert Holding Method Screw
• Clearance Code C
• Tolerance Code M
• Coating Process PVD
• Rake Positive
• Insert Length (Decimal Inch) 0.4567
• Primary Workpiece Material Code S; M
• Secondary Workpiece Material Superalloy; Stainless Steel
• Secondary Workpiece Material Code S; M
• Iso Code DCMT11T308N-SU
• Standards ISO 13399; ANSI
• Proprietary Coating Designation Super ZX
• Chip Breaker ESU
• Rake Angle 8
• UNSPSC Code 23242105
• Insert Size Code 32.52

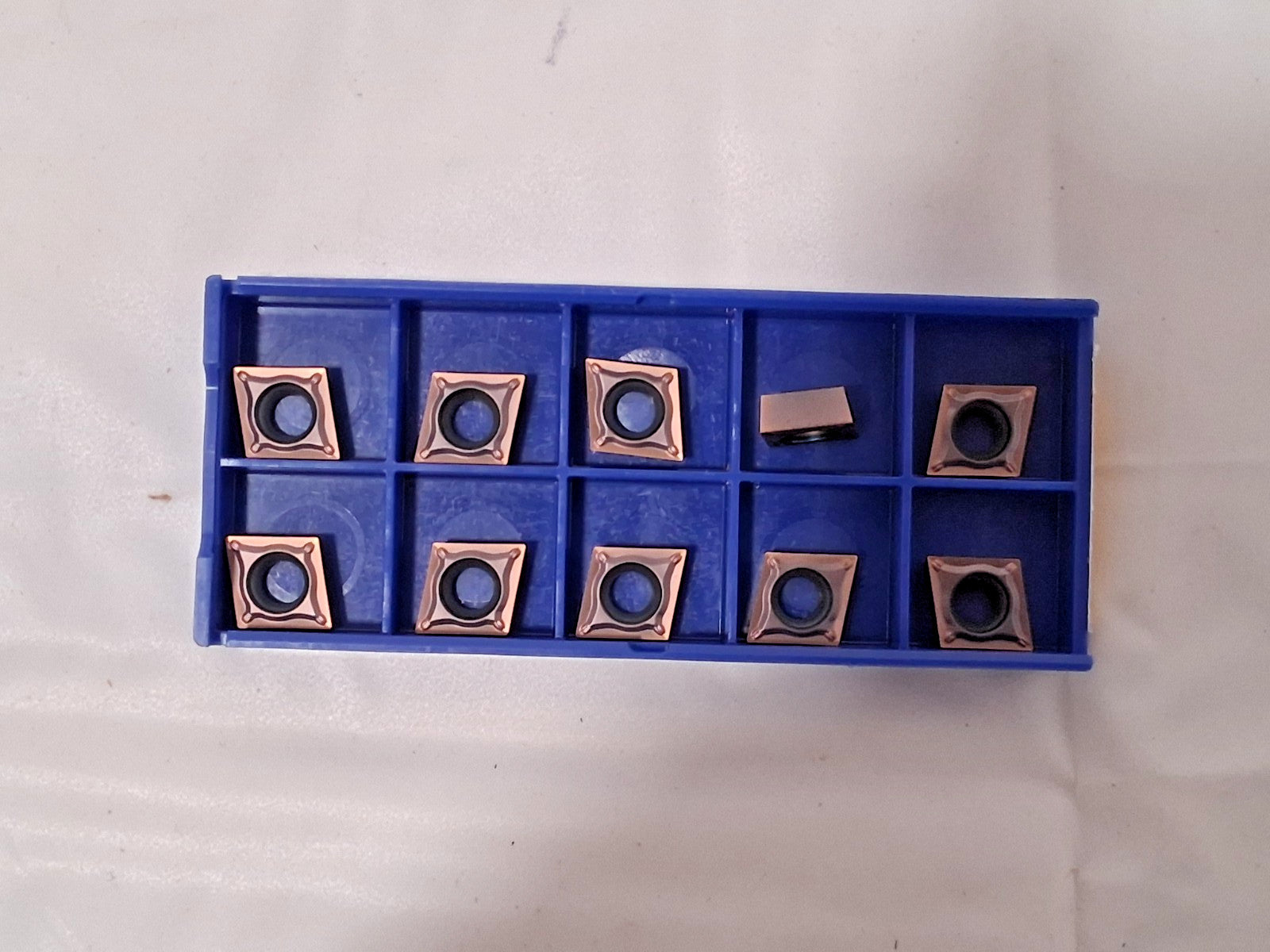

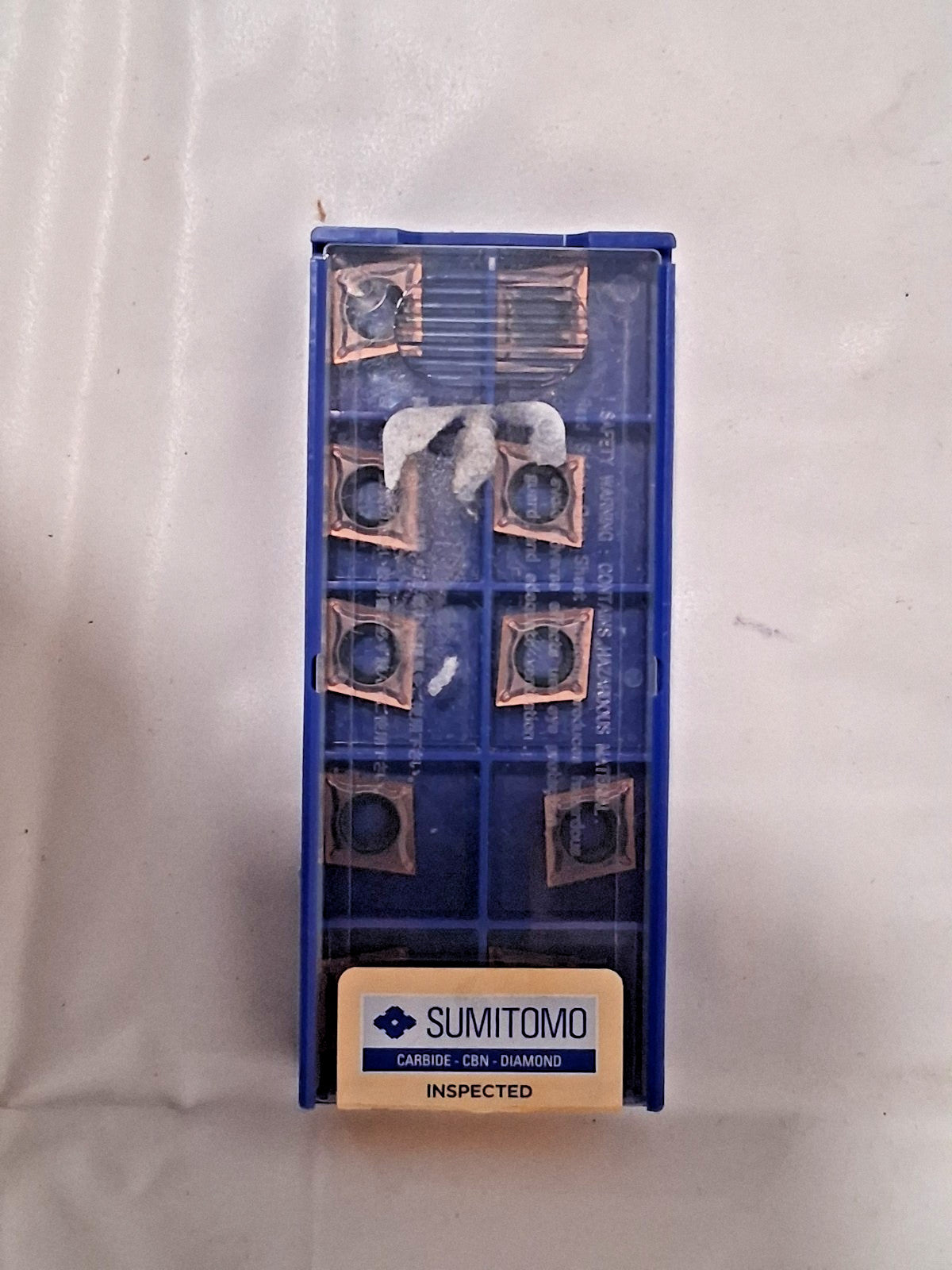

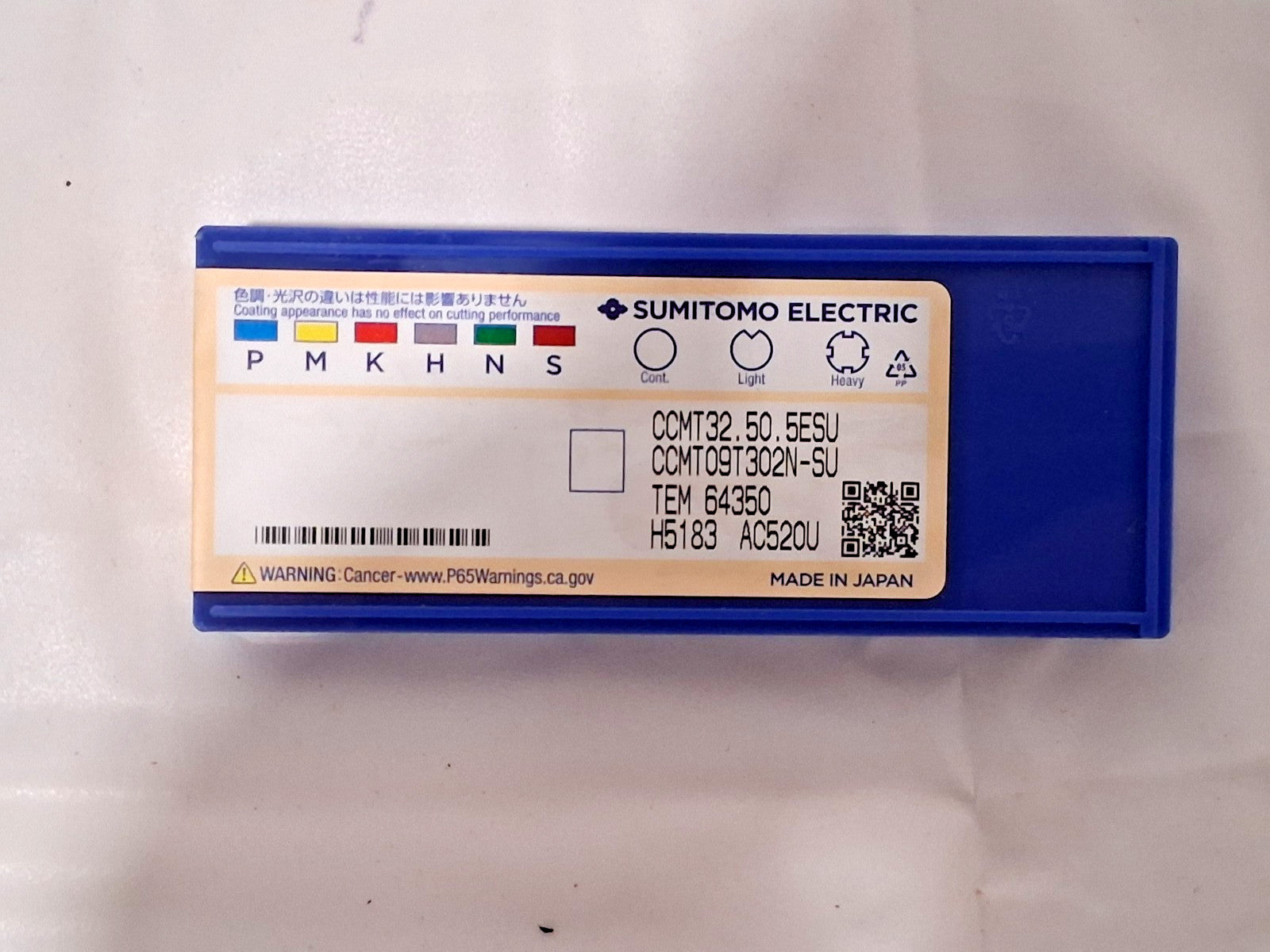

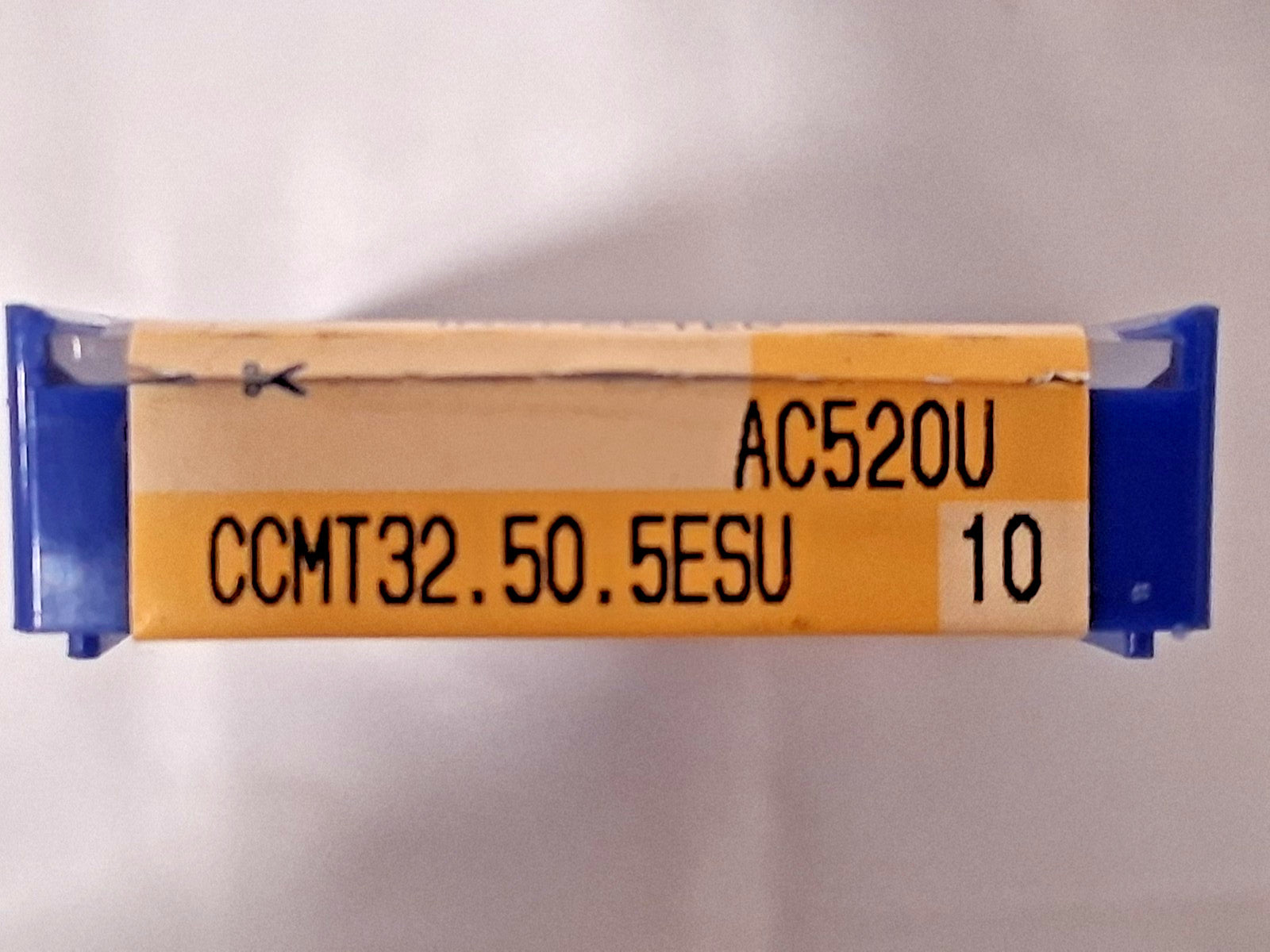

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
