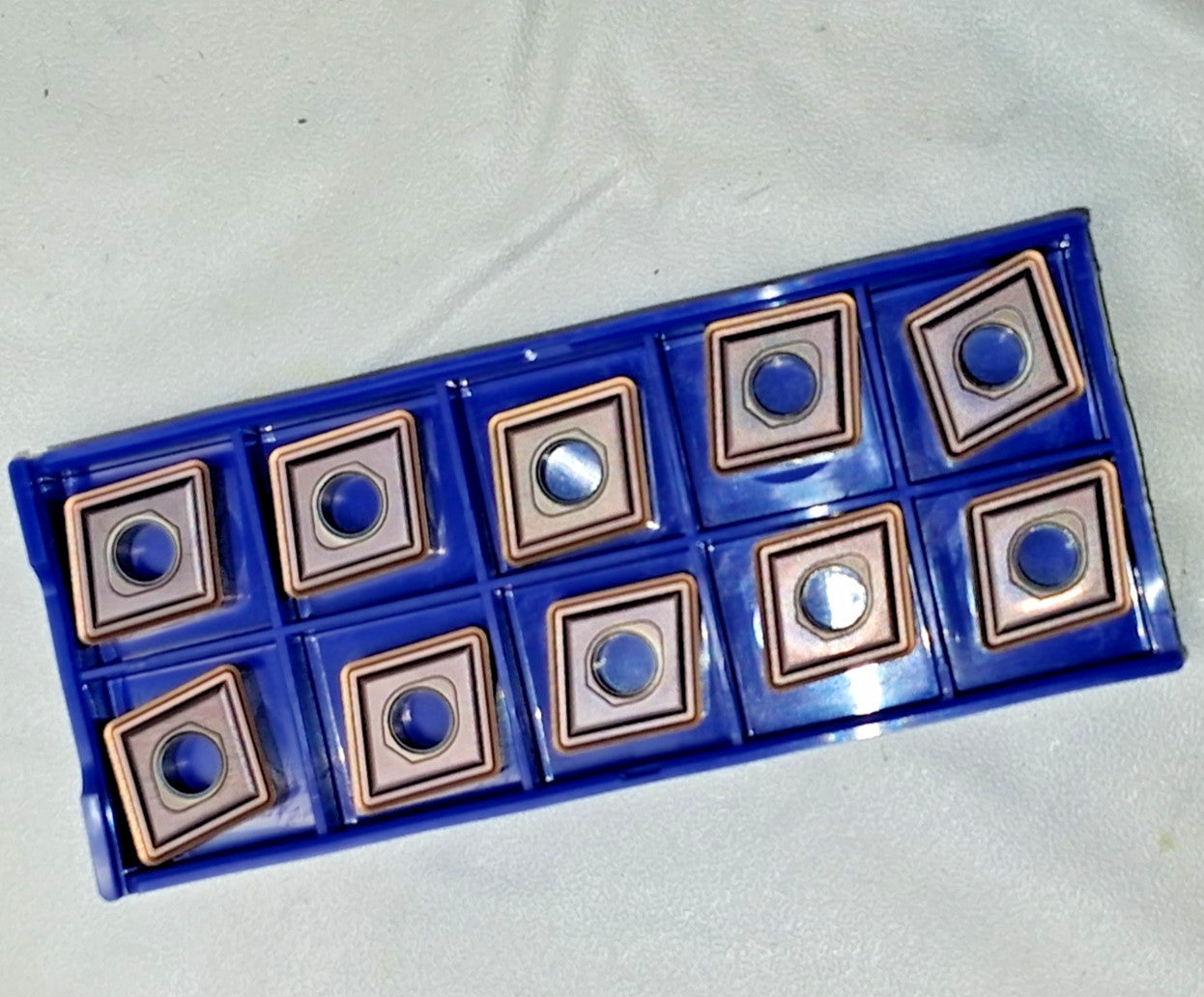

Sumitomo Carbide Turning Inserts Qty 10 AC510U 45231966

Sumitomo

1 pack of 10 Carbide Turning Inserts

MSRP: $140.00

• Insert Style: CNMG
• ANSI Size Code: 433
• ISO Size Code: 120412
• Insert Shape: C - Diamond (Rhombic) 80-Deg
• Included Angle: 80.00
• Inscribed Circle (Decimal Inch): 0.5000
• Inscribed Circle (Inch): 1/2
• Corner Radius (Inch): 3/64
• Corner Radius (Decimal Inch): 0.0469
• Insert Material: Carbide
• Manufacturer Grade: AC510U
• Coating/Finish: AlCrN; TiAlN
• Relief Angle: 0.000
• Insert Thickness (Inch): 3/16
• Insert Thickness (Decimal Inch): 0.1875
• Insert Hand: Neutral
• Series: CN
• Chip Breaker Operation: Light Machining; Medium Machining
• Grade Characteristics: Special, Super Alloys (S) - High Wear-Resistance
• Side Clearance: Negative
• Hole Diameter (Decimal Inch): 0.2031
• ANSI Insert Code: CNMG433
• ISO Insert Code: CNMG120412
• Insert Holding Method: Pin; Clamp
• Clearance Code: N
• Tolerance Code: M
• Coating Process: PVD
• Rake: Positive
• Insert Length (Decimal Inch): 0.5079
• Primary Workpiece Material Code: S
• Secondary Workpiece Material: Superalloy
• Secondary Workpiece Material Code: S
• Iso Code: CNMG120412N-EX
• Standards: ISO 13399; ANSI
• Proprietary Coating Designation: Super ZX
• Chip Breaker: EEX
• Rake Angle: 16
• UNSPSC Code: 23242105

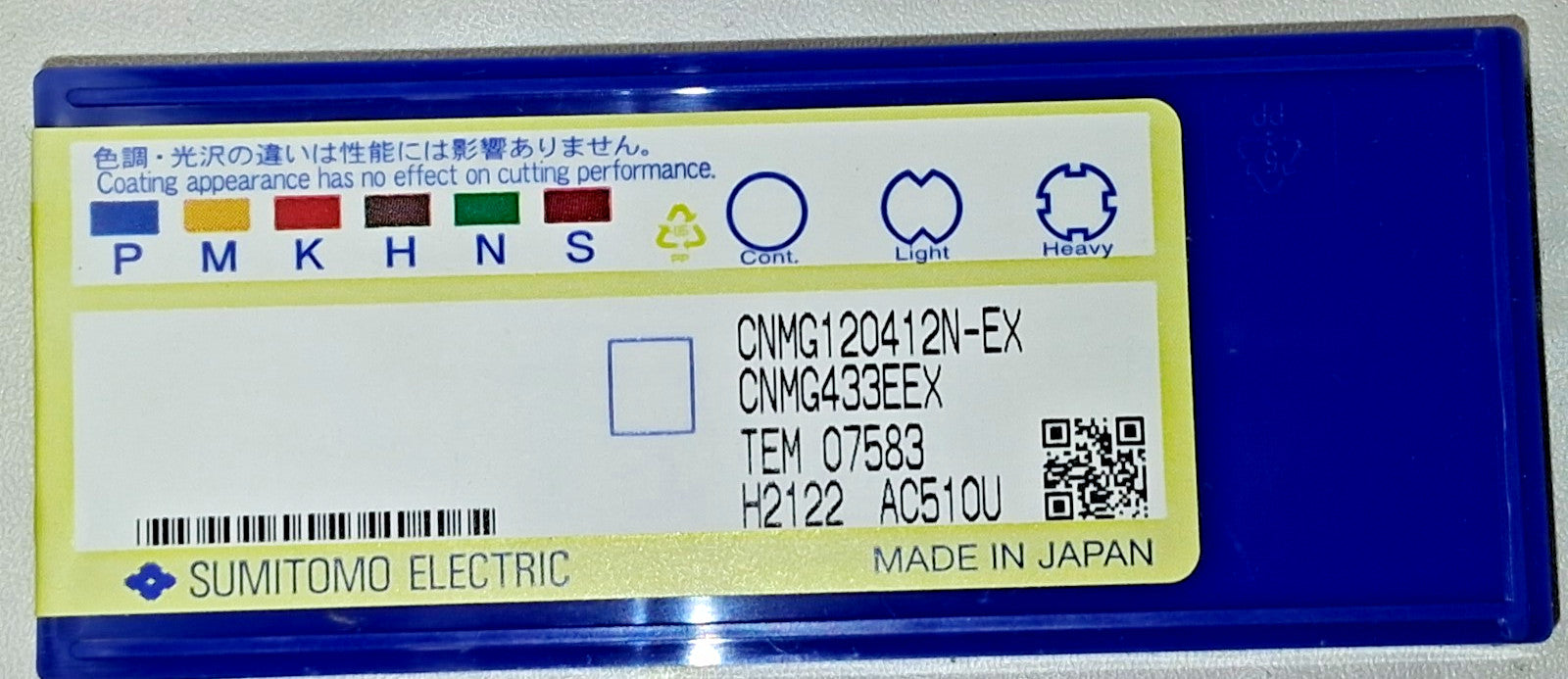

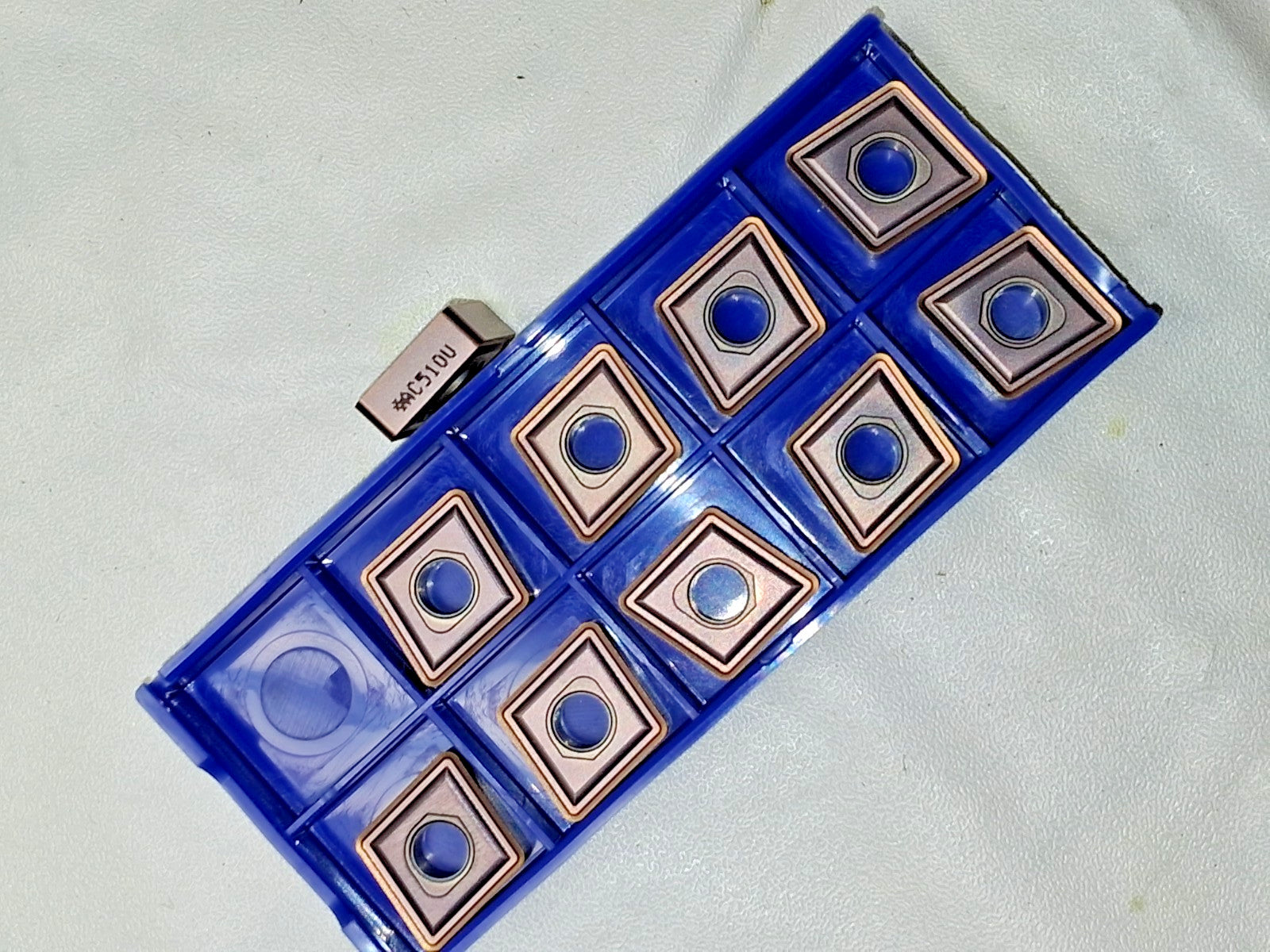

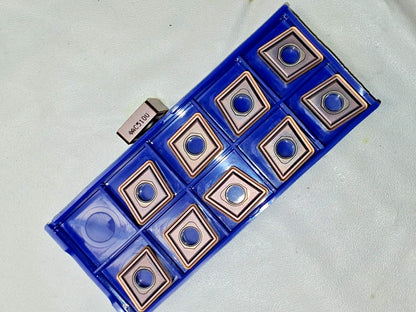

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
