SUMITOMO Carbide Turning Inserts Proprietary Finish, 1/2″ QTY 10 192RCAW

SUMITOMO
Carbide Turning Inserts

MSRP: $95

• Insert Style WNMG
• Insert Size Code 432
• Insert Shape Code W
• Insert Shape Trigon
• Clearance Code N
• Tolerance Code M
• Hole/Chipbreaker G
• Manufacturer's Grade AC415K
• Inscribed Circle (Decimal Inch) 0.5000
• Insert Material Carbide
• Coated Coated
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0313; 0.0313 in; 1/32 in
• Insert Thickness 0.1875in
• Insert Length 0.3425in
• Coating Process CVD
• Secondary Workpiece Material Code K
• Ansi Code WNMG432EGZ
• Iso Code WNMG080408N-GZ
• Standards ANSI; ISO 13399
• Hole Diameter (Decimal Inch) 0.2031
• ISO Number WNMG080408N-GZ
• Rake Neutral
• Relief Angle 0; 0?
• Secondary Workpiece Material Cast Iron
• Insert Hand Neutral
• Chipbreaker EGZ
• Thickness (mm) 0.1875in
• Thickness (Decimal Inch) 0.1875; 0.1875in
• Shape Trigon
• Coating Proprietary
• Series TN
• Insert Holding Method Pin & Clamp

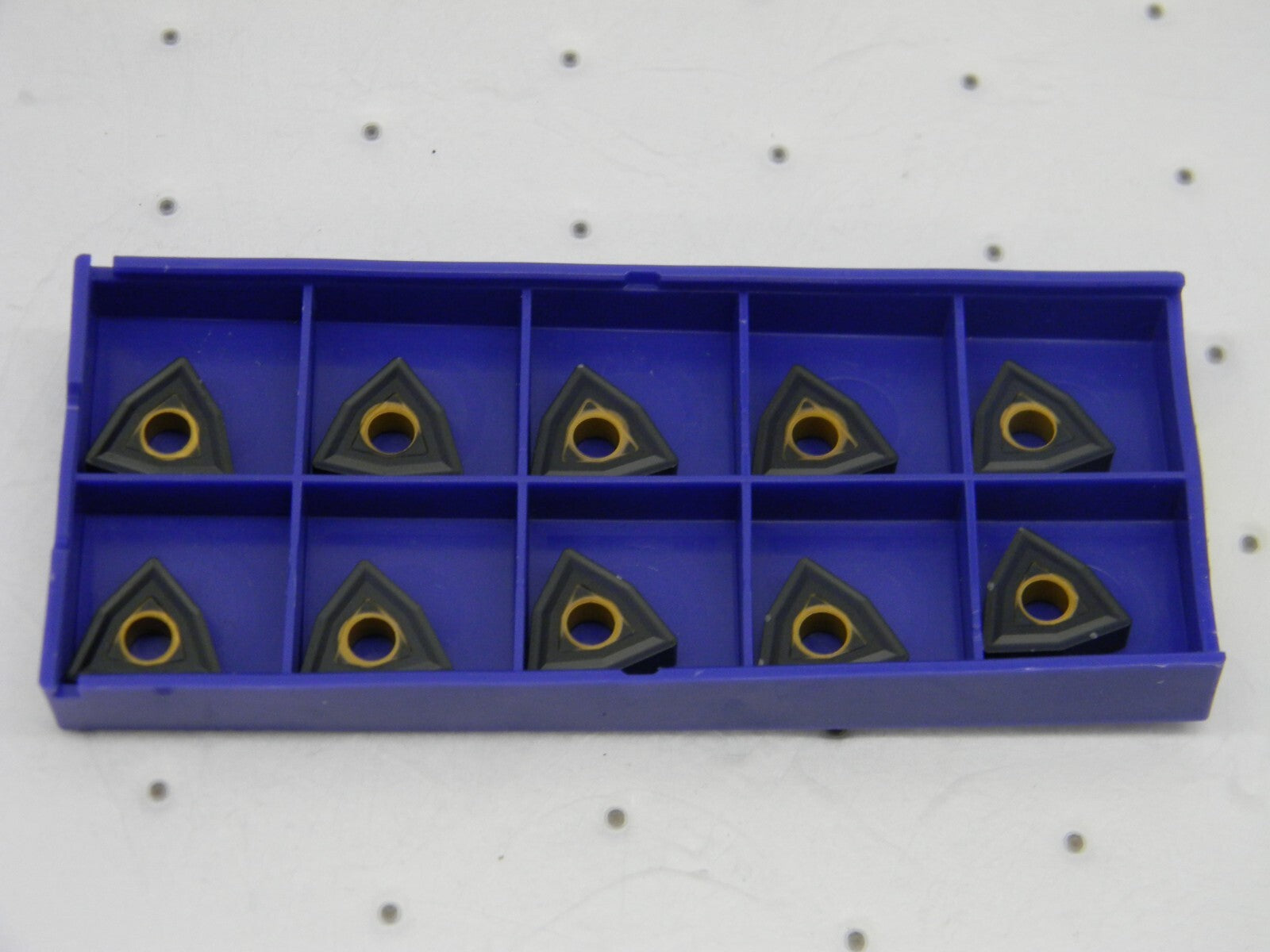

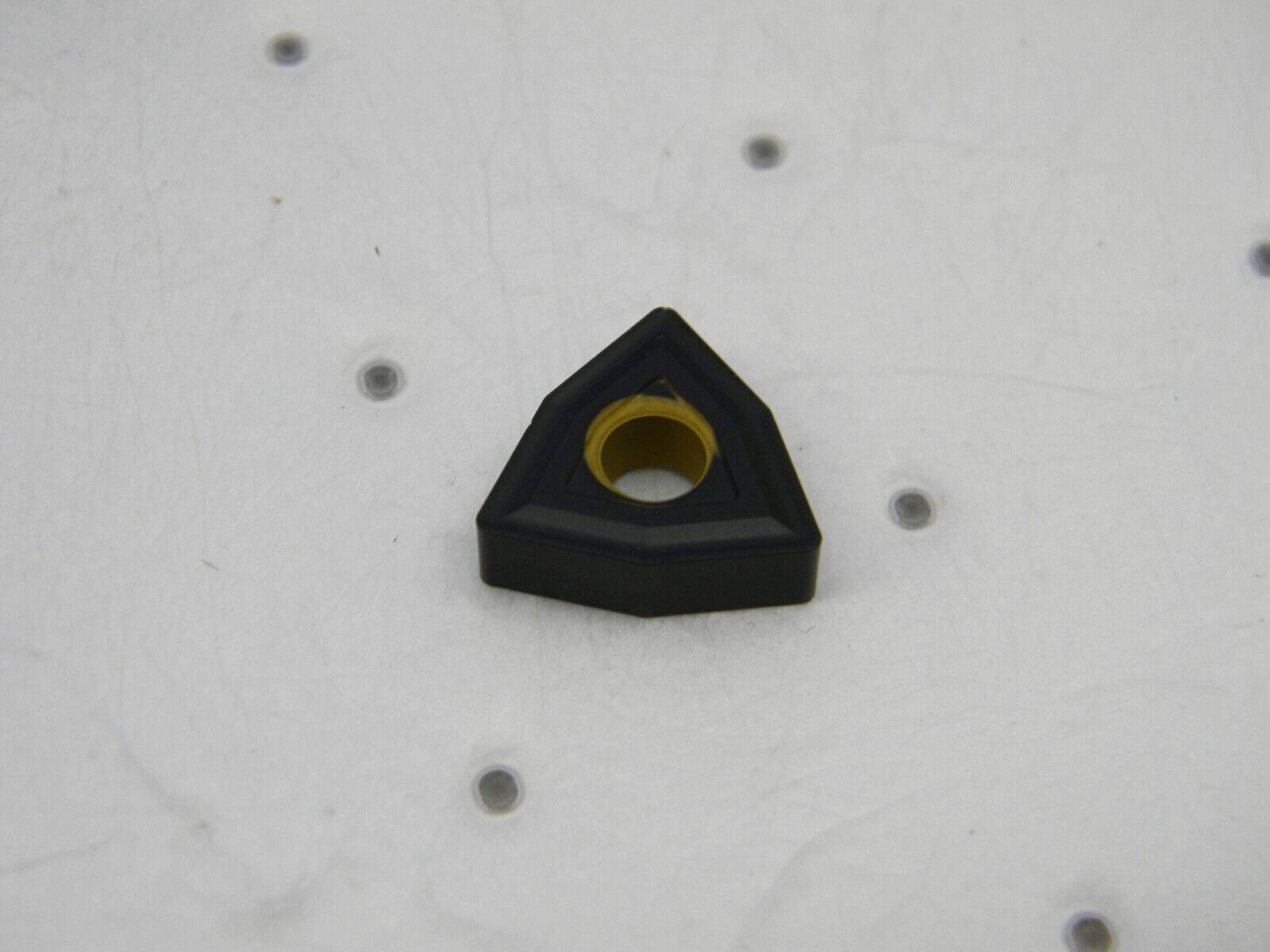

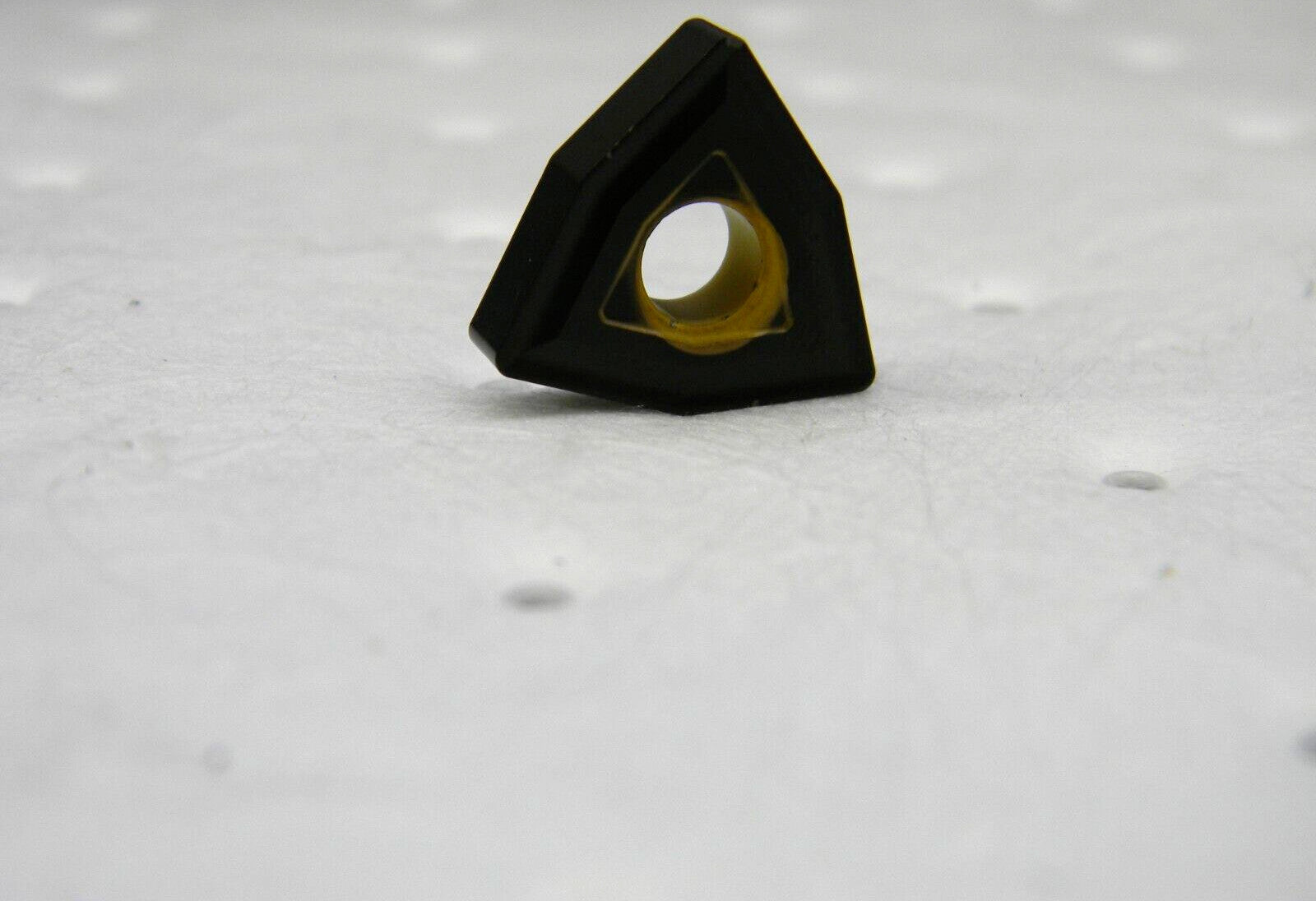

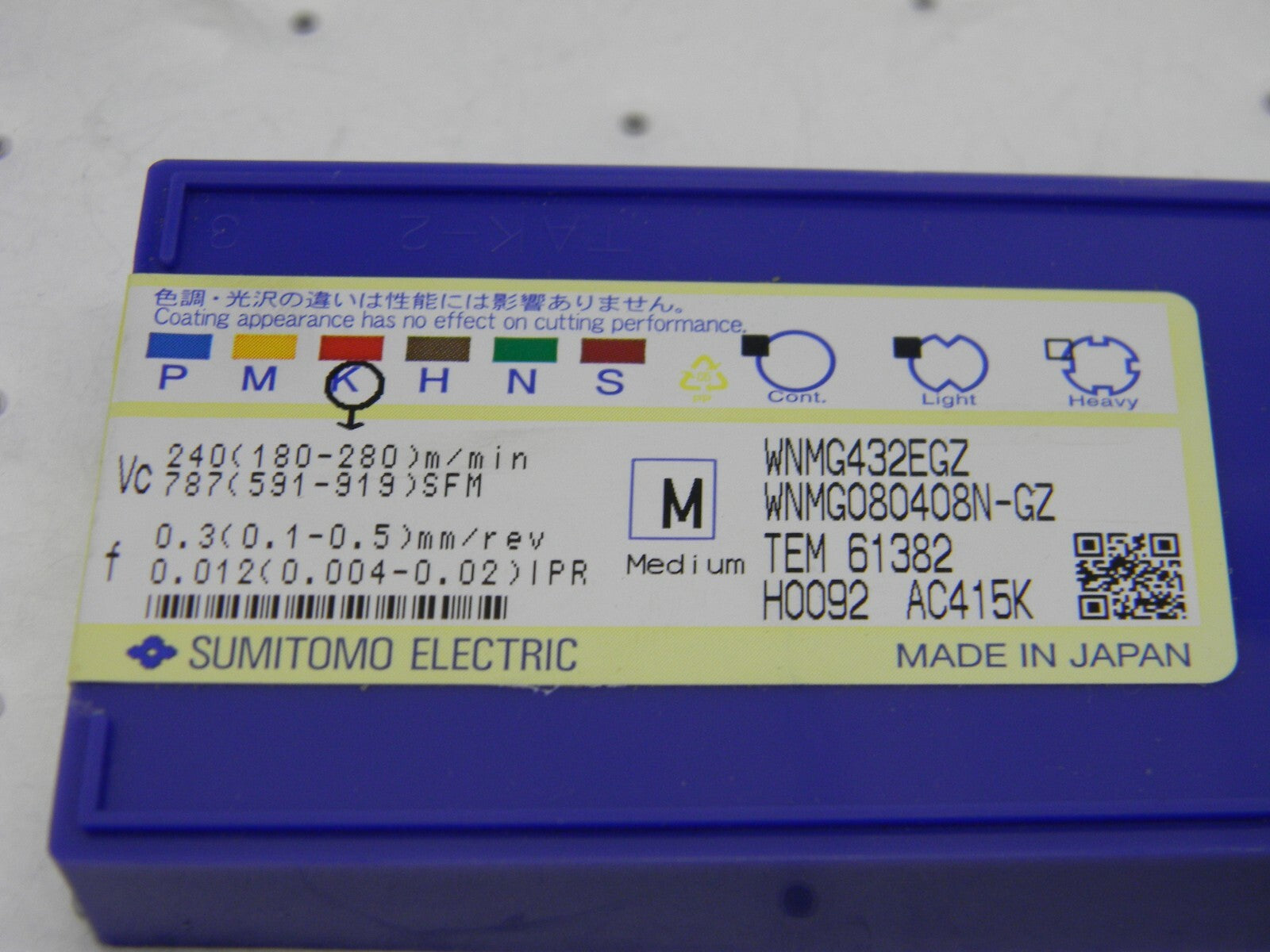

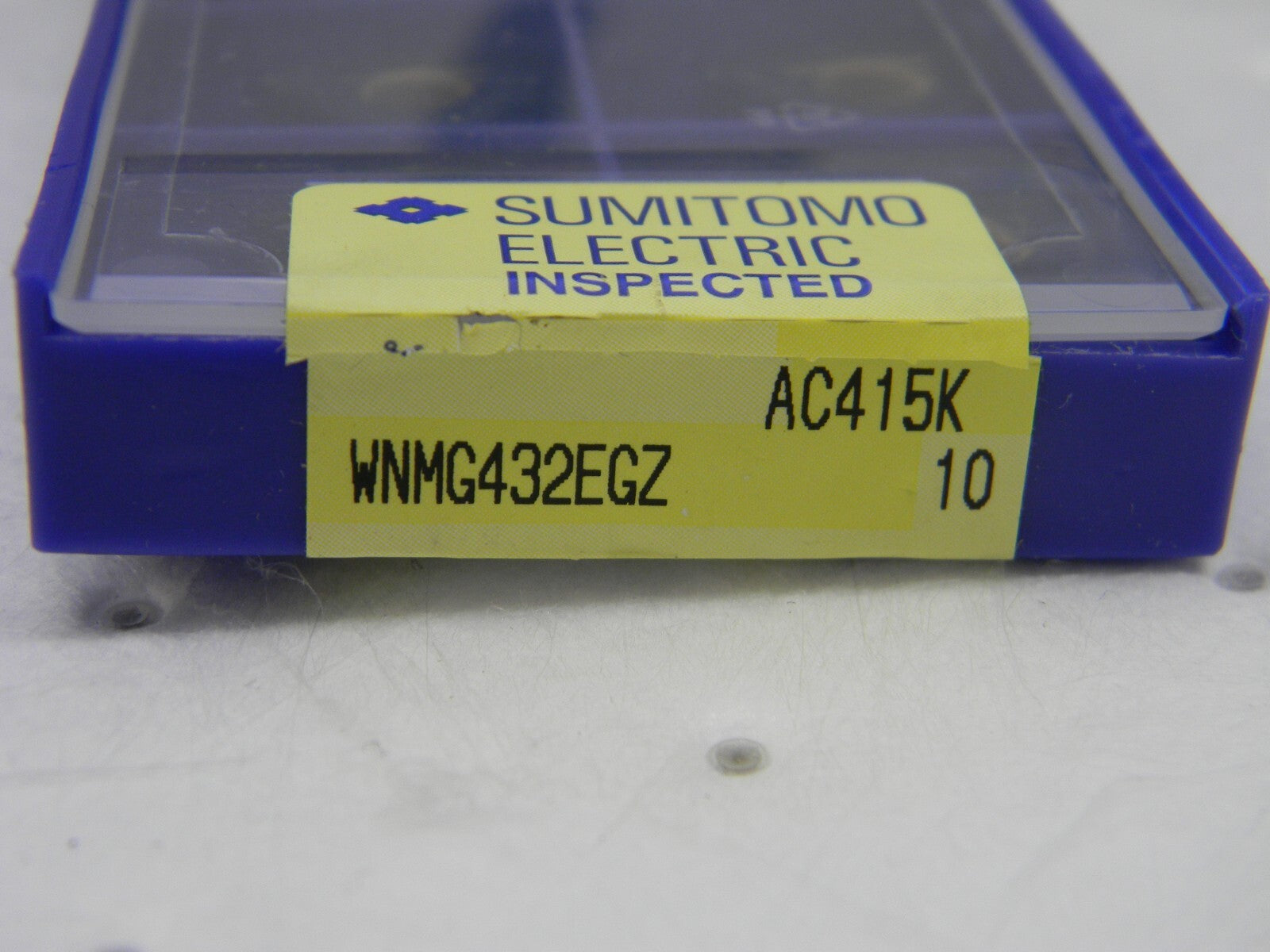

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
