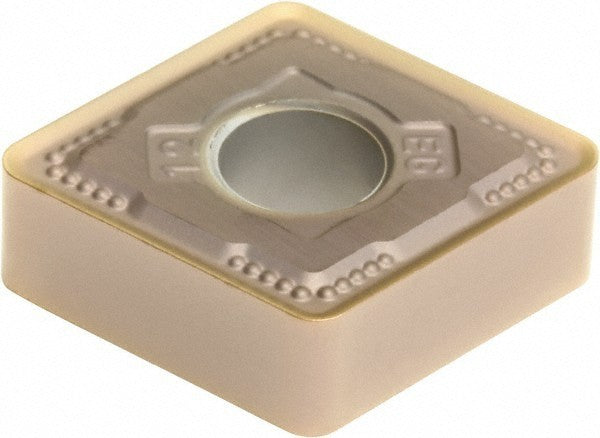

Sumitomo carbide Turning Inserts 19HVCGA 10 pack
Sumitomo carbide Turning Inserts 19HVCGA 10 pack
Regular price
$66.18 USD
Regular price
$143.00 USD
Sale price
$66.18 USD
Shipping calculated at checkout.
BRAND sumitomo
Item 10 pack
MSRP: $ 143.00
- specs
| Insert Style: CNMG | ANSI Size Code: 433 |
| ISO Size Code: 120412 | Insert Shape: C - Diamond (Rhombic) 80-Deg |
| Included Angle: 80.00 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Corner Radius (Inch): 3/64 |
| Corner Radius (Decimal Inch): 0.0469 | Insert Material: Carbide |
| Manufacturer Grade: AC510U | Coating/Finish: AlCrN; TiAlN |
| Relief Angle: 0.000 | Insert Thickness (Inch): 3/16 |
| Insert Thickness (Decimal Inch): 0.1875 | Insert Hand: Neutral |
| Series: CN | Chip Breaker Operation: Medium Machining; Roughing |
| Grade Characteristics: Special, Super Alloys (S) - High Wear-Resistance | Side Clearance: Negative |
| Insert Shape Code: C | Hole Diameter (Decimal Inch): 0.2031 |
| ANSI Insert Code: CNMG433 | ISO Insert Code: CNMG120412 |
| Insert Holding Method: Pin; Clamp | Clearance Code: N |
| Tolerance Code: M | Coating Process: PVD |
| Rake: Neutral | Insert Length (Decimal Inch): 0.5079 |
| Primary Workpiece Material Code: S | Secondary Workpiece Material: Superalloy |
| Secondary Workpiece Material Code: S | Iso Code: CNMG120412N-EG |
| Standards: ISO 13399; ANSI | Proprietary Coating Designation: Super ZX |
| Chip Breaker: EEG | Rake Angle: 0 |
| UNSPSC Code: 23242105 | Insert Size Code: 433 |
| Country of Origin: Japan |
(Description).
Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
