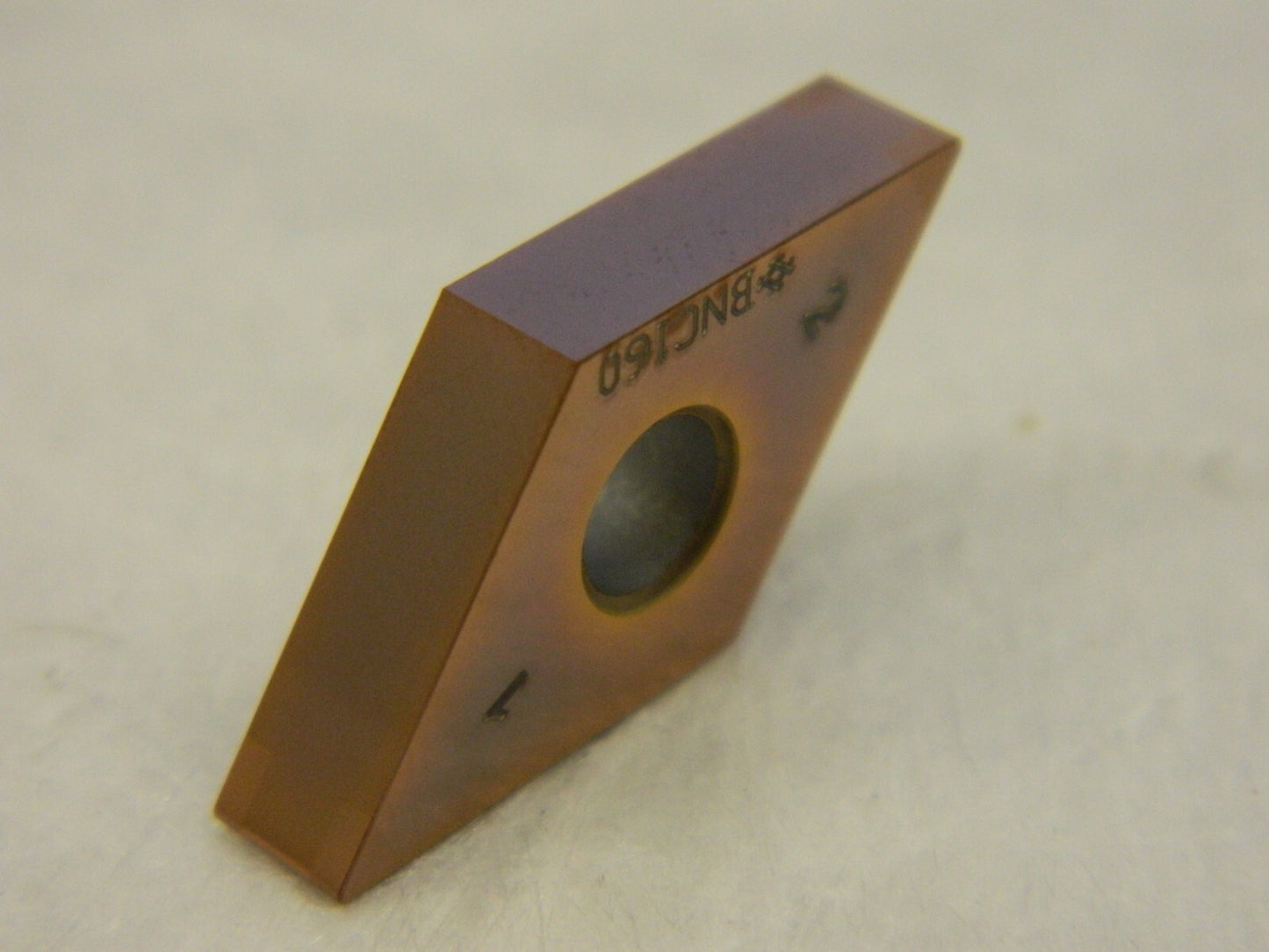

SUMITOMO 4NC-DNGA431 BNC300 PCBN Turning Insert 16GBCHD

SUMITOMO

 4NC-DNGA431 BNC300 PCBN Turning Insert 16GBCHD
MSRP: $100

• Insert Style 4NC-DNGA
• Insert Shape Code D
• Insert Size Code 431
• Insert Shape Diamond
• Clearance Code N
• Tolerance Code G
• Insert Material Polycrystalline Cubic Boron Nitride
• Manufacturer Grade BNC300
• Hole Diameter (Decimal Inch) 0.2031
• Maximum Depth of Cut (Decimal Inch) 0.0150
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (Decimal Inch) 0.5000
• Insert Holding Method Clamp; Pin
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1875
• Corner Radius (Inch) 1/64
• Corner Radius (Decimal Inch) 0.0156
• Included Angle 55.0
• Relief Angle 0
• Series D
• Coating Process PVD
• Primary Workpiece Material Steel
• Primary Workpiece Material Code H
• Ansi Code 4NCDNGA431
• Standards ANSI; ISO 13399
• Chip Breaker A
• Coating/Finish TiN

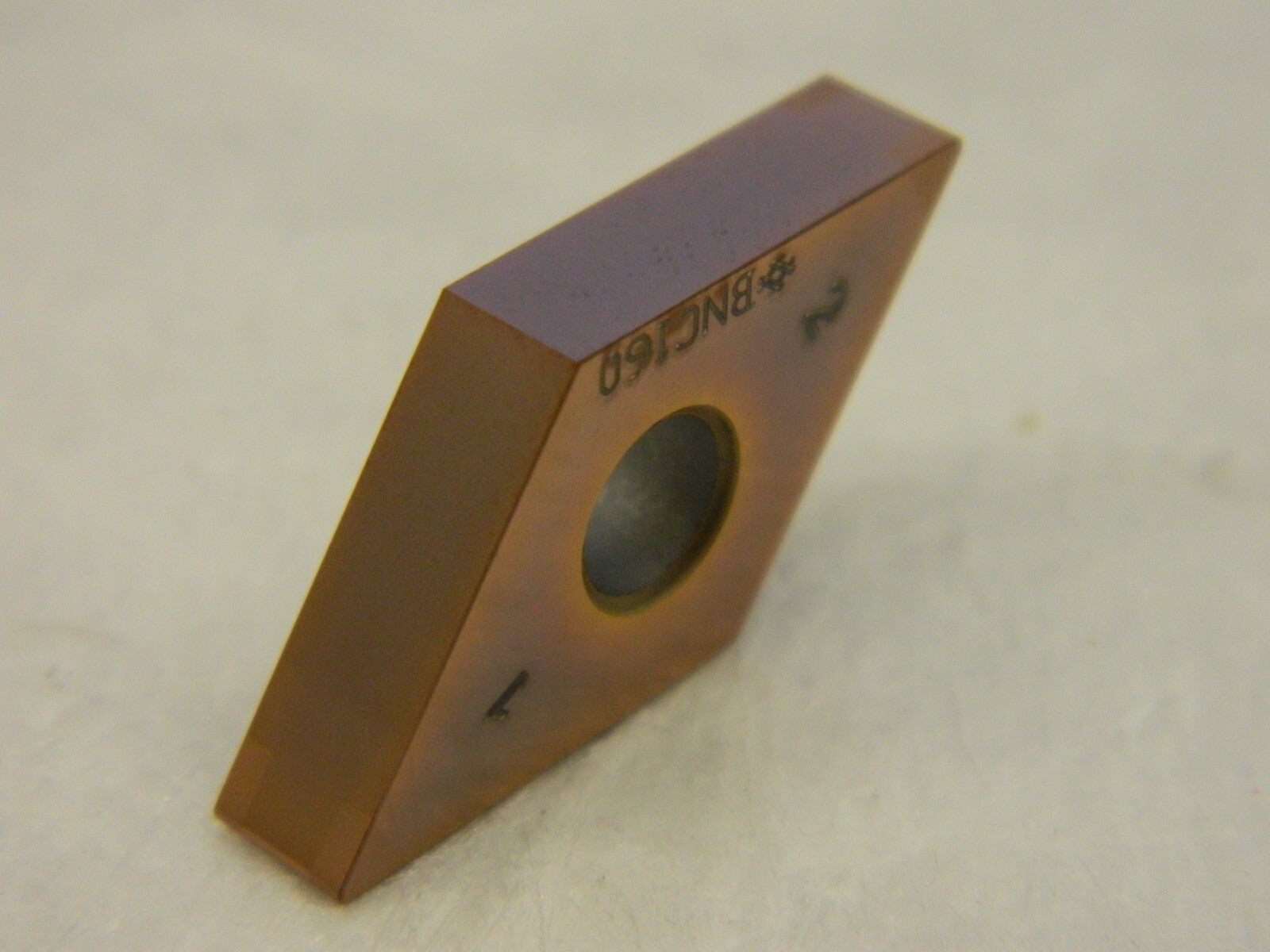

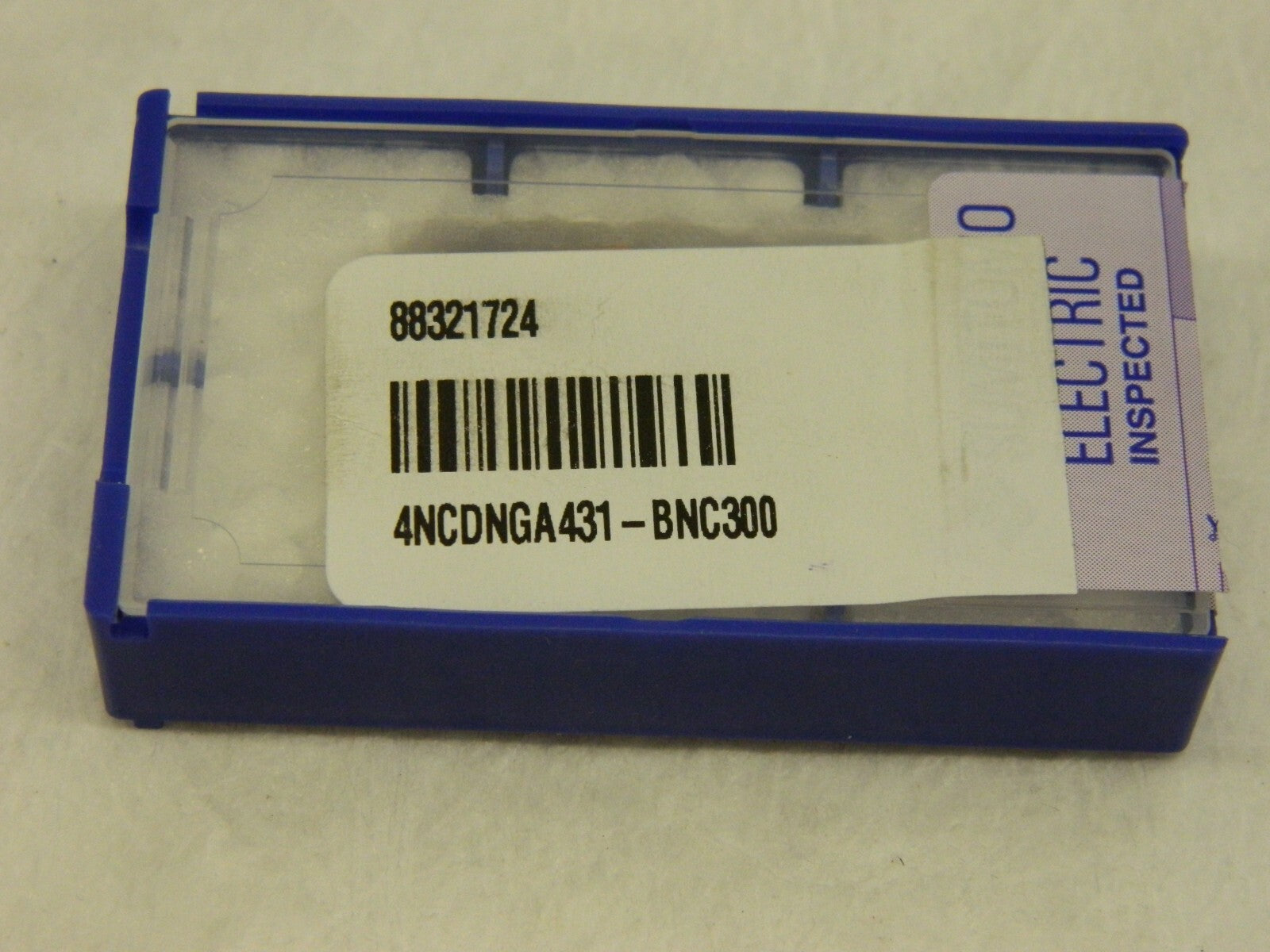

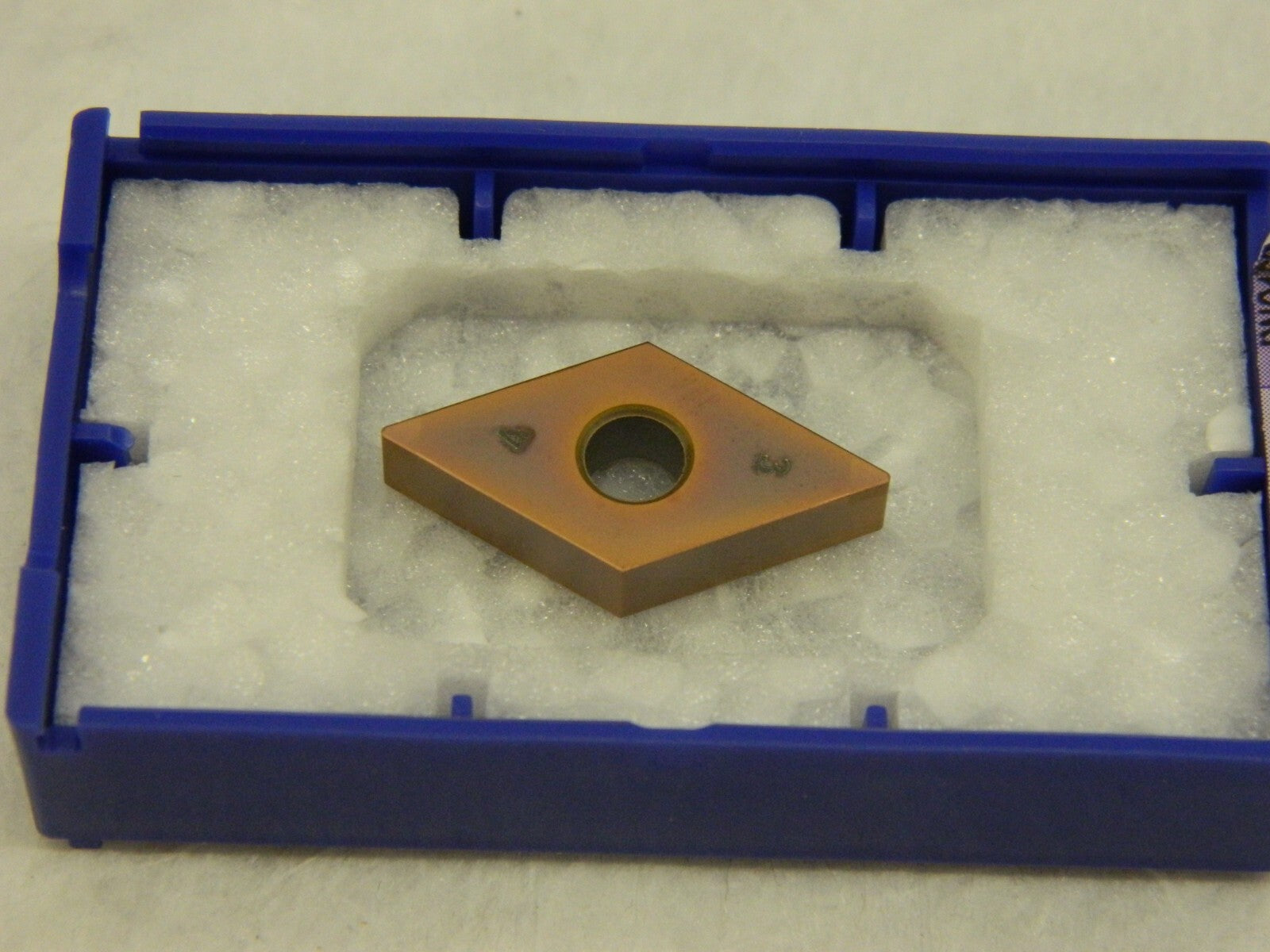

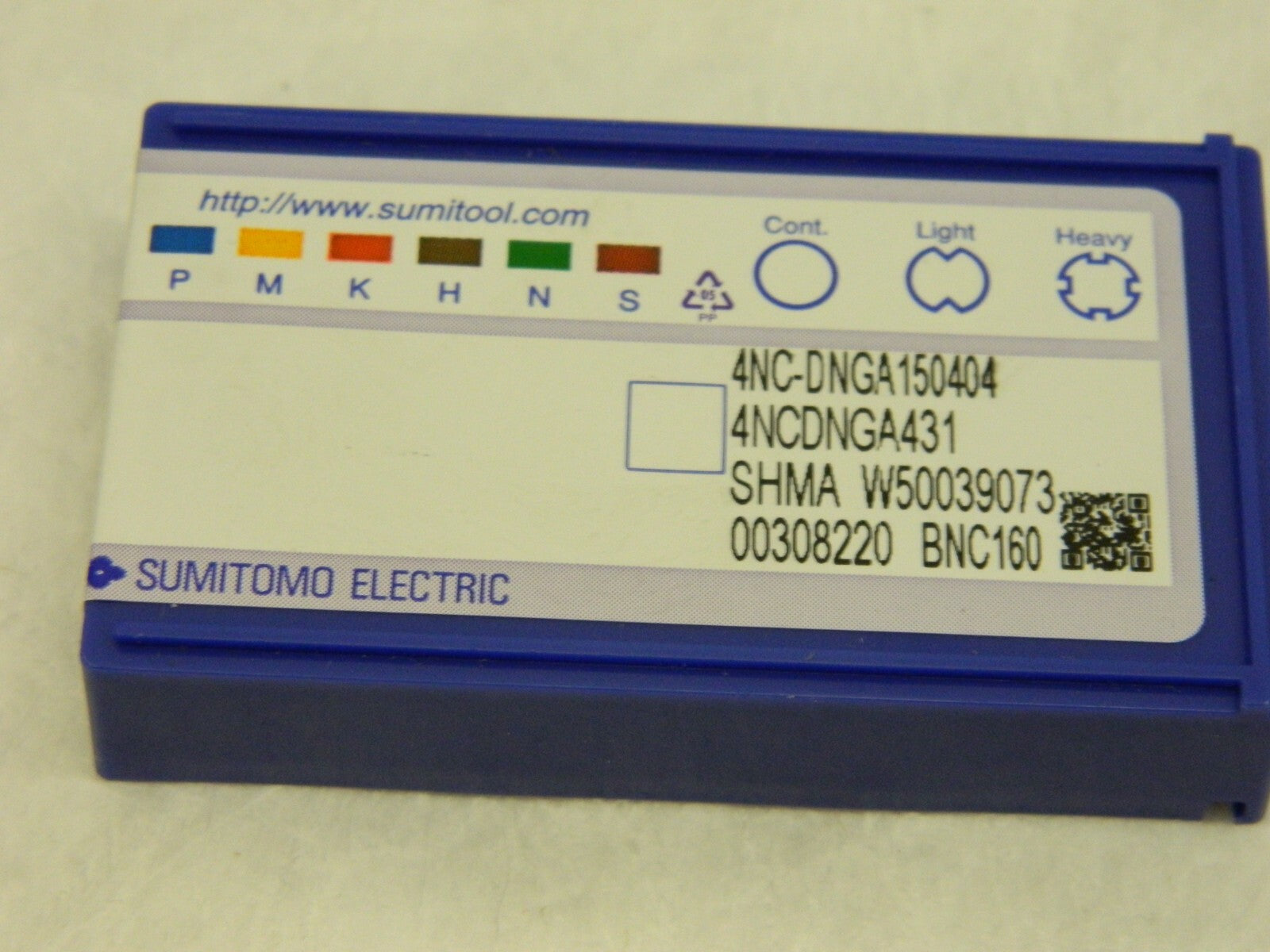

 Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
