Sumitomo
1 Lot of 2 Solid Carbide Screw Machine Drill Bits

MSRP: $60.00

• Drill Bit Size (mm) 0.1405in; 3.57mm; 3.57
• Drill Point Angle 135?
• Drill Bit Material Solid Carbide; Solid Carbide
• Drill Bit Finish/Coating TiAlCr/TiSi
• Coated Coated
• Overall Length 2.126in
• Drill Bit Size Range (Decimal Inch) 0.1000 - 0.1500
• Drill Bit Size Range (mm) 3.50 - 5.00
• Shank Type Cylindrical Shank
• Coolant Through No
• Series MDW-GS
• Drill Length Type Screw Machine Length
• Maximum Drilling Depth 0.6159in; 15.65mm
• Drill Point Length 0.0291in; 0.74mm
• Flute Length (Decimal Inch) 0.8268
• Overall Length (Decimal Inch) 2.1260
• Flute Length (Inch) 0.8268in
• Flute Length x Diameter Ratio 2xD
• Drill Bit Diameter Tolerance h8
• Shank Diameter (Decimal Inch) 0.1562in
• Primary Workpiece Material Cast Iron; Steel
• Primary Workpiece Material Code K; P
• Maximum Drilling Depth (mm) 0.6159in; 15.65mm
• Number of Flutes 2
• Shank Length (Decimal Inch) 1.2992
• Threaded Shank No
• Shank Length (Inch) 1.2992in
• Drill Point Length (mm) 0.0291in; 0.74mm
• Web Configuration Tapered
• Drill Bit Diameter Tolerance (mm) h8

This item is new and in great condition. SOLD AS IS.

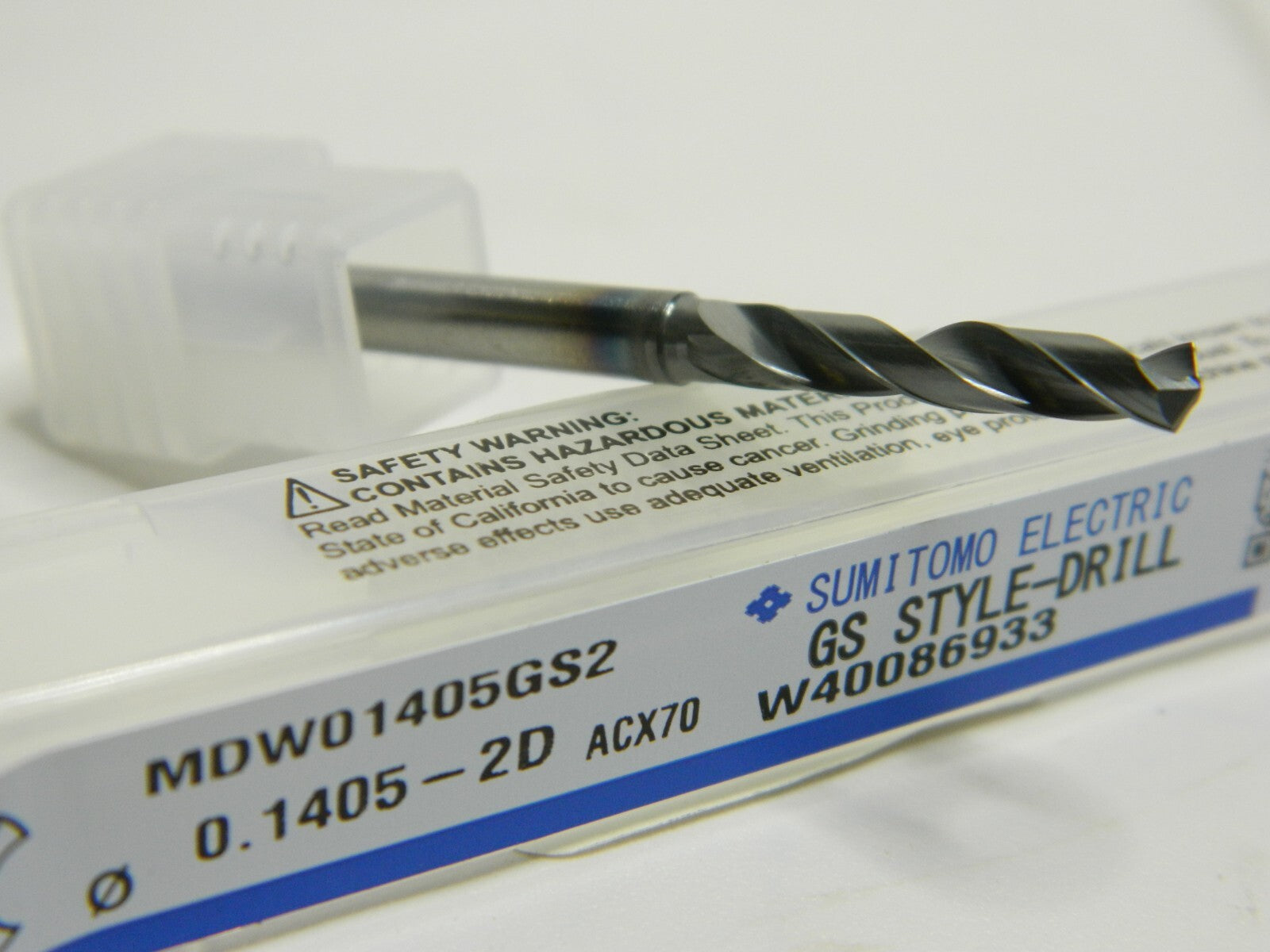

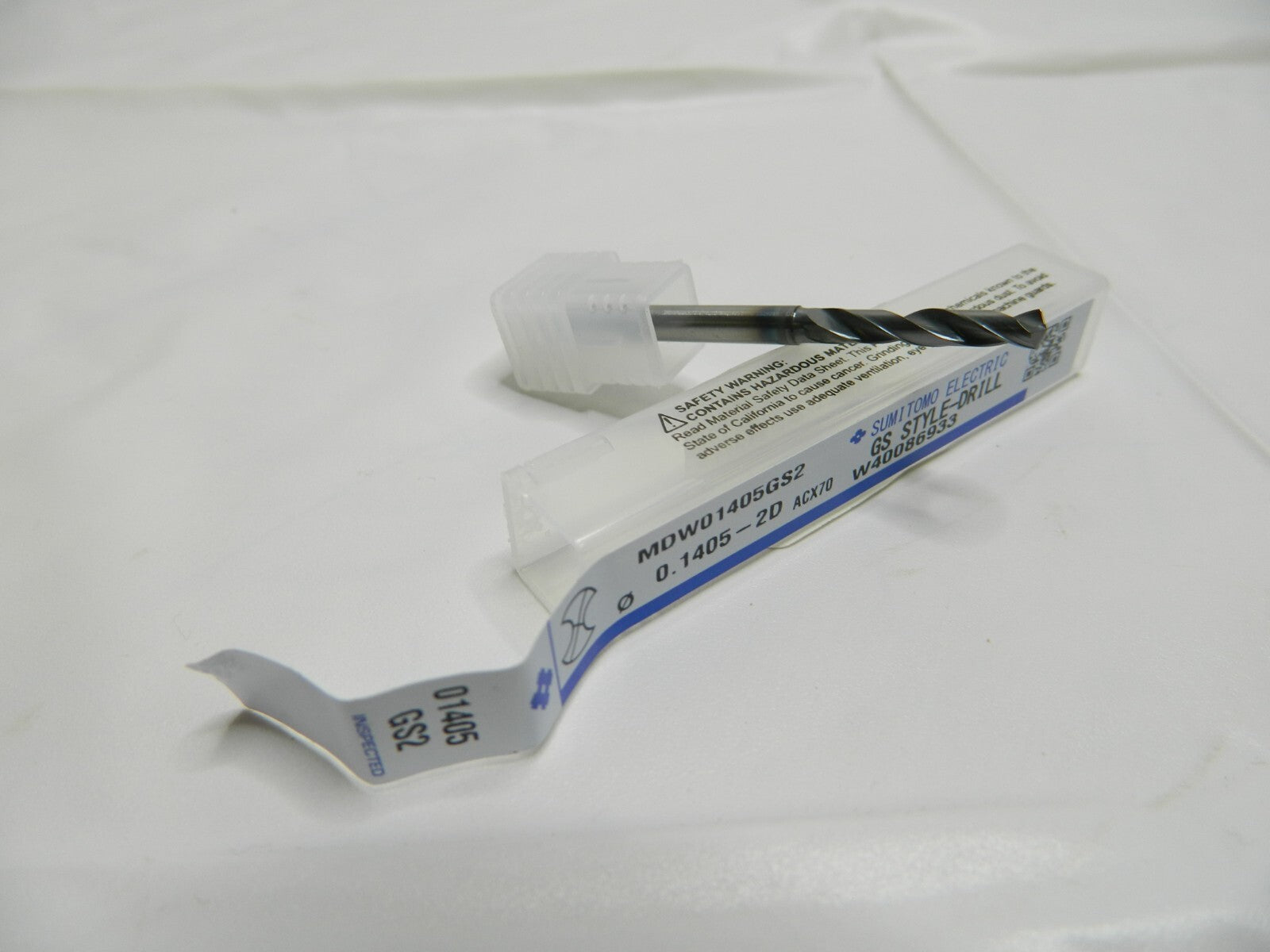

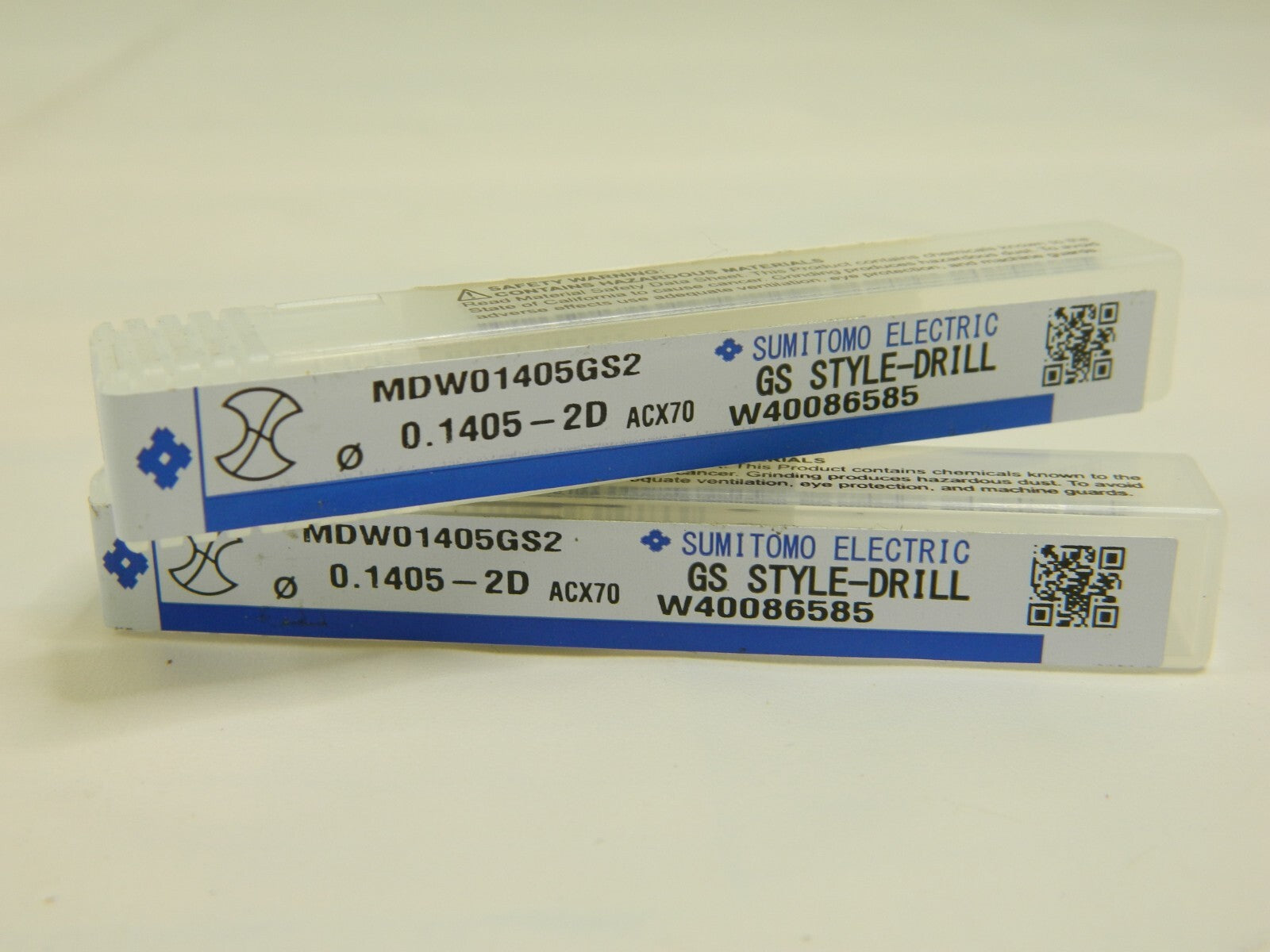

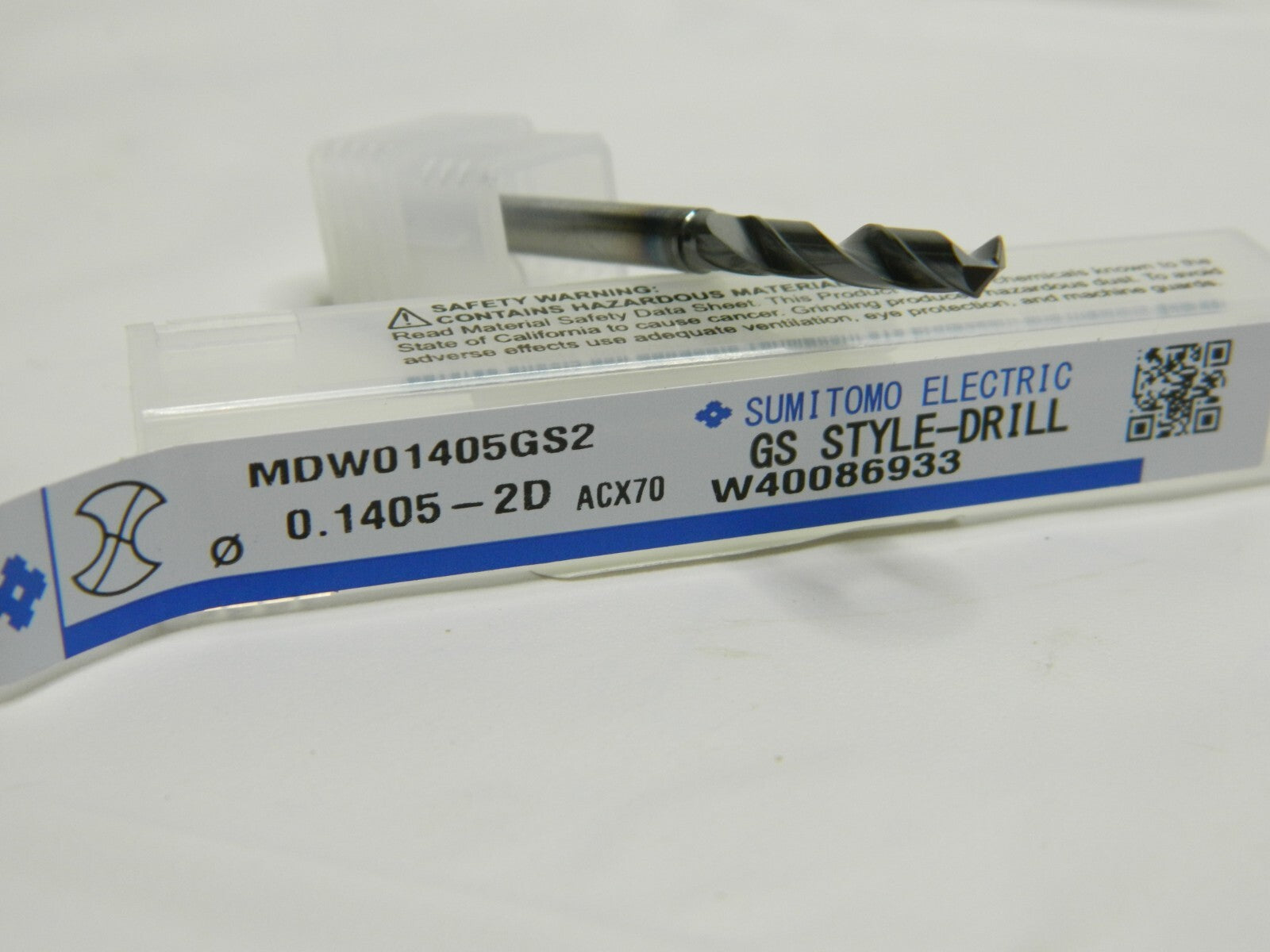

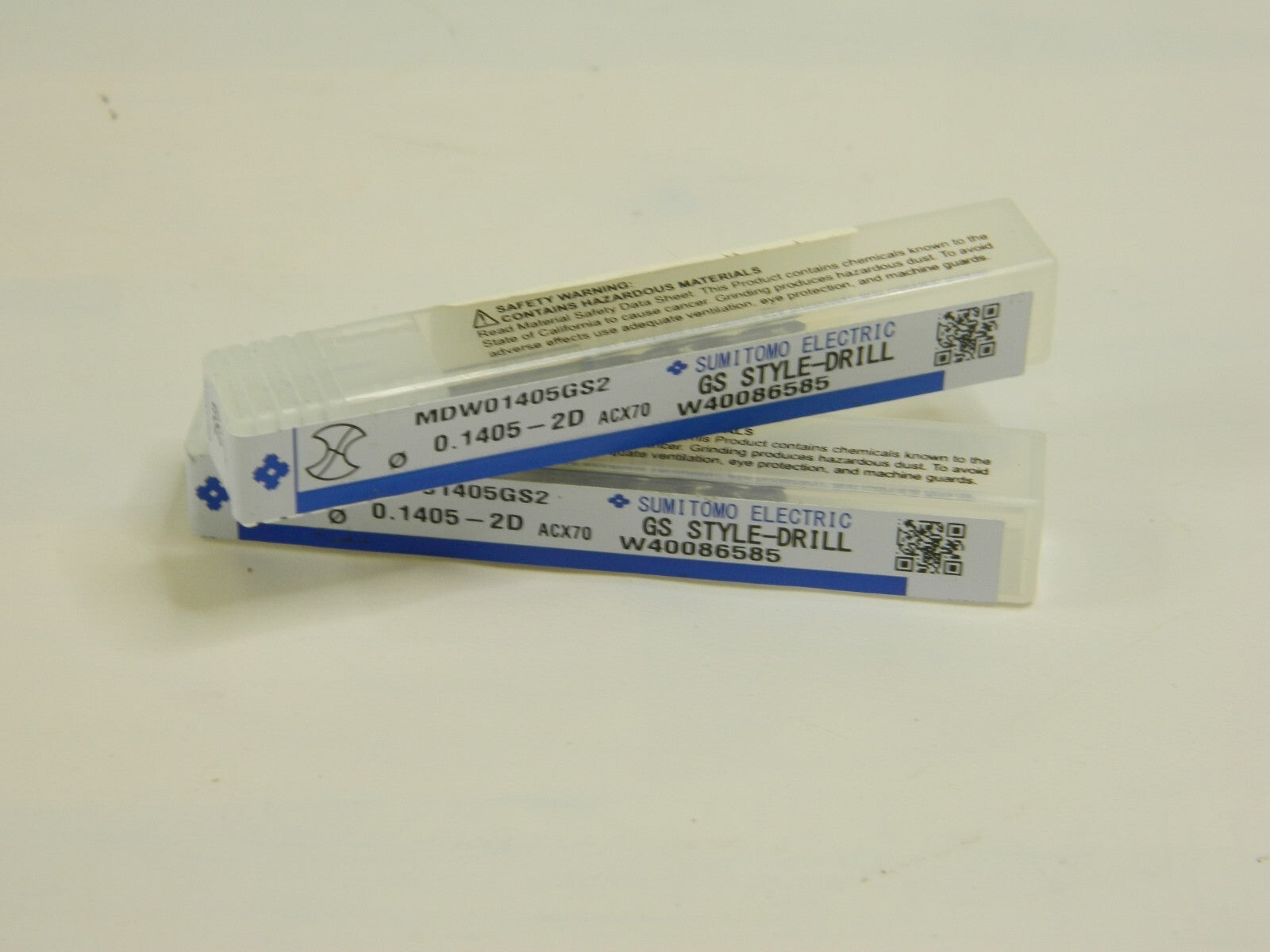

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
