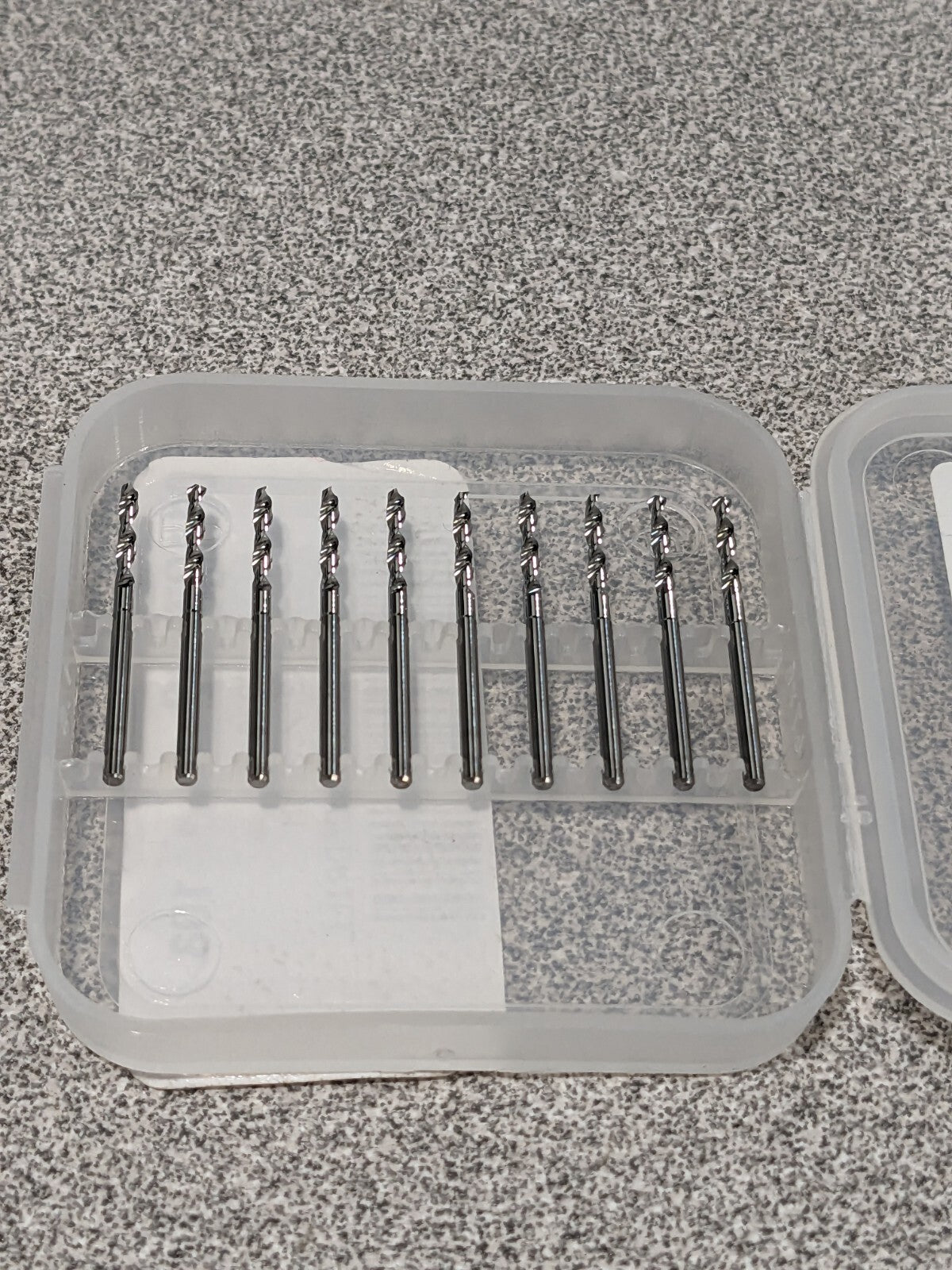

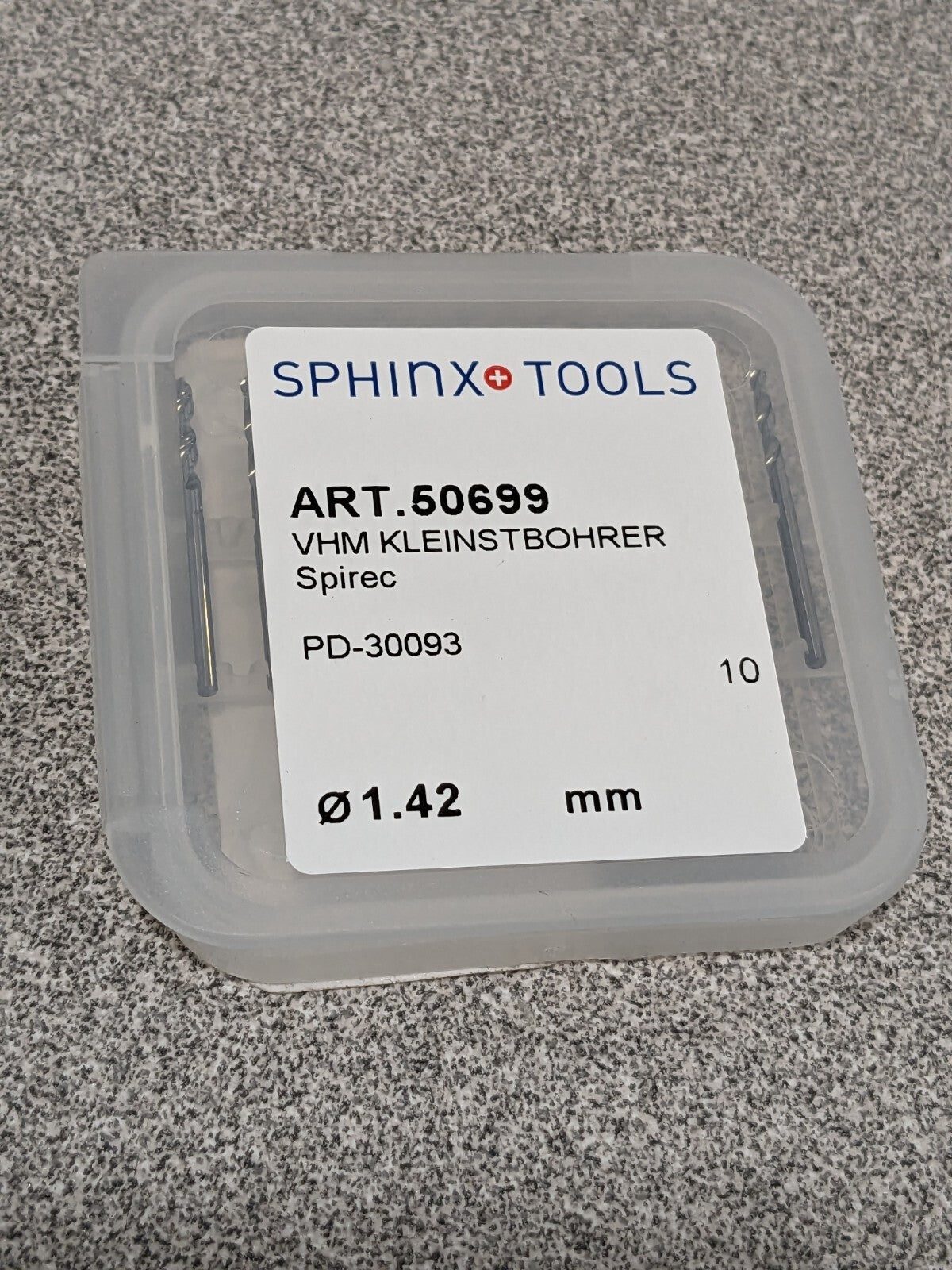

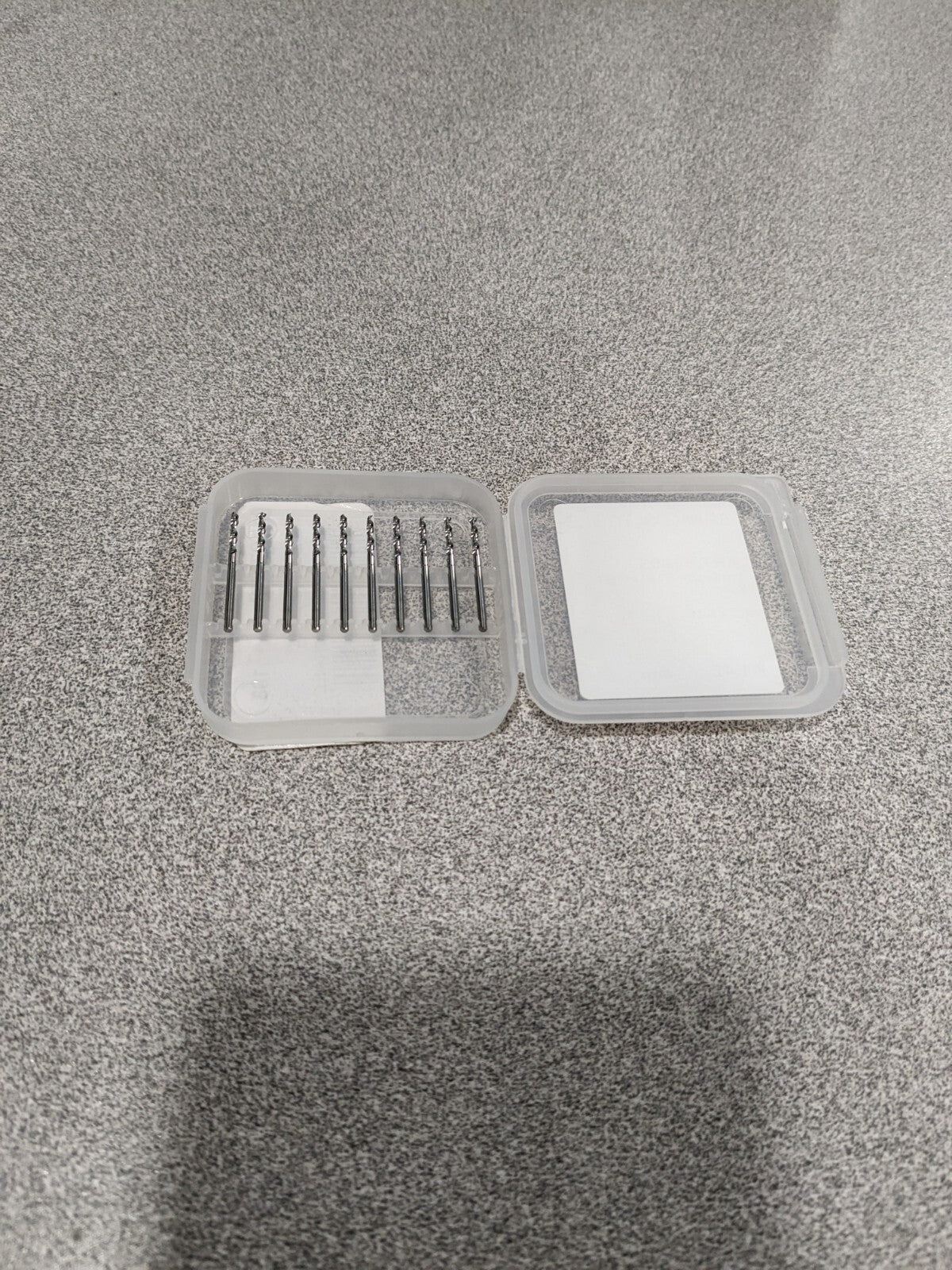

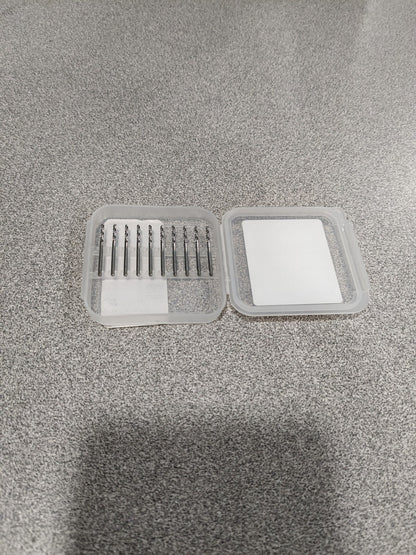

Sphinx Micro Drill Bit: 0.0142″ Dia, 118 ° Point, Solid Carbide Qty 1040.50699.0

Sphinx
1 Lot of 10 Micro Drill Bits

MSRP: $100.00

• Drill Bit Size (Decimal Inch) 0.0142
• Tool Material Solid Carbide
• Flute Length (Decimal Inch) 0.0950
• Coating/Finish Bright/Uncoated
• Coolant Through No
• Drill Point Angle 118
• Cutting Direction Right Hand
• Maximum Drilling Depth (mm) 2.40
• Series 50 699
• Overall Length (Decimal Inch) 0.984
• Flute Type Spiral
• Shank Type Straight-Cylindrical
• Point Type Four Facet
• Tool Application Through Hole Drilling; Blind Hole
• Web Thinning Web-Thinned
• Web Configuration Tapered
• Drill Bit Diameter Tolerance +0.000 to -0.004 mm
• Primary Workpiece Material Cast Iron; Steel
• Primary Workpiece Material Code P; K
• Secondary Workpiece Material Non-Ferrous Metal; Stainless Steel
• Secondary Workpiece Material Code M; N
• Standards DIN 1899A
• Shank Diameter (mm) 1.00
• Flute By Diameter Ratio 6xD
• Material Grade K20/30
• Spiral Type Regular
• UNSPSC Code 23241600

These items are new and in good condition. SOLD AS IS.

Please review photos, comes as shown.
