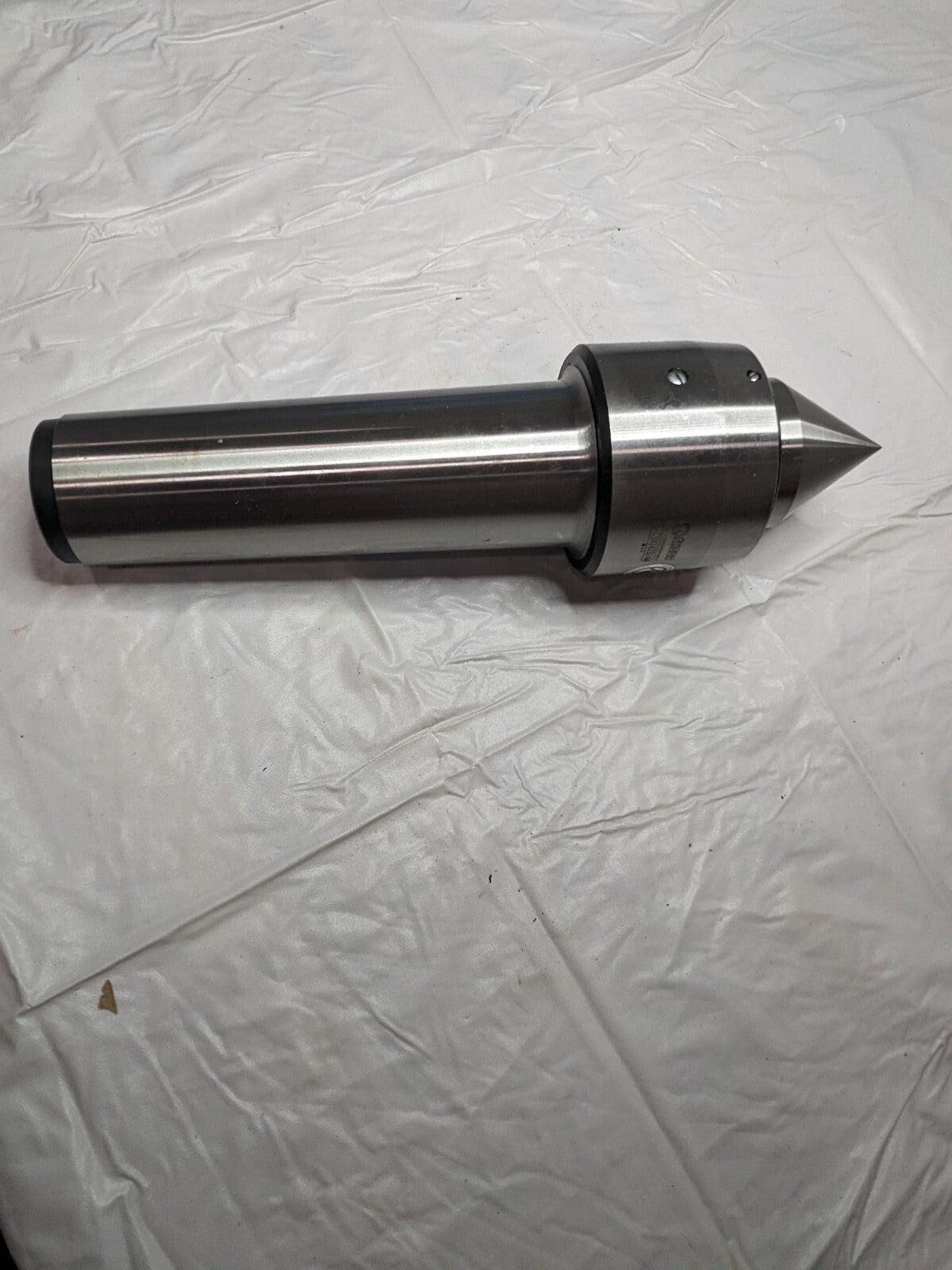

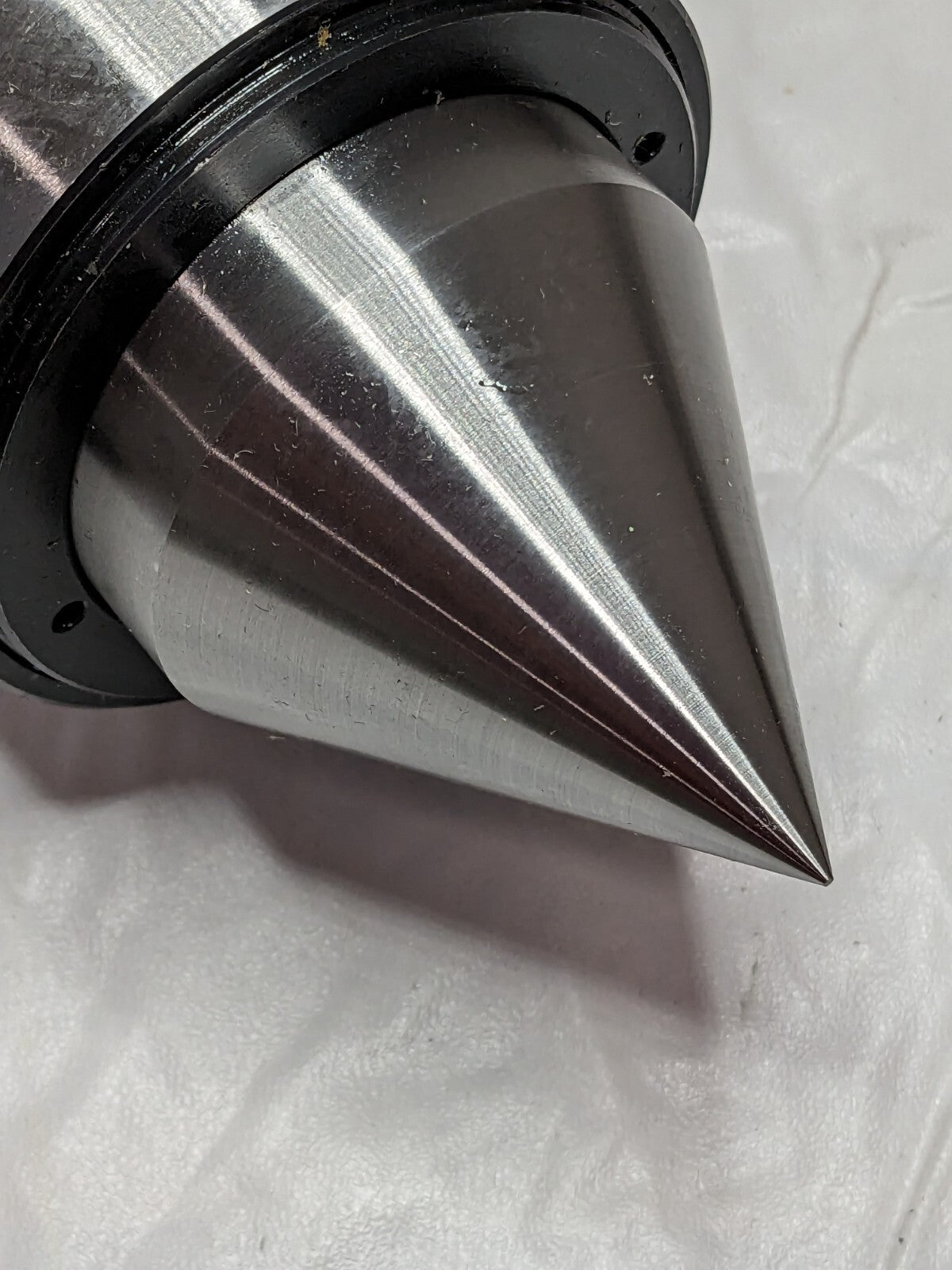

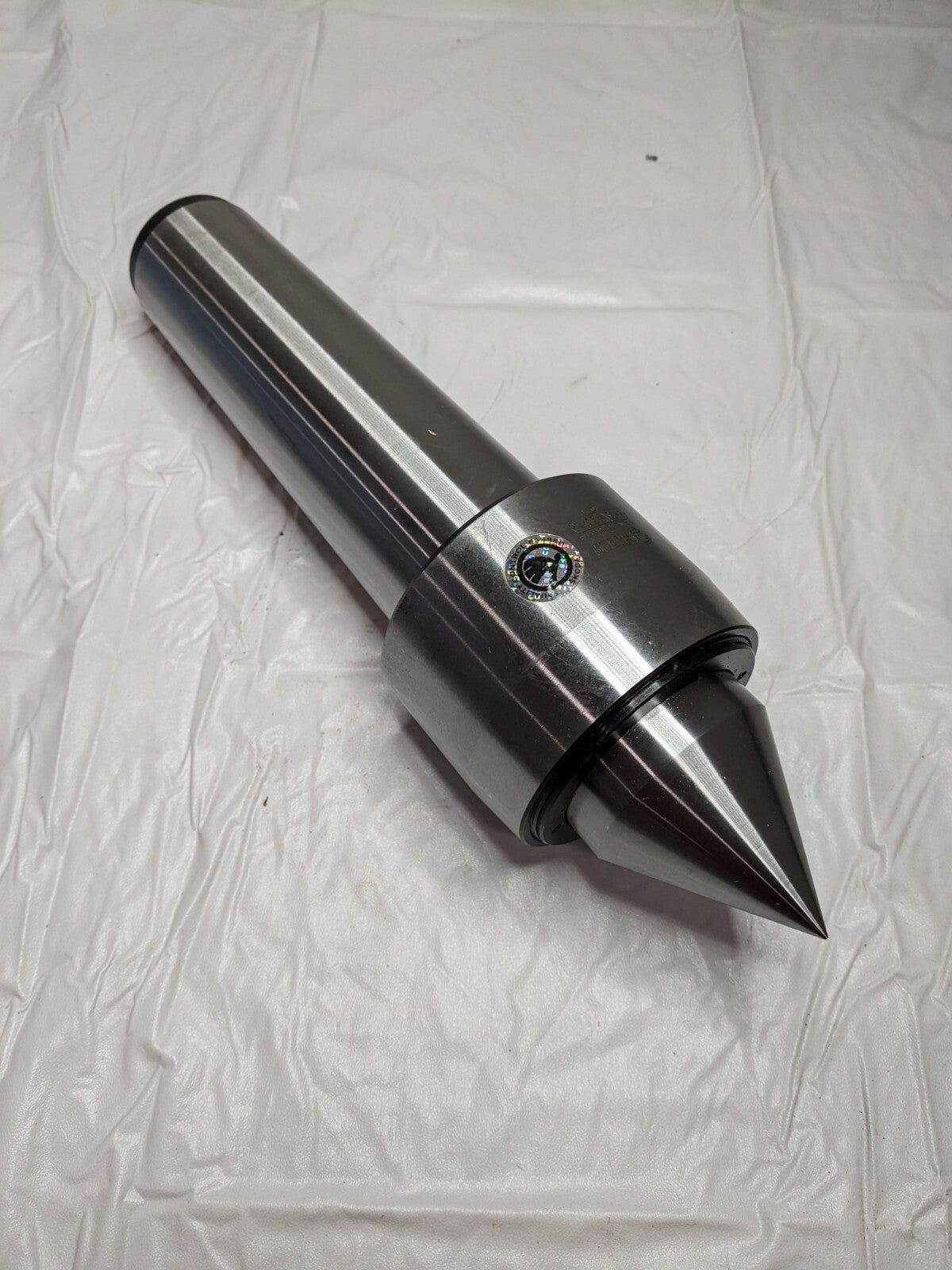

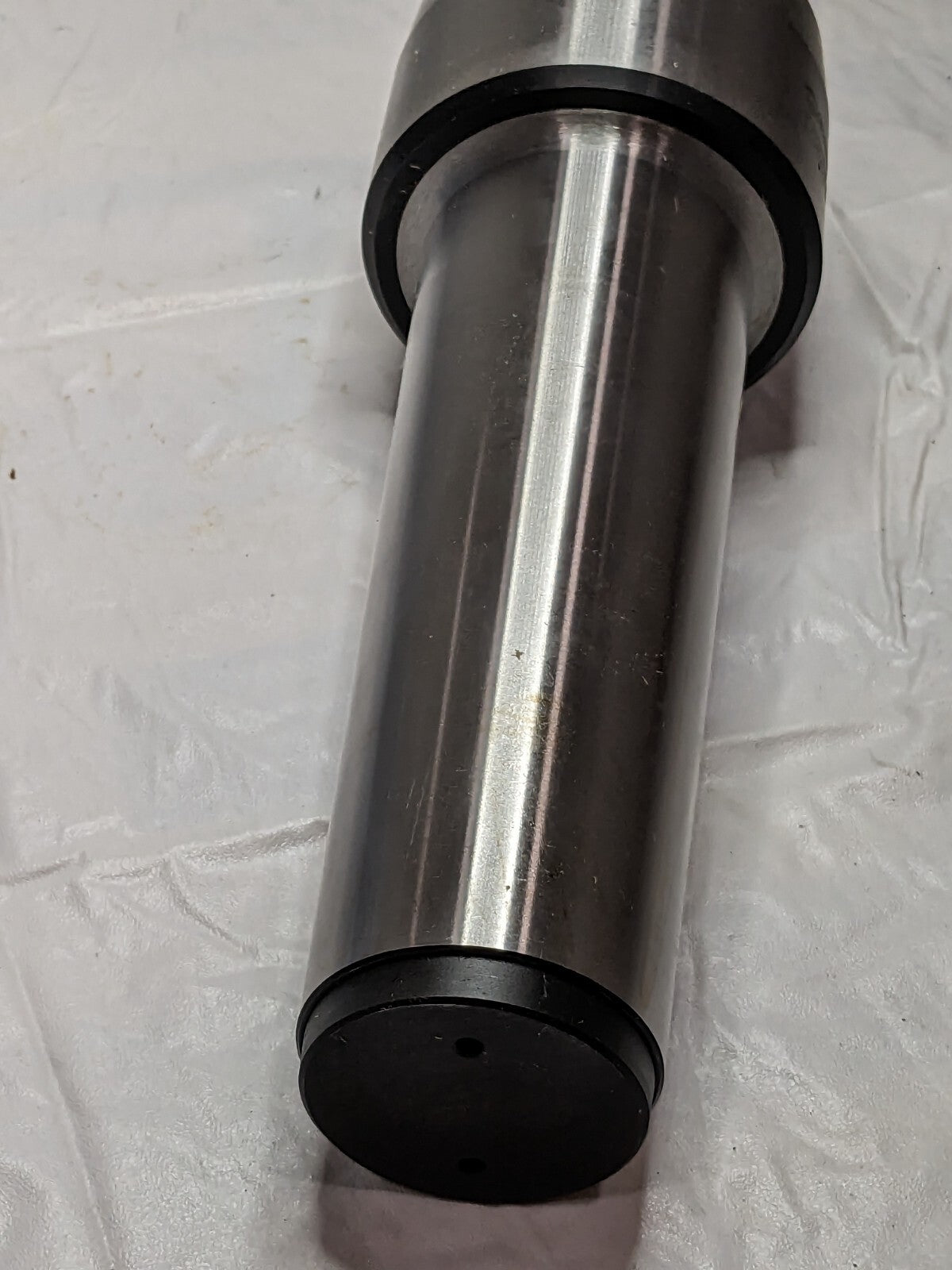

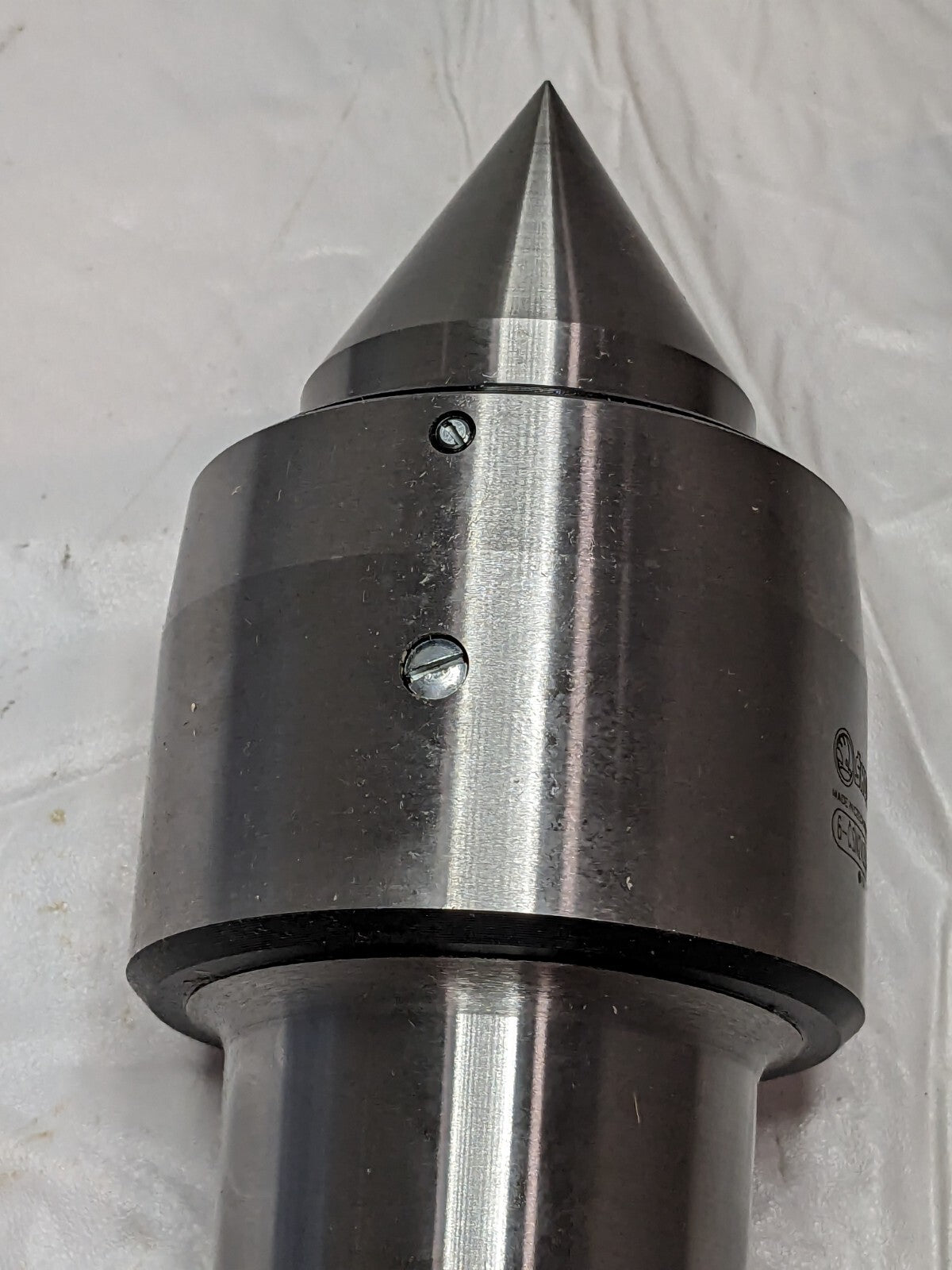

SKODA Live Center: Morse Taper Shank, 3″ Head Length 310130

• Shank Type Morse Taper
• Bearing Type Roller
• Material Steel
• Taper Size MT6
• Maximum Workpiece Weight (Lb.) 7500.00
• Point Style Standard
• Point Diameter (Decimal Inch) 3.5433
• Point Diameter (mm) 90.00
• Tip Diameter (mm) 60.00
• Tip Diameter (Decimal Inch) 2.3620
• Point Length (Decimal Inch) 2.4409
• Point Length (mm) 62.00
• Accuracy (Decimal Inch) 0.000200
• Accuracy 2.0E-4 in; 0.005 mm
• Tip Length (Decimal Inch) 2.4409
• Load Capacity 8800.00 lb
• Head Diameter (Decimal Inch) 3.5433
• Head Diameter (mm) 90.00
• Shank Diameter (Inch) 2-3/8
• Head Length (Inch) 3
• Head Length (Decimal Inch) 3.0000
• Taper Length (Decimal Inch) 7.0000
• Taper Length (Fractional Inch) 7
• Shank Length (Decimal Inch) 7.0000
• Shank Length (Inch) 7
• Overall Length (Decimal Inch) 12.4409
• Overall Length (mm) 316.00
• Included Angle 60
• Maximum RPM 2500
• Carbide-tipped Point No
• Features Dirt or Swarf; Two Specially Designed Adjustable Needle-Roller Bearings; Complete Protection of Bearings Form The Ingress of Coolant; Prevents Loss Of Lubricant; Rotating Spindle; Heavy-Duty Ball Thrust Bearing
• Gage Line Diameter (Decimal Inch) 2.4940
• Gage Line Diameter (mm) 63.24
• UNSPSC Code 23153103
