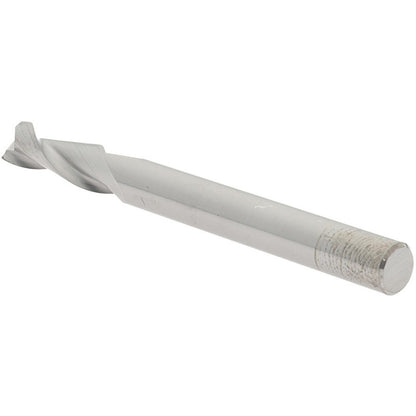

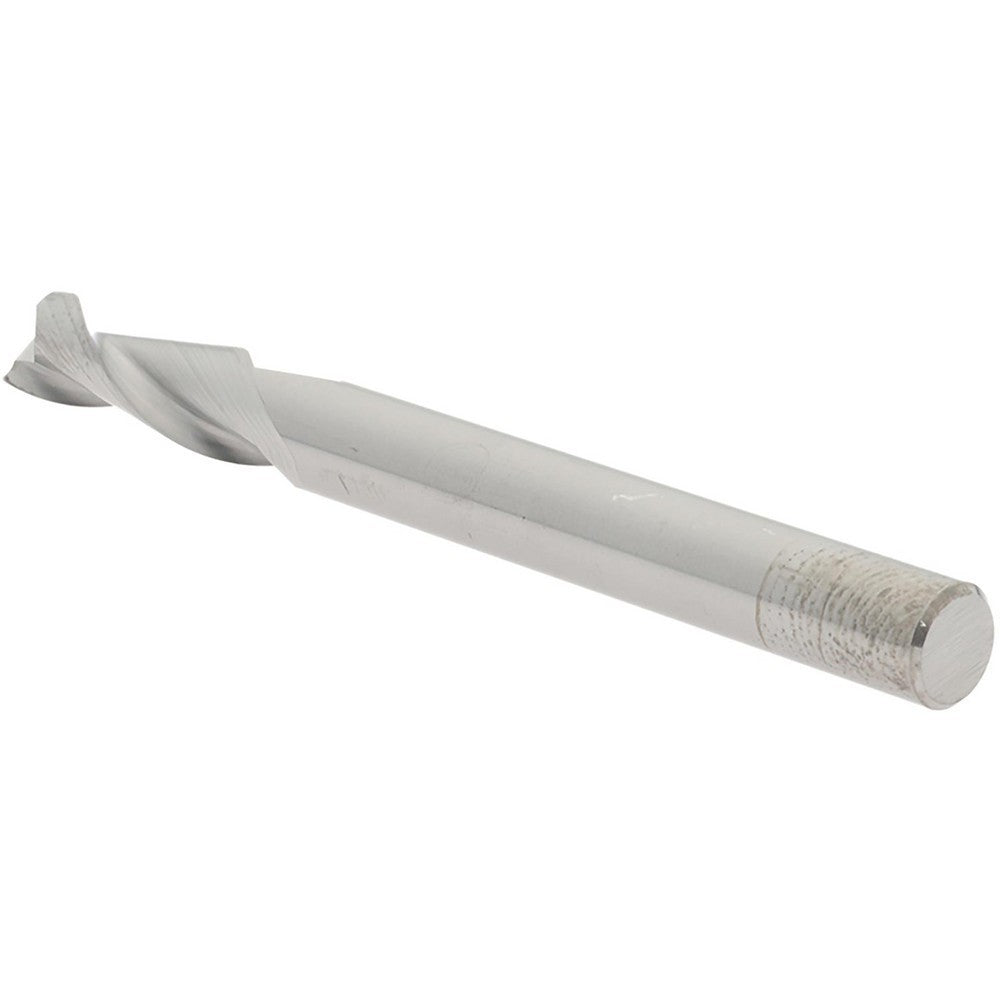

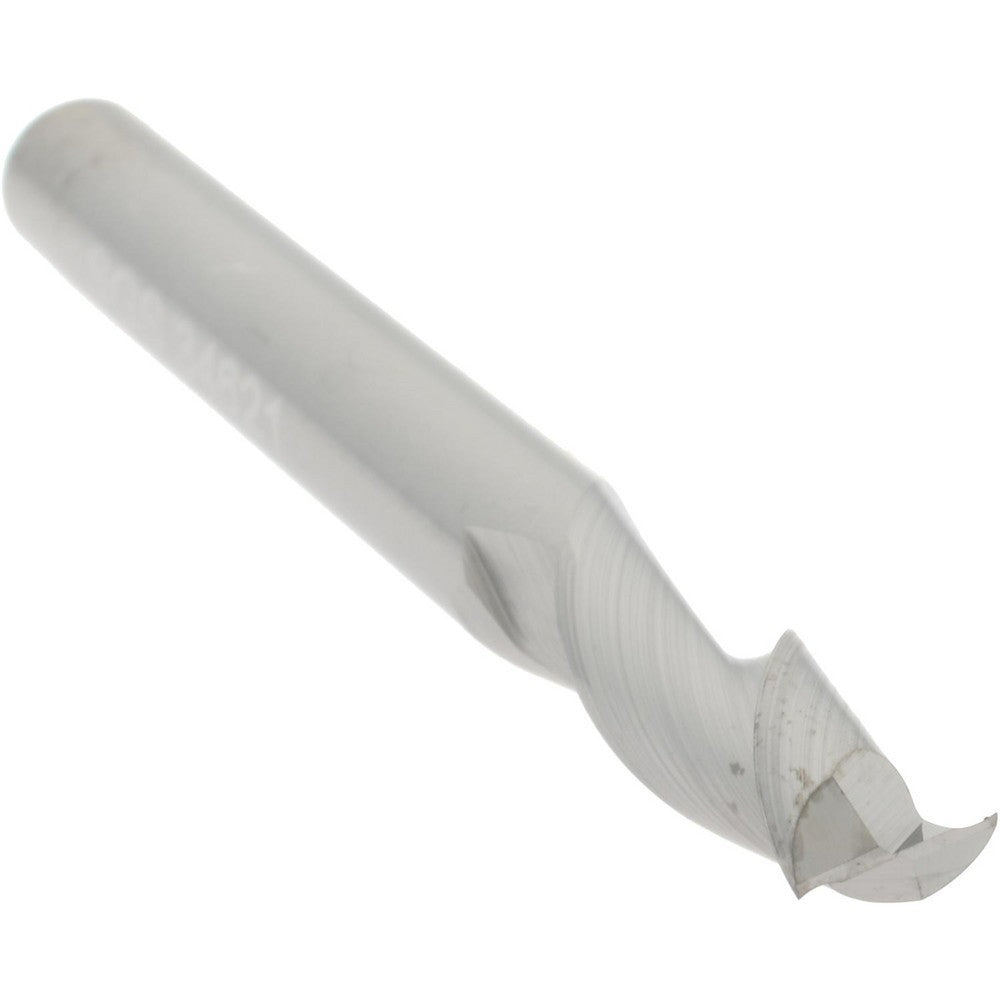

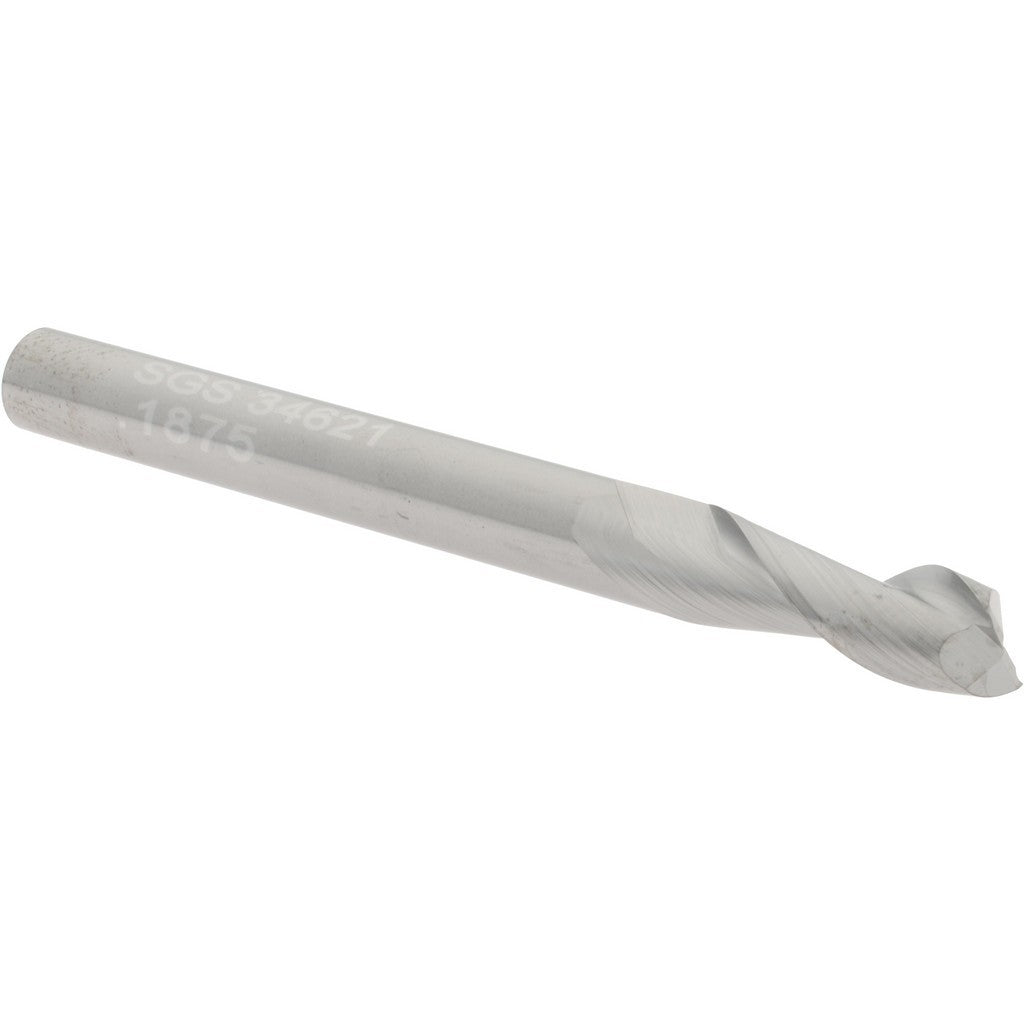

SGS Square End Mill 3/16" Dia 9/16" LOC 34621

SGS
Square End Mill

MSRP: $40.00

• Mill Diameter (Decimal Inch): 0.1875
• Mill Diameter (Inch): 3/16
• Number Of Flutes: 2
• End Mill Material: Solid Carbide
• Length of Cut (Decimal Inch): 0.5625
• Length of Cut (Inch): 9/16
• Shank Diameter (Decimal Inch): 0.1875
• Shank Diameter (Inch): 3/16
• Overall Length (Decimal Inch): 2.0000
• Overall Length (Inch): 2
• Single Or Double End: Single
• Coating/Finish Family: Bright/Uncoated
• Centercutting: Yes
• Cutting Direction: Right Hand
• Flute Direction: Right Hand
• Extended Reach: No
• Coolant Through: No
• Helix Angle: 35
• Primary Workpiece Material: Aluminum & Non-Ferrous
• Primary Workpiece Material Code: N
• Coating/Finish: Bright/Uncoated
• Variable Helix: No
• Variable Index: No
• Chipbreaker: No
• Flute Type: Spiral Shank
• Type: Straight-Cylindrical
• Material Grade: Micrograin
• Length Type: Regular
• Length Of Cut Range (Decimal Inch): 0.5000 - 0.6000
• Mill Diameter Tolerance: -0.0001/-0.0004 in
• Shank Diameter Tolerance: +0.00000/-0.00032 in
• Series: 47
• System Of Measurement: Fractional Inch
• UNSPSC Code: 27112803

Please review photos, comes as shown.
