SGS Solid Carbide Jobber Length Drill Bit: 0.104″ Dia, 145 ° 52309

SGS
Solid Carbide Jobber Drill

MSRP: $70.00

• Drill Bit Size (Decimal Inch) 0.1040
• Drill Bit Size (Wire) #37
• Drill Point Angle (Degrees) 145
• Drill Bit Material Solid Carbide
• Drill Bit Finish/Coating AlTiN
• Overall Length (Decimal Inch) 2.0000
• Overall Length (Inch) 2
• Cutting Direction Right Hand
• Flute Type Spiral
• Shank Type Straight-Cylindrical
• Flute Length (Inch) 45/64
• Flute Length (Decimal Inch) 0.7030
• Series Hi-PerCarb 135
• Spiral Type Regular
• Tool Application Centering
• Flute Length x Diamter Ratio 5xD
• Flute By Diameter Ratio 5xD
• Shank Diameter (Inch) 1/8
• Shank Length (Decimal Inch) 1.2500
• Drill Bit Diameter Tolerance +0.00008 to +0.00047 in
• Number of Flutes 2
• Tool Performance High Performance
• Coolant Through No
• Drill Bit Size Range (Decimal Inch) 0.1000 - 0.1500

This item is new and in great condition. SOLD AS IS.

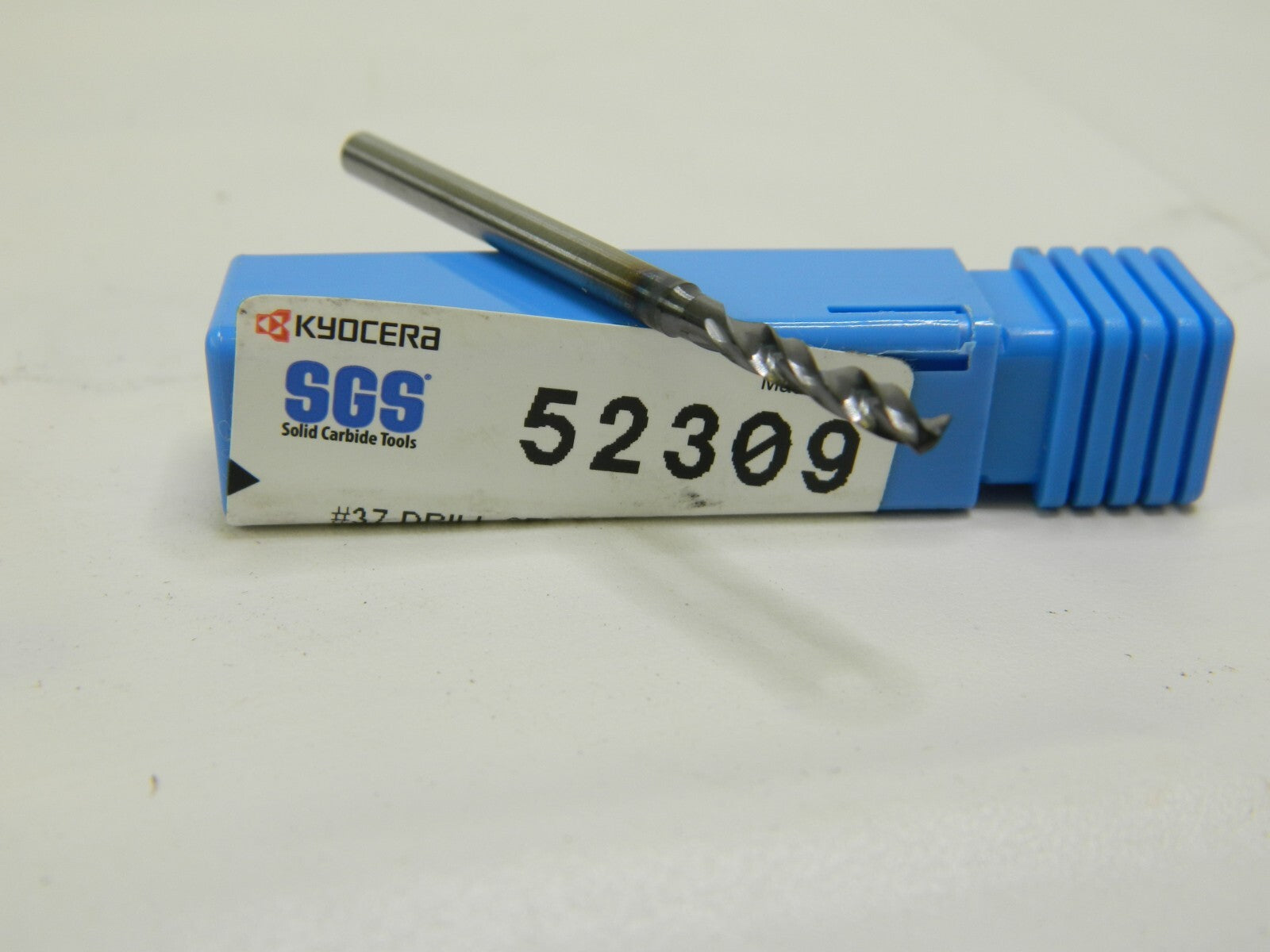

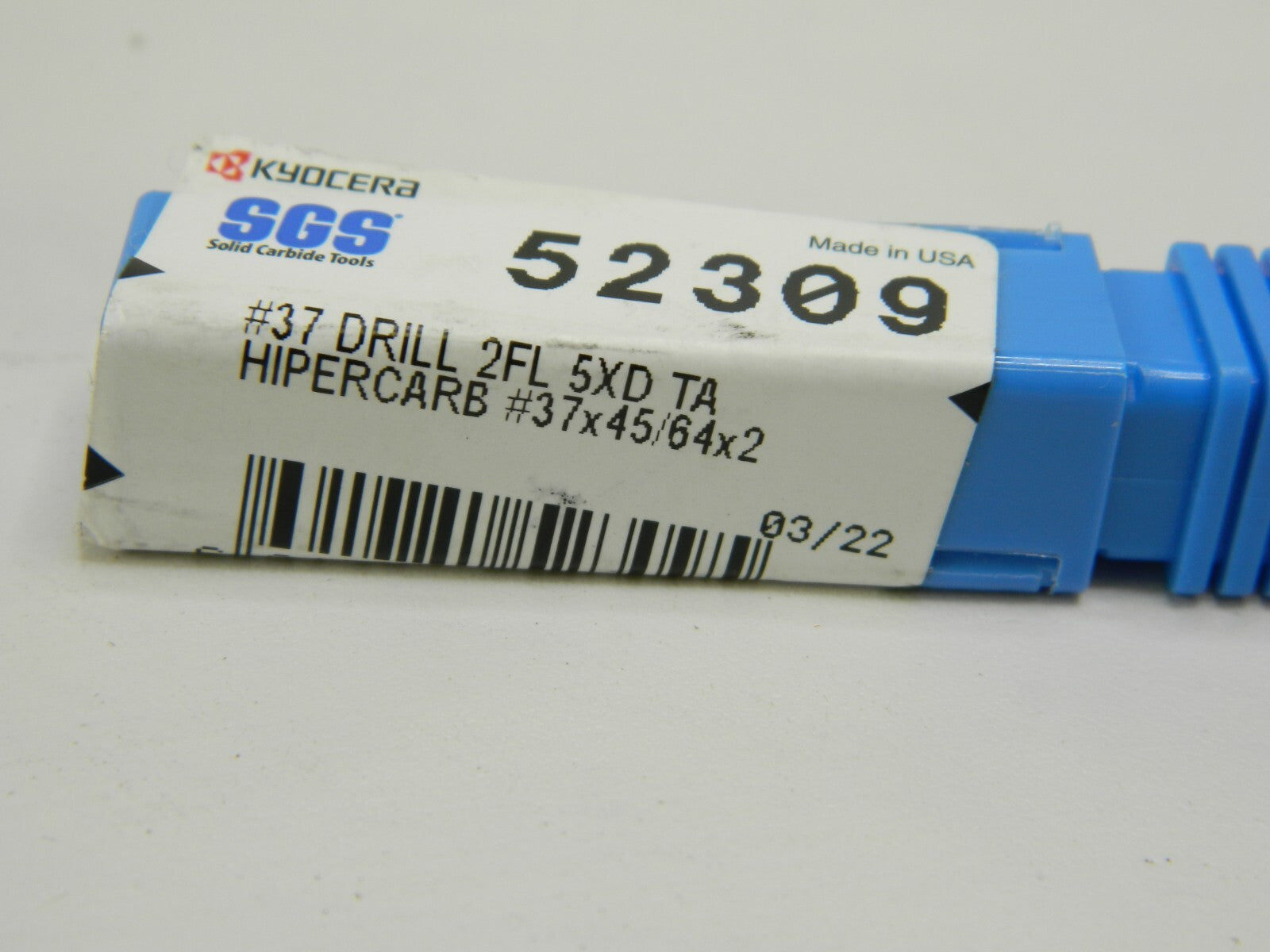

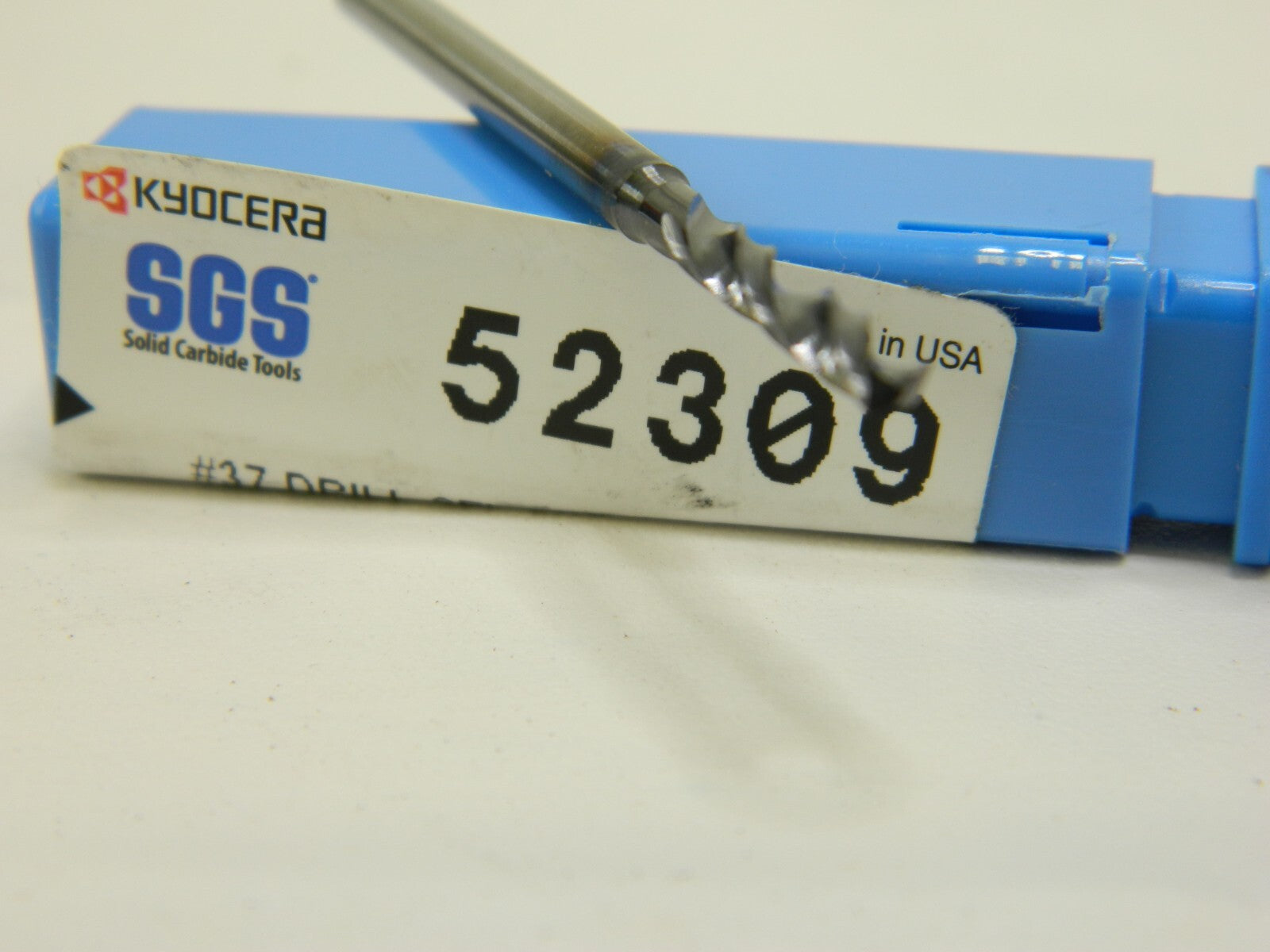

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
