SGS Screw Machine Length Drill Bit: 37/64″ Dia, 135 ° Point 66438

SGS

 Screw Machine Length Drill Bit: 37/64″ Dia, 135 ° Point 66438
MSRP: $150

•

• Drill Bit Size (Inch) 37/64
• Drill Bit Size (mm) 6.80
• Drill Bit Size (Decimal Inch) 0.2677
• Tool Material Solid Carbide
• Cutting Direction Right Hand
• Coating/Finish Ti-NAMITE-X
• Number Of Flutes 2
• Spiral Type Regular
• Flute Type Spiral
• Point Type Standard
• Drill Point Angle 135
• Coolant Through Yes
• Shank Type Straight-Cylindrical
• Shank Diameter (Decimal Inch) 0.6200
• Overall Length (mm) 79.00
• Overall Length (Decimal Inch) 3.1102
• Shank Diameter (mm) 8.00
• Series 142P
• Web Thinning Web-Thinned
• Number of Margins 4
• Drill Length Type Screw Machine
• Maximum Drilling Depth (Decimal Inch) 1.3386
• Shank Length (Decimal Inch) 1.4173
• Shank Length (mm) 36.00
• Drill Point Length (mm) 1.41
• Drill Point Length (Decimal Inch) 0.0554
• Flute By Diameter Ratio 3xD
• Tool Performance High Performance
• Drill Bit Diameter Tolerance +0.007 to +0.025 mm; +0.00028 to +0.00098 in
• Flute Length (Decimal Inch) 1.3386
• Flute Length (Inch) 2-35/64
• Flute Length (mm) 34.00
• Drill Bit Grade High Performance
• Drill Bit Size Range (Decimal Inch) 0.2500 to 0.3000
• Drill Bit Size Range (mm) 6.50 - 8.00
• Specification Number DIN 6537
• Specification Designation DIN
• Material Grade Micrograin
• Product Service Code 3455

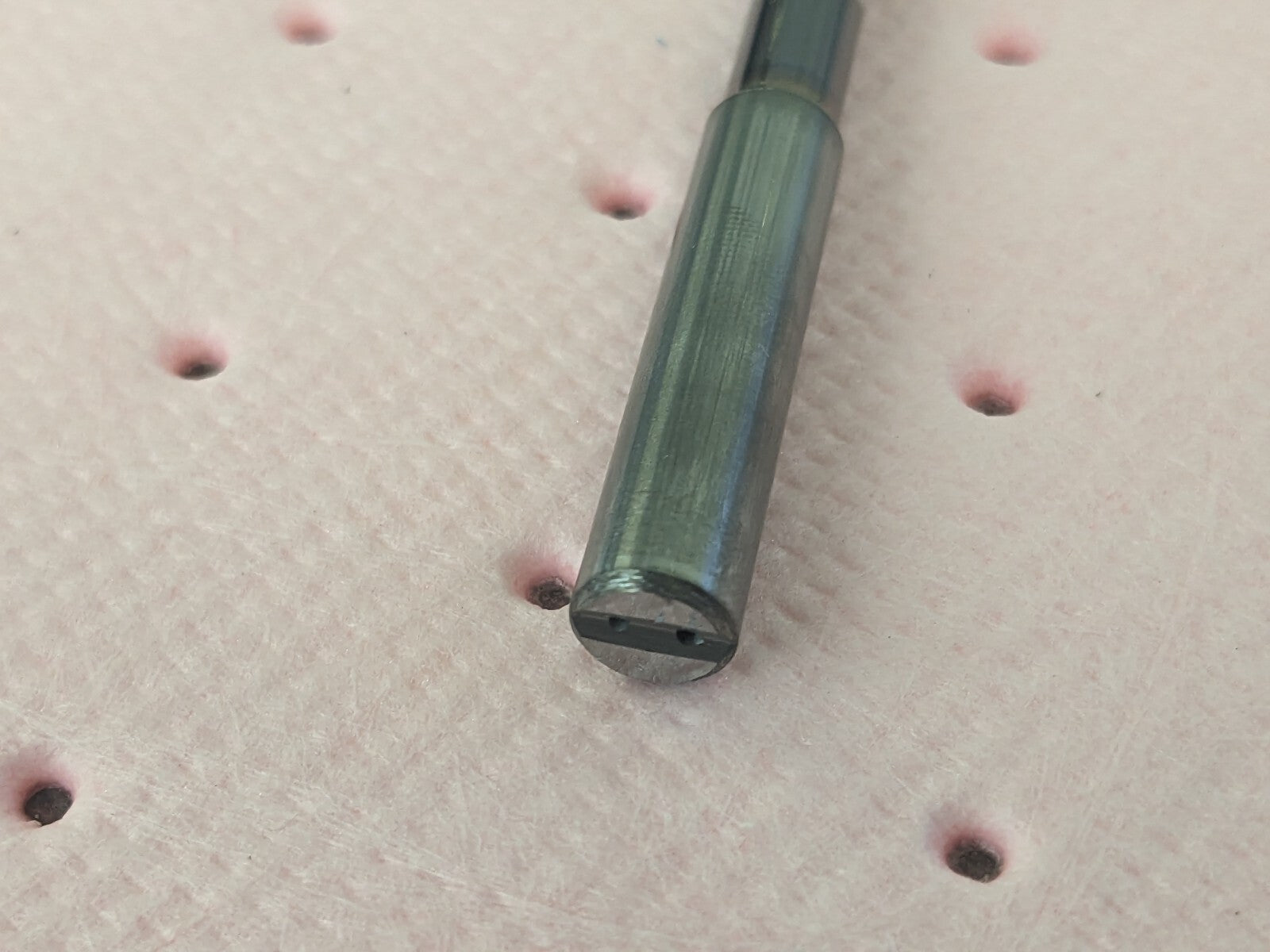

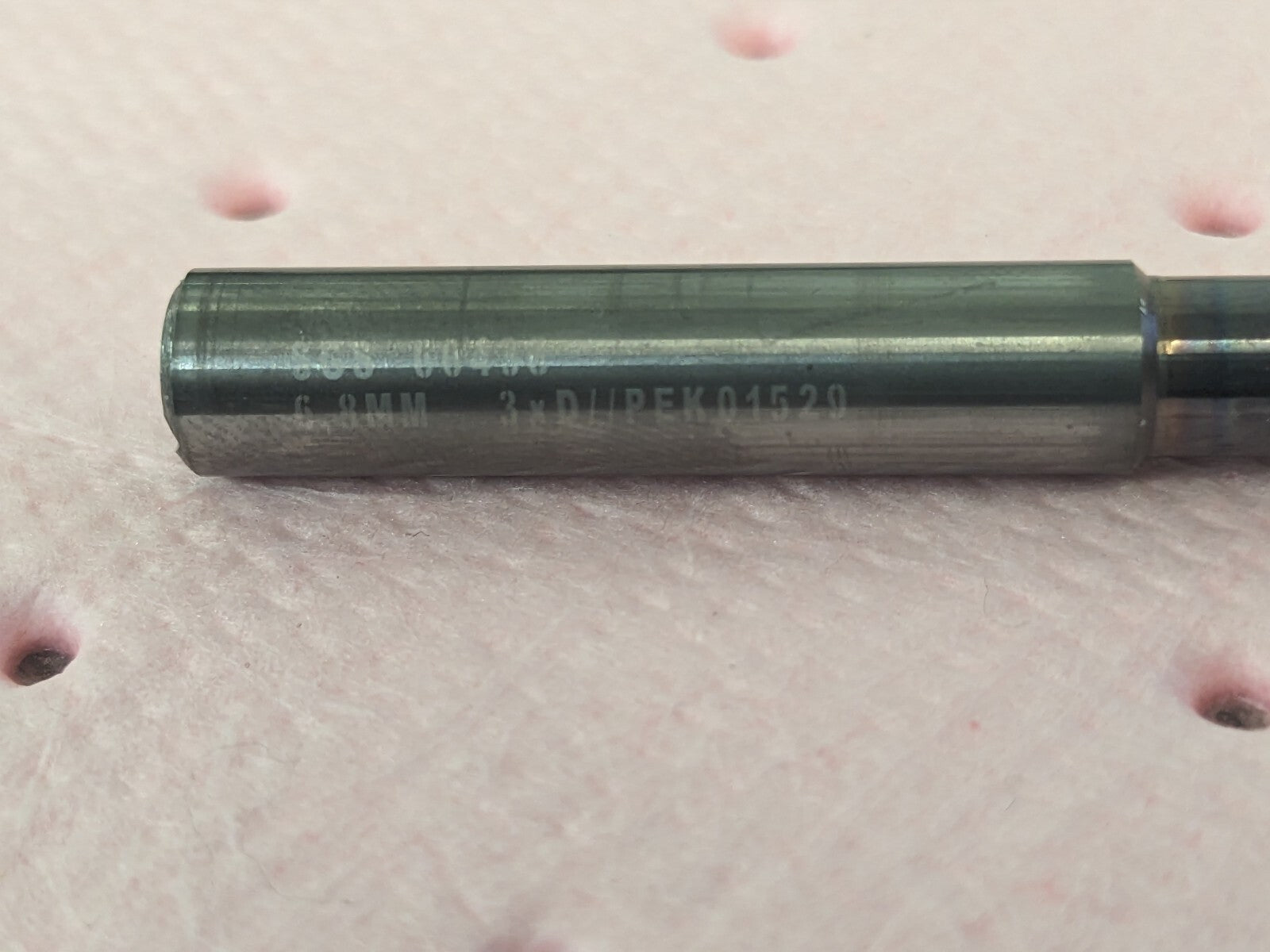

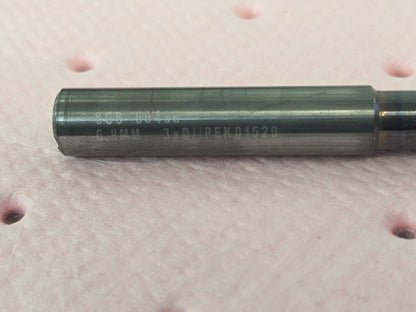

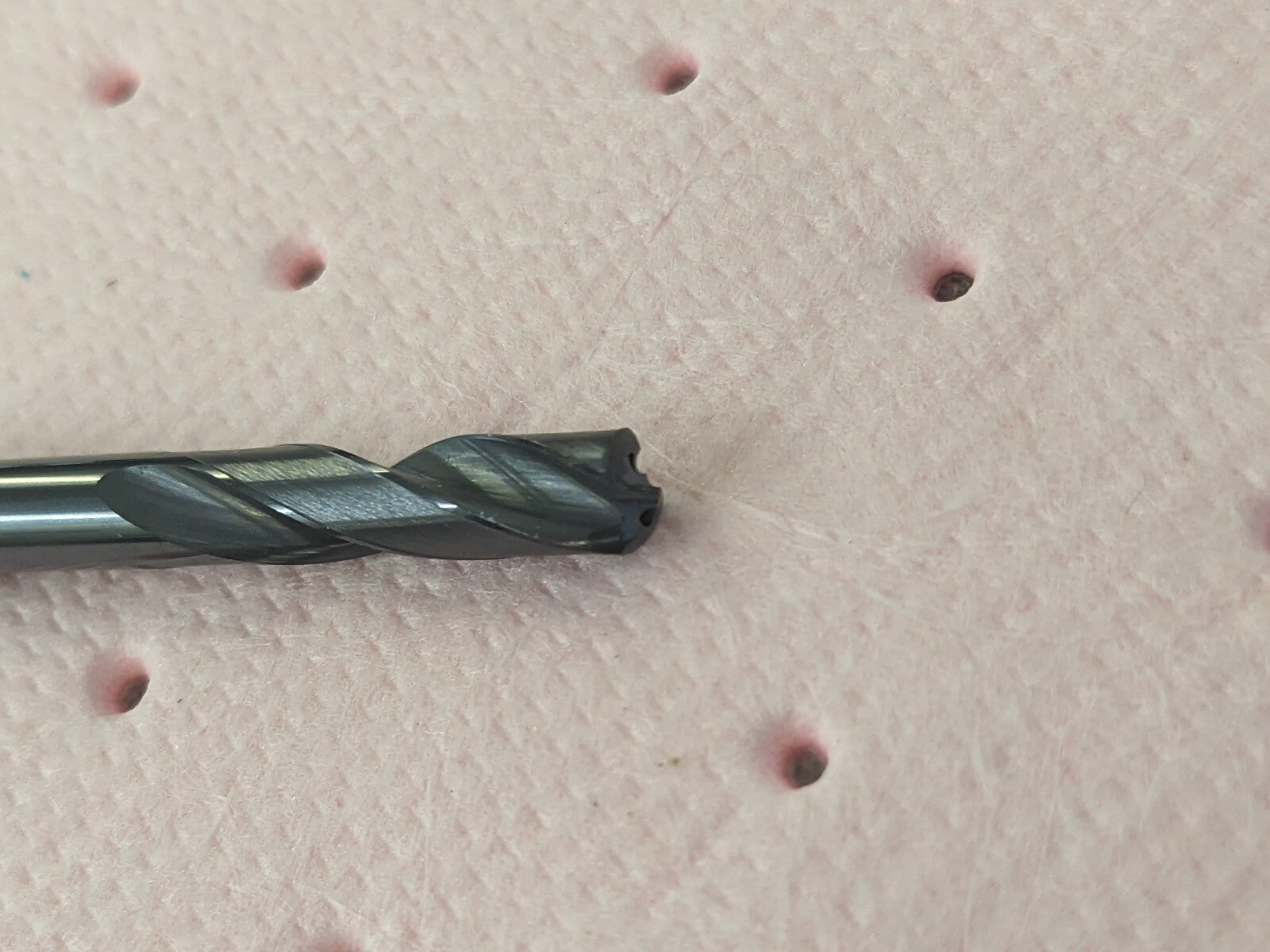

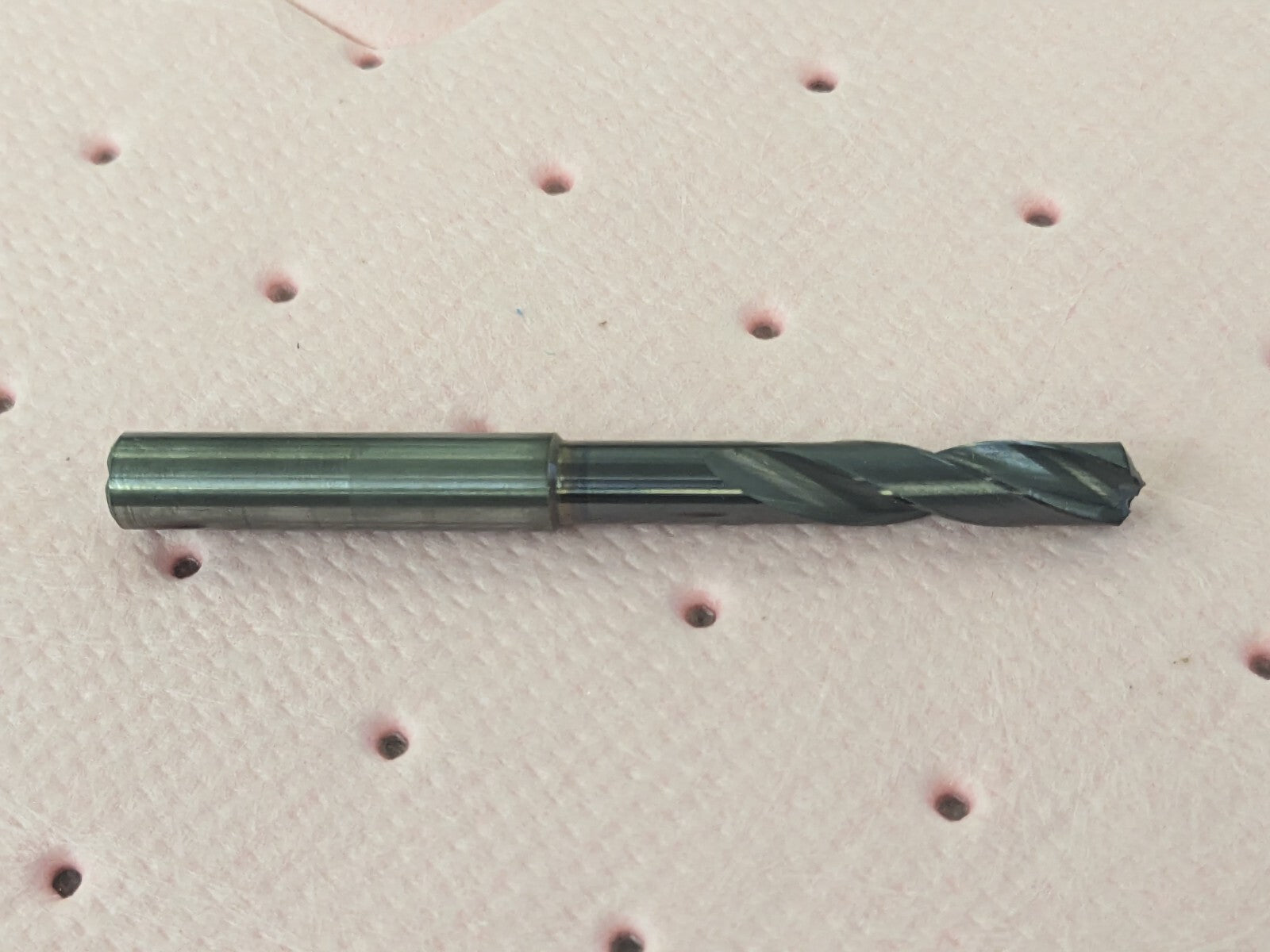

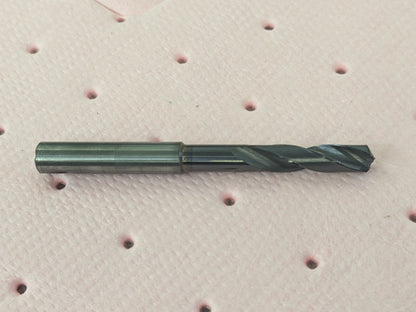

 Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
