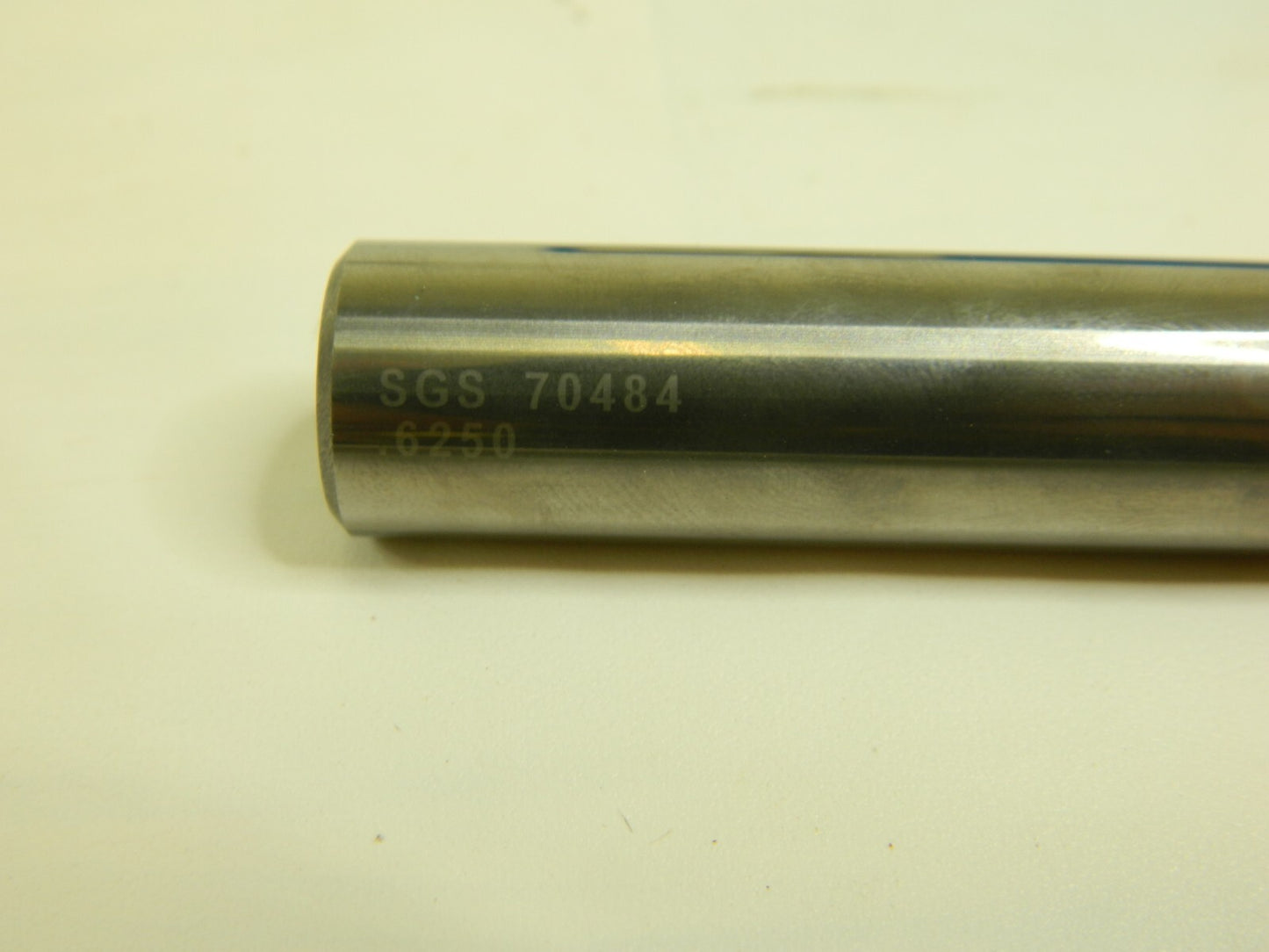

SGS SC Sq End Mill 5/8" Dia, 2-1/4" LOC 5" OAL, 4 FL 5/8'' Shank Dia 70484

SGS
Solid Carbide Square End Mill

MSRP: $120.00

• Mill Diameter (Inch) 5/8
• Mill Diameter (Decimal Inch) 0.6250
• Number Of Flutes 4
• Length of Cut (Inch) 2-1/4
• End Mill Material Solid Carbide
• End Type Single
• Centercutting Yes
• Cutting Direction Right Hand
• Shank Diameter (Inch) 5/8
• Finish/Coating AlTiN
• Overall Length (Inch) 5
• Helix Angle 38
• Chipbreaker No
• Variable Helix No
• Variable Index Yes
• Extended Reach No
• Length Of Cut Range (Decimal Inch) 2.0000+
• Shank Type Straight-Cylindrical
• Length of Cut (Decimal Inch) 2.2500
• Material Grade Micrograin
• Shank Diameter (Decimal Inch) 0.6250
• Overall Length (Decimal Inch) 5.0000
• Flute Direction Right Hand
• Flute Type Spiral
• Helix Style Medium
• Shank Diameter Tolerance +0.00000/-0.00043 in
• Length Type Long
• Mill Diameter Tolerance +0.000/-0.002 in
• Series 63

This item is new and in great condition. SOLD AS IS.

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
