SGS
Solid Carbide Screw Machine Length Drill Bit

MSRP: $75.00

• Drill Bit Size (Decimal Inch) 0.2090
• Drill Bit Size (Wire) #4
• Tool Material Solid Carbide
• Cutting Direction Right Hand
• Coating/Finish Coated
• Drill Point Angle 145
• Spiral Type Regular
• Flute Type Spiral
• Point Type Standard
• Coolant Through No
• Shank Type Straight-Cylindrical
• Number Of Flutes 2
• Shank Diameter (Decimal Inch) 0.2500
• Overall Length (Decimal Inch) 2.6250
• Overall Length (Inch) 2-5/8
• Series 135
• Web Thinning Web-Thinned
• Web Configuration Tapered
• Number of Margins 2
• Drill Length Type Screw Machine
• Maximum Drilling Depth (Decimal Inch) 0.8281
• Shank Length (Inch) 1-7/16
• Shank Length (Decimal Inch) 1.4375
• Flute By Diameter Ratio 3xD
• Drill Bit Diameter Tolerance +0.0002 to +0.0006 in
• Flute Length (Decimal Inch) 1.0000
• Flute Length (Inch) 1
• Drill Bit Grade High Performance
• Drill Bit Size Range (Decimal Inch) 0.2000 to 0.2500

This item is new and in great condition. SOLD AS IS.

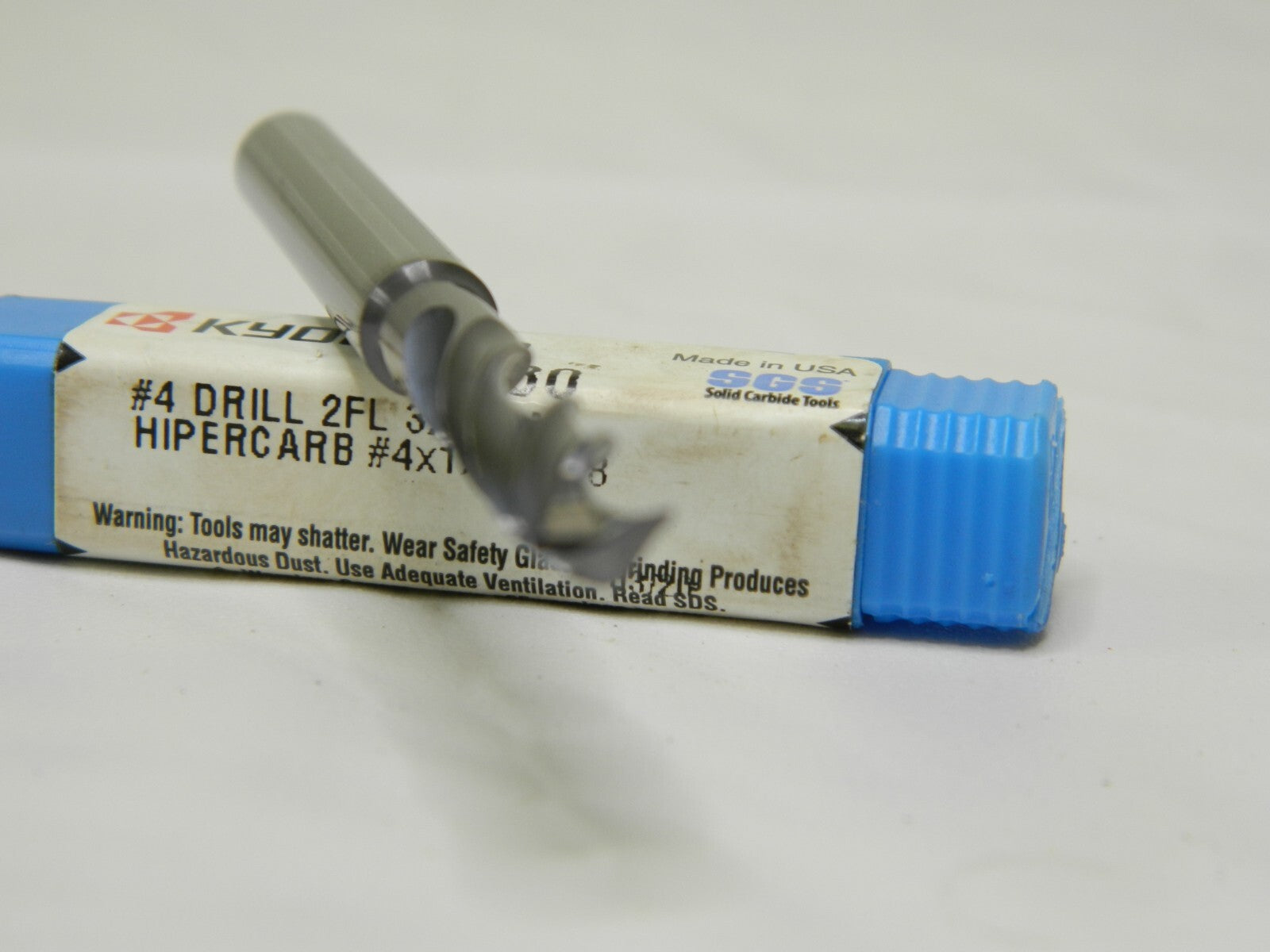

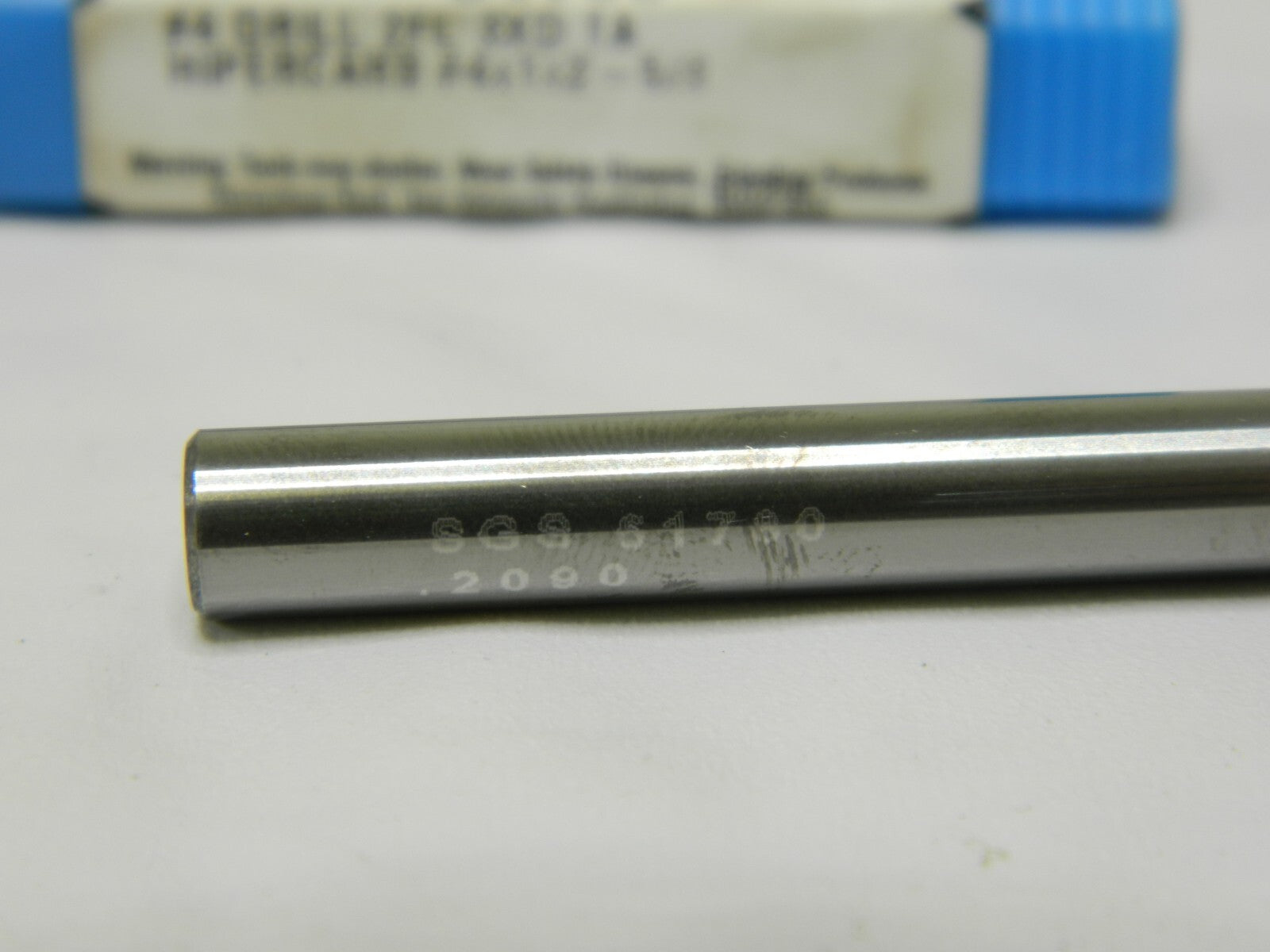

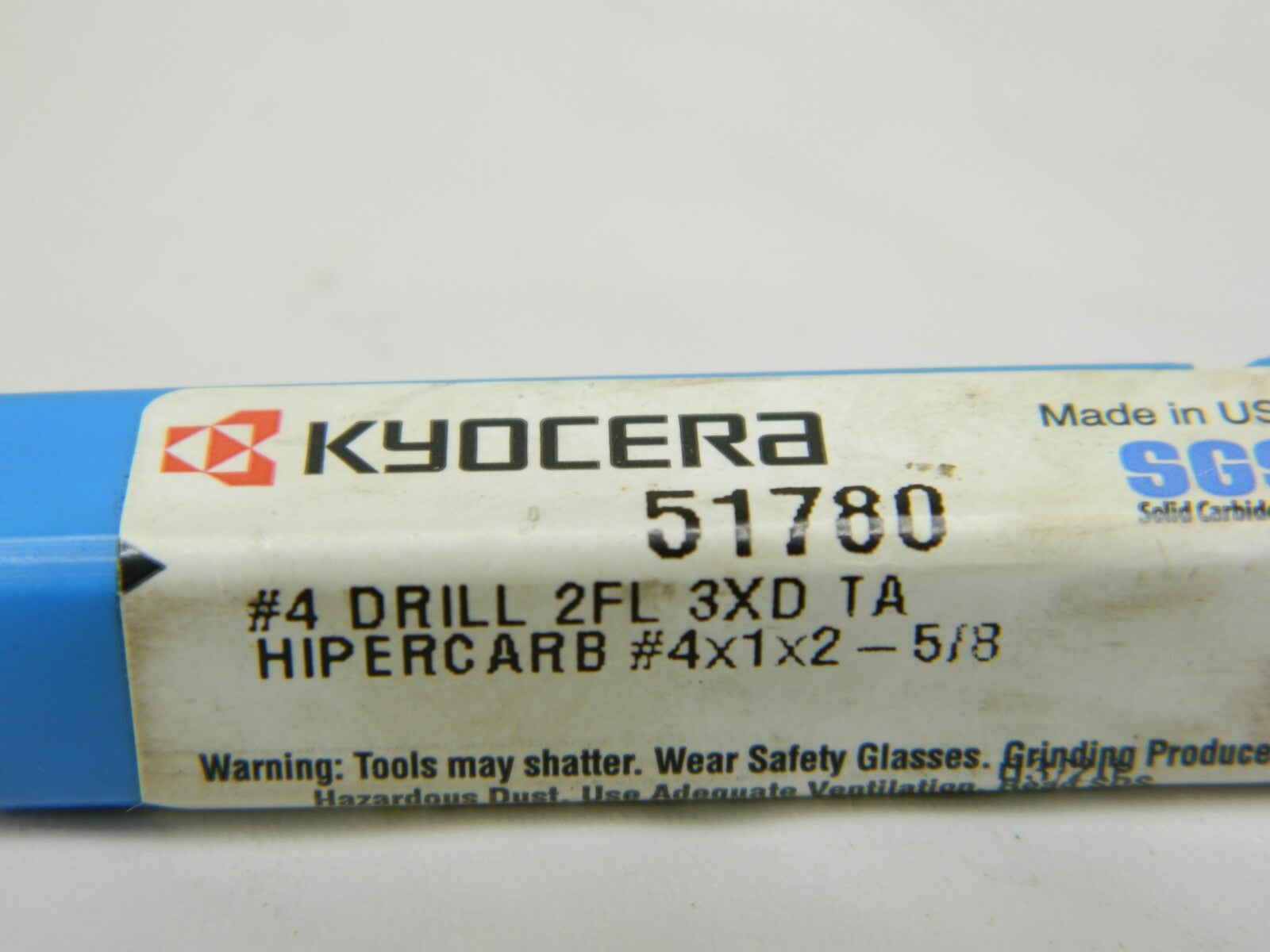

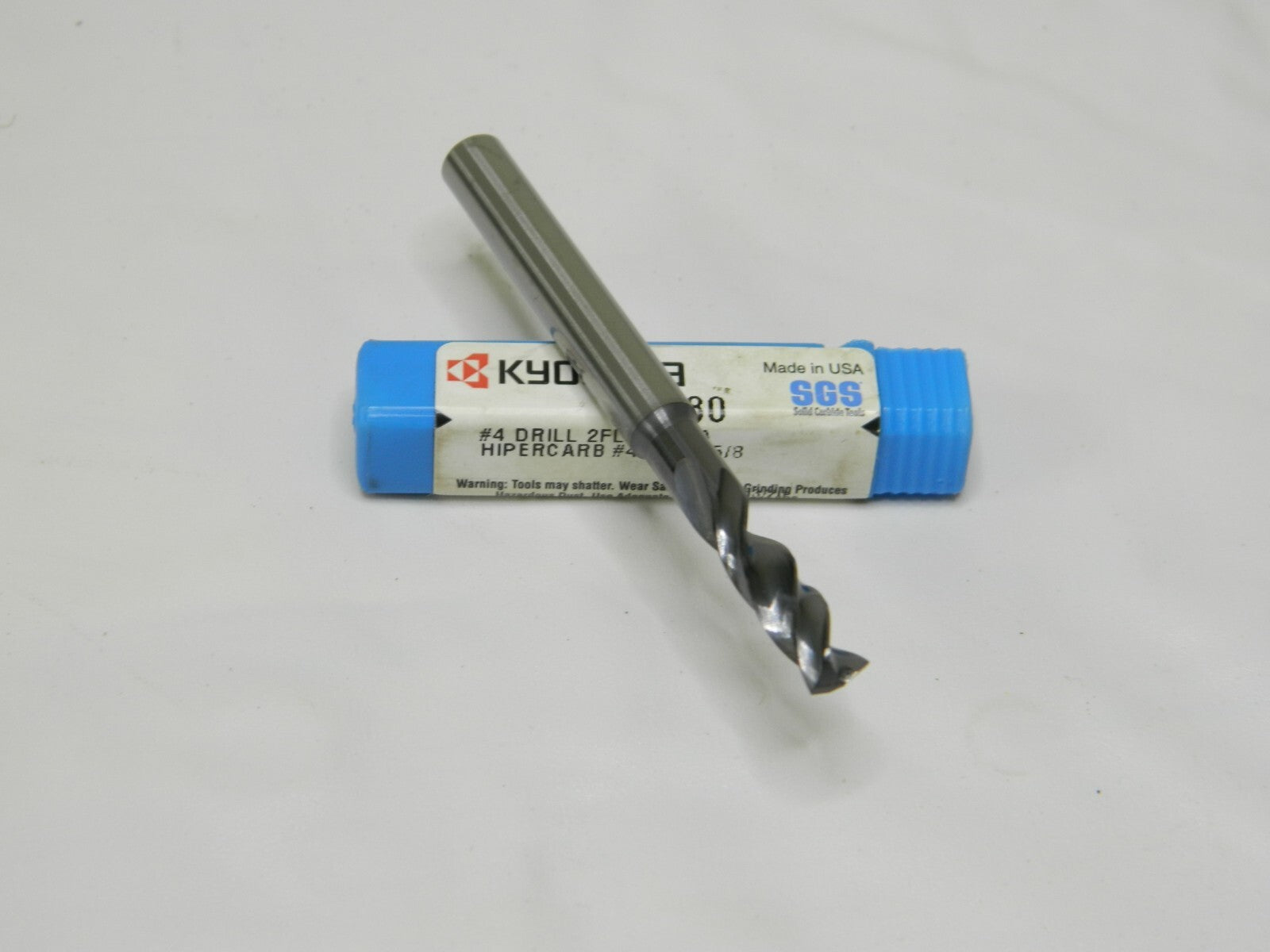

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
