SGS Micro Drill Bits 8pk: 2.18 mm Dia 07195

SGS Micro Drill Bits 8pk: 2.18 mm Dia 07195

MSRP: $60

• Drill Bit Size (Wire) #44
• Drill Bit Size (mm) 2.18
• Drill Bit Size (Decimal Inch) 0.0860
• Tool Material Solid Carbide
• Flute Length (Decimal Inch) 0.4000
• Flute Length (mm) 10.20
• Coating/Finish Ti-NAMITE-A
• Coolant Through No
• Drill Point Angle 130
• Cutting Direction Right Hand
• Maximum Drilling Depth (Decimal Inch) 0.4000
• Number Of Flutes 2
• Series M105
• Overall Length (Decimal Inch) 1.5000
• Flute Type Spiral
• Shank Type Straight-Cylindrical
• Point Type Four Facet
• Tool Application Very Small Hole Drilling
• Web Thinning Web-Thinned
• Drill Bit Diameter Tolerance +0.0000 to +0.0003 in
• Primary Workpiece Material Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; H; K; M; N
• Standards KSPT ISO
• Shank Diameter (Decimal Inch) 0.1250
• Shank Diameter (mm) 3.00
• Shank Diameter (Inch) 1/8
• Shank Length (Decimal Inch) 1.1000
• Flute By Diameter Ratio 4xD
• Spiral Type Regular
• UNSPSC Code 23241600

(Description).

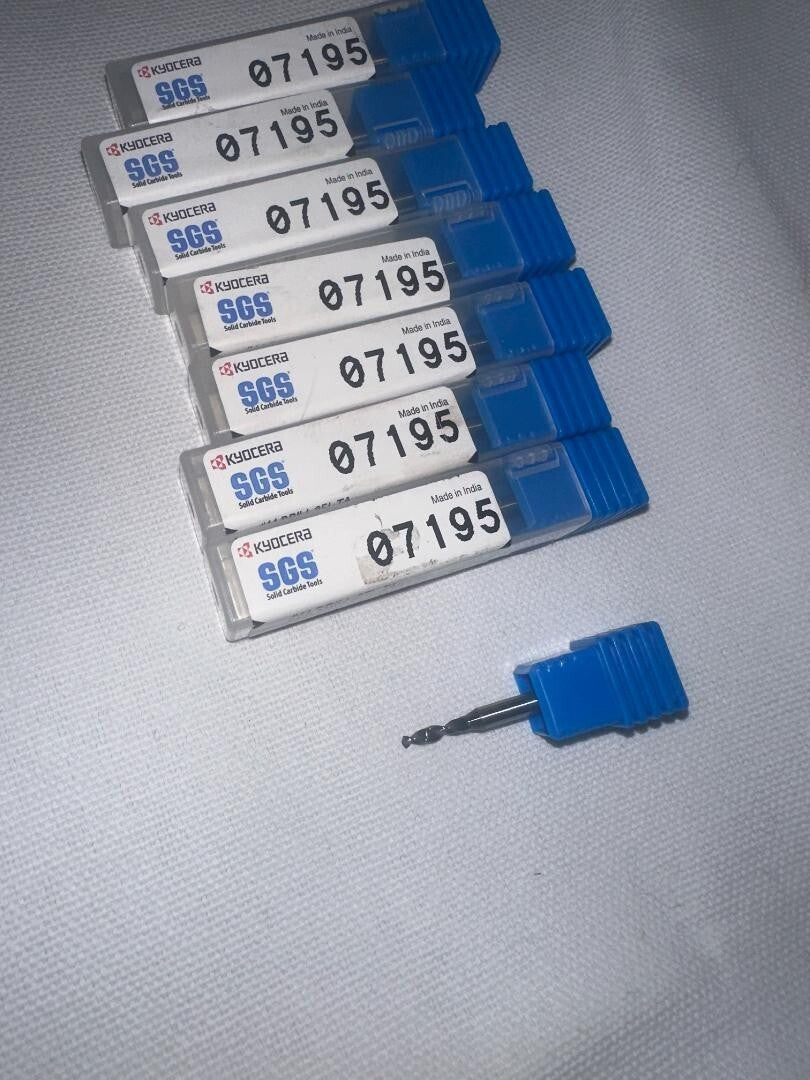

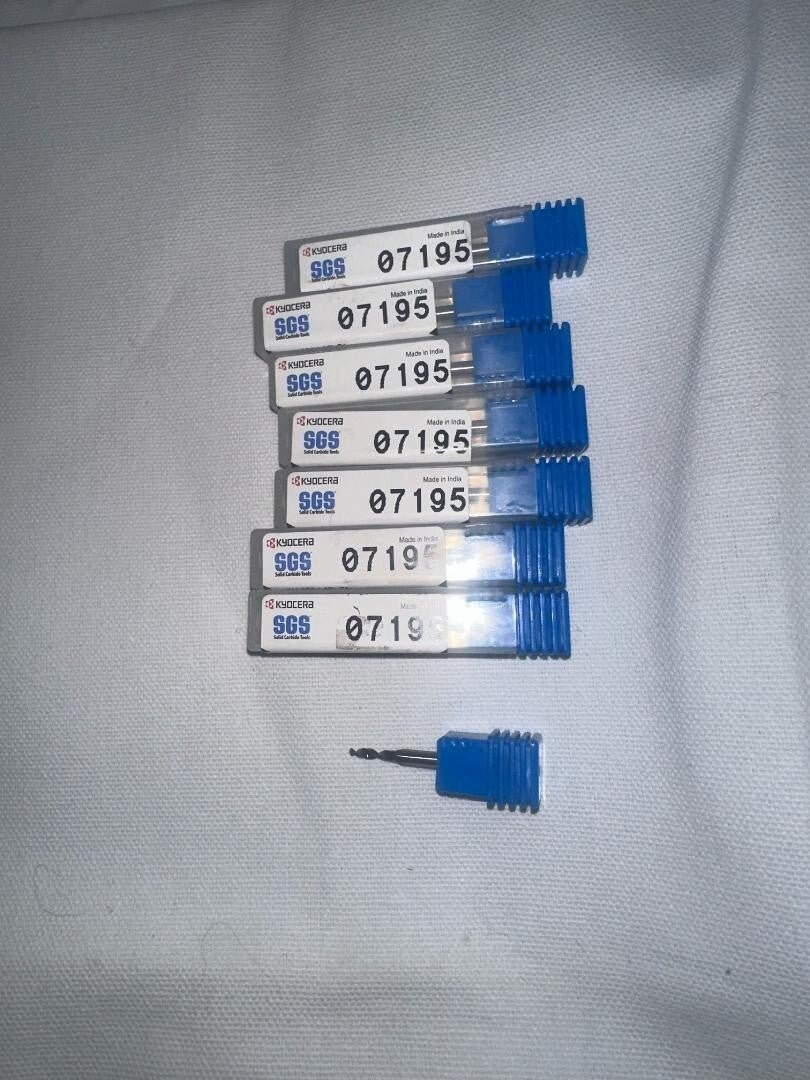

Please review photos, comes as shown.
