SGS Corner Radius End Mills: 6 mm Dia Solid Carbide 46451

MSRP: $80

• Mill Diameter (Decimal Inch) 0.2362
• Mill Diameter (mm) 6.00
• Number Of Flutes 4
• Length of Cut (mm) 13.00
• Single Or Double End Single
• End Mill Material Solid Carbide
• Coating/Finish AlTiN
• Centercutting No
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0394
• Variable Index Yes
• Variable Helix Yes
• Cutting Direction Right Hand
• Corner Radius (mm) 1.00
• Overall Length (mm) 57.00
• Coolant Through No
• Pitch Normal
• Chipbreaker No
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 0.5118
• Length Type Standard
• Flute Type Spiral
• Extended Reach No
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing & Finishing
• Shank Diameter (mm) 6
• Corner Radius Tolerance +0.00000 to -0.05000 mm
• Mill Diameter Tolerance -0.0304/0.0000 mm
• Shank Diameter Tolerance h6
• Primary Workpiece Material Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; K; M
• UNSPSC Code 27112803
• Secondary Workpiece Material Hard Material
• Secondary Workpiece Material Code H
• Material Grade Micrograin
• Series ZH1M
• Material Application Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Proprietary Coating Designation Ti-NAMITE-A
• For Use With. End Mill Toolholders

(Description).

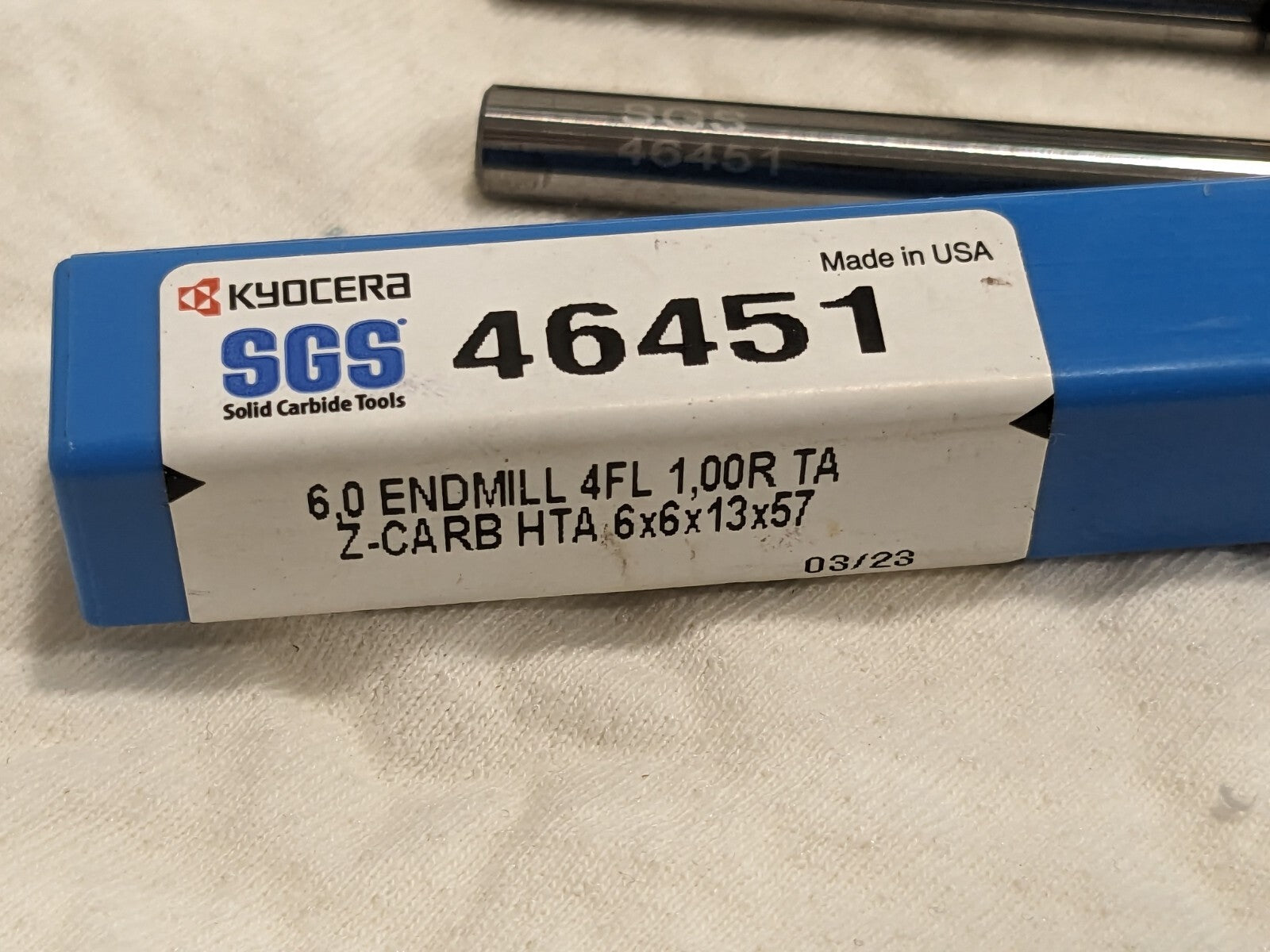

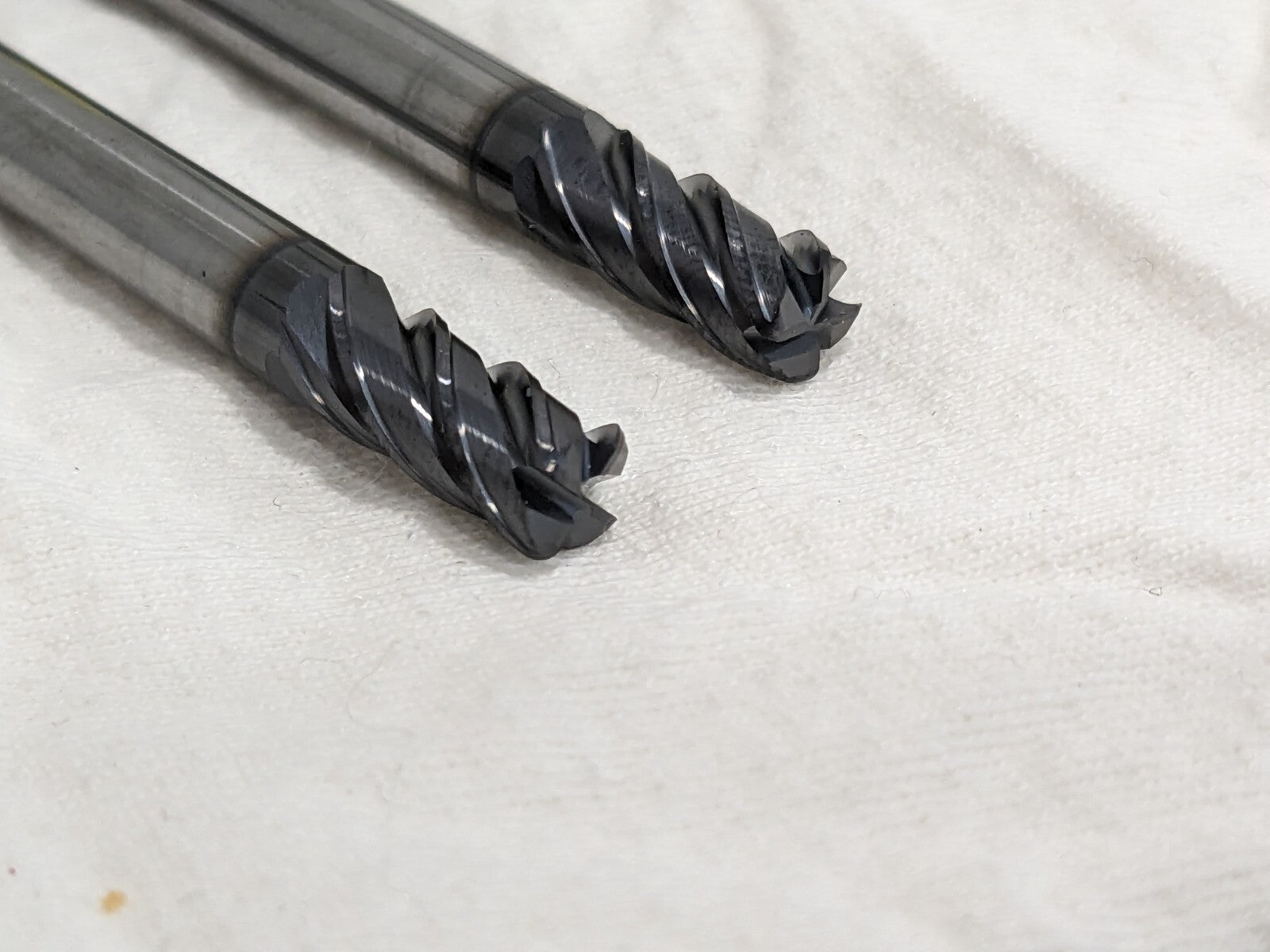

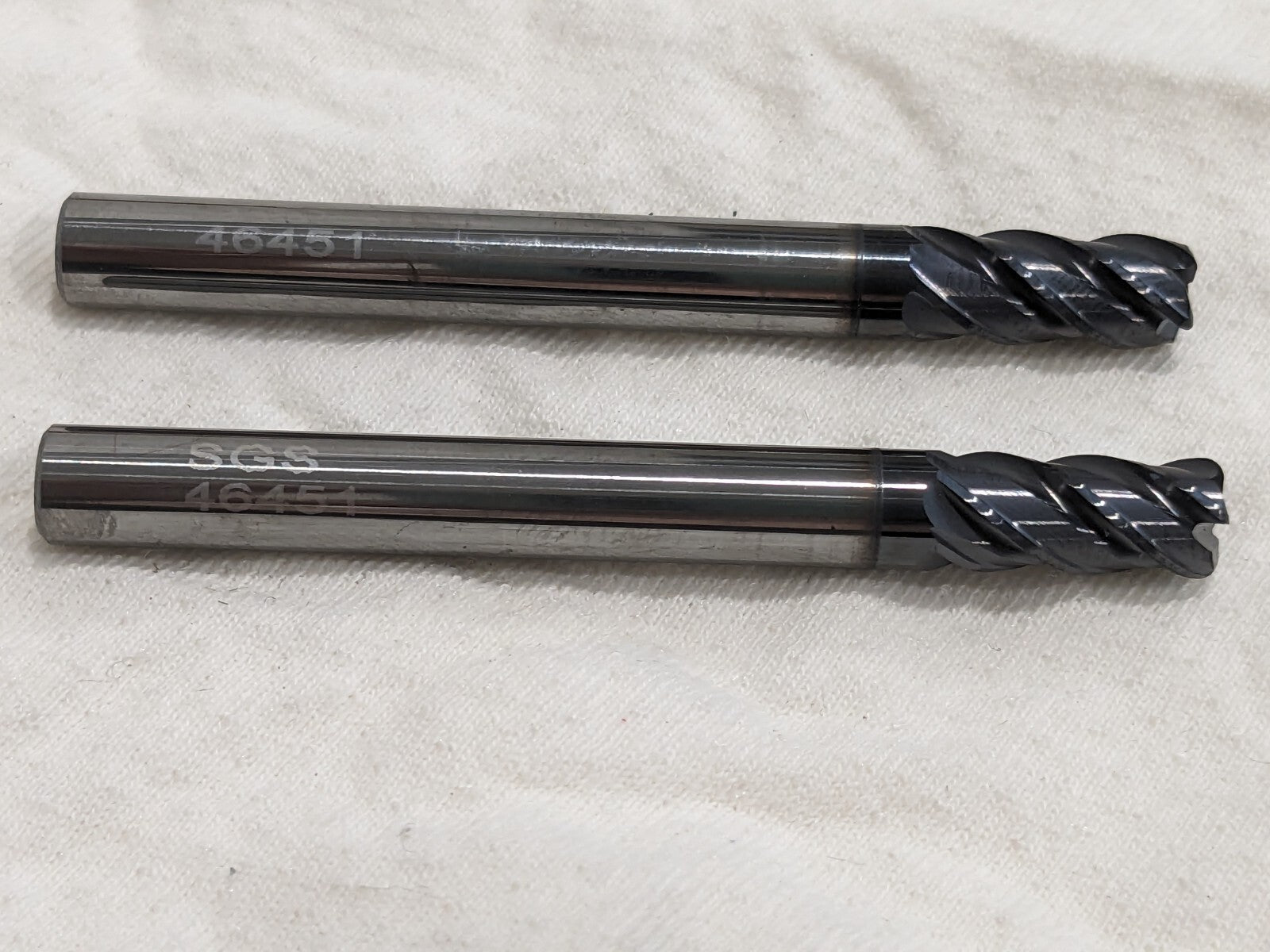

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
