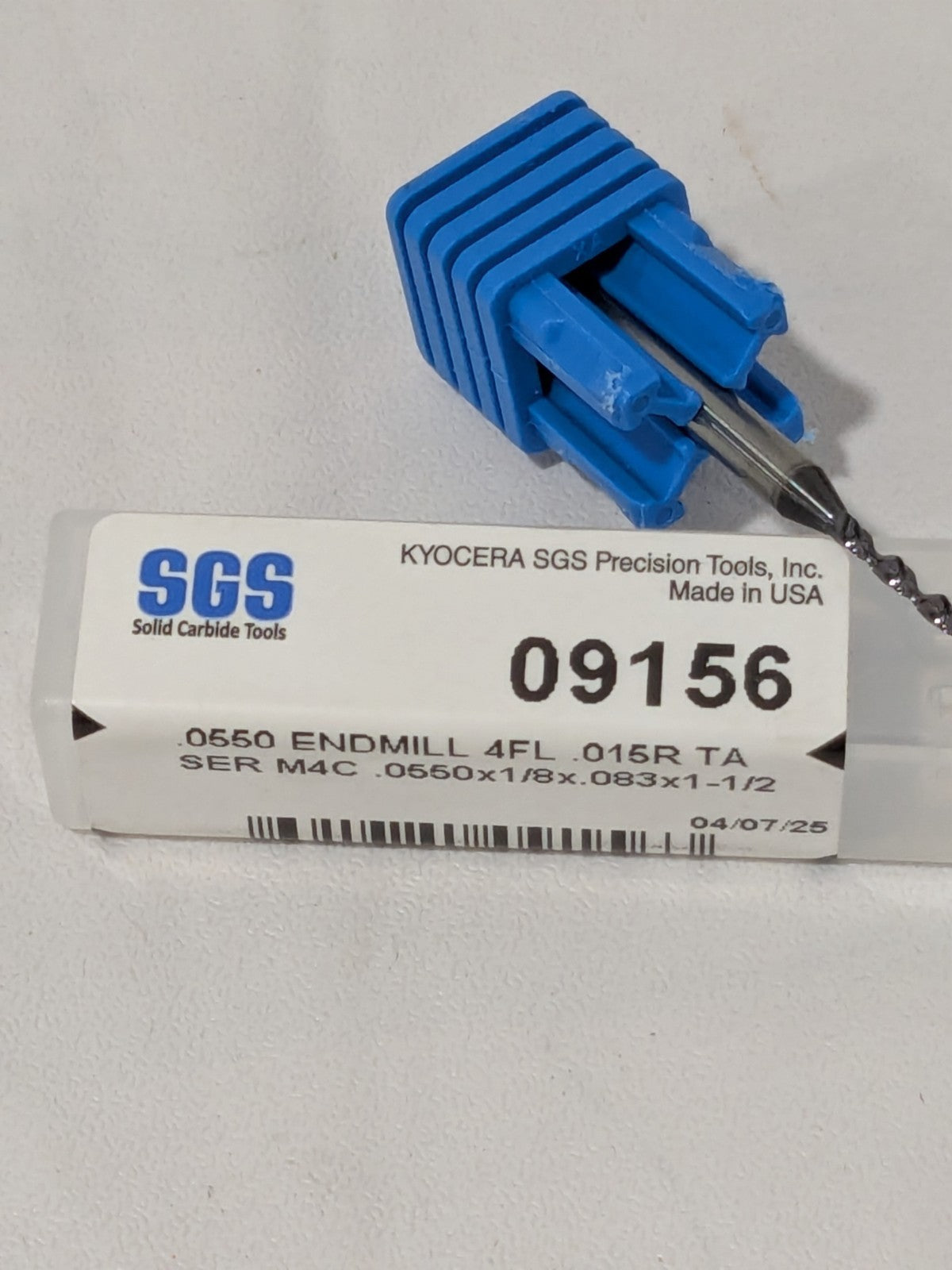

SGS Corner Radius End Mill: 0.0550" Dia, 0.0830" LOC 09156

SGS
Corner Radius End Mill

MSRP: $20.00

• Mill Diameter (Decimal Inch) 0.0550
• Number Of Flutes 4
• Single Or Double End Single
• End Mill Material Solid Carbide
• Chipbreaker No
• Coating/Finish AlTiN
• Overall Length (Inch) 1-1/2
• Centercutting Yes
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0150
• Variable Index No
• Helix Angle 30
• Cutting Direction Right Hand
• Coolant Through No
• Pitch Normal
• Overall Length (Decimal Inch) 1.5000
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 0.0830
• Length Type Stub
• Flute Type Spiral
• Extended Reach No
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing & Finishing
• Shank Diameter (Decimal Inch) 0.1250
• Shank Diameter (Inch) 1/8
• Reach Length (Decimal Inch) 0.0830
• Corner Radius Tolerance +0.0000 to -0.0005 in
• Mill Diameter Tolerance +0.0000/-0.0010 in
• Shank Diameter Tolerance h6
• Primary Workpiece Material Non-Ferrous Metal; High-Temperature Alloy; Stainless Steel; Cast Iron; Steel
• Primary Workpiece Material Code P; S; K; M; N
• UNSPSC Code 27112803
• Secondary Workpiece Material Hard Material
• Secondary Workpiece Material Code H
• Material Grade Micrograin
• Series M4C
• Material Application Non-Ferrous Metal; High-Temperature Alloy; Stainless Steel; Cast Iron; Steel
• Coating Classification PVD
• Proprietary Coating Designation Ti-NAMITE-A
• For Use With. Toolholders
• Helix Style Medium
• Manufacturers Catalog Number 09156
• Country of Origin UNITED STATES

This item appears to be new and in good condition. SOLD AS IS.

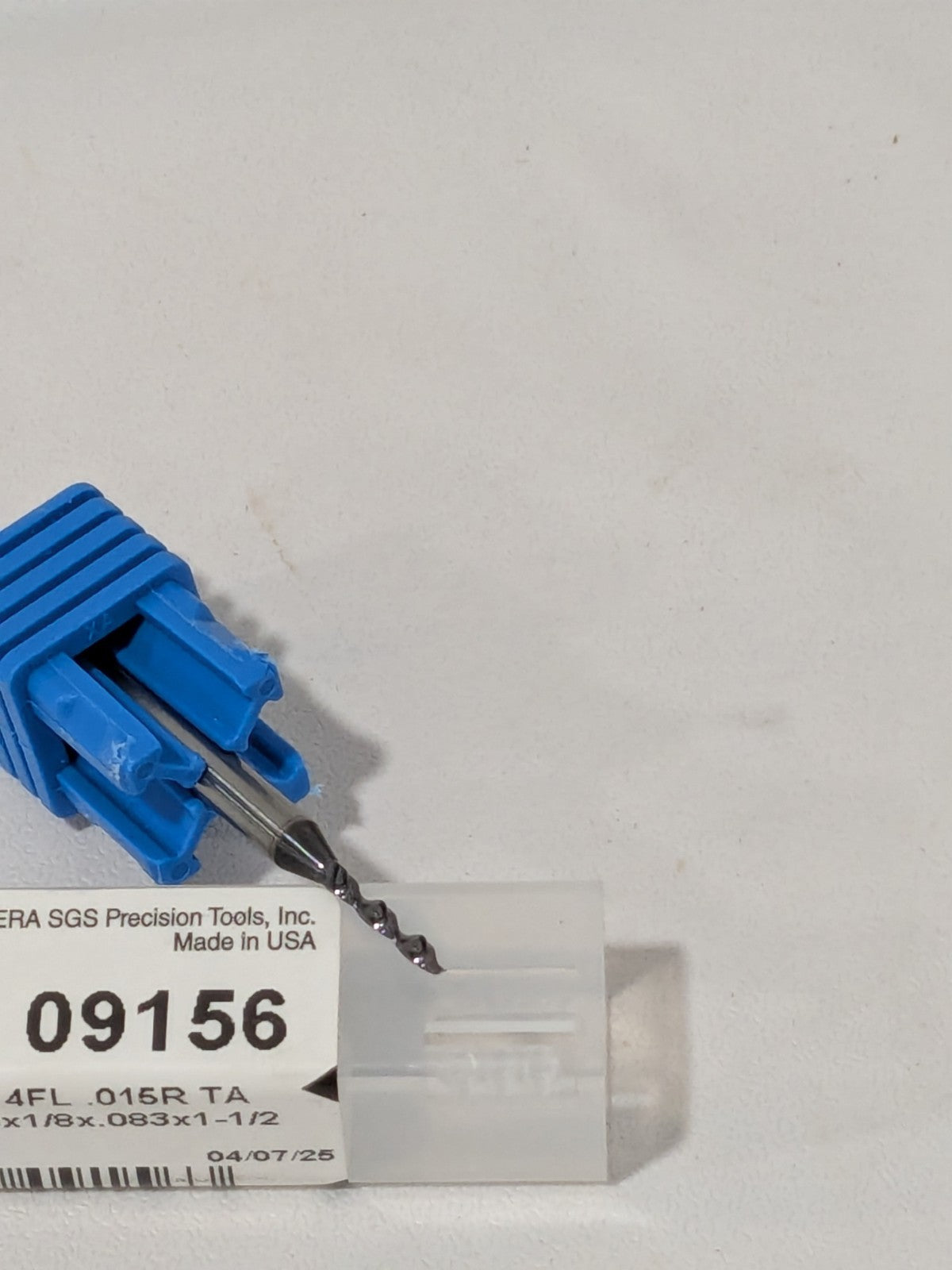

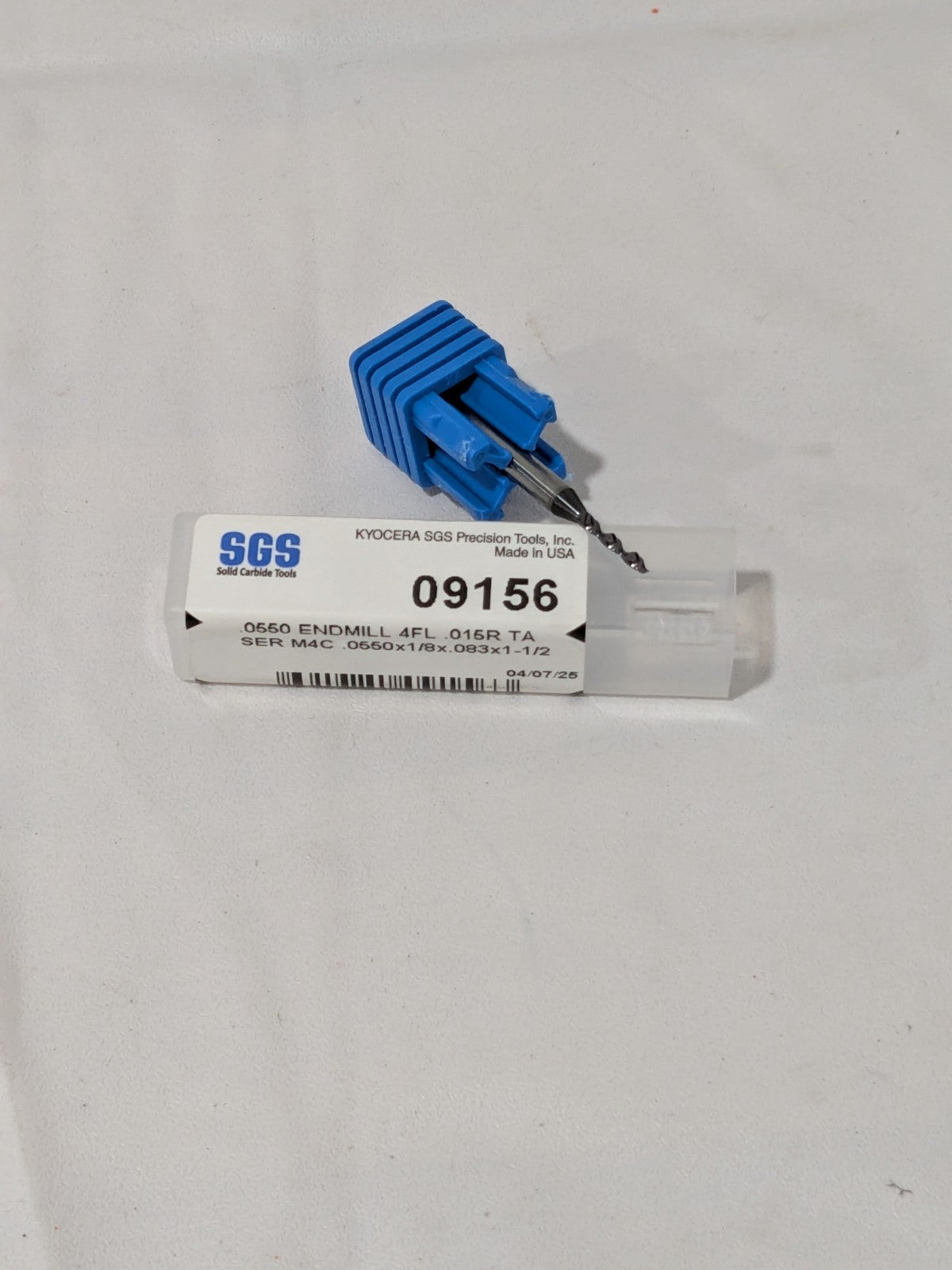

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
