SGS Carbide Jobber Drill Letter T RH 0.3580" D x 2-3/4" x 4-1/4" 150° 3FL 53220
SGS Carbide Jobber Drill Letter T RH 0.3580" D x 2-3/4" x 4-1/4" 150° 3FL 53220
Regular price
$54.25 USD
Regular price
$115.00 USD
Sale price
$54.25 USD
Shipping calculated at checkout.
Couldn't load pickup availability
SGS
MSRP: $115
Model: 53220
Description:
Drill Bit Size (Letter) T
Drill Bit Size (Decimal Inch) 0.3580
Drill Point Angle 150
Drill Bit Material Solid Carbide
Drill Bit Finish/Coating Bright
Flute Type Spiral
Cutting Direction Right Hand
Shank Type Straight
Coolant Through No
Flute Length (Inch) 2-3/4
Flute Length (Decimal Inch) 2.7500
Overall Length (Decimal Inch) 4.2500
Overall Length (Inch) 4-1/4
Flute Length x Diameter Ratio 5xD
Point Type Standard
Shank Diameter (Decimal Inch) 0.3580
Maximum Drilling Depth (Decimal Inch) 2.2031
Maximum Drilling Depth (Inch) 2-13/64
Spiral Type Regular Spiral
Shank Length (Inch) 1-1/2
Shank Length (Decimal Inch) 1.5000
Web Configuration Tapered
Drill Bit Diameter Tolerance (Decimal Inch) +0.0000 to -0.0005
Number of Flutes 3
Web Thinning Web-Thinned
Drill Bit Grade General Purpose
Material Grade Micrograin
Series/List 103

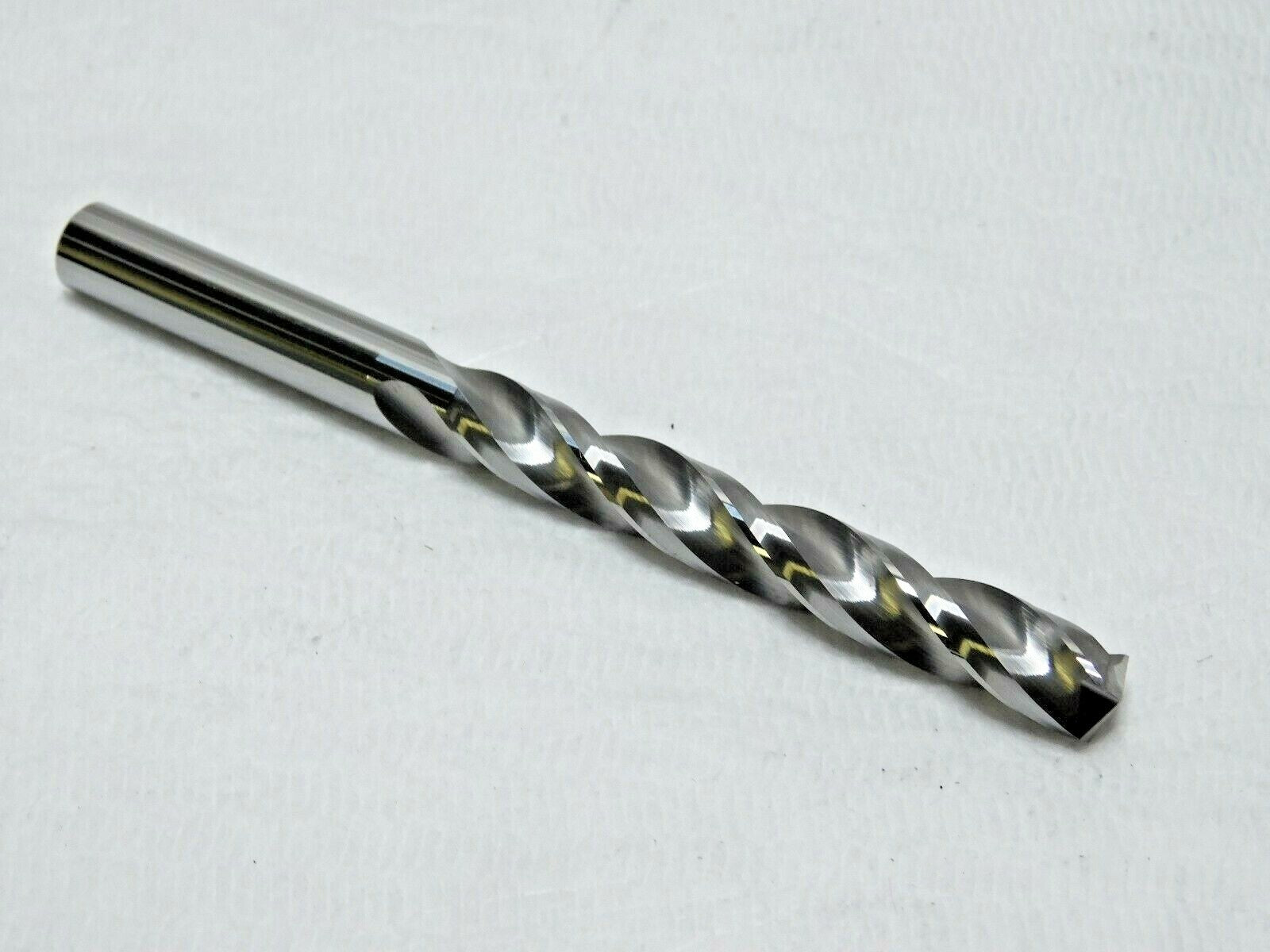

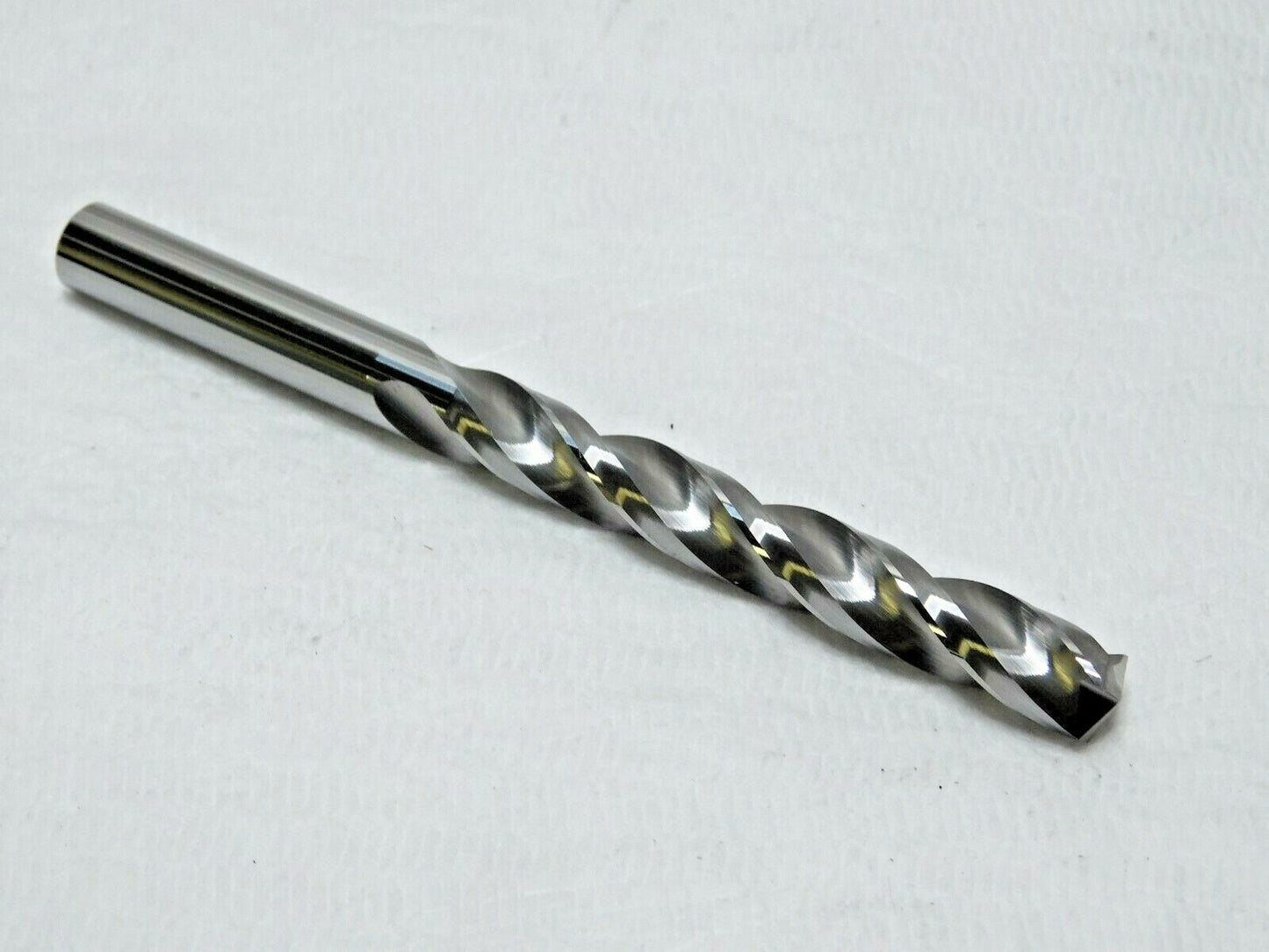

This listing is for One Carbide Jobber Drill that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
