Seco VBMT331 F1 Grade TP1501 Carbide Turning Insert QTY 3 02960884
Seco VBMT331 F1 Grade TP1501 Carbide Turning Insert QTY 3 02960884
Regular price
$39.16 USD
Regular price
$80.00 USD
Sale price
$39.16 USD
Shipping calculated at checkout.
Couldn't load pickup availability
MSRP: $80.00
Model: 02960884
Description:
Insert Style VBMT
Insert Size 331
Material Carbide
Inscribed Circle (Decimal Inch) 0.3750
Inscribed Circle (Inch) 3/8
Thickness (Inch) 3/16
Thickness (Decimal Inch) 0.1875
Corner Radius (Inch) 1/64
Corner Radius (Decimal Inch) 0.0156
Manufacturer's Grade TP1501
Coating Al2O3
Chip Breaker F1
Hole Diameter (mm) 4.50
Hole Diameter (Decimal Inch) 0.1772
ISO Number VBMT331
Rake Neutral
Relief Angle 5
Coating Process Duratomic
Primary Workpiece Material P
Secondary Workpiece Material K
Included Angle 35
Cutting Direction Neutral
Insert Hand Neutral
Material Carbide
Cutting Direction Neutral
Corner Radius (Decimal Inch) 1/64
Coating Process Duratomic
Coating Al2O3
Inscribed Circle (Decimal Inch) 0.3750
Material Carbide
Manufacturer's Grade TP1501
Insert Style VBMT
Insert Size 331
Thickness (Decimal Inch) 0.1875
Shape Diamond
Corner Radius (Decimal Inch) 0.0156
Coating Process Duratomic
Coating Al2O3
Thickness (Decimal Inch) 0.1875
Material Carbide
Manufacturer's Grade TP1501
Insert Style VBMT
Insert Size 331
Cutting Direction Neutral
Insert Hand Neutral
Insert Holding Method Screw
FullRadius No
Shape Diamond

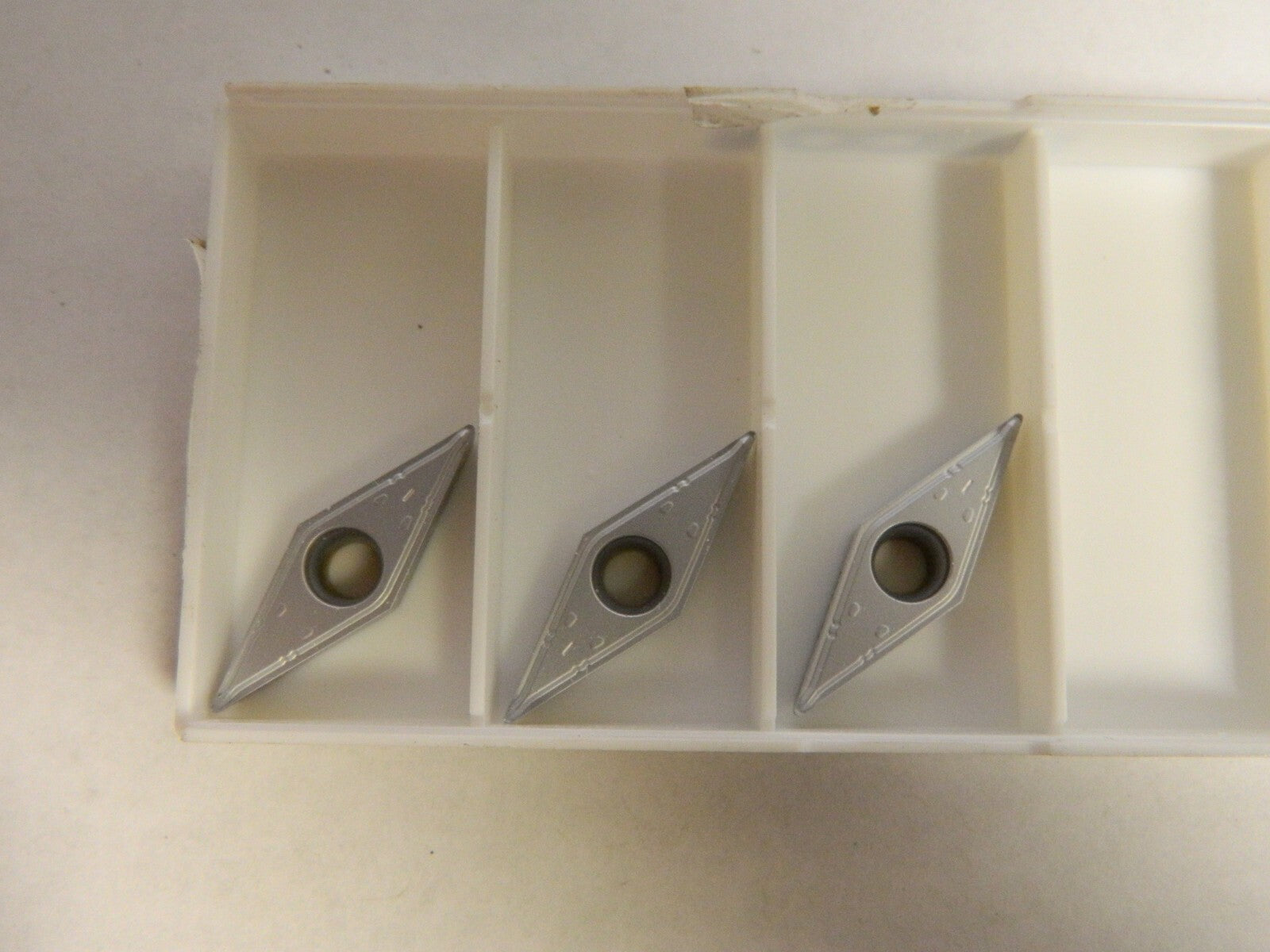

This listing is for One Pack of 3 that is in the picture as well as described. Please ask any questions prior to buying!
