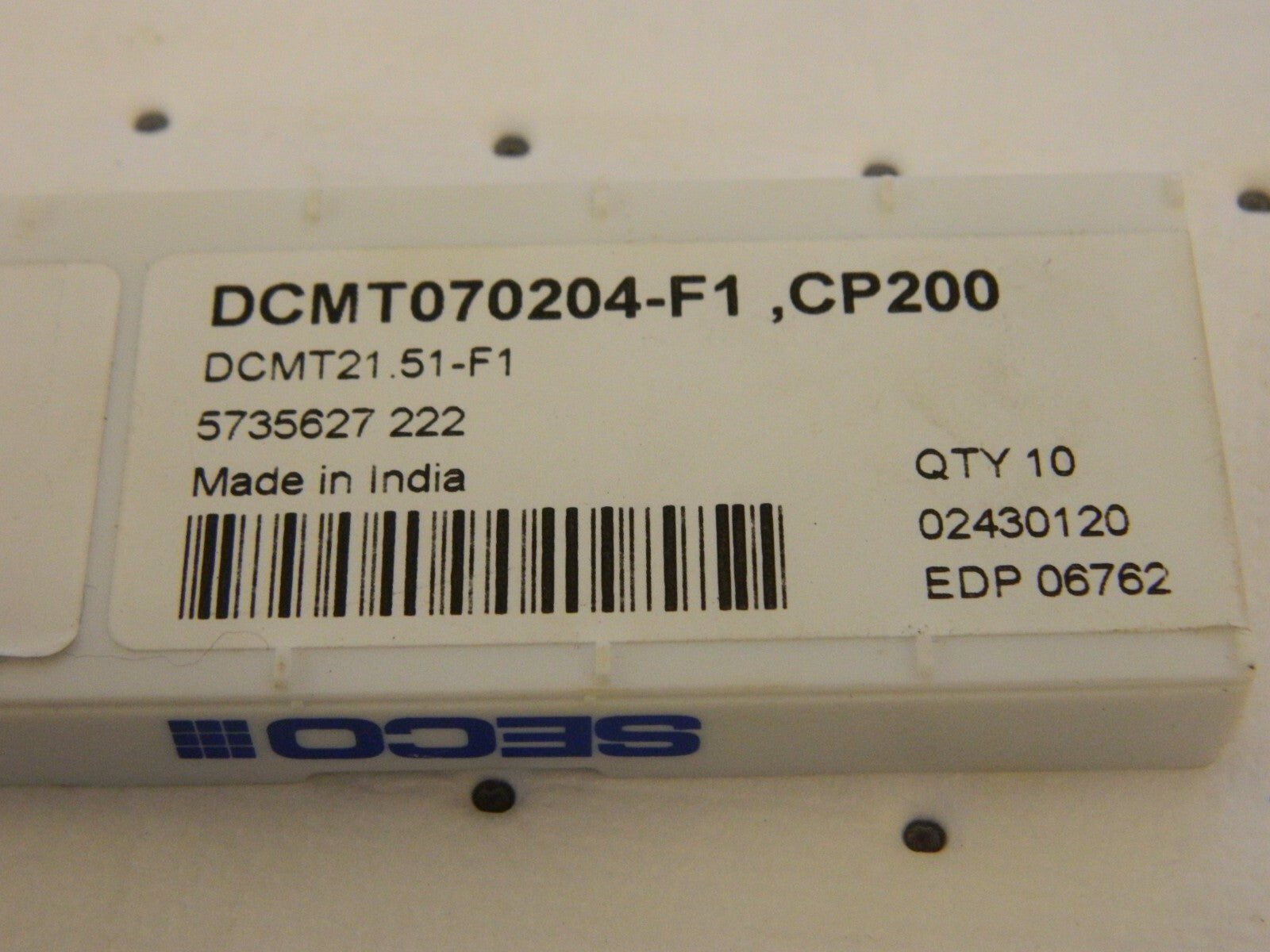

SECO Turning Inserts qty 10 DCMT 21.51-F1 CP200, Solid Carbide 02430120

SECO

 Turning Inserts qty 10 DCMT 21.51-F1 CP200, Solid Carbide 02430120
MSRP: $100

• Insert Style DCMT
• Insert Shape Code D
• Insert Size Code 21.5
• Insert Shape Diamond
• Coating/Finish TiN; TiAlN
• Manufacturer Grade CP200
• Corner Radius (Inch) 1/64
• Corner Radius (Decimal Inch) 0.0156
• Insert Material Solid Carbide
• Hole Diameter (Decimal Inch) 0.1140
• Maximum Depth of Cut (Decimal Inch) 0.1200
• Inscribed Circle (Inch) 1/4
• Inscribed Circle (Decimal Inch) 0.2500
• Insert Holding Method Screw
• Insert Thickness (Inch) 3/32
• Insert Thickness (Decimal Inch) 0.0938
• Clearance Code C
• Tolerance Code M
• Included Angle 55.0
• Relief Angle 7
• Series DCMT
• Coating Process PVD
• Primary Workpiece Material Code P; S; H; M
• Standards ISO
• Material Grade Micrograin
• Chip Breaker F1

Please review photos, comes as shown.
