SECO Turning Insert: WNMP 431-MF1 TS2000, Carbide 02615924

SECO Turning Insert: WNMP 431-MF1 TS2000, Carbide 02615924

MSRP: $200

•

• Insert Style WNMP
• Insert Size Code 431
• Insert Shape Trigon
• Included Angle 80
• Inscribed Circle (Decimal Inch) 0.5000
• Corner Radius (Decimal Inch) 0.0157
• Insert Material Carbide
• Manufacturer Grade TS2000
• Coating/Finish TiN; TiAlN
• Relief Angle 0
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.1874
• Insert Hand Neutral
• Number Of Cutting Edges 6
• Insert Shape Code W
• Corner Radius (Inch) 1/64
• Hole Diameter (Decimal Inch) 0.2028
• Maximum Depth of Cut (Decimal Inch) 0.3346
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (mm) 12.70
• Insert Holding Method Pin; Clamp; Lever Lock
• Width (Inch) 1/2
• Insert Thickness (Inch) 3/16
• Clearance Code N
• Tolerance Code M
• Series WNMP-MF1
• Coating Process PVD
• Length Range (Decimal Inch) 0.6500 - 0.7000
• Rake Negative
• Insert Length (Decimal Inch) 0.6850
• Primary Workpiece Material Stainless Steel; Superalloys & Titanium
• Primary Workpiece Material Code S; M
• Secondary Workpiece Material Hard Material; Cast Iron; Steel
• Secondary Workpiece Material Code P; H; K
• Iso Code WNMG080404-MF1
• Standards ISO; ANSI
• Manufacturers Catalog Number 02615924
• Material Grade M05; S10; S15; M10
• Proprietary Coating Designation Multilayer Coating
• UNSPSC Code 23242105
• Lead Angle 80
• Coating Classification PVD
• Chip Breaker MF1
• Cutting Edge Style Honed
• Industry Standard Number WNMP431-MF1
• Width (Decimal Inch - 4 Decimals) 0.5
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Boring

(Description).

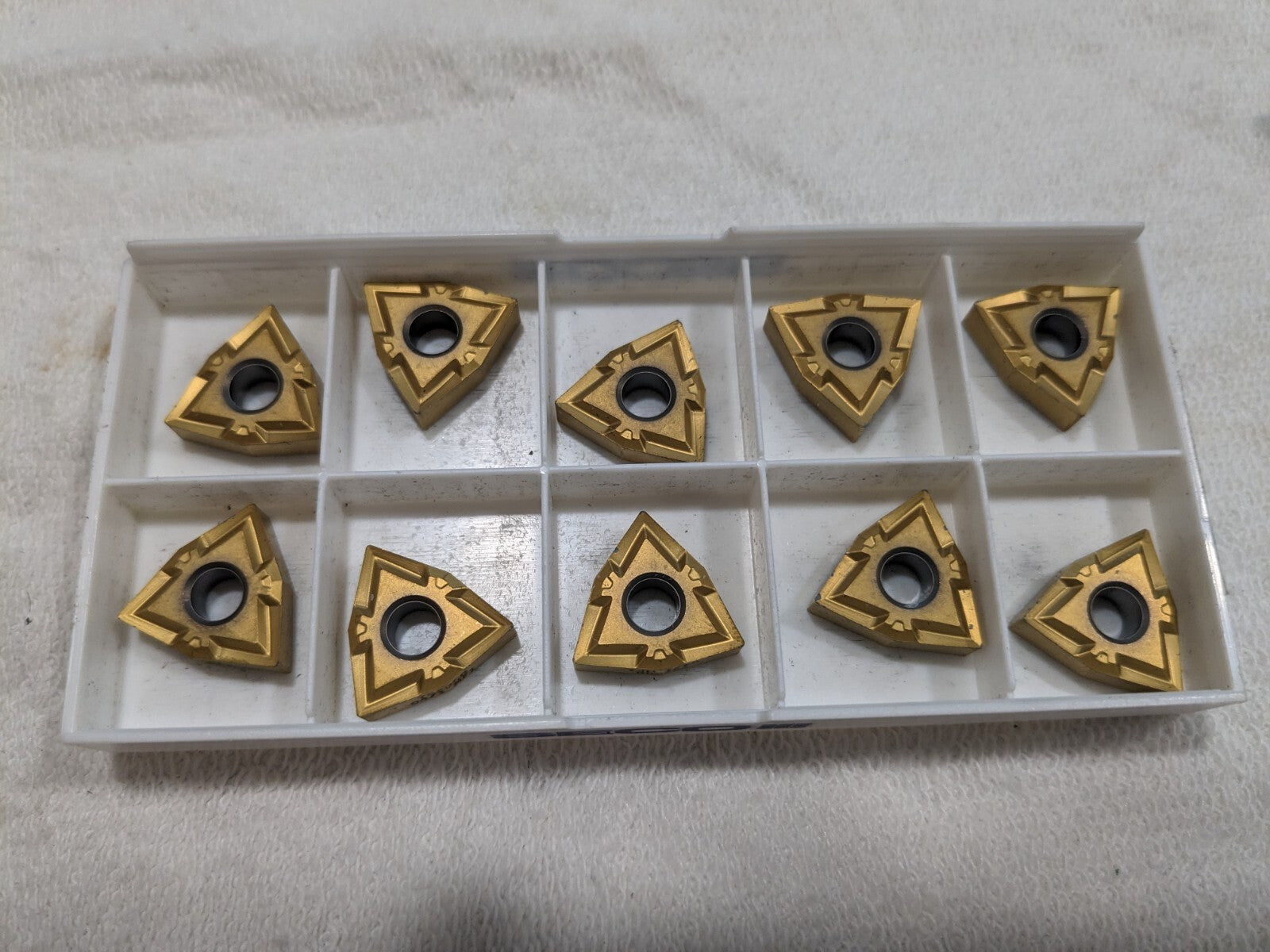

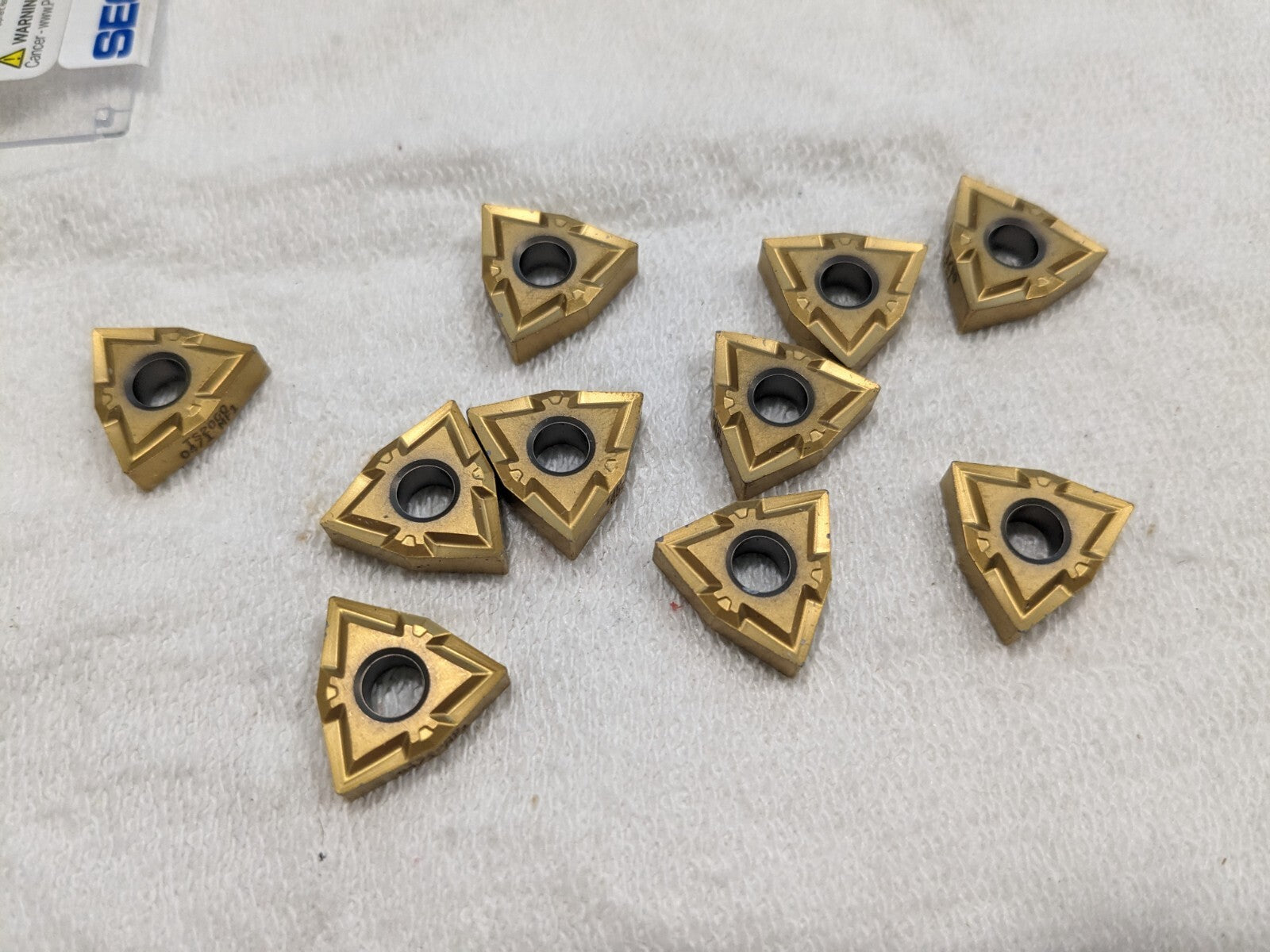

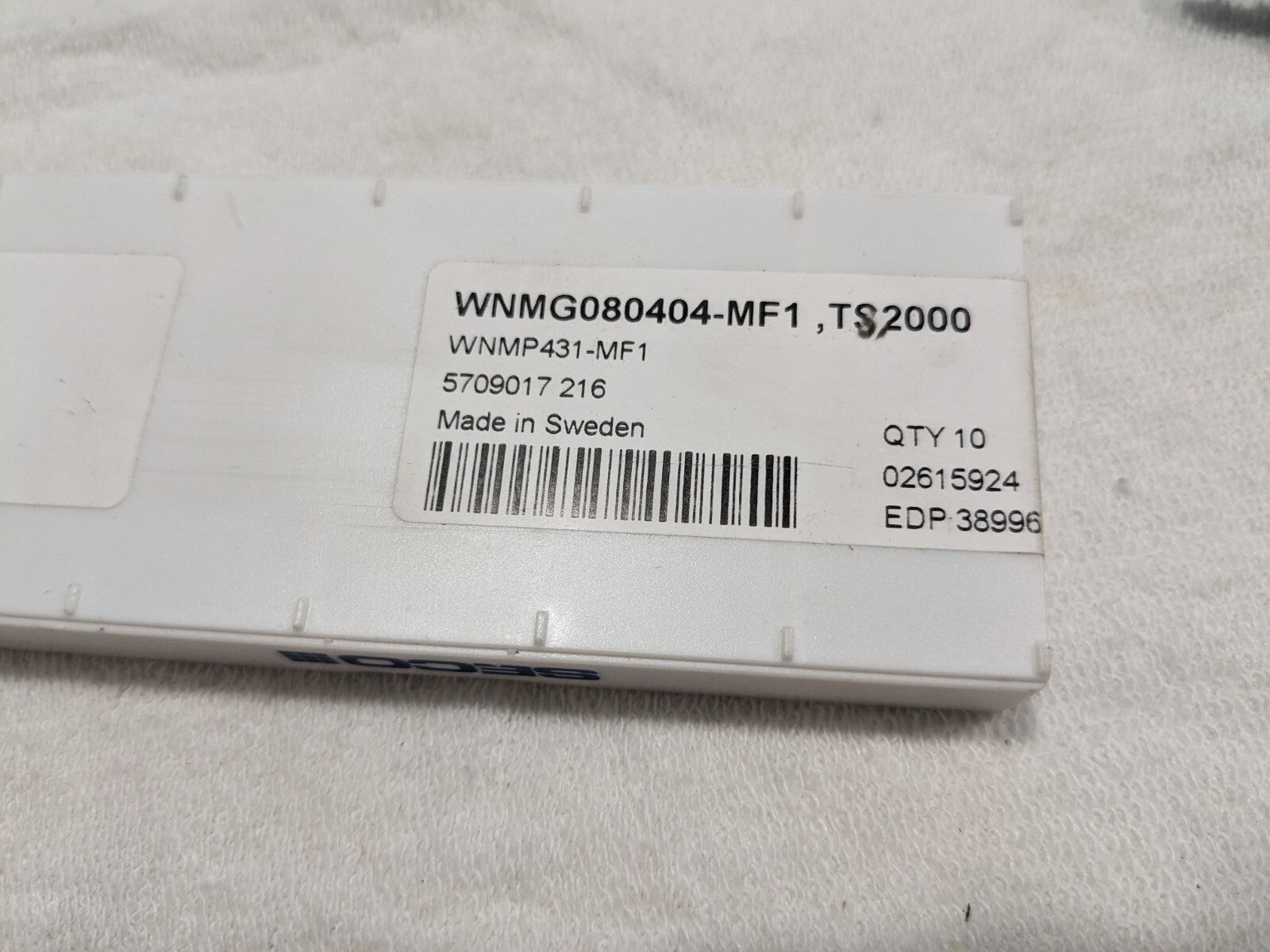

Please review photos, comes as shown.
