SECO Turning Insert: VNMG434-MR4-48 883, Solid Carbide 10pk 00009692

MSRP: $80

• Insert Style VNMG
• Insert Size Code 434
• Insert Shape Diamond 35°
• Included Angle 35 degree
• Inscribed Circle (Decimal Inch) 0.5000
• Corner Radius (Decimal Inch) 0.0630
• Insert Material Carbide
• Manufacturer Grade 883
• Coating/Finish Bright/Uncoated
• Relief Angle 0 °
• Wiper Edge No
• Insert Thickness (Decimal Inch) 0.1874
• Insert Hand Neutral
• Number Of Cutting Edges 4
• Insert Shape Code V
• Corner Radius (Inch) 1/16
• Hole Diameter (Decimal Inch) 0.2028
• Maximum Depth of Cut (Decimal Inch) 0.8031
• Inscribed Circle (Inch) 1/2
• Inscribed Circle (mm) 12.70
• Insert Holding Method Pin; Clamp; Lever Lock
• Width (Inch) 1/2 in
• Insert Thickness (Inch) 3/16
• Clearance Code N
• Tolerance Code M
• Series VNMG-MR4
• Coating Process Uncoated
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Rake Negative
• Insert Length (Decimal Inch) 1.7322
• Primary Workpiece Material Superalloys & Titanium
• Primary Workpiece Material Code S
• Secondary Workpiece Material Code H; K; M; N
• Iso Code VNMG220416-MR4
• Standards ISO; ANSI
• Manufacturers Catalog Number 00009692
• Material Grade S20; S30; S10
• Proprietary Coating Designation Uncoated
• UNSPSC Code 23242105
• Lead Angle 35 degree
• Coating Classification Uncoated
• Chip Breaker MR4
• Cutting Edge Style T-Land
• Industry Standard Number VNMG434-MR4
• Width (Decimal Inch - 4 Decimals) 0.5000 in
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Profiling; Turning; Back Turning

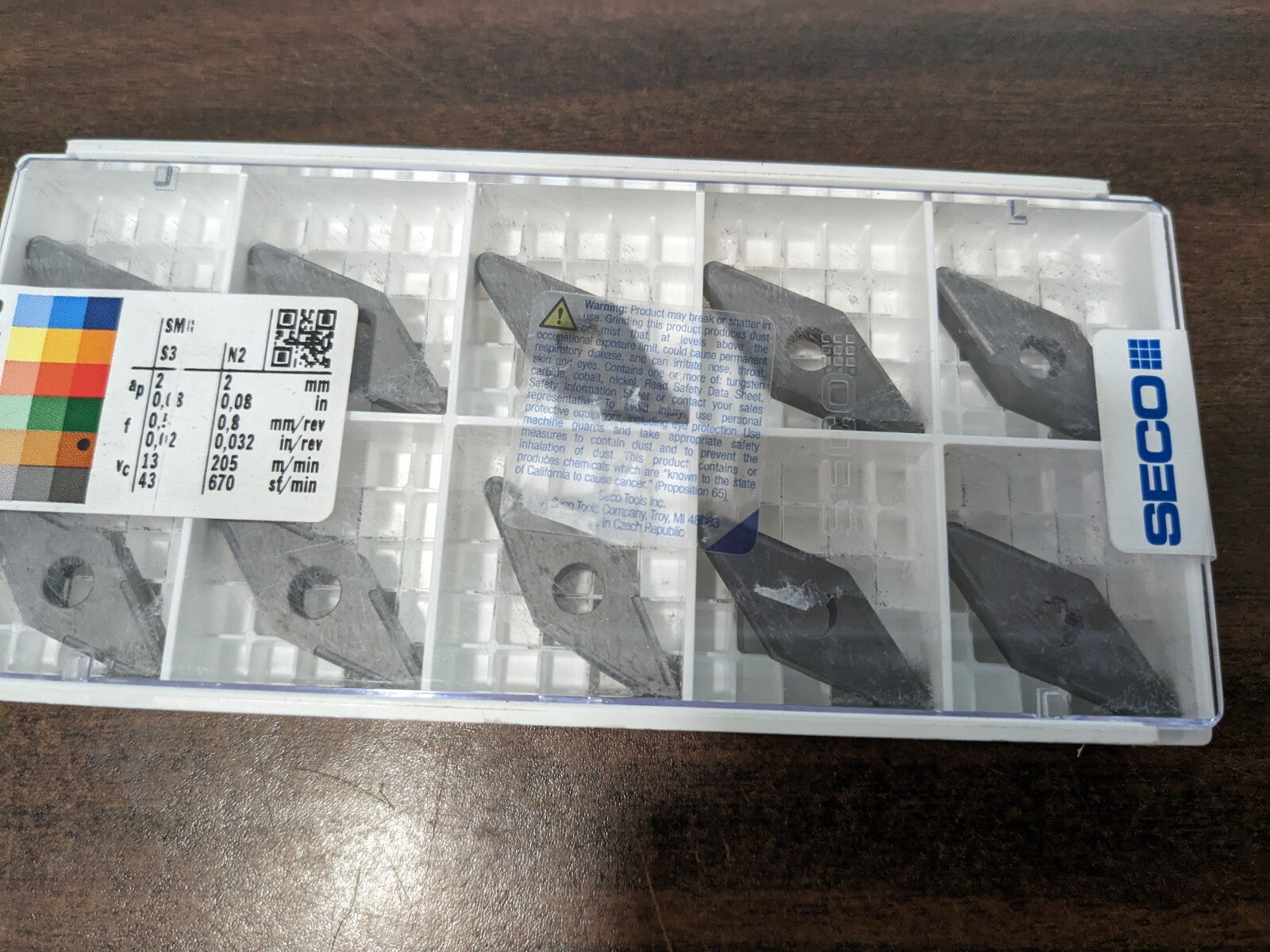

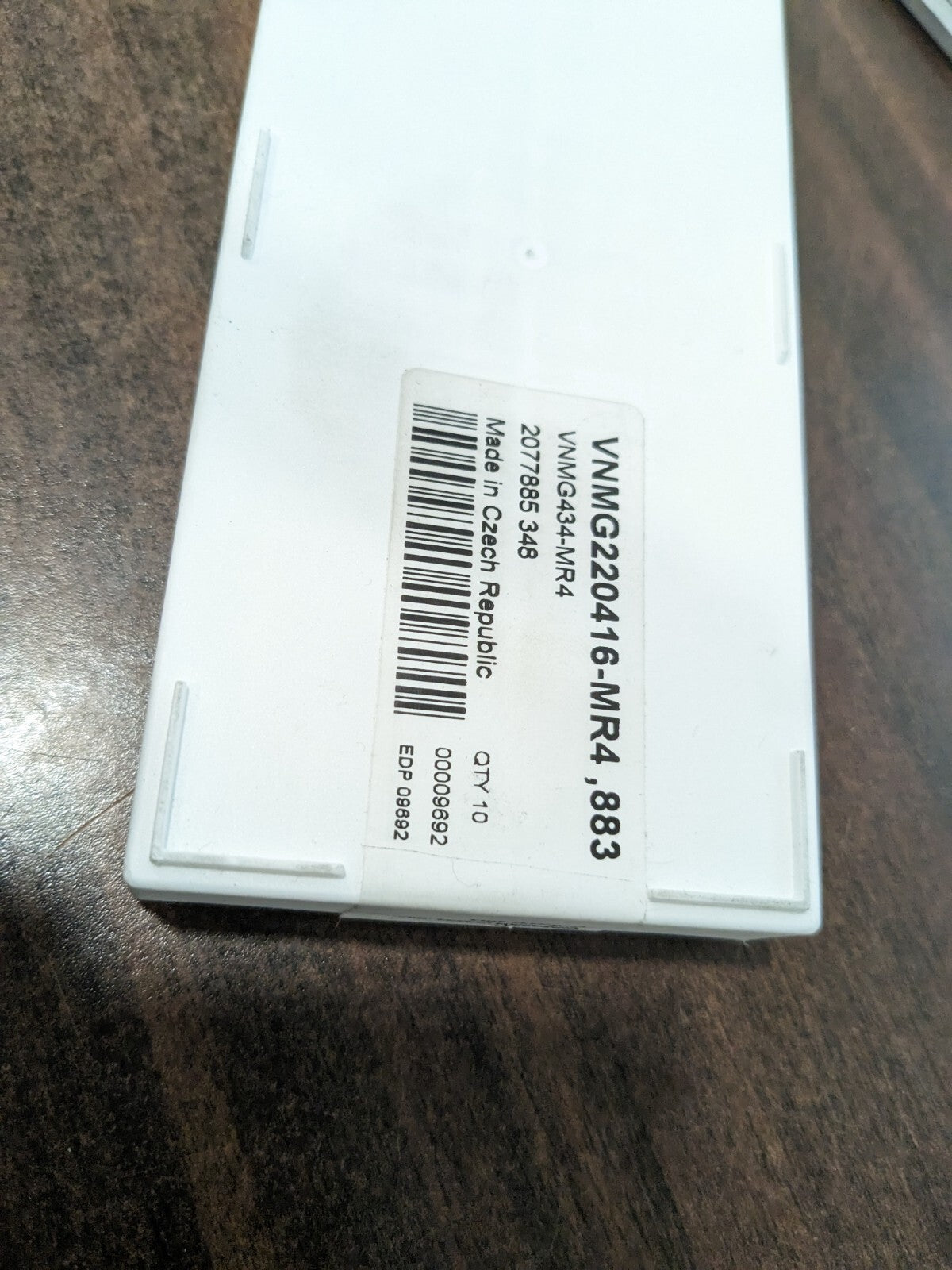

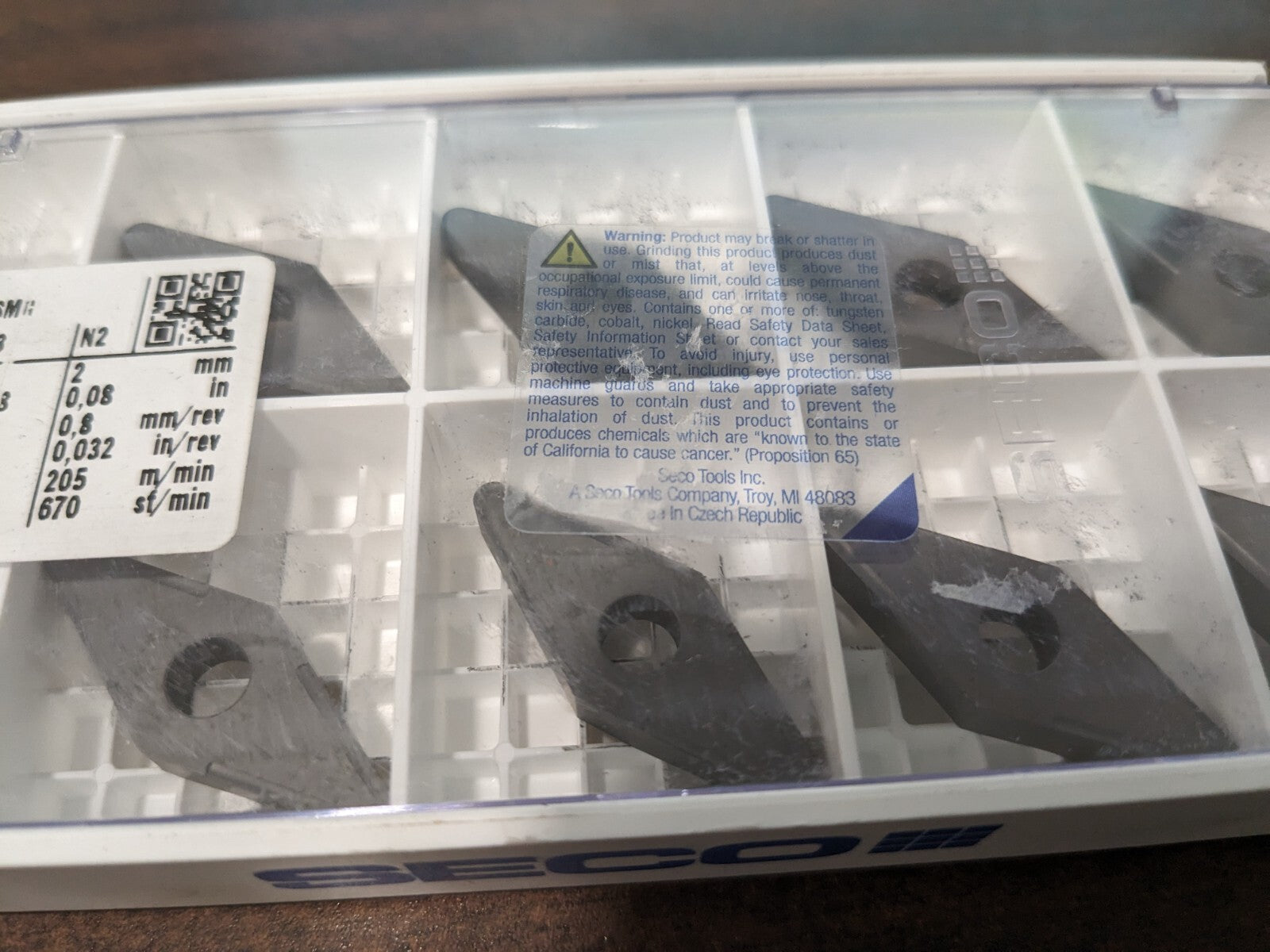

Please review photos, comes as shown.
